China Wire Rope Sling manufacturer

Steel Wire Rope Sling Luggage Tag Loop Keychain Ring , Safety Slings For Lifting

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1155
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD0.5-1.5PER SET
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Dia.:1.0mm,2.0mm Or As RequestStandard:AISI, ASTM, BS, DIN, GB, JIS
Length:120mm-200mm Or OtherPacking:Wooden Case
Alloy Or Not:NoSafety Factor:5:1
Application:Industrial Or Lighting Or Hanging Or OtherHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

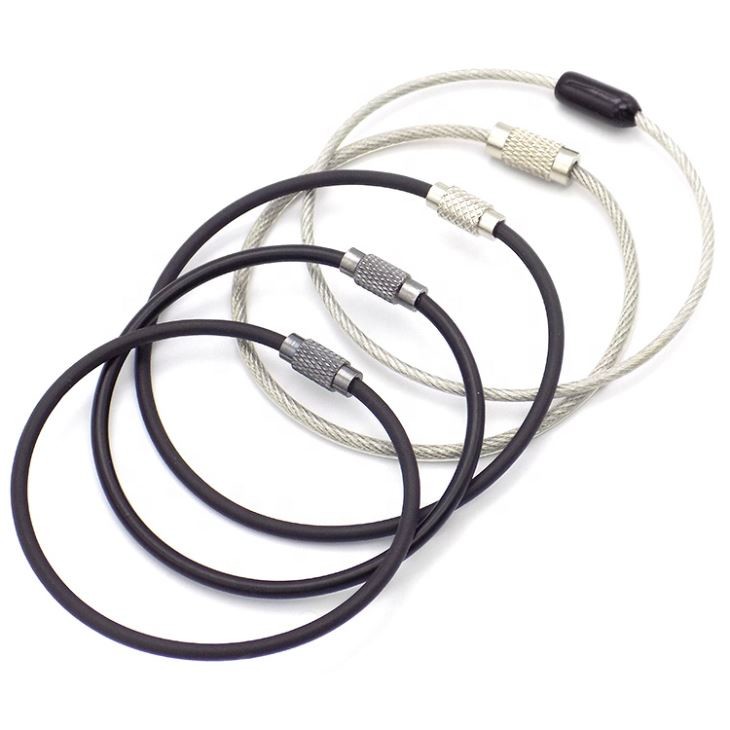

Steel Wire Rope Sling Luggage Tag Loop keychain ring,luggage tag

  • wire cable - Lightweight but tough braided for everyday durable use.
  • Cable Length: 4.3", Loop Diameter: 1.4". Chains can be connected for added longer length.
  • Ideal for hanging key, key rings/fobs, car keys, EDC flashlights, locking Carabiner clips, luggage tags, flash cards, pill fobs, USB flash etc.
  • Easily add or remove items to the loops by unscrewing/screwing the connectors.
Product Details

1. product Introduction

Steel wire rope loop keychain ring,luggage tag for hanging heavier things



2.Parameter

Ptoduct name:Steel wire luggage tag loop

Diameter:1-10 or as required

Length:120mm-200mm or other

Material:Galvanized or stailess steel

Advantage:Super tough braided and heavy duty for everyday use. Easily add or remove items to the loops by unscrewing/screwing the connectors



3.Feature

These wire keychains are waterproof and weatherproof, perfect for all applications. Plus premium threaded barrel stainless steel connectors that make these tactile and tough; perfect for hanging heavier things



4. Prodection details



Steel Wire Rope Sling Luggage Tag Loop Keychain Ring , Safety Slings For Lifting 0

Place of Origin: Guangdong, China (Mainland)

Brand Name: LKS

Product Name:Steel wire tag loop

Diamension:All the size can be custom made

Wire gauge:As request

Logo: Available

Certification: ISO9001

MOQ: 500PCS

Sample: Available



Products show;

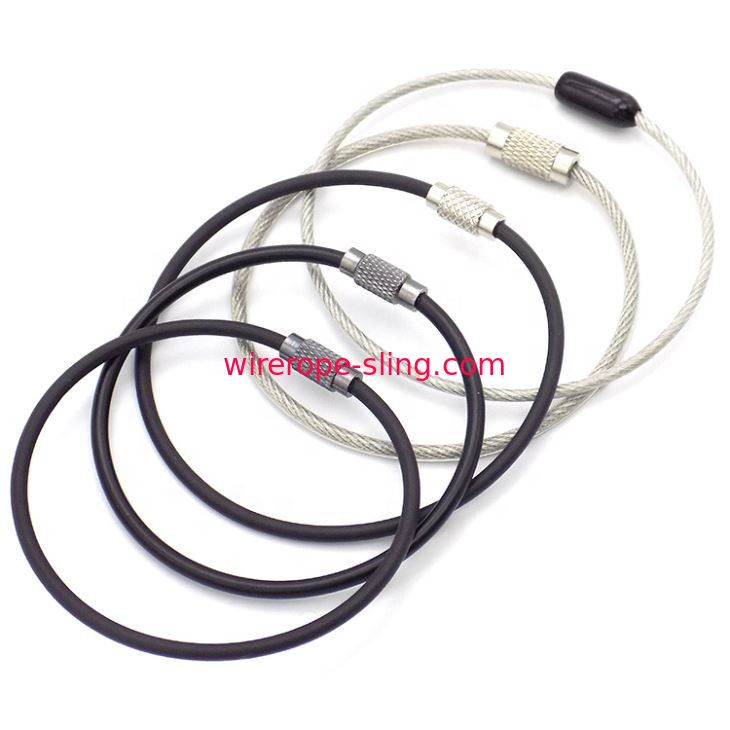

Steel Wire Rope Sling Luggage Tag Loop Keychain Ring , Safety Slings For Lifting 1

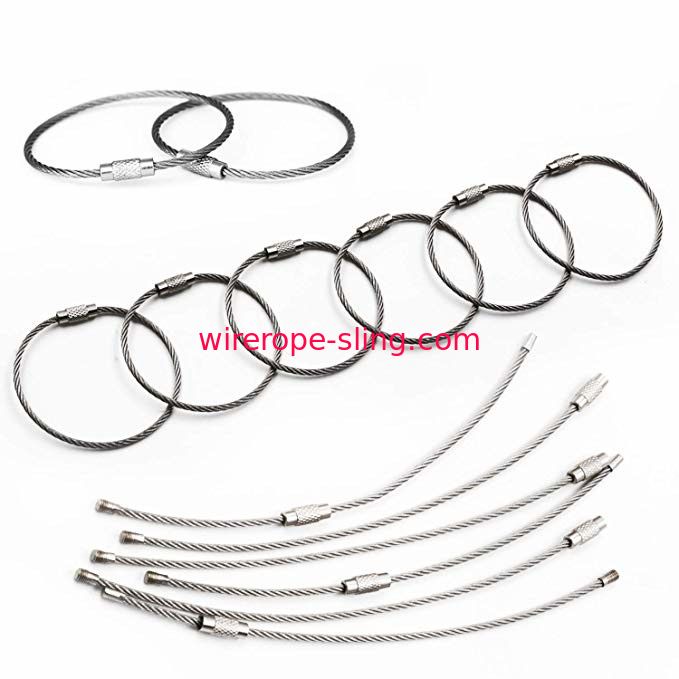

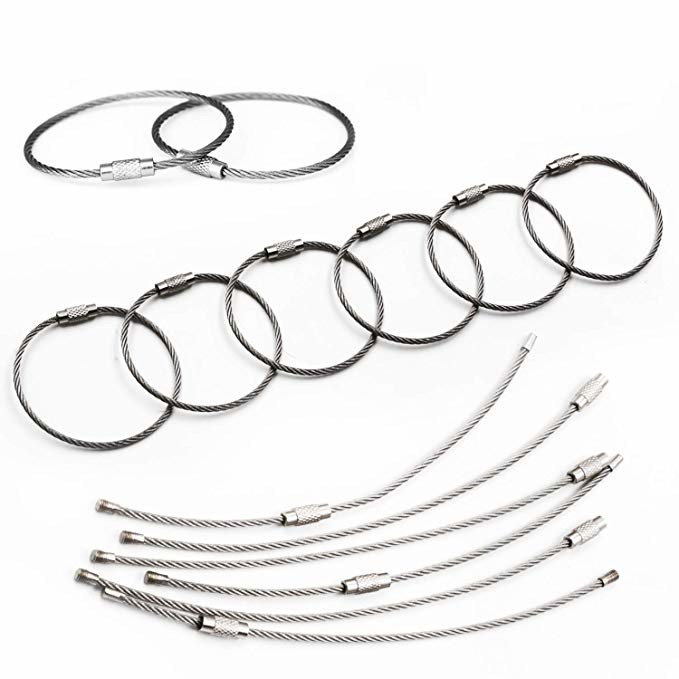

Steel Wire Rope Sling Luggage Tag Loop Keychain Ring , Safety Slings For Lifting 2Steel Wire Rope Sling Luggage Tag Loop Keychain Ring , Safety Slings For Lifting 3










Steel Wire Rope Knowledge:

1. wire rope definition

Wire rope is a type of cable which consists of several strands of steel wire laid into a helix.

Wire ropes are used dynamically for lifting and hoisting in cranes and elevators, and for transmission of mechanical power. Wire rope is also used to transmit force in mechanisms, such as a Bowden cable or the control surfaces of an airplane connected to levers and pedals in the cockpit. Static wire ropes are used to support structures such as suspension bridges or as guy wires to support towers. An aerial tramway relies on wire rope to support and move cargo overhead.

2. Wire rope construction

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.

b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.

c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

3. Lays of wire rope

The lays of wire ropes, with few exceptions, are roughly divided into two kinds-Lang's Lay and Regular Lay.

The Lang's Lay rope offers a better wearing surface when in use and can be expected to serve for a longer priod than the Regular rope, which, meanwhile, is more flexible than Lang's Lay rope and easily spliced.

4. How to measure rope size

The size of a wire rope is the diameter of the circle which will just enclose all of the strands, The correct method is to measure over any pair of opposite strands.

5. Cores for wire ropes

a. Steel

IWRC (Independent Wire Rope Core) the main core is an independent wire rope, normally having the construction 7x7.

IWRC (Independent Wire Rope Core) the main core is an independent wire strand, normally having the same construction as the outer strands of the rope.

b. Fiber

Fiber cores are stranded and comprise either:

Natural fibres such as sisal, help, jute, and cotton.

Synthetic fibres such as polyamide, polyethylene, and polypropylene.

Asbestos fibres (heat resistant)

6. Preformed ropes

In the preforming process the wires and strands are given their final helical pitch before being laid up into rope.

Ropes made in this way show no tendency to untwist when cut.

7. Lubrication

Lubrication reduces internal friction of the wires and strands and protects against corrosion.

Grease is applied to all ropes.

If special lubricants are required this must be specifically stated at time of ordering.

8. Classification of ropes according to usage

a. Running ropes (stranded ropes) are bent over sheaves and drums. They are therefore stressed mainly by bending and secondly by tension.

b. Stationary ropes, stay ropes (spiral ropes, mostly full-locked) have to carry tensile forces and are therefore mainly loaded by static and fluctuating tensile stresses. Ropes used for suspension are often called cables.

c. track ropes (full locked ropes) have to act as rails for the rollers of cabins or other loads in aerial ropeways and cable cranes.

d. Wire rope slings (stranded ropes) are used to harness various kinds of goods. These slings are stressed by the tensile forces but first of all by bending stresses when bent over the more or less sharp edges of the goods.

9. How to select wire ropes

In the working life of a wire rope are involved a lot of factors. In order to make the best selection, it should be considered the following:

a. adequate load capacity

b. fatigue resistance

c. abrasion resistance

d. corrosion resistance

e. crushing resistance

10. Steel wire rope periodic inspection

Regular inspections will help to determinate when a wire rope must be replaced.

Inspection frequency in the wire rope will be established according to environment conditions, specific use, frequency of use, and so on.

The most common characters to verify in a wire rope are shown in the next table.

Concept General Recommendations
wear 7.5% maximum from nominal diameter
diameter reduction 7.5% maximum from nominal diameter
corrosion if corrosion present, replace immediately
crushing mechanical damage, remove immediately
core exposures remove immediately
Rust clean and lubricant wire rope to prevent corrosion

steel wire rope structure :

1) Main Construction: 1X7, 1X19, 7X7, 7X19, 6X7+FC/IWS, 6X19+FC/IWRC, 6X19S(W)+FC/IWRC, 6X37+FC/IWRC, 6X36WS+FC/IWRC, 19X7, 18X7+FC etc.

2) Length: 10m—2000m / reel

3) Lay: right hand regular lay or left hand regular lay

4) Core: fiber core & steel core

5) Package: soft coil, carton, wooden or plastic reels, wooden case

6) Nominal tensile strength: 1270Mpa -- 1570Mpa



Our products had exported to many regions like North America, South America, Europe, Africa, Asia, Middle East, etc. Our factory professional made steel wire rope ,steel cable ,aircraft ,china,hardware over 20 years experience .20000tons annual yeild are a solid gurantee of qualified products for you. Guarantee excellent quality. We also could do OEM services, can well meet clients' needs and requests.



Welcome to visit our factory!
