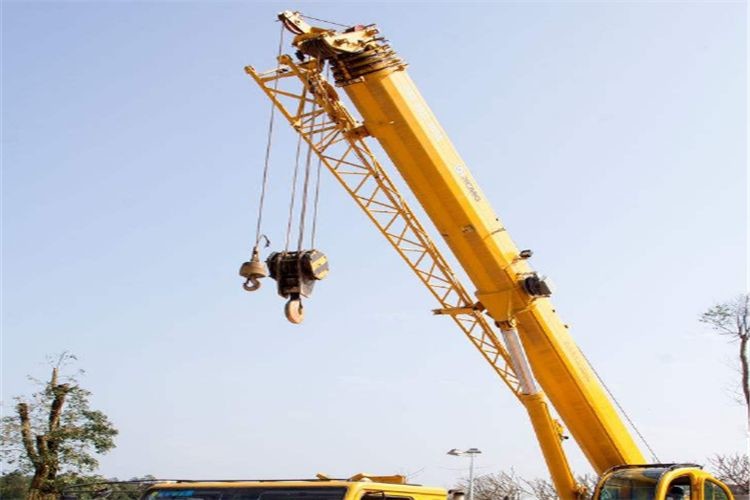

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 16-2 C
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Lifting Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:8mm-60mm
Core:Wire StrandHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Mobile CRANE Hoisting Steel Wire Rope LKS 16-2 C Outer strands compacted



Features

  • Rope category number (RCN) 23-2 according to ISO 4309
  • EN 12385-3
  • Lang lay
  • Zinc-coated class B standard
  • Rotation-resistant (a) EN 12385-3
  • Can be used with swivel
  • Special lubrication
  • Outer strands compacted

In comparison to the classic LKS 16-1, the LKS 16-2 C has compacted outer strands which provide better running properties.

ATTRIBUTES

Can be used with swivel Fettung Compressed


APPLICATIONS

Telescopic crane - Hoisting rope Lattice boom crane - Main hoisting rope Harbour crane - Hoisting rope Offshore crane - Hoisting rope Mobile crane - Hoisting rope ​Rotating tower crane - Hoisting rope





Technical Data




Ø   Weight Metallic
cross-section
MBK 1960 MBK 2160
mm   kg/100m mm2 kN kN
8   31.3 35.2 54.9 60.5
9   39.6 44.5 69.4 76.5
10   48.9 55.0 85.7 94.5
11   59.2 66.5 104 114
12   70.4 79.1 123 136
13   82.6 92.9 145 160
14   95.8 108 168 185
15   110 124 193 213
16   125 141 219 242
18   158 178 278 306
20   196 220 343 378
22   237 266 415 457
24   282 317 494 544
26   331 371 580 639
28   383 431 672
30   440 495 772





 CRANE TYPES AND WIRE ROPES





BRIDGE CRANE

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 9

orange = hoisting rope
green = trolley rope



TELESCOPING CRANEMobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 10

orange = hoisting rope
green = telescope rope



GANTRY CRANE (RTG/RMG)Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 11

orange = hoisting rope
green = trolley rope



STRADDLE CARRIER

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 12

orange = hoisting rope







LATTICE BOOM CRANE

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 13

orange = hoisting rope
yellow = auxiliary hoisting rope
blue = boom pendant rope and adjusting rope

HARBOUR CRANE

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 14

orange = hoisting rope
blue = boom pendant rope and adjusting rope





OFFSHORE CRANE

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 15

orange = hoisting rope
blue = boom pendant rope and adjusting rope

MOBILE CRANE

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 16

orange = hoisting rope
blue = boom pendant rope and adjusting rope

REVOLVING TOWER CRANE

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 17

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = assembly rope

EXCAVATING BUCKET / SCRAPERSMobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 18

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = backhaul rope

GRABBING CRANE

Mobile Crane Hoisting 8mm Wire Rope Lks 16-2 C Outer Strands Compacted 19

orange = hoisting rope
blue = boom pendant rope and adjusting rope
yellow = closing rope





LKS group prides itself on its leading position in the wire rope manufacturing sector, providing the industry with some of the most durable and pioneering technologies available. As a company, we are constantly looking to challenge the boundaries of innovation, not only to exceed customer expectations but also to develop our business into wider markets and geographies.
