304 1X7 5mm Wire Rope T/S 1570 MPa Steel Cable Wire Rope For Architecture

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 1X7
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Steel Grade:300 SeriesStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.6mm-10mmType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloySpecial Use:Cold Heading Steel
Certificate:ISO, SGSPackaging:In Coil And Pallet
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

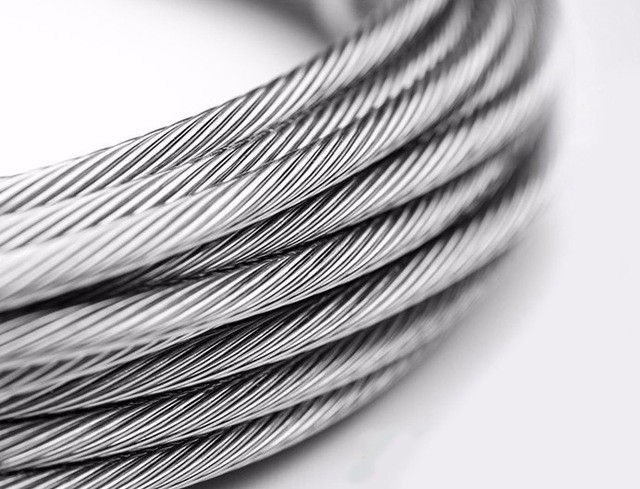

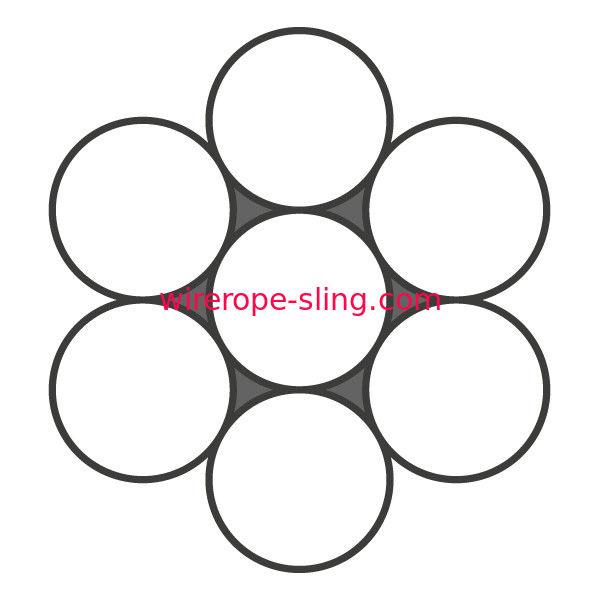

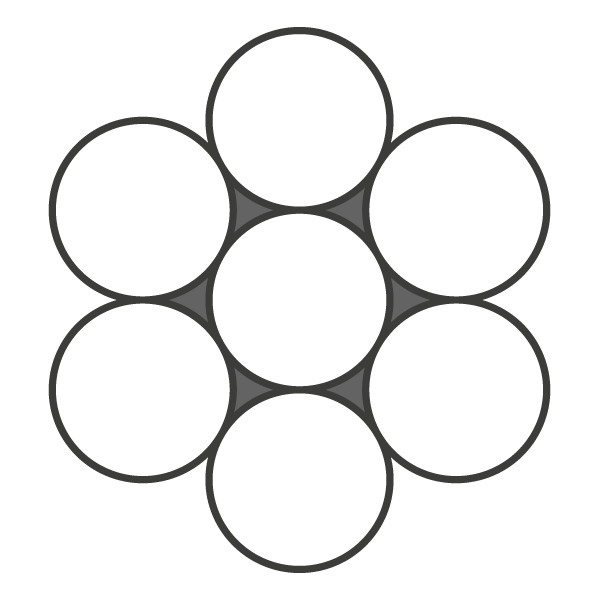

304 1X7 Stainless Steel Wire Rope T/S 1570 MPa for Architecture

Product Details





1.Standard:DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2.Diameter: 0.15 mm to 50mm
3.T/S:1470MPA, 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
4.Packing:Wooden reel and bagging, or according to customers' request.
5.Delivery date:10-30days after the order confirmation.
6.We have ISO and SGS certificates



ROPE COMPONENTS

WIRE

The smallest component of a rope.

STRAND

The element of a rope that is composed of a construction of wires which are helically stranded in the same direction in one or more layers around a core.

304 1X7 5mm Wire Rope T/S 1570 MPa Steel Cable Wire Rope For Architecture 0

CORE

The element in the middle of a round rope, around which the strands of a stranded rope or the ropes of a cable laid rope are helically stranded.

Fibre core FC

  • Natural fibre core NFC
  • Synthetic fibre core SFC

Steel core WC

  • Wire strand core WSC
  • Independent wire rope core IWRC
ROPE

Combination of core and strands.

304 1X7 5mm Wire Rope T/S 1570 MPa Steel Cable Wire Rope For Architecture 1

1 - Rope
2 - Core strand/rope
3 - Strand
4 - Wire

CLASSIFICATION ACCORDING TO INTENDED USE

RUNNING ROPES

Ropes that run over rollers, discs or reels and thus assume their bend.
Examples: hoisting ropes, crane ropes, lift ropes, scraper ropes and haulage ropes for cable cars.

STANDING ROPES

Ropes which are for the most part firmly clamped and not moved over rollers.
Examples: anchoring ropes for masts and booms and guide cables for lifts.

CARRYING ROPES

Ropes on which rolls of conveying devices run.
Examples: carrying ropes for cable cars, cable cranes and gravity return scrapers.

LIFTING SLINGS

Ropes which are used to suspend loads.

Approx.Weight



Diameter(mm)

0.3 0.4 0.6 0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0 4.0

kg/100m

0.05 0.08 0.18 0.32 0.51 0.73 1.14 1.64 2.02 3.16 4.55 8.08



Minimun Breaking Load



Diameter(mm)

0.3 0.4 0.6 0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0 4.0

MBL/KN

0.075 0.133 0.3 0.533 0.832 1.198 1.872 2.696 3.328 5.201 7.489 13.314


Main products:


Stainless steel wire rope, galvanized steel wire rope, PVC/PE/Nylon coated steel rope, Stainless steel wire, stainless steel link chain, spring wire, piano wire, etc.



Product Application:



With bright surface, slight magnetism and no cracks on forming, stainless steel wire rope is widely used in crane, bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.




Packaging

304 1X7 5mm Wire Rope T/S 1570 MPa Steel Cable Wire Rope For Architecture 2


Packing: Export Package
Inner packing:
Wooden reel and craft paper
Outer packing:
Wooden pallet or according to customer's request
