Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CE / ISO9001:2008 |
Model Number: | 7X19 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD5000/TON |
Packaging Details: | Seaworthy packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Steel Grade: | 300 Series | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
---|---|---|---|
Wire Gauge: | 0.6mm-10mm | Type: | Drawn Wire,Carbon Steel Wire |
Alloy Or Not: | Non-alloy | Special Use: | Cold Heading Steel |
Certificate: | ISO, SGS | Packaging: | In Coil And Pallet |
High Light: |
coated stainless steel cable,stainless steel cable |
Product Description
Quick Detail:

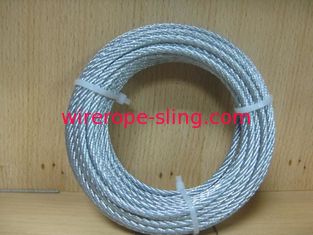

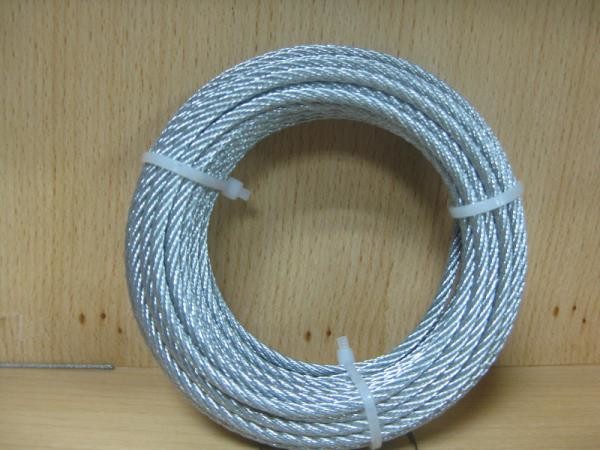

Grade: 304 stainless steel wire rope
Structure: 6*19S+FC/6*19S+IWR/6*19W+FC/6*19W+IWR
Diameter: 1- 50mm
Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
The smallest component of a rope.
The element of a rope that is composed of a construction of wires which are helically stranded in the same direction in one or more layers around a core.
The element in the middle of a round rope, around which the strands of a stranded rope or the ropes of a cable laid rope are helically stranded.
Fibre core FC
Steel core WC
Combination of core and strands.
Ropes that run over rollers, discs or reels and thus assume their bend.
Examples: hoisting ropes, crane ropes, lift ropes, scraper ropes and haulage ropes for cable cars.
Ropes which are for the most part firmly clamped and not moved over rollers.
Examples: anchoring ropes for masts and booms and guide cables for lifts.
Ropes on which rolls of conveying devices run.
Examples: carrying ropes for cable cars, cable cranes and gravity return scrapers.
Description:
Stainless steel wire rope:
1. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2. Diameter: from 0.15 mm to 50mm
3. T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
4. Packing: Wooden box and bagging, or according to customers' request.
5. Delivery date: 30days after the order confirmation.
6. We have ISO and SGS certificates
Stainless steel wire rope Mainly used for decoration, chemical metallurgy, petroleum machinery, port machinery, nuclear industry, the coal, metallurgy, chemicals, shipbuilding, bridges, electricity, rubber, military, tourism, water, light industry, aviation and aerospace industry.
Applications:
With bright surface, slight magnetism and no cracks on forming, is widely used in crane, bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.
Specifications:
GRADE | C % | NI % | CR % | P % | S % | SI % | MN % | MO % |
304 | ≦0.08 | 8-10 | 17-19 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | _ |
316 | ≦0.08 | 10-14 | 16-18 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | 2-3 |
316L | ≦0.08 | 10-14 | 16-18 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | 2-3 |
Diameter | Min Breaking Load | Weight |
2 | 2.25 | 1.6 |
2.5 | 3.42 | 2.5 |
3 | 4.51 | 3.6 |
4 | 7.99 | 6.4 |
5 | 12.5 | 10 |
6 | 24.5 | 14.4 |
8 | 30.9 | 25.6 |
10 | 48.2 | 40 |
12 | 69.5 | 57.6 |
14 | 94.6 | 78.4 |
16 | 113.5 | 102.4 |
18 | 143.6 | 129.6 |
Competitive Advantage:
1, It features ultra-high corrosion resistance,
2, surface quality, high brightness, strong corrosion resistance,
3, tensile strength and fatigue strength.
4, In particular, 316, and high corrosion resistance,
5, 316 stainless steel wire rope widest range of uses,
6, mainly for the food industry and surgical equipment.
