Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CE / ISO9001:2008 |
Model Number: | 7X19 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD5000/TON |
Packaging Details: | Seaworthy packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Steel Grade: | 300 Series | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
---|---|---|---|
Wire Gauge: | 0.6mm-30mm | Type: | Drawn Wire,Carbon Steel Wire |
Alloy Or Not: | Non-alloy | Special Use: | Cold Heading Steel |
Certificate: | ISO, SGS | Packaging: | In Coil And Pallet |
High Light: |
coated stainless steel cable,stainless steel cable |
Product Description

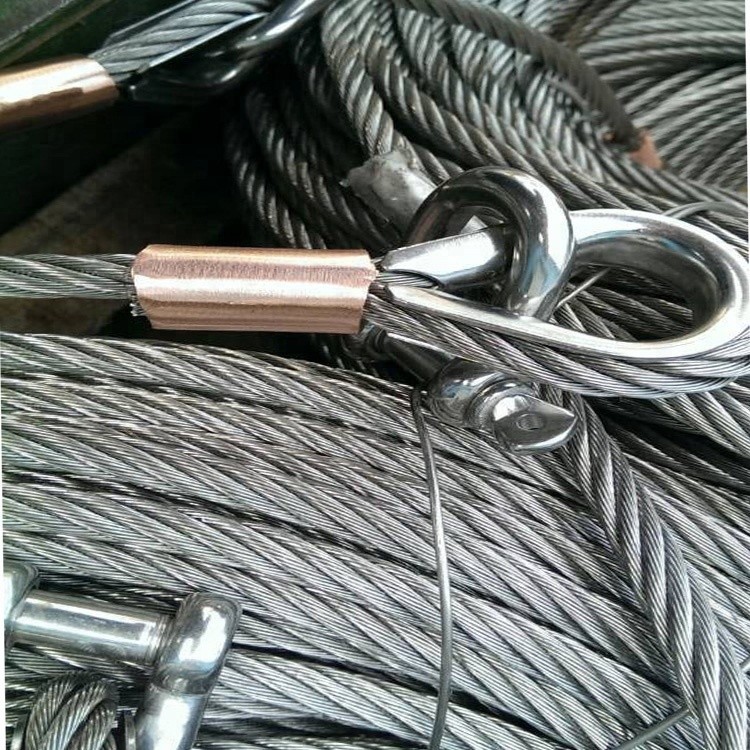

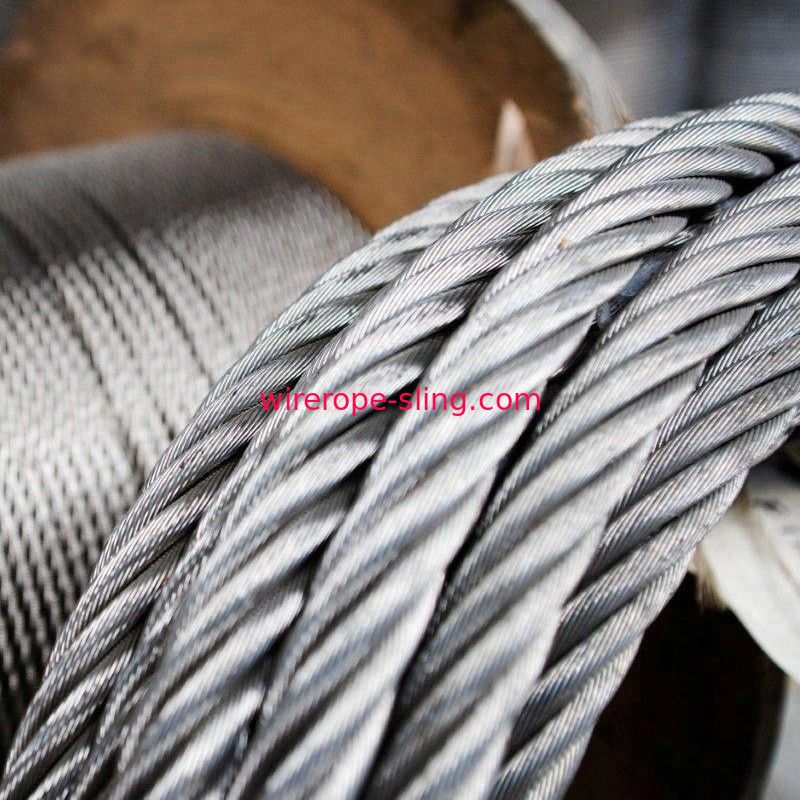

7x19 AISI316 stainless steel wire rope is used for a wide range of applications. Extremely flexible when compared to both 1x19 and 7x7, the 7x19 construction is often used where a flexible stainless steel wire rope is particularly required. 7x19 performs well for running applications. Used extensively throughout the marine industry as well as for general engineering applications, 7x19’s excellent flexibility make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
Stainless steel wire rope:
1. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2. Diameter: from 0.5 mm to 50mm
3. T/S: 1470Mpa,1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
4. Packing: Wooden box and bagging, or according to customers' request.
5. Delivery date: 30days after the order confirmation.
6. We have ISO and SGS certificates
Stainless steel wire rope Mainly used for decoration, chemical metallurgy, petroleum machinery, port machinery, nuclear industry, the coal, metallurgy, chemicals, shipbuilding, bridges, electricity, rubber, military, tourism, water, light industry, aviation and aerospace industry.
Applications:
With bright surface, slight magnetism and no cracks on forming, is widely used in crane, bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.
Packaging Details
hard strong wooden spool 1000 meters per reel 20'GP container max load 25 ton
Port
Shanghai
Lead Time :
Quantity(Tonnes) | 1 - 1000 | >1000 |
Est. Time(days) | 10 | To be negotiated |
Specification
Product Name | Stainless Steel Wire Rope |
Grade | AISI 316 |
Construction | 7x19 |
Diameter | 8mm |
Lay | Right Hand Regular Lay / Left Hand Regular Lay |
Finish | Bright |
Tensile Strength | 1470 1570 N/mm2 |
Packing | Hard Strong Plywood Reel |
Length | 1000 meters |
Dia | Weight | Nominal Tensile Strength N/mm2 | ||||
1470 | 1570 | 1670 | 1770 | 1960 | ||
mm | kg/1000m | Minimum Breaking Force kN | ||||
1.5 | 9 | 1.09 | 1.17 | 1.24 | 1.31 | 1.46 |
2 | 16 | 1.94 | 2.07 | 2.20 | 2.34 | 2.59 |
3.2 | 41 | 4.97 | 5.31 | 5.64 | 5.98 | 6.62 |
4 | 64 | 7.76 | 8.29 | 8.82 | 9.35 | 10.35 |
4.76 | 91 | 10.99 | 11.74 | 12.49 | 13.23 | 14.65 |
6 | 144 | 17.46 | 18.65 | 19.84 | 21.03 | 23.28 |
8 | 256 | 31.05 | 33.16 | 35.27 | 37.38 | 41.40 |
10 | 400 | 48.51 | 51.81 | 55.11 | 58.41 | 64.68 |
12 | 576 | 69.85 | 74.61 | 79.36 | 84.11 | 93.14 |
14 | 784 | 95.08 | 101.55 | 108.02 | 114.48 | 126.77 |
16 | 1024 | 124.19 | 132.63 | 141.08 | 149.53 | 165.58 |
18 | 1296 | 157.17 | 167.86 | 178.56 | 189.25 | 209.56 |
19.5 | 1521 | 184.46 | 197.01 | 209.56 | 222.10 | 245.95 |
20 | 1600 | 194.04 | 207.24 | 220.44 | 233.64 | 258.72 |
22 | 1936 | 234.79 | 250.76 | 266.73 | 282.70 | 313.05 |
24 | 2304 | 279.42 | 298.43 | 317.43 | 336.44 | 372.56 |
25.4 | 2581 | 312.97 | 334.26 | 355.55 | 376.84 | 417.29 |
26 | 2704 | 327.93 | 350.24 | 372.54 | 394.85 | 437.24 |
28 | 3136 | 380.32 | 406.19 | 432.06 | 457.93 | 507.09 |
30 | 3600 | 436.59 | 466.29 | 495.99 | 525.69 | 582.12 |
32 | 4096 | 496.74 | 530.53 | 564.33 | 598.12 | 662.32 |
1. Can samples be sent free?
For quality reference, we can supply 1-2 samples for free. But the freight will be collected.
2.Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of steel wire rope in China, having 20 years experience of producing cables and more than 40 years export stainless steel wire rope,wire. We
have always been cooperating with all domestic petroleum and petrochemical companies. And our products have win good reputations. If this is your first time to contact us, please trust
us, we’ll not let you down.
3.Can I place an order as appointed type or technical parameter of well logging cable?
Yes, this is achievable.
4.What is your payment terms?
pre T/T 50% downpayment upon order confirmation, balance before loading.
