Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO9001:2008 |
| Model Number: | 7X7 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100sets |
| Price: | USD5000/TON |
| Packaging Details: | Seaworthy packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Steel Grade: | 300 Series | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Wire Gauge: | 0.6mm-30mm | Type: | Drawn Wire,Carbon Steel Wire |
| Alloy Or Not: | Non-alloy | Special Use: | Cold Heading Steel |
| Certificate: | ISO, SGS | Packaging: | In Coil And Pallet |
| High Light: |
coated stainless steel cable,stainless steel cable |
||
Product Description

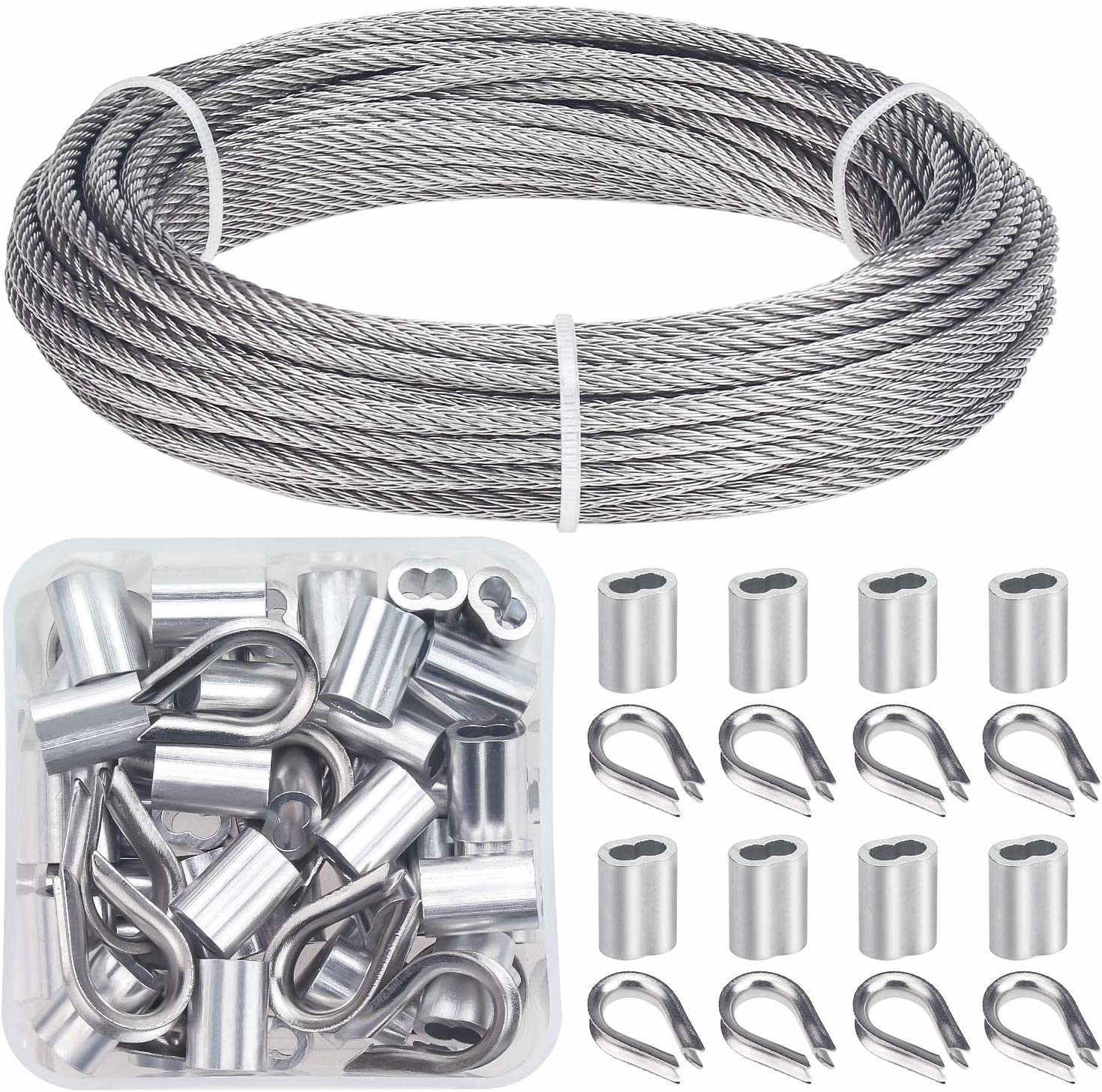

Cable Railing Kits Includes 1/8 Inch x 33 Feet 304 Stainless Steel Wire Rope Cable, 50 Pieces Aluminum Crimping Sleeves and 12 Pieces Thimbles for Railing, Decking, Picture Hanging
【Specifications:】
Wire rope cable:
Color: silver
Construction: 7x7
Material: 304 stainless steel
Diameter: 1/8 inch; Length: 33 feet

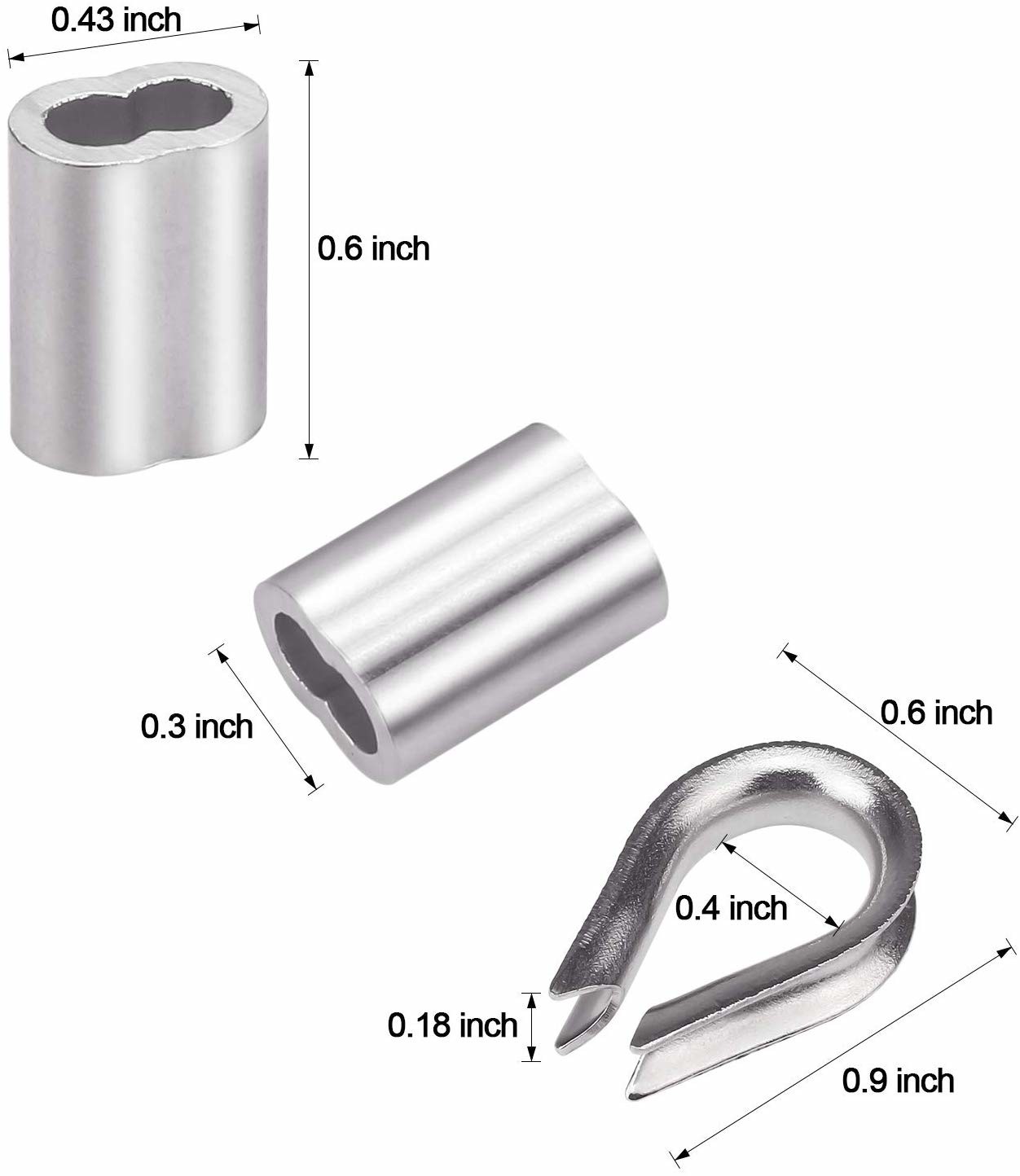

Crimping loop sleeve:
Quantity: 50 pieces
Material: aluminum
Size: fit for 1/8 inch diameter wire rope cable
Thimble:
Quantity: 12 pieces
Material: 304 stainless steel
Size: fit for 1/8 inch diameter wire rope cable
【Feature:】
1, Wire rope cable and thimble are made of 304 stainless steel which have superior rust resistance and the excellent of oxidation resistance in bad environment.
2, Perfect for deck cable railing system, DIY balustrade, outdoor shades, hanging string lights in the garden, building floats for oyster gardening, clotheslines or even a dog run system in the backyard.
【Package Included:】
50 x aluminum crimping sleeves
12 x stainless steel wire rope thimbles
1/8 inch x 33 feet 304 stainless steel wire rope cable
| Item Weight | 1.25 pounds |
|---|---|
| Package Dimensions | 7.9 x 5.6 x 1.6 inches |
| Batteries Required? | No |
There are some customers telling us they need stainless steel items, but have no idea about the difference between stainless steel 304 and 316. We would like to give a briefly explanation:
1. SS316 is more expensive than SS304
2. SS316 is better than SS304 in corrosion resistance, so if the application areas are bad, like near sea, we highly recommend you choose SS316.
3. Chemical Composition:
|
MATERIAL |
C | Si | Mn | P | S | Cr | Ni | Mo |
| ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 18.0-20.0 | 8.0-10.0 | - |
|
MATERIAL |
C | Si | Mn | P | S | Cr | Ni | Mo |
| ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 16.0-18.0 | 10.0-12.0 | 2.0-3.0 |
7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
| Breaking Loads | |||
|---|---|---|---|
| Nominal Diameter | Approximate Mass | Minimum breaking loads - 1570 Mpa | |
| [mm] | [kg/m] | [kN] | [Kg] |
| 1 | 0.004 | 0.59 | 60 |
|
2.0
|
0.016
|
2.37 | 241 |
|
2.5
|
0.023
|
3.71 | 378 |
|
3.0
|
0.034
|
5.34 | 544 |
|
4.0
|
0.060
|
9.49 | 967 |
|
5.0
|
0.095
|
14.80 | 1,509 |
|
6.0
|
0.136
|
21.40 | 2,182 |
|
7.0
|
0.185
|
29.10 | 2,967 |
|
8.0
|
0.242
|
38.00 | 3,874 |
|
10.0
|
0.378
|
59.30 | 6,046 |
|
12.0
|
0.545
|
85.40 | 8,708 |
|
14.0
|
0.741
|
117.00 | 11,930 |
