Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO9001:2008 |
| Model Number: | 7X7 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100sets |
| Price: | USD5000/TON |
| Packaging Details: | Seaworthy packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Steel Grade: | 300 Series | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Wire Gauge: | 0.6mm-30mm | Type: | Drawn Wire,Carbon Steel Wire |
| Alloy Or Not: | Non-alloy | Special Use: | Cold Heading Steel |
| Certificate: | ISO, SGS | Packaging: | In Coil And Pallet |
| High Light: |
coated stainless steel cable,stainless steel cable |
||
Product Description

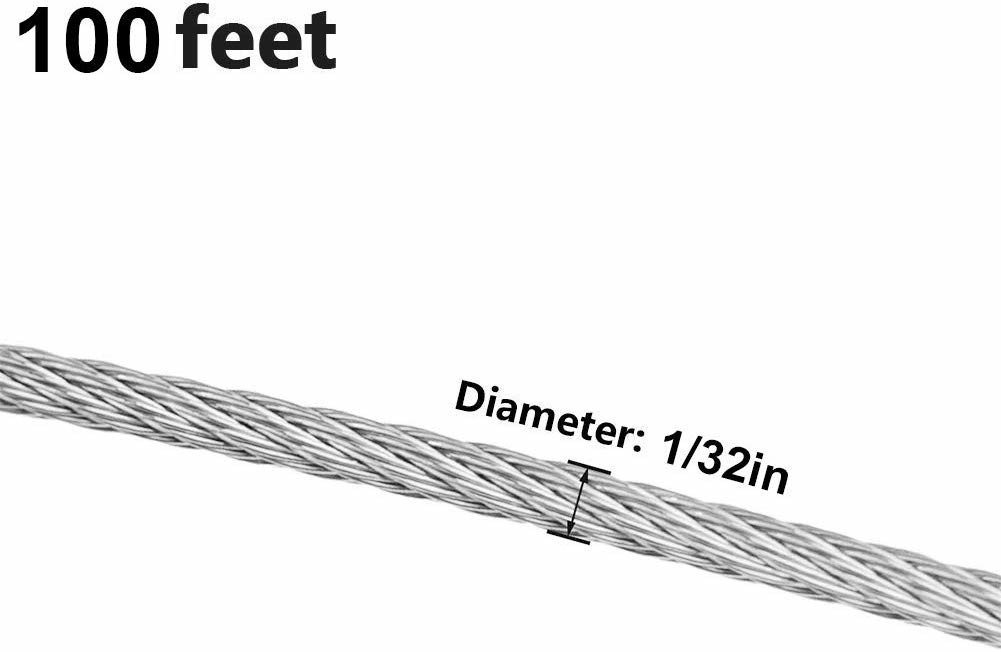

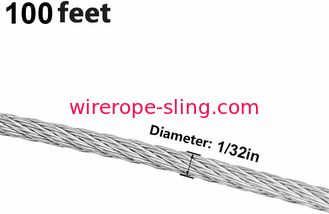

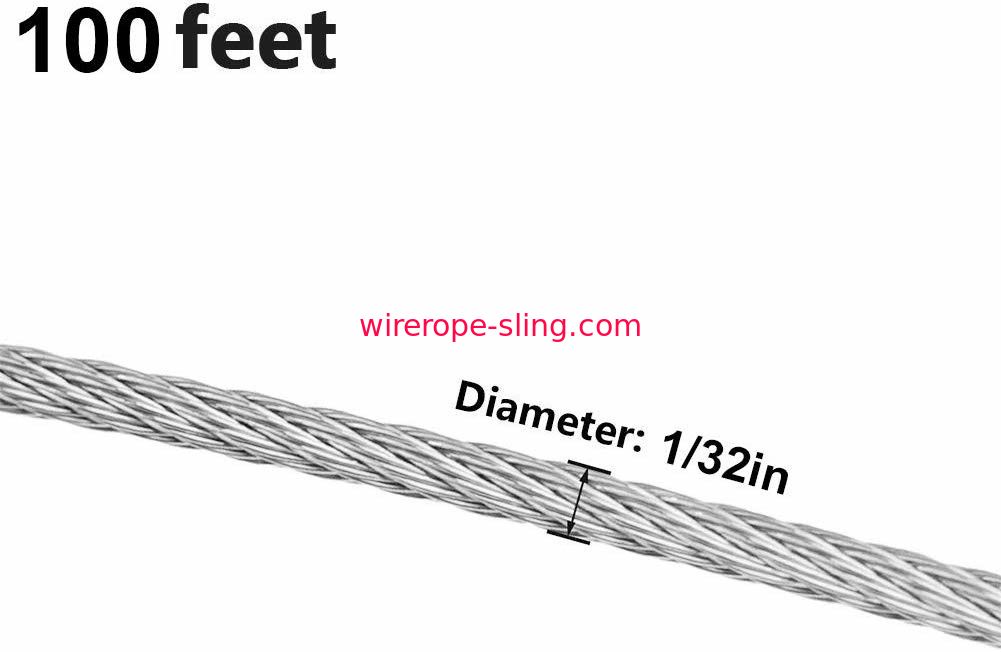

Picture Hanging Kit D-Ring Picture Hangers with Screws, Picture Hanging Wire Rope, Stainless Steel Thimble, Aluminum Crimping Loop Sleeve, Supports up to 33 lbs (100 Feet)
-Flexible picture hanging wire.
-Easy to twist and install.
-Smooth on your fingers.
-Helps to adjust perfectly to countless projects such as photo frames, cross-stitch, marks, party decoration, mirrors and wall decor.
-Practical for home, office, workplace, or anywhere you need to this picture hanging wire.
Specifications:
Color: silver.
Tension test: 33 pounds
Material: Stainless steel, aluminum, nickel plated metal.
Photo frame wire: 100 feet in length.

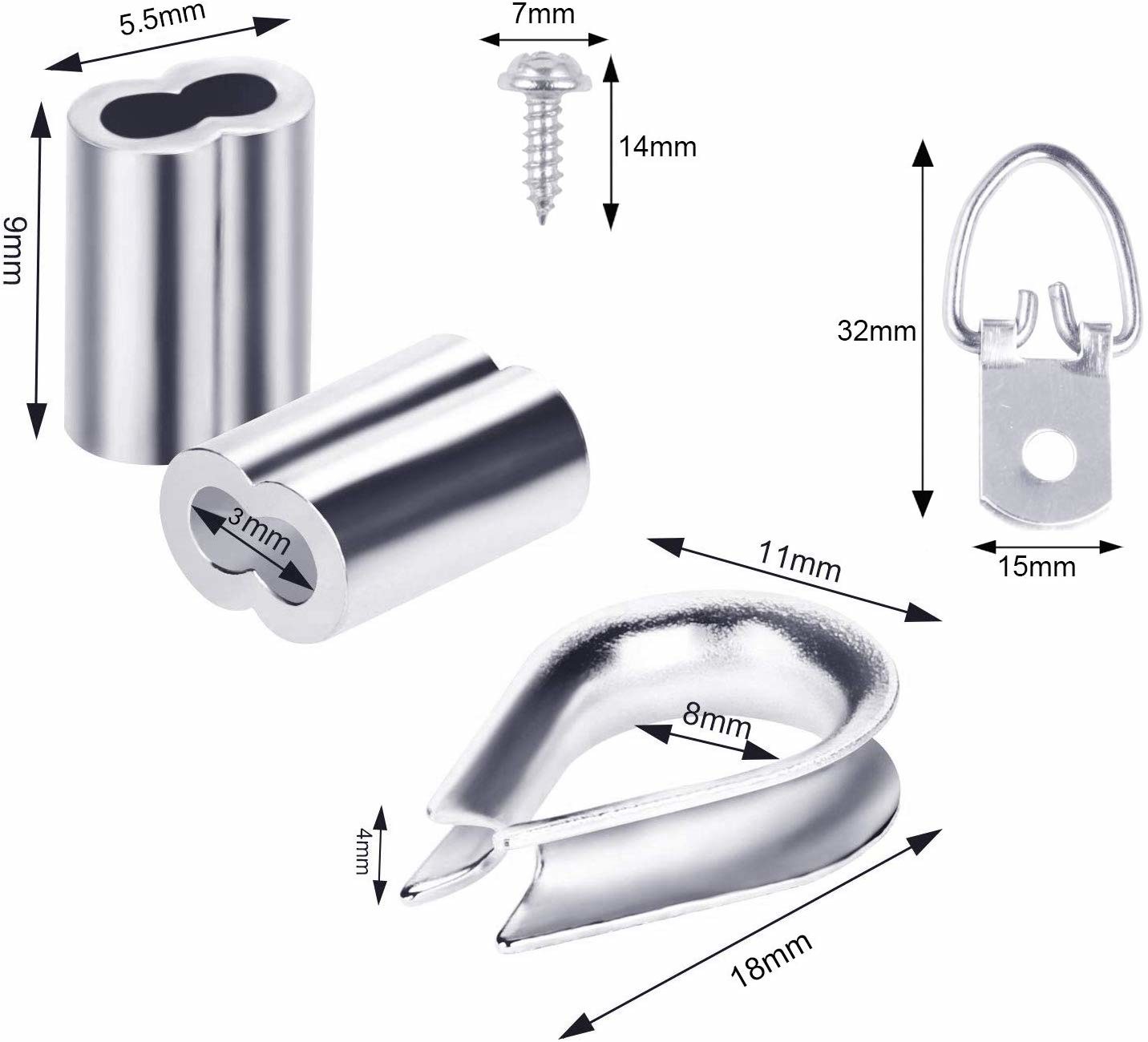

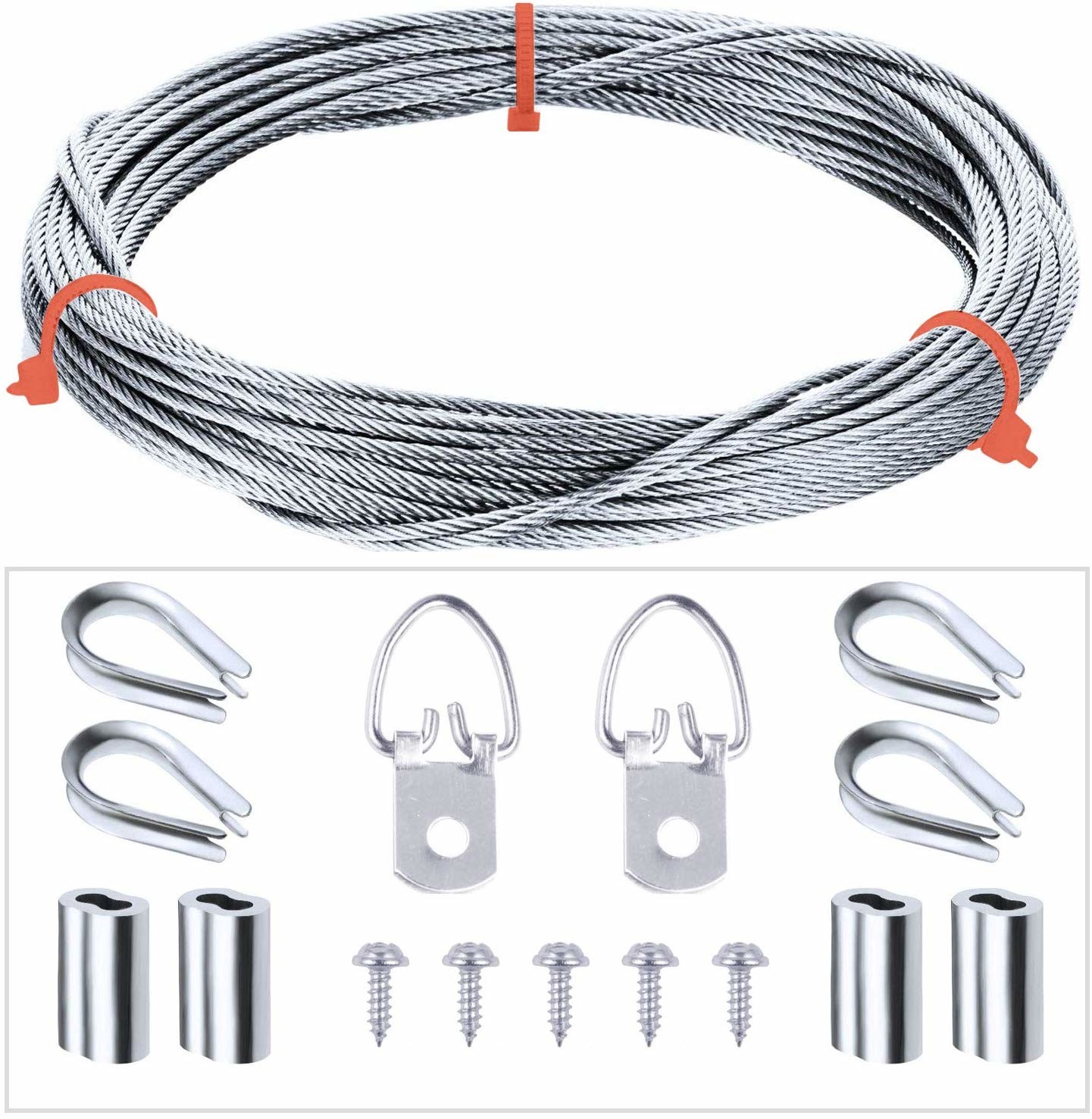

Package Included:
1 * 100 feet picture hanging wire
50 * Aluminum Crimping Loop Sleeve
20 * D-ring picture hanger
20 * Screws
10 * Stainless Steel Thimble
| Item Weight | 5.6 ounces |
|---|---|
| Package Dimensions | 8.2 x 6.8 x 0.2 inches |
| Style | 100 Feet |
| Batteries Required? | No |
Stainless steel rigging is a tool which used between the lifting machine and the lifting object in order to achieve the movement of the object or stabilize the connection of some components. Stainless steel rigging hardware is widely used in sea port, electricity, shipbuilding, petrochemical, mining, railway, construction, metallurgy and chemical industry, automobile manufacturing, engineering machinery, paper-making machinery, industrial control, logistics, large transport, marine engineering, airport construction, bridges, aviation, aerospace, venues and other important industries. We should pay attention to the following when using stainless steel rigging:
1, Do not use damaged rigging.
2, Do not twist them when lifting.
3, Do not let the tie knot.
4, When moving rigging, do not drag it.
5, Avoid the seizure or shock load.
6, Each rigging must be checked before use.
7, If the rigging is likely to be contaminated by chemicals or used at high temperatures, you should ask suppliers for advice.
7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
| Breaking Loads | |||
|---|---|---|---|
| Nominal Diameter | Approximate Mass | Minimum breaking loads - 1570 Mpa | |
| [mm] | [kg/m] | [kN] | [Kg] |
| 1 | 0.004 | 0.59 | 60 |
|
2.0
|
0.016
|
2.37 | 241 |
|
2.5
|
0.023
|
3.71 | 378 |
|
3.0
|
0.034
|
5.34 | 544 |
|
4.0
|
0.060
|
9.49 | 967 |
|
5.0
|
0.095
|
14.80 | 1,509 |
|
6.0
|
0.136
|
21.40 | 2,182 |
|
7.0
|
0.185
|
29.10 | 2,967 |
|
8.0
|
0.242
|
38.00 | 3,874 |
|
10.0
|
0.378
|
59.30 | 6,046 |
|
12.0
|
0.545
|
85.40 | 8,708 |
|
14.0
|
0.741
|
117.00 | 11,930 |
Product Show
