Double Loop X 20-1/4 Wire Rope Sling Jack Hammer Hose Safety Cable Whipcheck

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: ISO9001
Model Number: WB1
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Price: US$1-US$20 per Set
Packaging Details: Polyster bag+ Standard Export Carton
Delivery Time: 5-15 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000Sets Monthly

Detail Information

Name:Whipcheck Safety CableStandard:AISI, ASTM, BS, DIN, GB
Alloy Or Not:Non-alloyDiameter:1mm-5mm,or As Your Requirement
Process:Die Casting,punchingApplication:Use Of Whip Checks
Keyword:Hose Safety CableSteel Grade:Carbon Steel & Stainless Steel
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

1/8 Steel Wire Rope Sling Double Loop x 20-1/4 Jack Hammer Hose Safety Cable Whipcheck



Product features

  • Length: 20-1/4 inch
  • Diameter: 1/8" Steel Double Loop
  • Jack Hammer Hose Safety Cable





Product description

LKS CU-SC2014 1/8" Steel Double Loop x 20-1/4" Jack Hammer Hose Safety Cable Whip. Whipping hoses are dangerous! The use of an LKS Jack Hammer Hose Safety Cable ensures that if couplings are accidentally disconnected they will not fly and hurt someone. Only one Jack Hammer Hose Safety Cable is required for each universal coupling set - two couplers coupled together. The pin guarantees the fittings are properly connected as pin will not go through holes in mating flanges until couplings are locked in place.

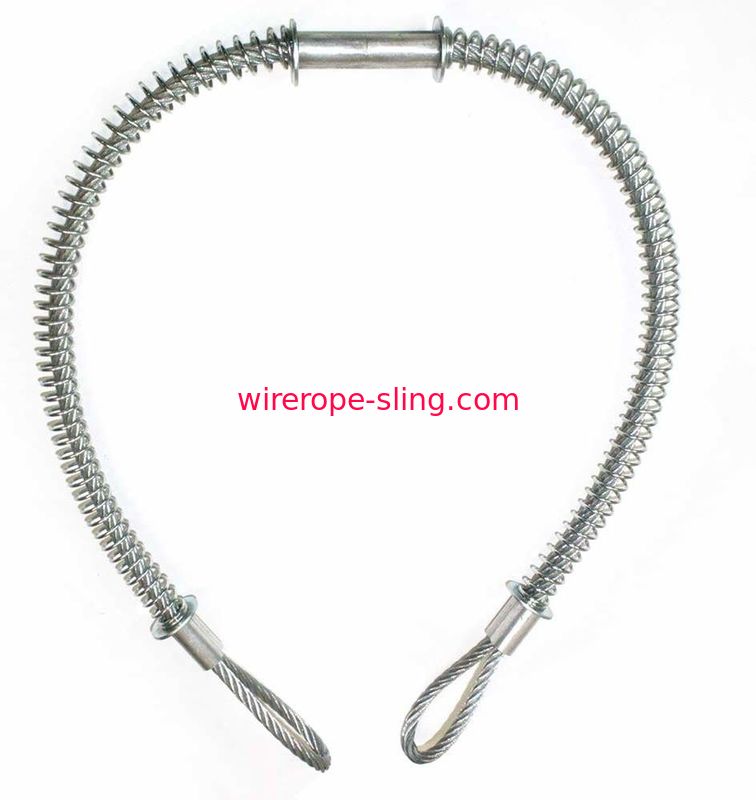

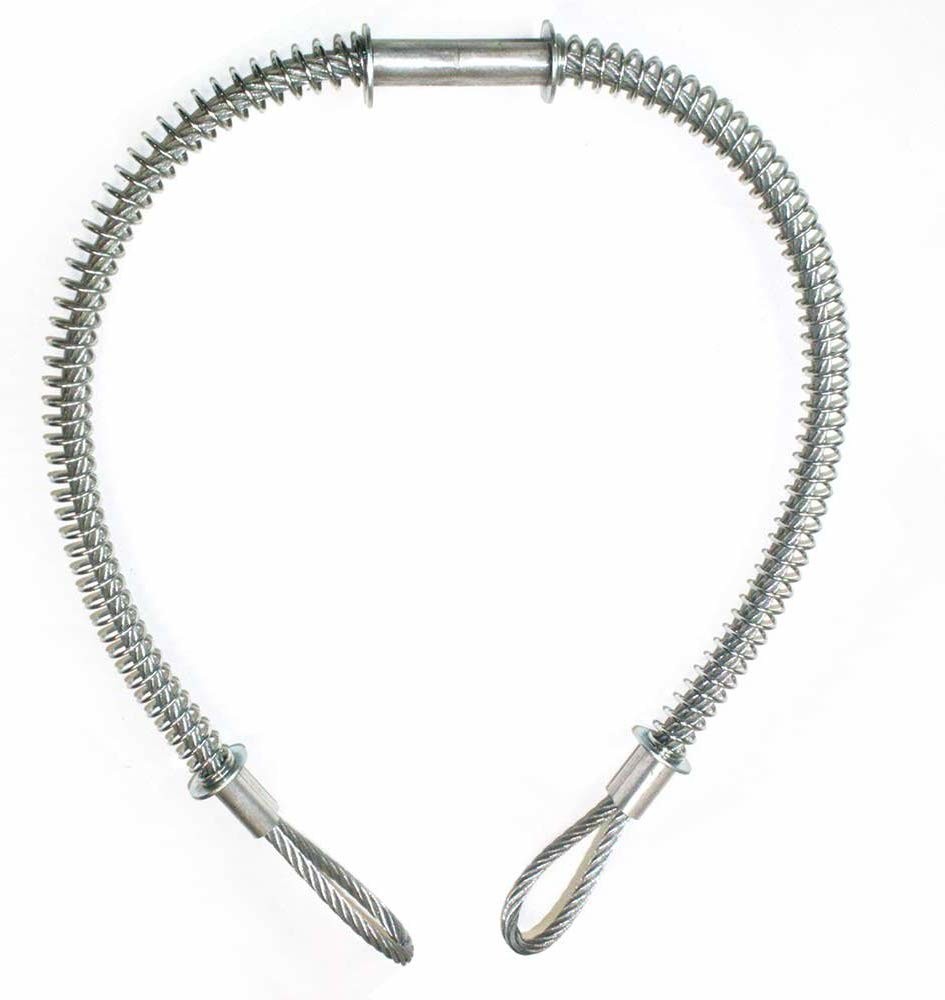

Double Loop X 20-1/4 Wire Rope Sling Jack Hammer Hose Safety Cable Whipcheck 0



Double Loop X 20-1/4 Wire Rope Sling Jack Hammer Hose Safety Cable Whipcheck 1

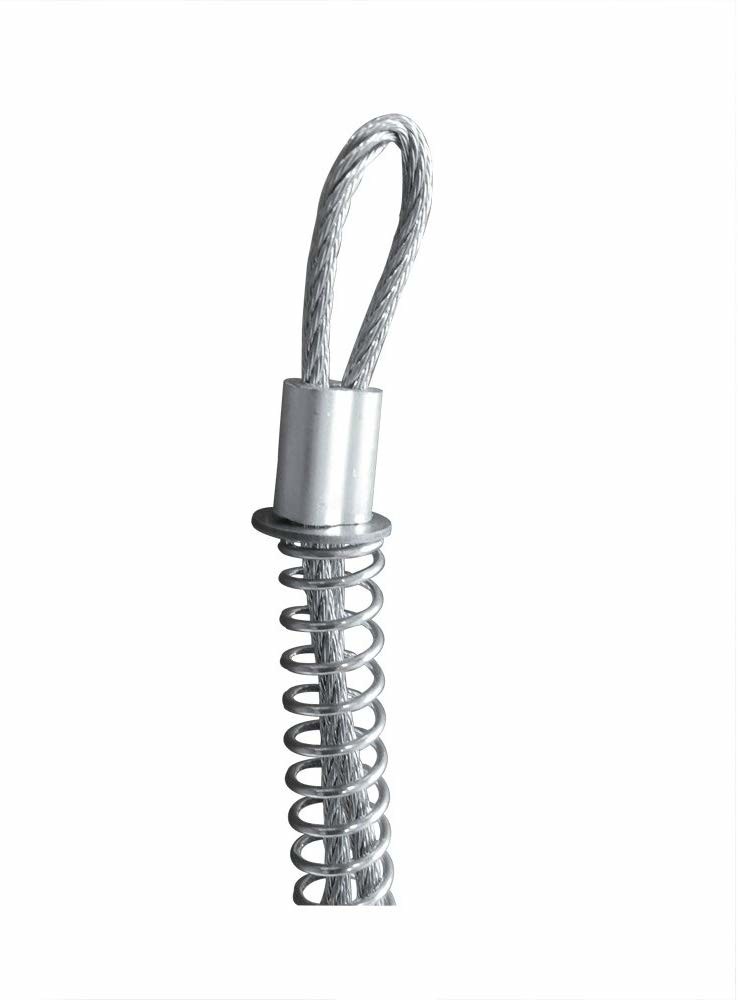

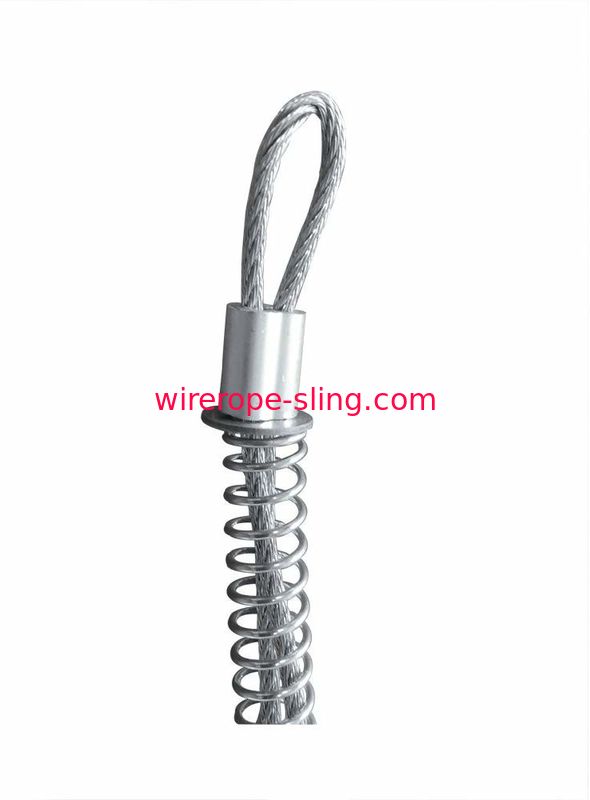

WhipCheck Safety cables are strong steel cables with spring loaded loops which are used o on all blast hose and air hose connections to reduce the danger when hose coupling fails. Whipcheck Safety Cables prevent injury to operators and damage to plant and machinery.

Type 1: steel whipcheck safety cable(steel cable and plated spring and aluminum ferrule)

Type 2: stainless whipcheck safety cable(stainless steel cable and spring and copper ferrule)

1/8"X20 1/4" 100PCS/CTN

1/4" X 3/8" 50PCS/CTN

Feature: easy to install and move(simply pull back the spring and slip the loops on the 'Whipcheck' over each hose before connection to provide security against hose whip.)

For more information and price, Pls contact us.


Hose to Tool
Part Number Hose ID(in.) Cable(in.) Length(in.) Max.Work. Press.(PSI)
WSR1 1/2 - 1-1/4 1/8 20-1/4 200
WSR3 1/2 - 2 3/16 28 200
WSR2 1-1/2 - 3 1/4 38 200
WSR4 4 3/8 44 200



Hose to Hose
Part Number Hose ID(in.) Cable(in.) Length(in.) Max.Work. Press.(PSI)
WB1 1/2 - 1-1/4 1/8 20-1/4 200
WB3 1/2 - 2 3/16 28 200
WA2 1-1/2 - 3 1/4 38-1/4 200
WA4 4 3/8 44 200





FAQ

Q: Are you trading company or manufacturer ?

A: We are factory with our own foundry, machining, assembly, test and packing.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: all payments are ok.

If you have another question, pls feel free to contact us as below: www.lkingroup.co
