Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: ISO9001
Model Number: TGM
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: $15.00 - $50.00 / Pieces
Packaging Details: Standard export package
Delivery Time: 5-15 working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000 Piece/Pieces per Month

Detail Information

Type:Spiral WrappingSize:Customized
Name:Wire Lifting SlingsPackaging:Plastic Bags And Carton Box
Color:Gray,whith,etcDuty:Standard Duty
Head:Single /Double HeadUsage:Insulation Protection
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

Hot Galvanized Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling



Choose from a comprehensive range of cable and conductor pulling products. Each has been designed and engineered to deliver reliable performance for the installation of cables or pipes through ducts, conduits and trenches.

The cable grip adds little to the overall diameter of the cable, with ‘free passage’ normally available through sheave blocks and pipes.

  • Light, medium and heavy-duty options
  • Precise, hand-woven construction
  • Ideal on ‘new for old’ cable installations
  • Swivel links for reduced torque build-up
  • Growing range of pulling accessories

Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 0



1. with flexibility,moderate softness,high elasticity,wear resistance,corrosion resistance,closely mesh,the cable can easily set into the open mouth,passing the bend easily,will not hurt the cable,durable.

2. cable mesh grip is the mesh structure,more drawing and more tightly,only need to stay in the opposite direction to promote network,cable can be easily wear into or take out the cable.

3. using Swedish ALURIT hydraulic press to press at the pressure point of cable nets,smooth appearance,large tensile load strength.

4. the material can be hot dip galvanized high strength steel wire rope ,304,316 or 316L.Cable grip using composite weaving method of single strand,double strand,three strands or multi-strand multilayer.





Product Display

The Cable Grip has two types of the material: stainless steel and hot galvanized steel.

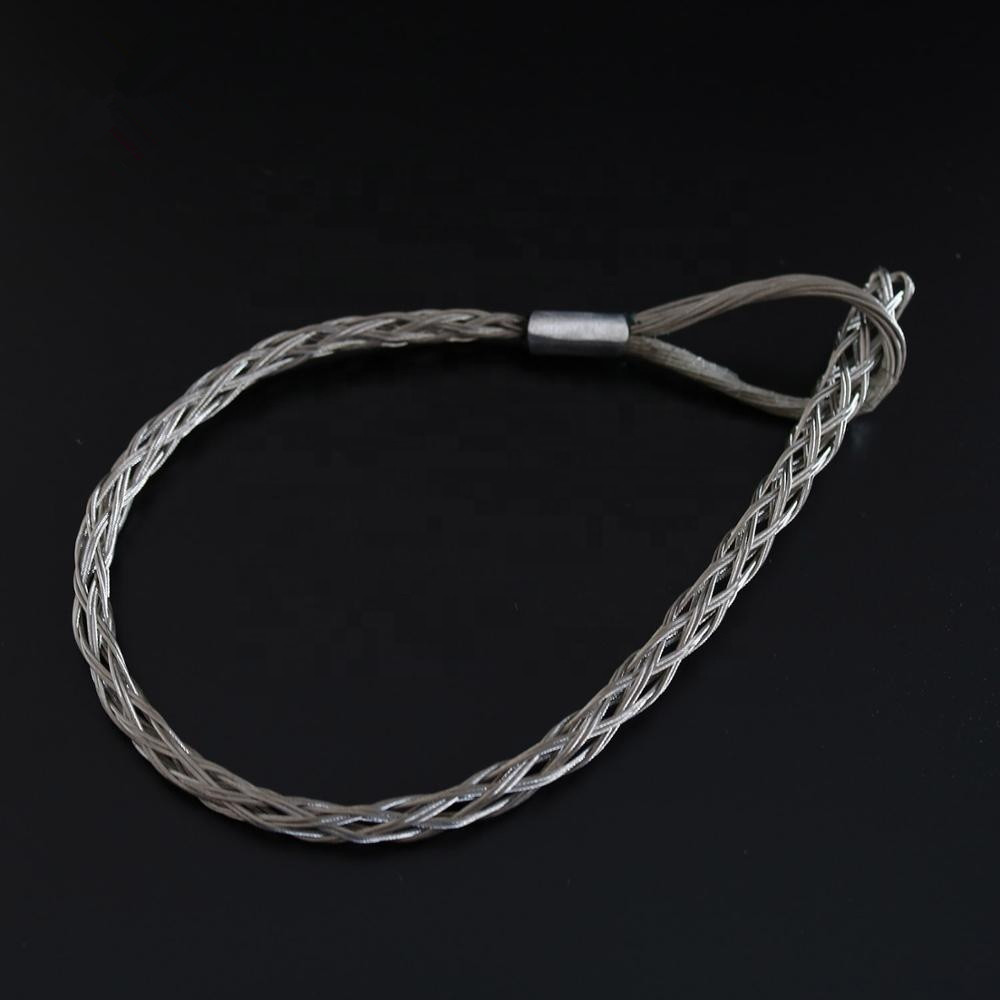

Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 1

Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 2



Specification table



Different types with different specifications,We are OEM,we can do as your demand.

Model

Size Range

(mm)

Mesh Length

(mm)

Total Length

(mm)

Breaking

(KN)

Strength

(KG)

TGM-16 13-18 270 350 11.76 1200
TGM-22 18-25 390 500 11.8 1205
TGM-30 25-37 550 680 15.68 1600
TGM-45 37-50 650 800 29.4 3000
TGM-60 50-63 730 900 43.12 4500
TGM-75 63-75 900 1100 49 5000
TGM-90 75-88 1030 1270 58.8 6000
TGM-100 88-101 1130 1372 58.8 6000
TGM-110 101-114 1330 1560 80.36 8200
TGM-125 115-127 1500 1750 112.7 11500
TGM-135 124-152 1730 1960 122.5 12500
TGM-160 153-180 2000 2300 147 15000
TGM-200 180-230 2000 2300 196 20000
TGM-250 230-280 2000 2300 196 20000
TGM-280 280-320 2000 2350 196 20000
Packaging & Delivery

The Cable Grip is usually packed by the carton.

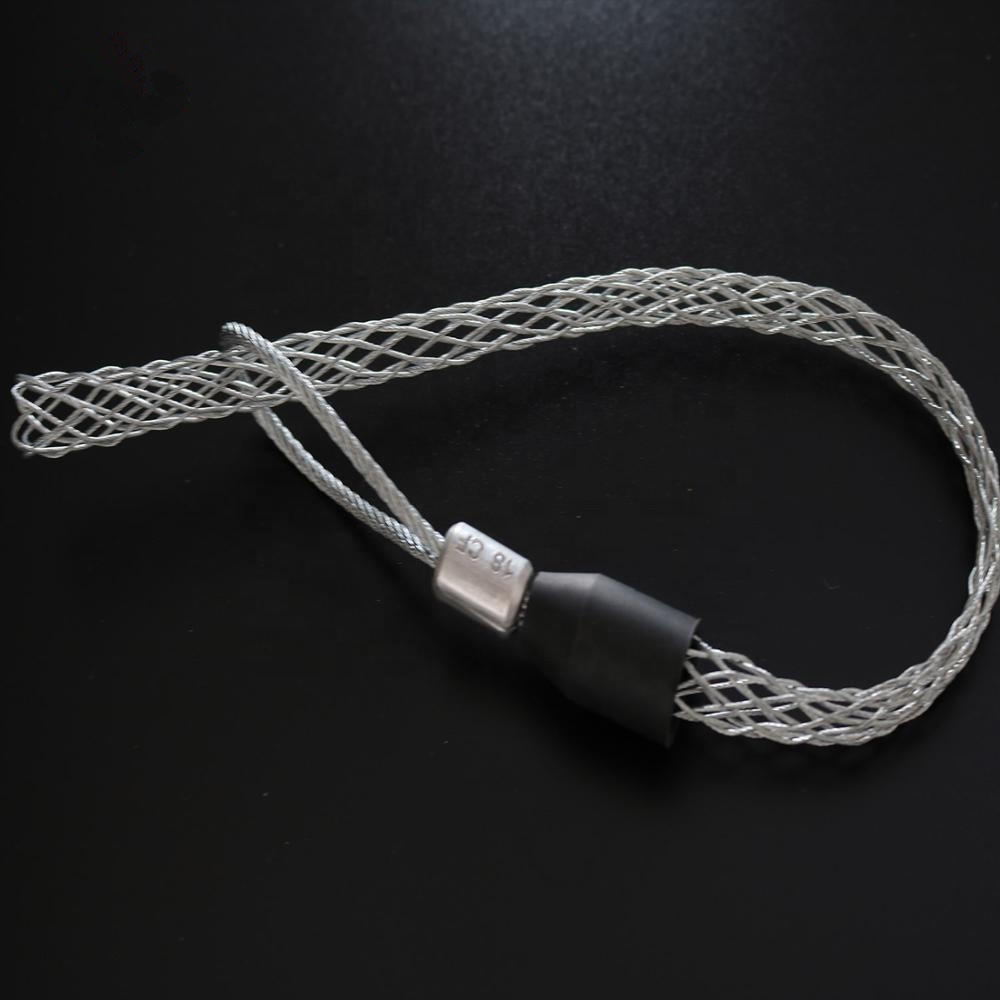

Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 3

Application



Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 4

 Product Show

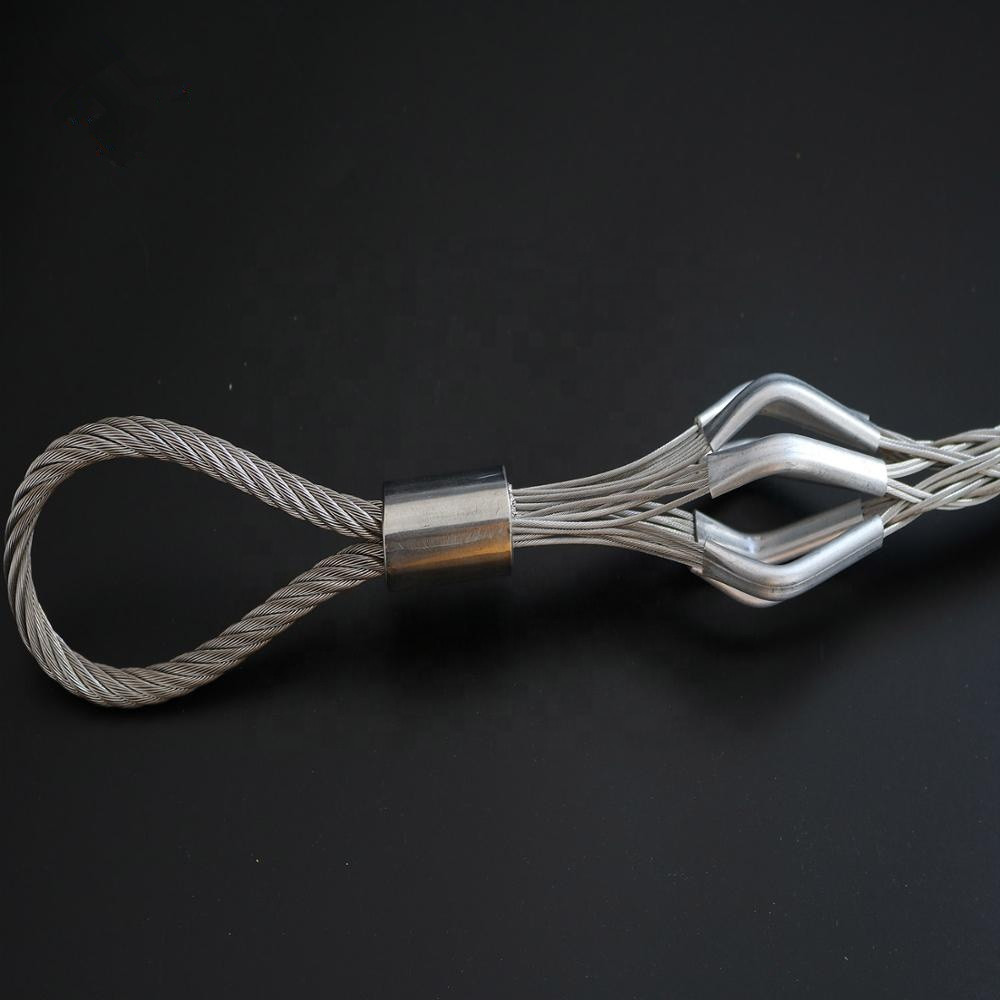

Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 5

Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 6

Standard Duty Steel Wire Rope Head Pulling Cable Grip For Cable Pulling Sling 7
