Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | ISO9001 |
| Model Number: | MG |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5 Pieces |
| Price: | $15.00 - $50.00 / Pieces |
| Packaging Details: | Standard export package |
| Delivery Time: | 5-15 working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Cable Grip | Usage: | Insulation Protection |
|---|---|---|---|
| Material: | Stainless Steel,Hot-dipped Galvanized Steel Cable Grip | Packaging: | Plastic Bags And Carton Box |
| Color: | Gray,whith,etc | Duty: | Standard Duty |
| Head: | Single /Double Head | Application: | Cable System |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description

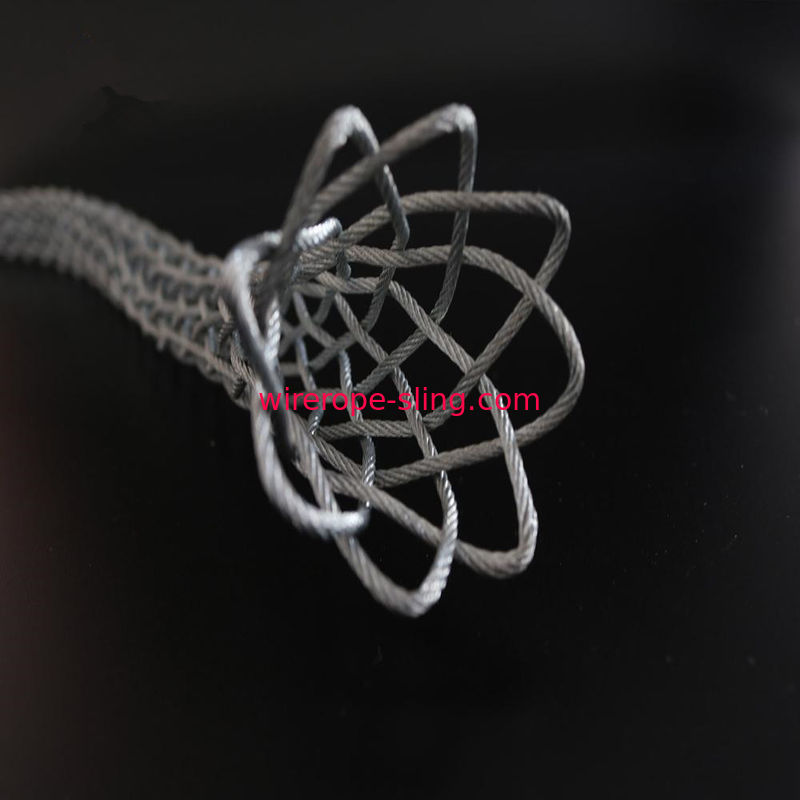

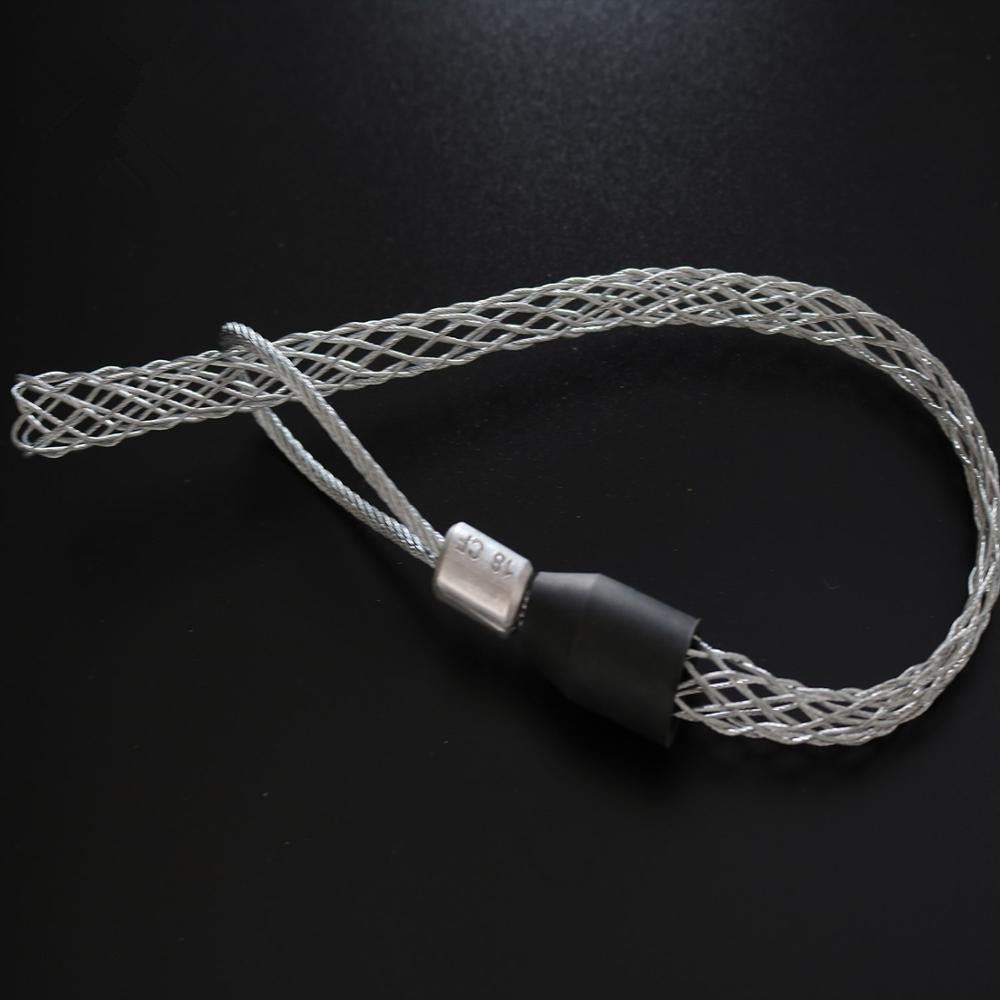

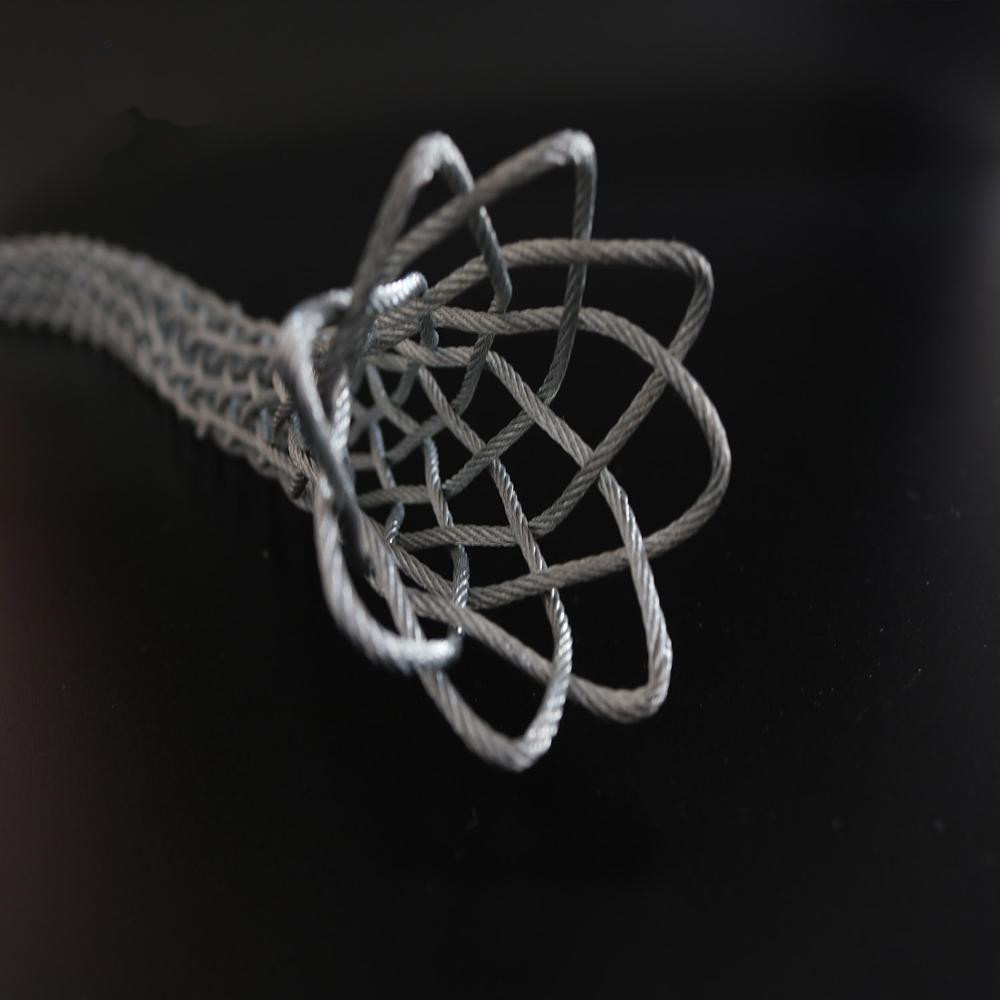

Cable pulling grip is kind of cable laying tools that is widely used in cable pushing cang pulling. It featured a mesh structure, only need to stay in the opposite direction of promote network, cable can be easily waer into or take out the cable. Material can be hot dipped galvanized,stainless steel 304 and stainless steel 306. Cable grip using composite weaving method of single strand, double strand, three strands or multi-strand multilayer.
|
Product Name
|
Insulated Wire Mesh Puller Cable Socks Pulling Grip
|
|
Material
|
stainless steel
|
|
Color
|
silvery white
|
|
Size
|
standard size
|
|
Mesh Length
|
140mm,200mm,270mm,300mm,800mm,1500mm,etc.
|
|
Used
|
pipe clamp
|
1. with flexibility,moderate softness,high elasticity,wear resistance,corrosion resistance,closely mesh,the cable can easily set into the open mouth,passing the bend easily,will not hurt the cable,durable.
2. cable mesh grip is the mesh structure,more drawing and more tightly,only need to stay in the opposite direction to promote network,cable can be easily wear into or take out the cable.
3. using Swedish ALURIT hydraulic press to press at the pressure point of cable nets,smooth appearance,large tensile load strength.
4. the material can be hot dip galvanized high strength steel wire rope ,304,316 or 316L.Cable grip using composite weaving method of single strand,double strand,three strands or multi-strand multilayer.
Monocular Single Strands Cable Grip
Used for dragging on cable head,using the single strand soft silk weaving,monocular type.
Advantages:flexible,cable easy through the roundabout.
Middle road load cable grip,wires,drag,in electricity disk or dragging cable.
We can produce by your samples or technical drawings.
We can build the molds and fixtures.
| Model |
Size Range (mm) |
Mesh Length (mm) |
Total Length (mm) |
Breaking (KN) |
Strength (KG) |
| TG-050-36 | 13-18 | 540 | 766 | 19.6 | 2000 |
| TG-075-36 | 18-25 | 800 | 1020 | 24.5 | 2500 |
| TG-100-36 | 25-37 | 850 | 1140 | 34.3 | 3500 |
| TG-150-36 | 37-50 | 900 | 1194 | 58.8 | 6000 |
| TG-200-36 | 50-63 | 920 | 1220 | 78.4 | 8000 |
| TG-250-36 | 63-75 | 920 | 1220 | 78.4 | 8000 |
| TG-300-36 | 75-88 | 920 | 1270 | 88.2 | 9000 |
| TG-350-36 | 88-101 | 1100 | 1420 | 107.8 | 11000 |
| TG-400-36 | 101-114 | 1200 | 1560 | 117.6 | 12000 |
| TG-450-36 | 115-127 | 1350 | 1750 | 132.3 | 13500 |
| TG-500-36 | 124-152 | 1500 | 1960 | 147 | 15000 |
| TG-550-36 | 153-180 | 1850 | 2300 | 196 | 20000 |
| TG-600-36 | 180-230 | 1950 | 2300 | 196 | 20000 |
| TG-650-36 | 230-280 | 2000 | 2350 | 196 | 20000 |
| TG-700-36 | 280-320 | 2200 | 2450 | 196 | 20000 |
Related Products
We can produce by your samples or technical drawings.
We can build the molds and fixtures.
Each one put into one plastic bag,then in carton or wooden case.
One carton can load from 20pcs-40pcs.
1. How long is the warranty ?
Our products have 12 months warranty , and the product have high quality.
2. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
3. How to get a sample?
We can send you samples for free ,but you need pay the express charge.
4. Which payment terms is available?
We accept paypal,western union,visa,escrow, payment by T/T in advance or LC.
5. Are you a factory or trading company?
We are a trading company and have our own factory.
