Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,DNV,BV |
Model Number: | LKS-SSWR1184 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500sets |
Price: | US$2.2-8.0 per set |
Packaging Details: | Standard export carton |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, T/T, MoneyGram, Western Union |
Supply Ability: | 5000 sets per month |
Detail Information |
|||
Standard | AiSi, ASTM, DIN, EN, GB, JIS | Grade | 300 Series |
---|---|---|---|
Length | 1000m/reel | Application | Rope |
Certification | SGS | C Content (%) | 0.06 |
Si Content (%) | 0.82 | Place of Origin | Shanghai, China |
High Light: |
3mm stainless steel wire rope,stainless steel wire rope specifications |
Product Description
Specification:

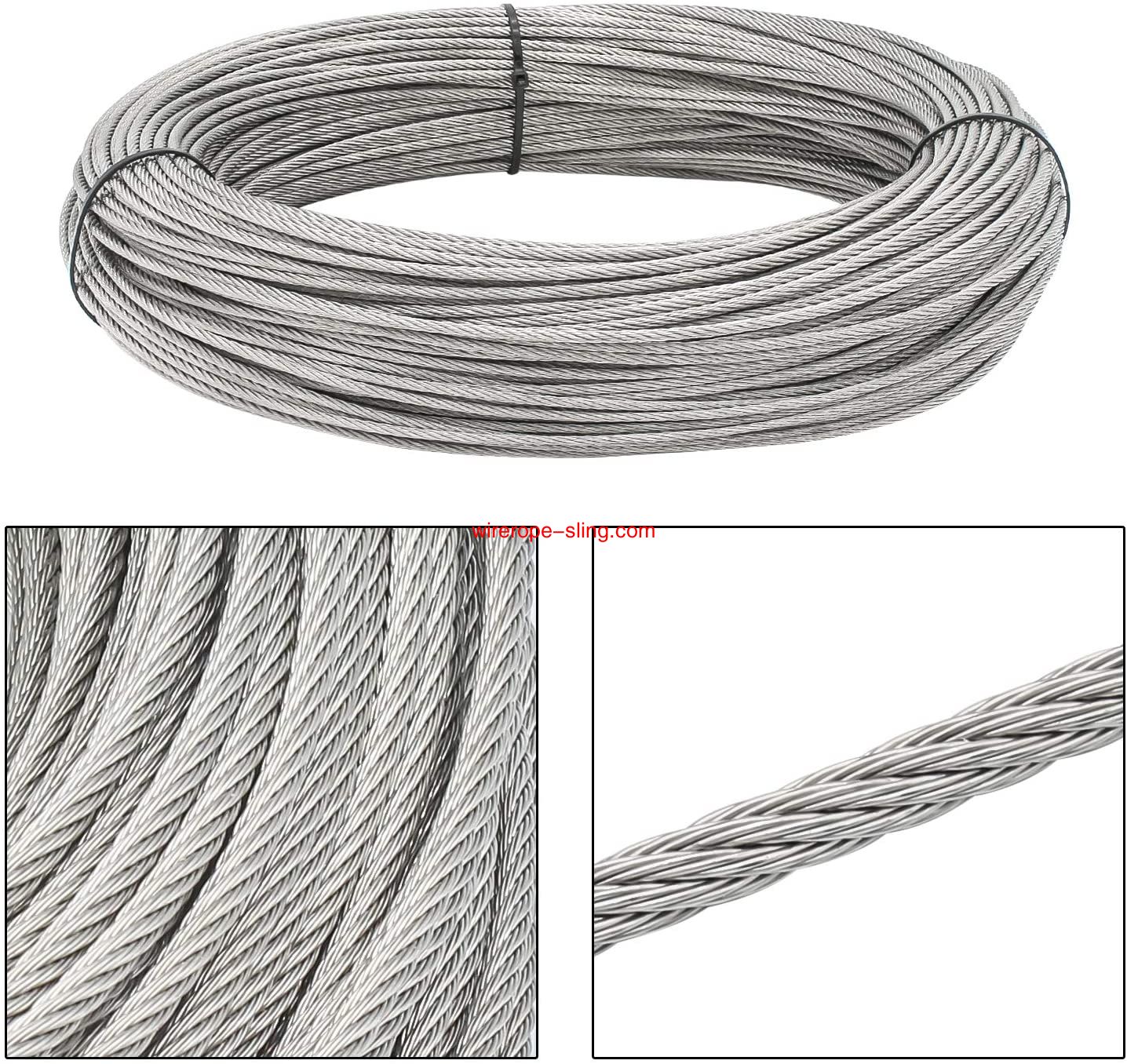

Length: 100 Feet

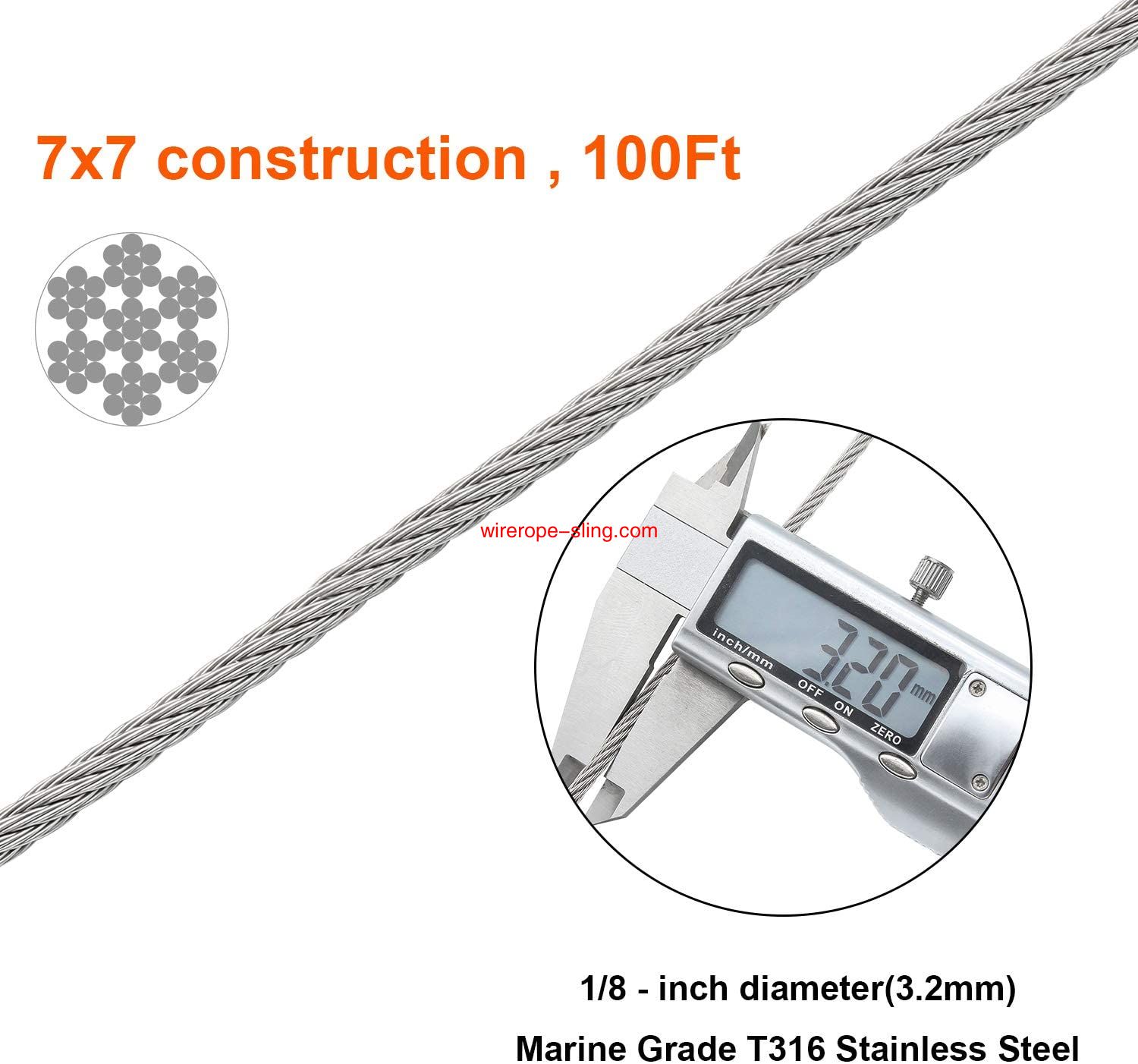

Diameter: 1/8 inch (3.2mm)
Breaking Strength: 1780 LB

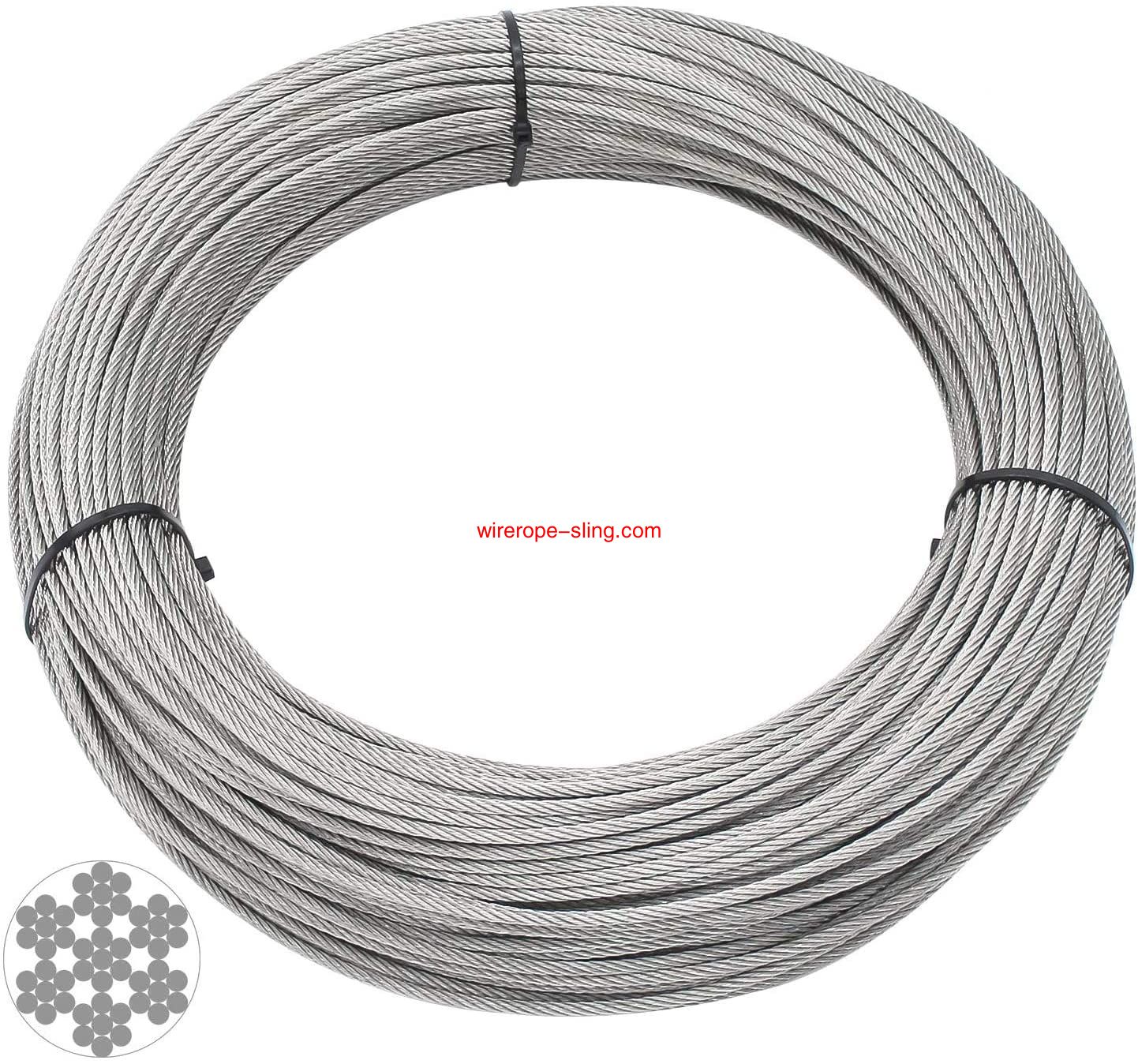

Construction: 7x7 construction

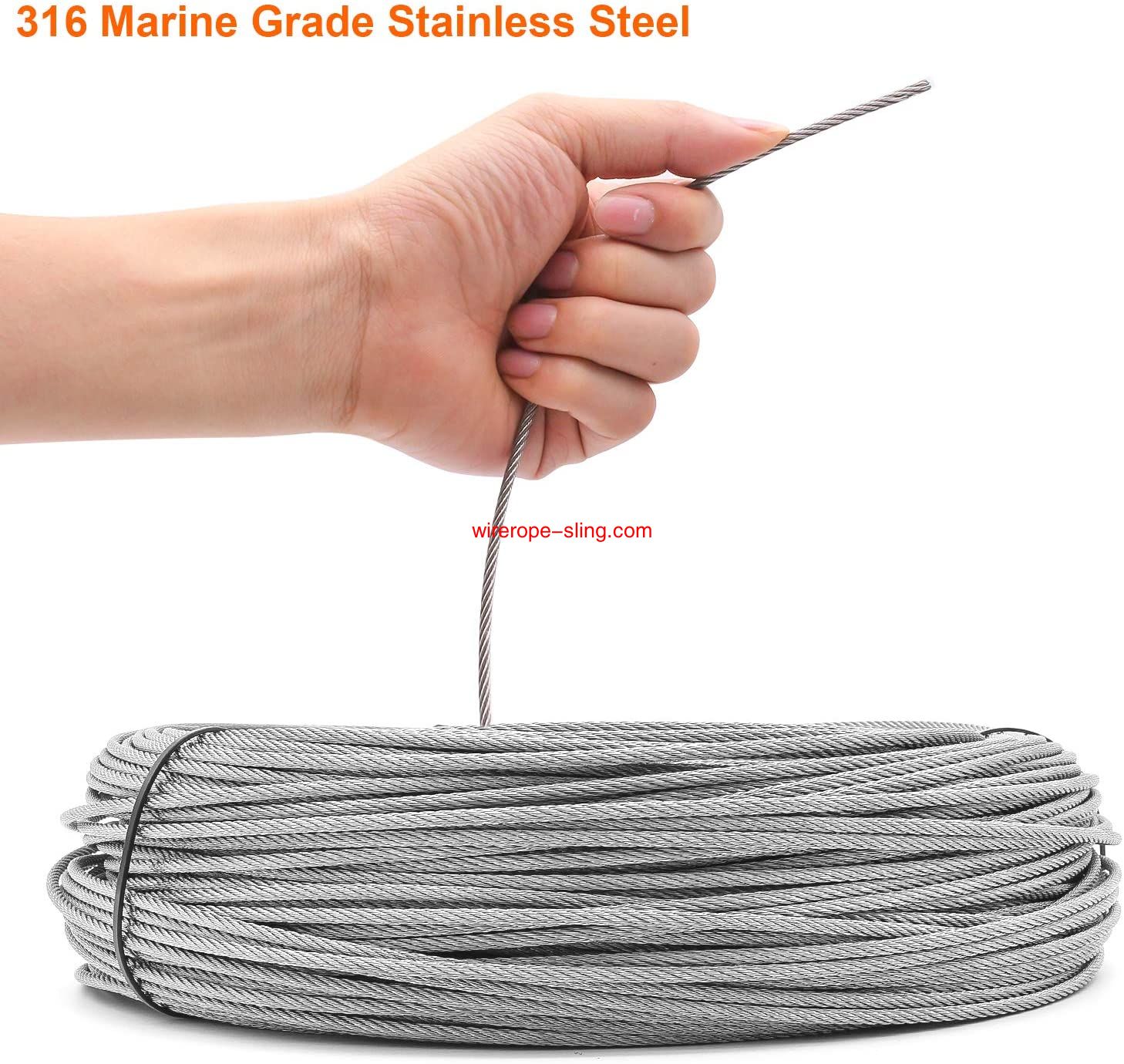

Material: Marine Grade T316 Stainless Steel
Feature:
1, Marine Grade T316 Stainless Steel, Strong Against Rust, Aging Resistance and Durable
2, 7x7 construction, 7 groups of 7 strands braided together to form the cable | Perfect for handling bends and corners on cable railings
3, Perfect for cable railing project to big scale indoor and outdoor applications. It’s very easy to make a railing for your garden, stairs, and aisles
Package included:
1x T316 Stainless Steel Wire Rope 1/8"diameter | 7x7 strand core | 100 ft total length
STEEL WIRE ROPE
【DURABLE MATERIAL】- Made of 316 stainless steel material, durable, stable, anti-corrosion, anti-fatigue. Designed for decades use. 【LARGE BREAKING STRENGTH】- Capacity of our cable wire rope is up to 11.14KN/2506LBS. Perfect for indoor and outdoor use. 【1 X 19 CONSTRUCTION】- One group of nineteen wires which formed helical around a strand core. Designed for long-lasting use. 【HIGHLY POLISHED SURFACE】- Its surface is smooth, highly polished and has no burr. Come with 1000Ft standard length that can be quickly trimmed to size in the field. 【WIDE USE】- Can be used for rigging, hoisting, push-pull, and guying applications. Used in coal, petroleum, chemical industry, shipbuilding, bridges, electricity, military, tourism, light industry and other industries.

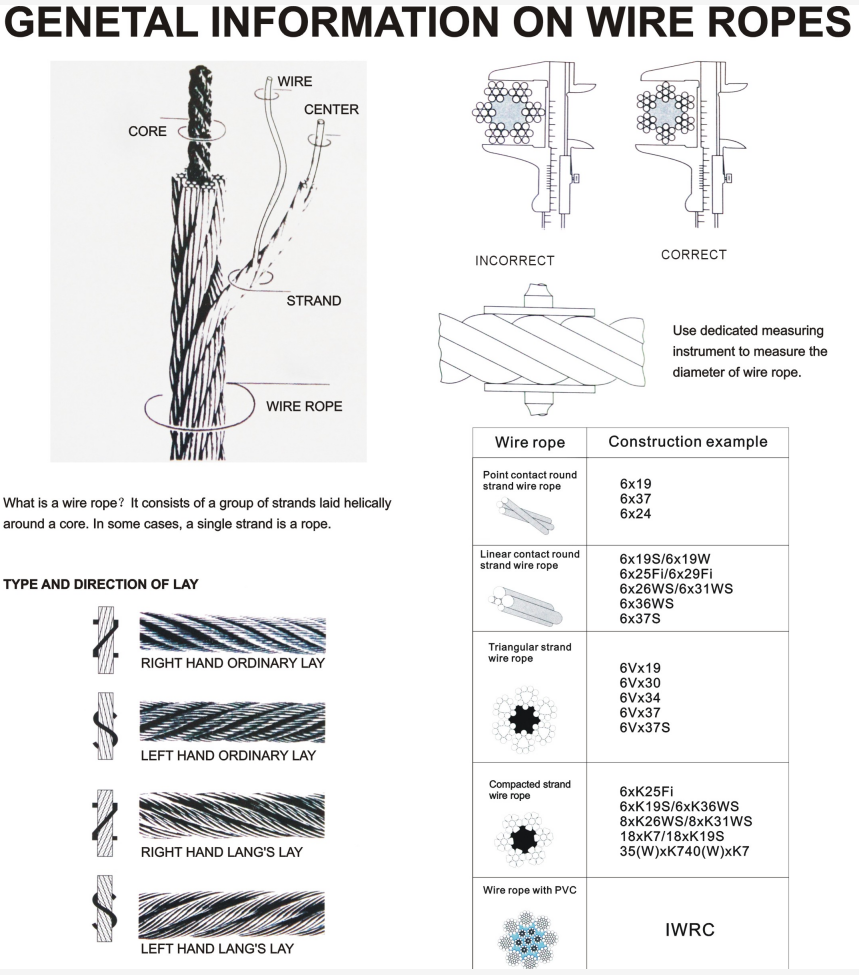

SELECTION, INSTALLATION, AND MAINTENANCE OF STEEL WIRE ROPE
Selection of wire rope
Refer to GB8919-2006 “steel wire ropes for important purpose ” and GB/T20018-2006 “steel wire ropes for general purposes” on how to select from different constructions of wire rope. Please also refer to this section of our product catalogue in selecting wire rope, we suggest choosing equal lay steel wire rope. Compacted wire rope for general usage. The technical parameters such as lifting load, safety coefficient, and the lifting capacity of the lifting equipment should be taken into consideration when selecting the strength class of wire rope. Don’t blindly choose high strength and high breaking force wire rope, this may compromise results.
