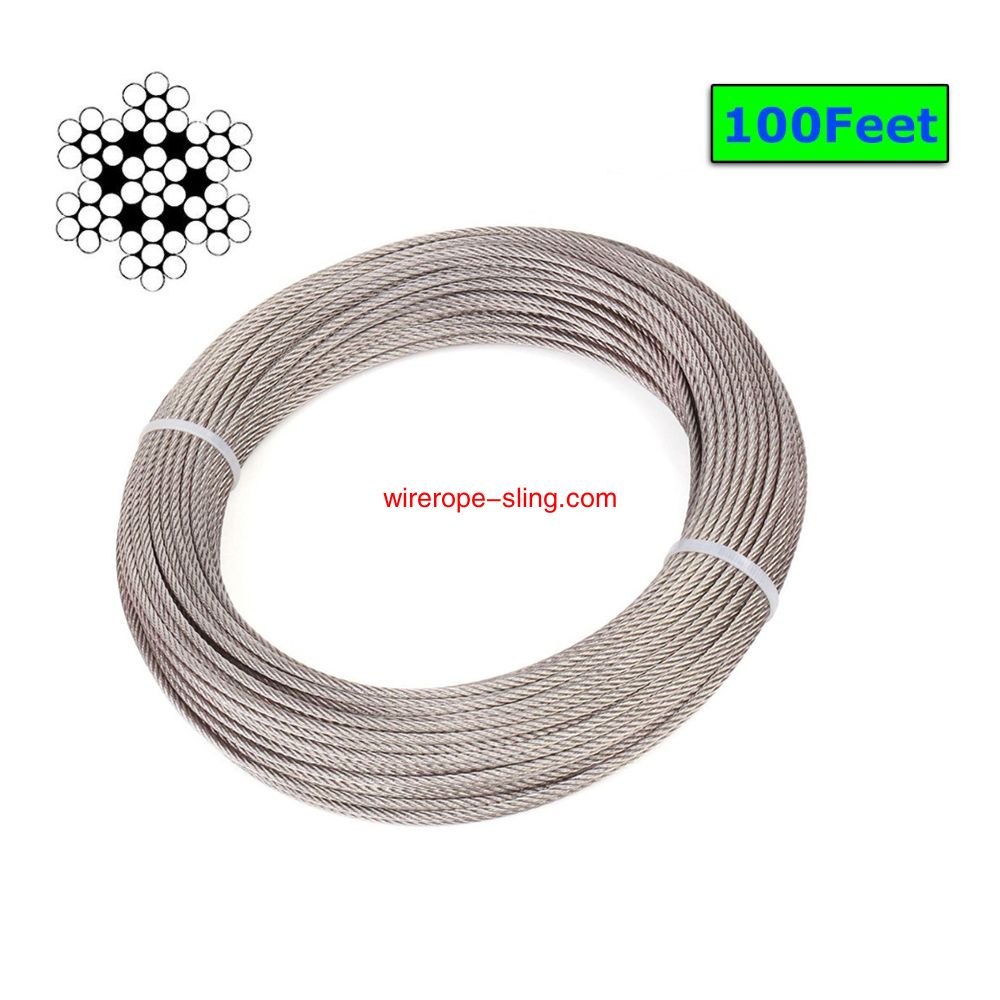

T316 Marine 3mm Stainless Steel Aircraft Wire Rope for Deck Cable Railing Kit,7x7 100/164 Feet

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-SSWR1185
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

StandardAiSiGradestainless steel
Length1000meter/rollApplicationConstruction, Aircraft
CertificationISO9001C Content (%)<0.08%
Si Content (%)<0.8%Place of OriginShanghai, China
High Light:

3mm stainless steel wire rope

,

stainless steel wire rope specifications

Product Description

Cable Material: Marine Grade T316 Stainless Steel(Better Than 304 Stainless), Wear resistance, Weather protection, suitable for traction, pulling, strapping

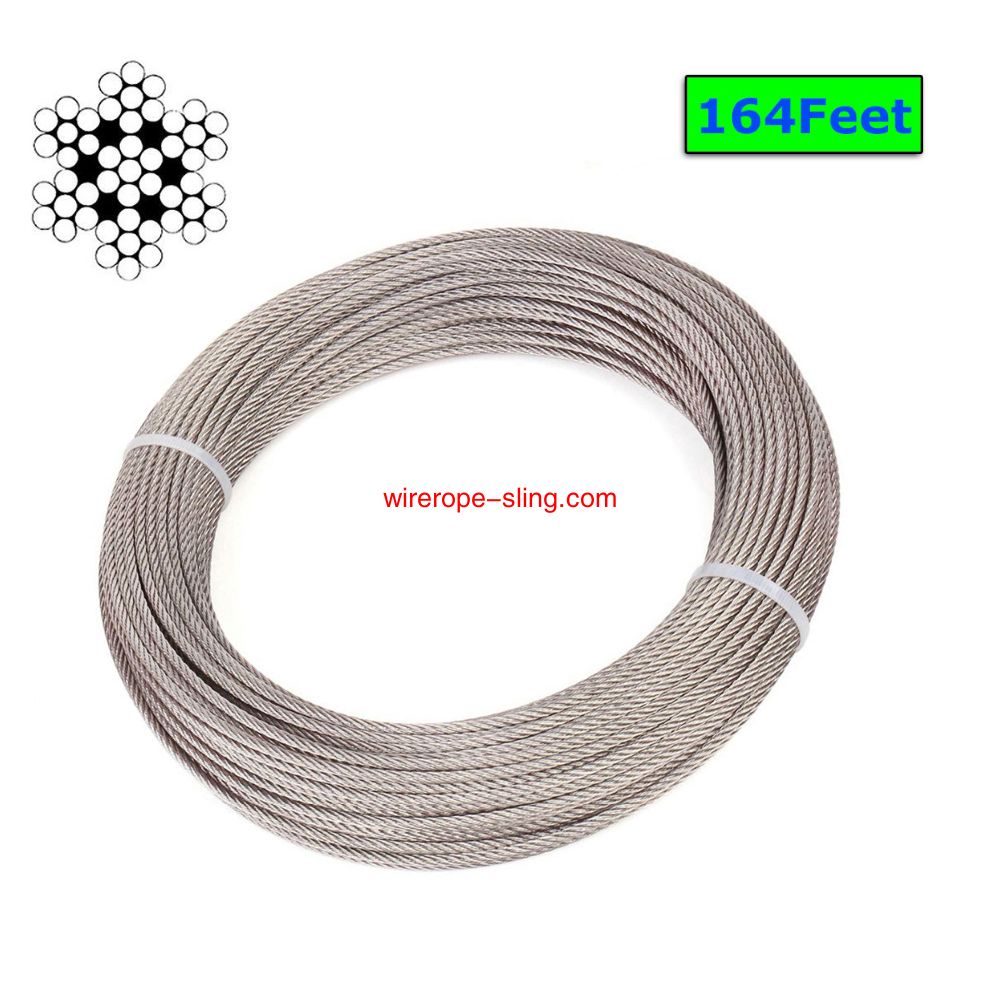

Cable Size:1/8-Inch Diameter(3.2MM), 100/164-Feet(30/50M) Length

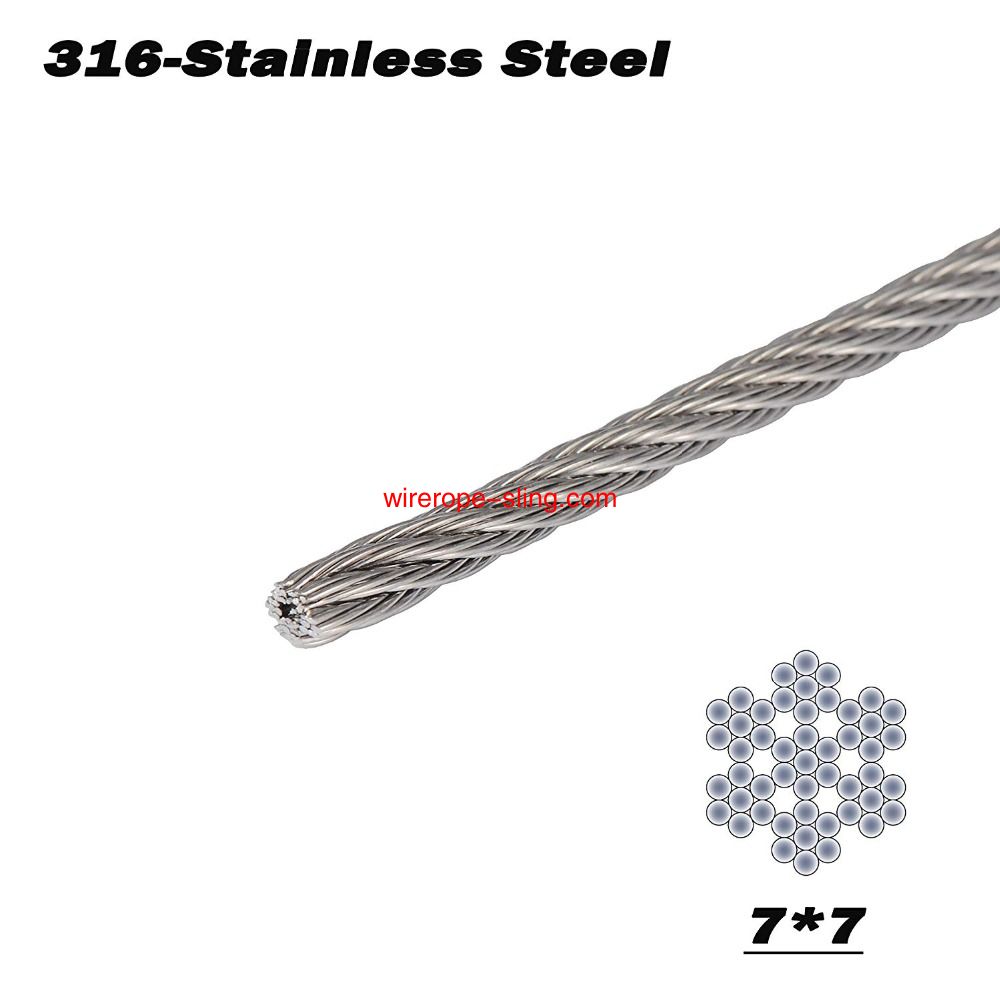

Construction: 7x7 construction (7 groups of 7 strands braided together to form the cable), which is flexible. Good type of cable for handling bends and corners on cable railings.1780 lb

Breaking Strength.

Applications: Perfect for planning your own cable railing project or deck railings, good for indoor or outdoor applications. (Garden, Stairs, Aisle or Make a clothesline)

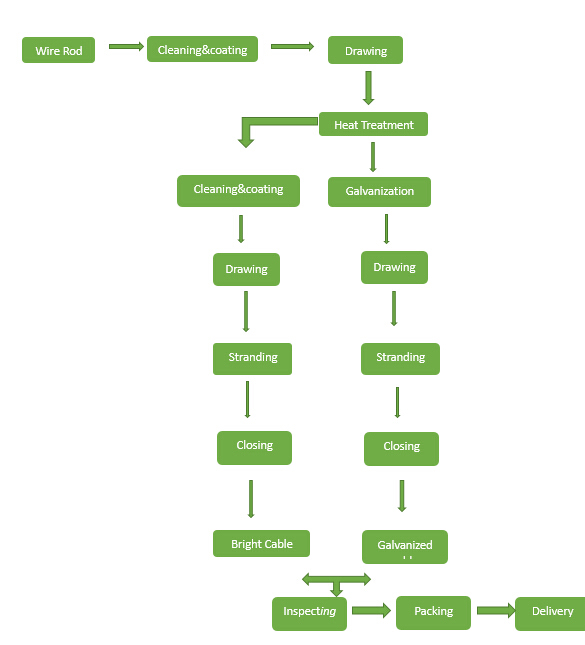

Flow of Production





0.5mm 6mm 20mm 25mm 7x7 7x19 AISI304/316/316L Stainless Steel Wire Rope/Cable Price





Chemical composition:



Standard:
GradeC               %Ni           %Cr           %P             %S             %SI           %Mn           %Mo           %
304≤0.088-1018-20≤0.035≤0.03≤1.0≤2
316≤0.0810-1416-18≤0.035≤0.03≤1.0≤22-3
304L≤0.038-1018-20≤0.035≤0.03≤1.0≤2
316L≤0.0310-1416-18≤0.035≤0.03≤1.0≤22-3
AISI304≤0.078-1017-19≤0.035≤0.03≤1.0≤2
AISI3160.0810-1416-18≤0.045≤0.03≤1.0≤22-3



 PRODUCT SPECIFICATION

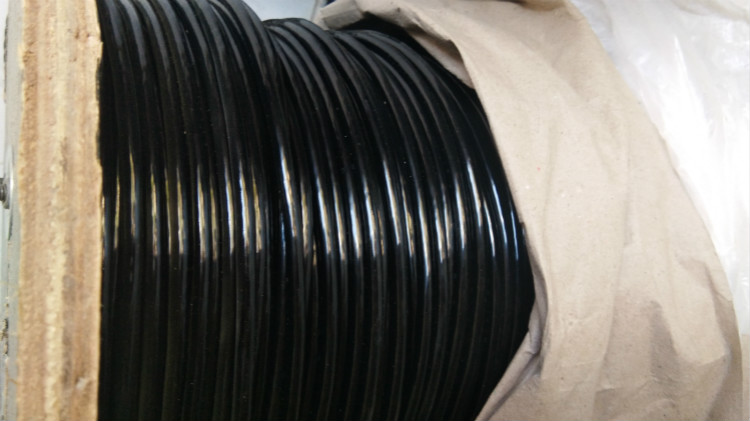

The steel wire rope is coated with PVC plastic, which can be processed into different diameter according to your needs. The color of the coating is optional, transparent or different. PVC material is soft, and insulation flame retardant, can effectively protect internal steel wire rope.


Structure

Dia before coating (mm)

Dia after coating (mm)

Weight/100m(kg)

BL (Kn)

1×7

0.27

0.38

0.04

0.08

1×7

0.4

0.50

0.09

0.13

7×7

0.5

0.60

0.14

0.21

7×7

0.6

0.80

0.18

0.30

7×7

0.8

1.00

0.32

0.53

7×7

1.00

1.20

0.47

0.56

7×7

1.20

1.50

0.72

0.81

7×7

1.50

2.00

1.20

1.27

7×7

2.00

2.50

1.96

2.25

7×7

2.00

3.00

2.50

2.25

7×7

3.00

4.00

5.00

3.52

7×19

4.00

5.00

8.20

8.33

7×19

5.00

6.00

12.30

13.03

7×19

6.00

8.00

19.84

18.76

7×19

8.00

10.00

32.81

33.35





  PRODUCT DISPLAY

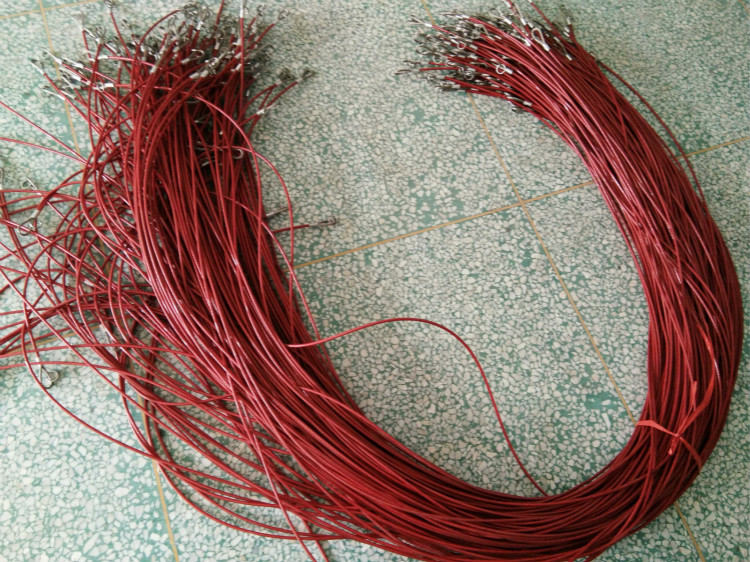

1/2/3/4/5/6/8mm white/red/blue color of nylon coated 316 stainless wire rope





1/2/3/4/5/6/8mm white/red/blue color of nylon coated 316 stainless wire rope



1/2/3/4/5/6/8mm white/red/blue color of nylon coated 316 stainless wire rope

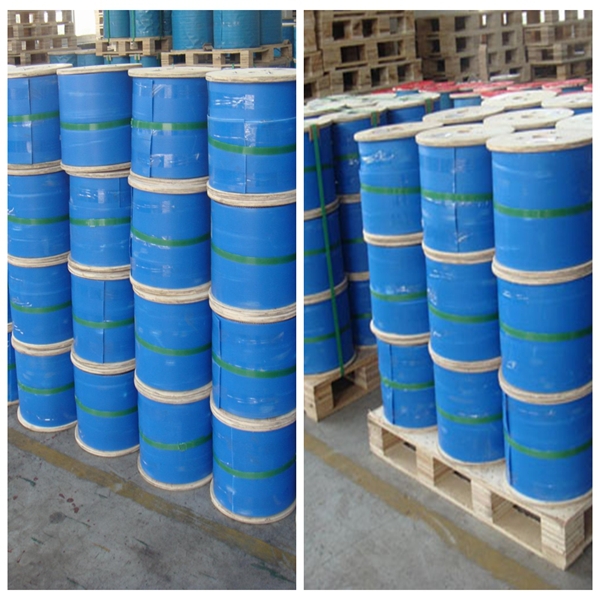

Packaging & Shipping



Packing: Export Package

Inner packing:

Wooden reel and craft paper

Outer packing:

Wooden pallet or according to customer's request





Our Services

 0.5mm 6mm 20mm 25mm 7x7 7x19 AISI304/316/316L Stainless Steel Wire Rope/Cable Price

 Why you choose us?



1. We are Alibaba Assessed 4 years Gold Supplier.

2. We are a factory manufacturing stainless steel wire rope, best production capability, best quality control, best service.

3. Competitive price and quality guaranteed.
