15M 316 Stainless Steel Clothes Cable Line Wire Rope diameter 1.5mm

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-SSWR1186
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

StandardAiSi, ASTM, DIN, EN, GB, JISGrade304 or 316
Length15M/RollApplicationcrane, safty rope.
CertificationISOC Content (%)0.08
Si Content (%)1.0Place of OriginChina
High Light:

stainless wire rope strength

,

stainless wire rope

Product Description

Description:

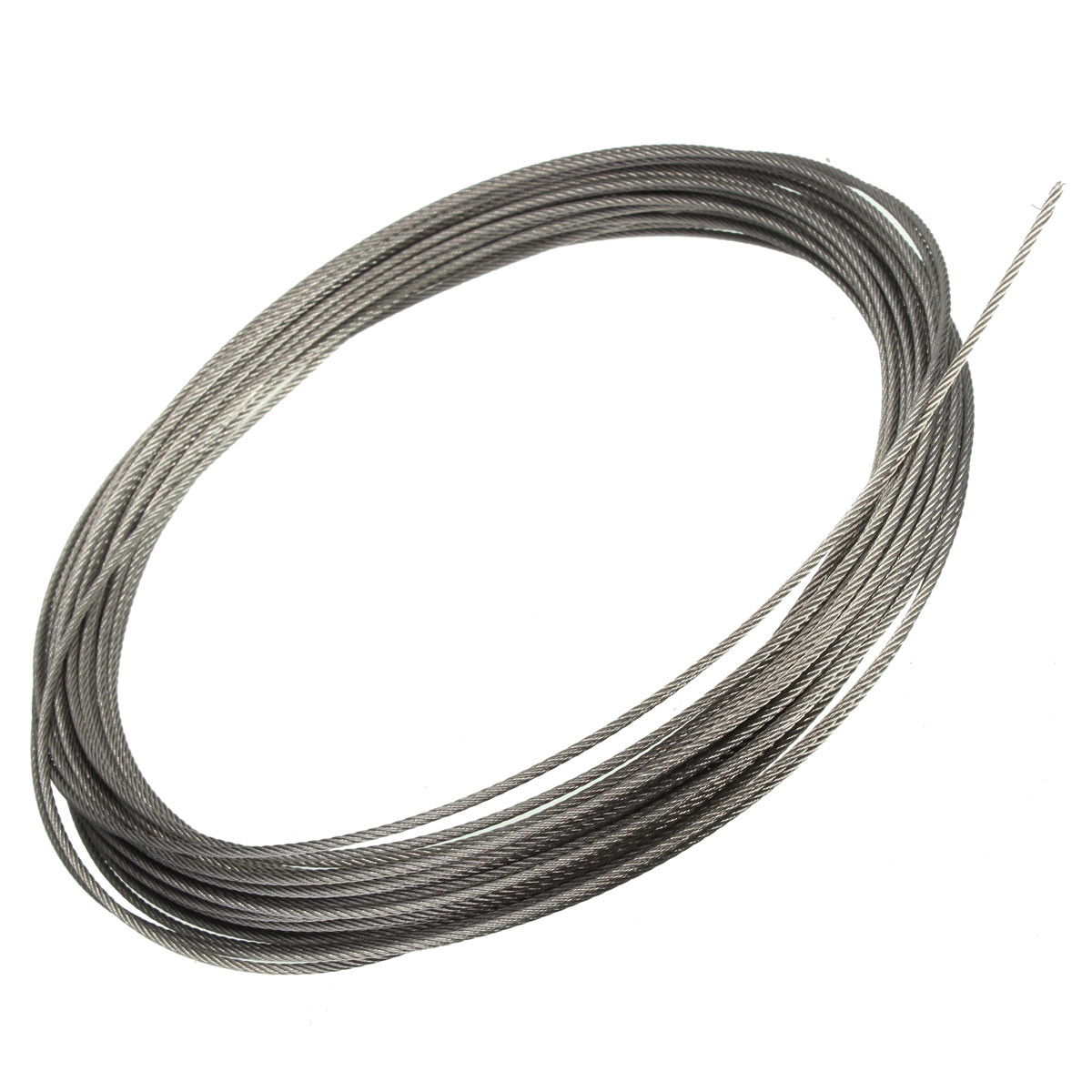

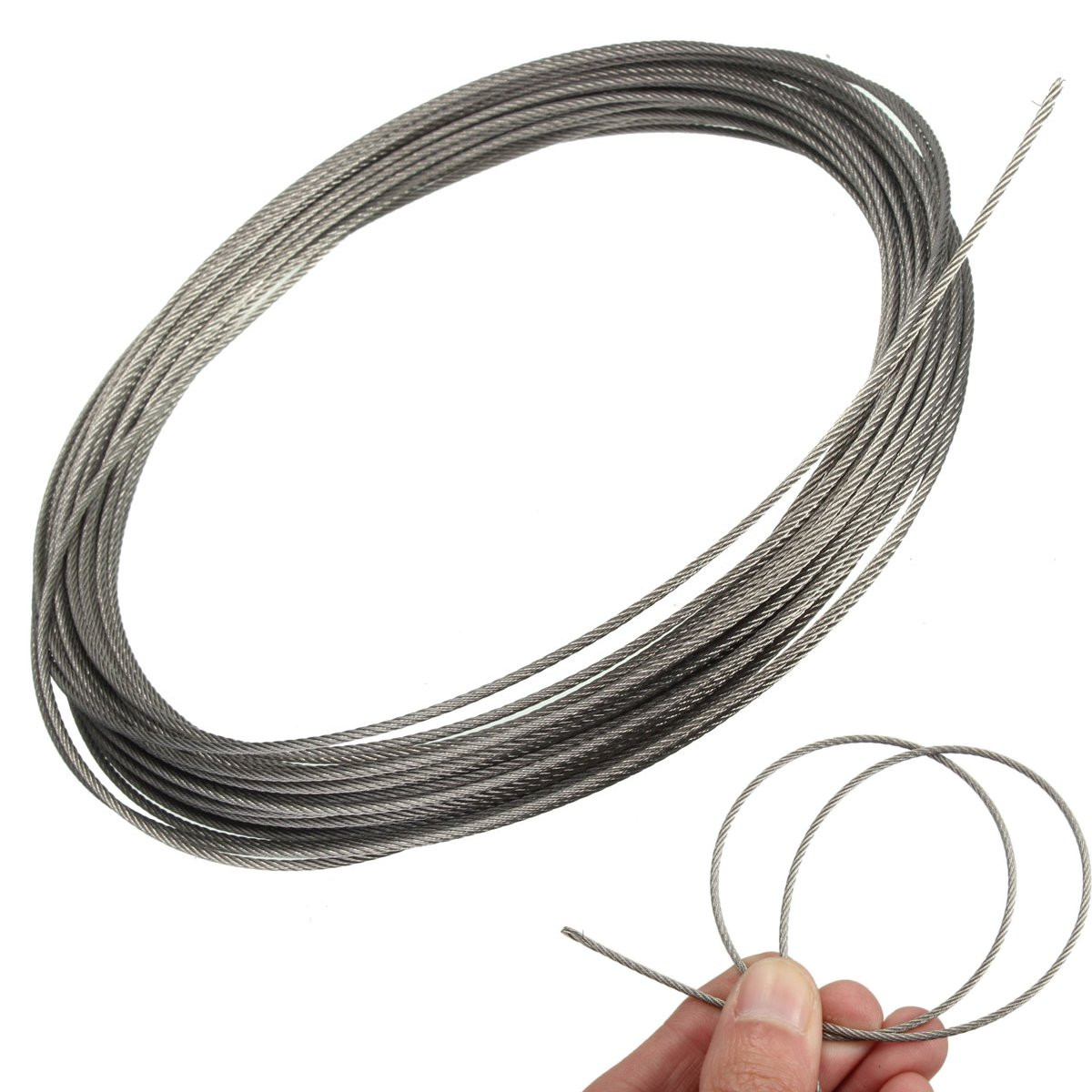

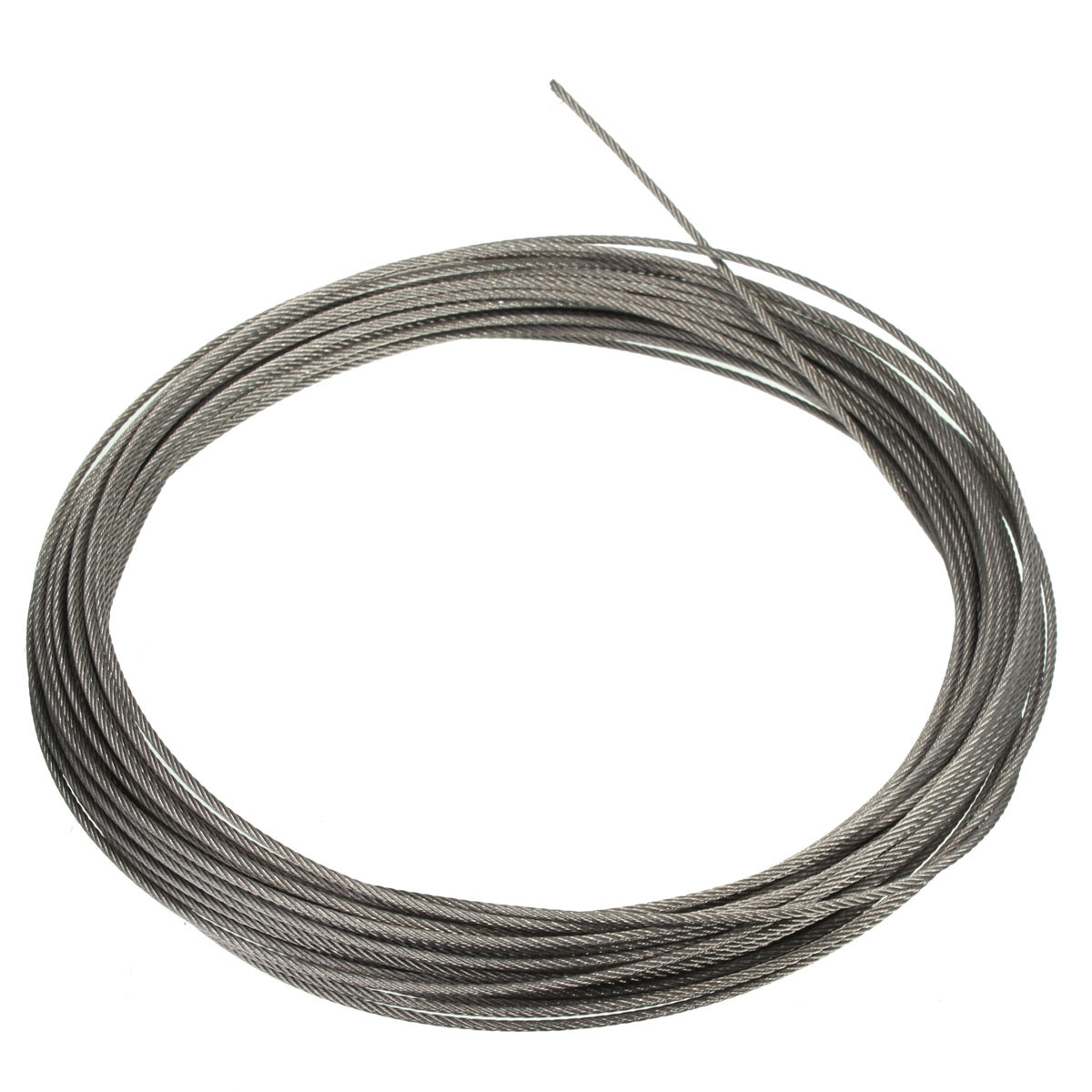

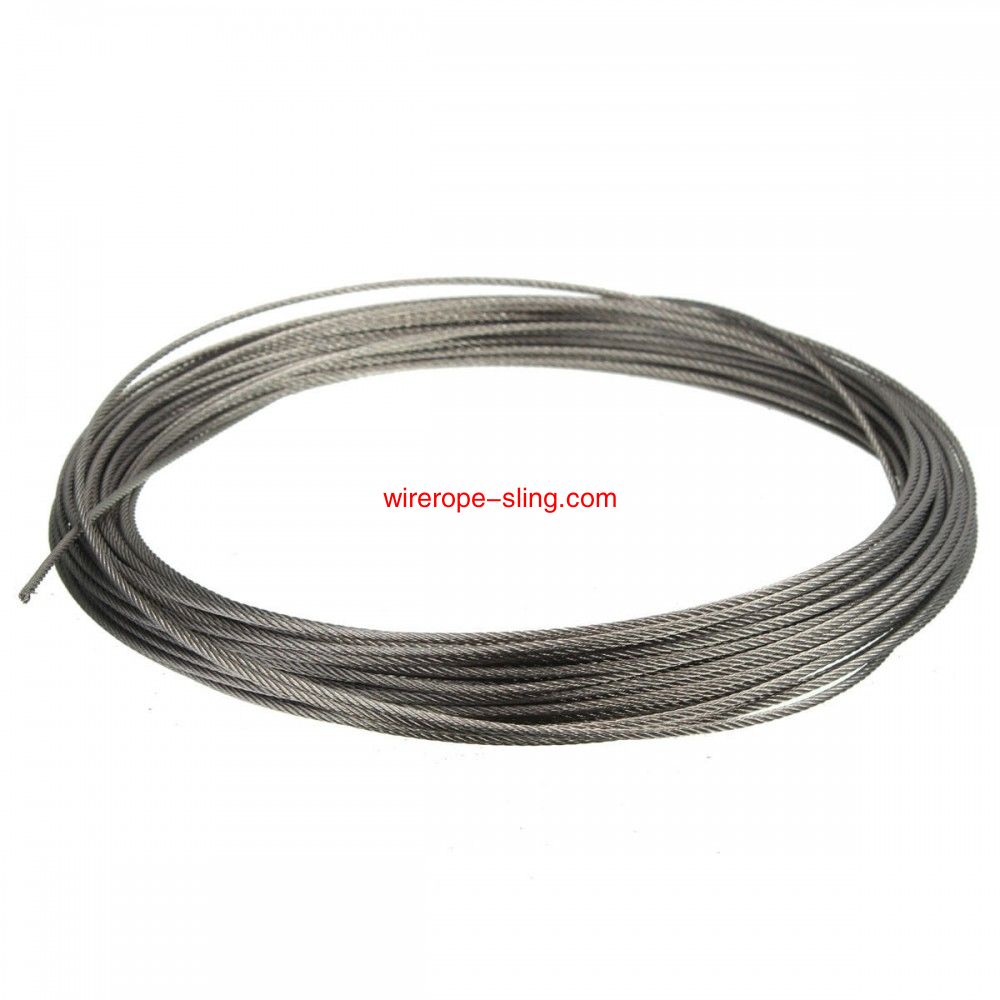

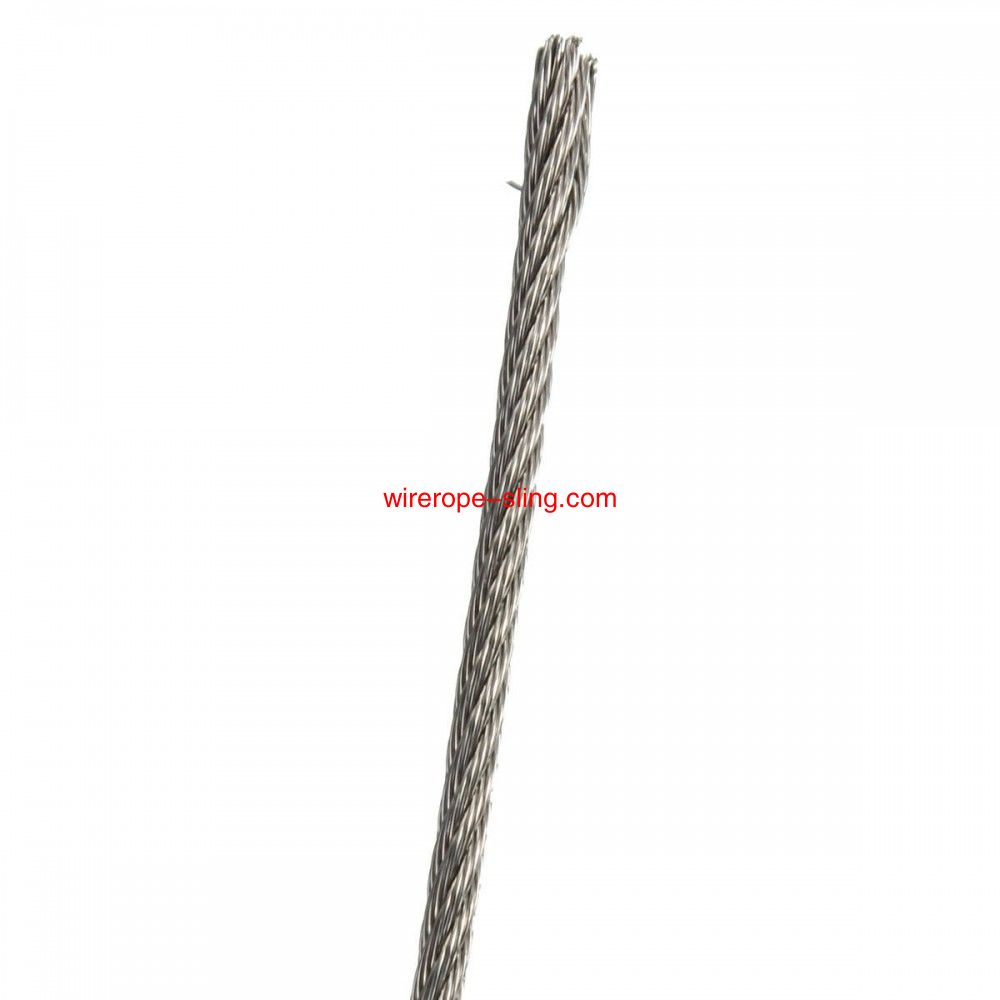

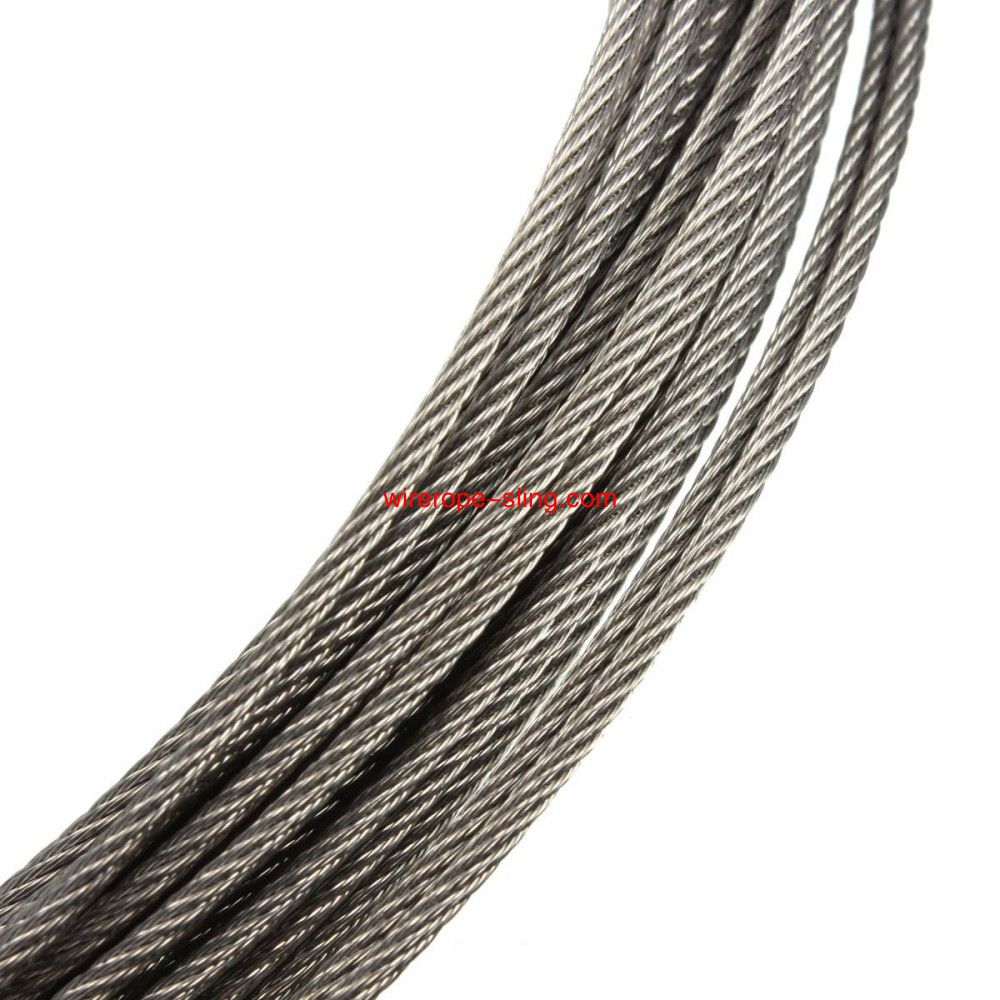

15M 316 Stainless Steel Cable Clothes Line Wire Rope

Specification:
Material:316 stainless steel

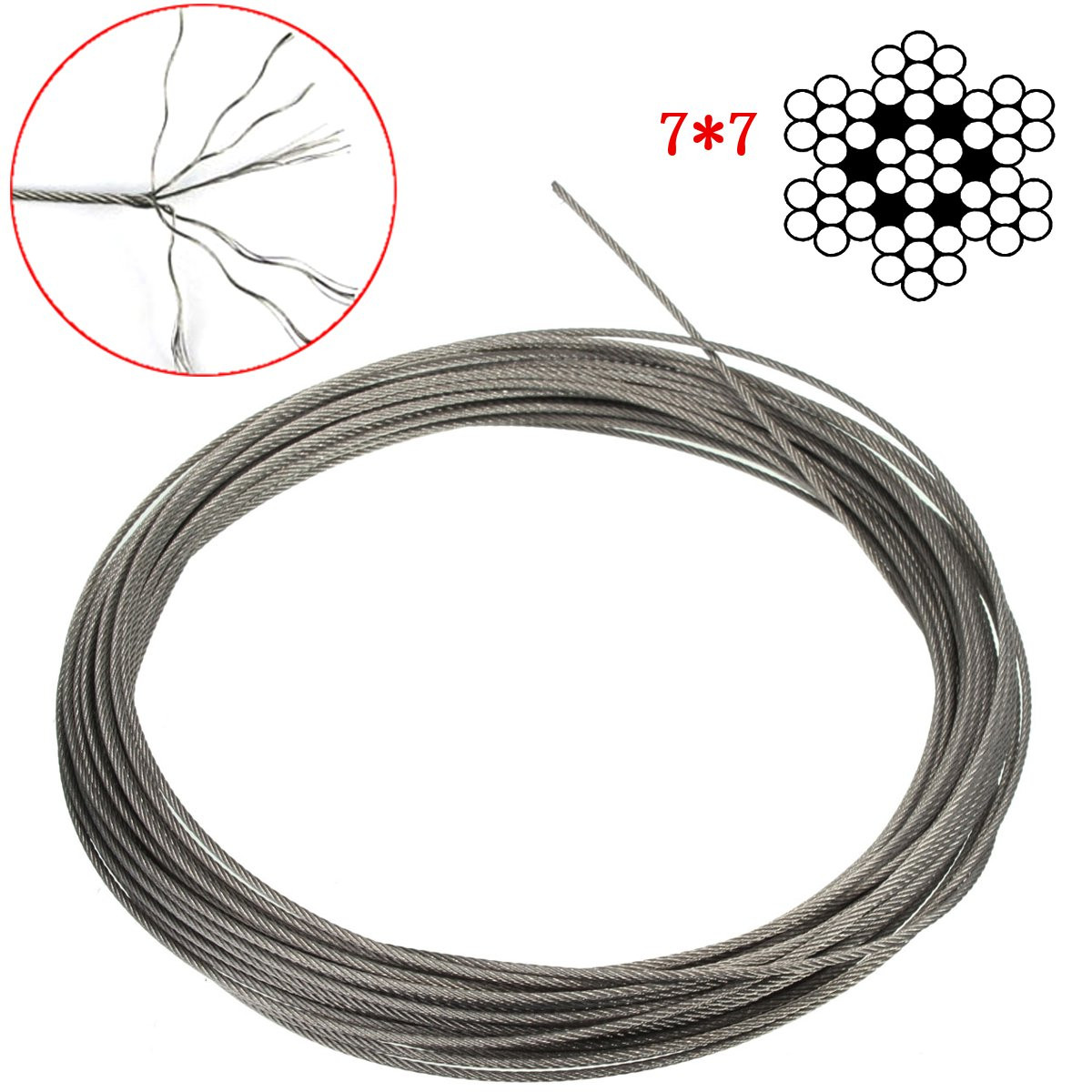

Structure: 7*7

Color: steel

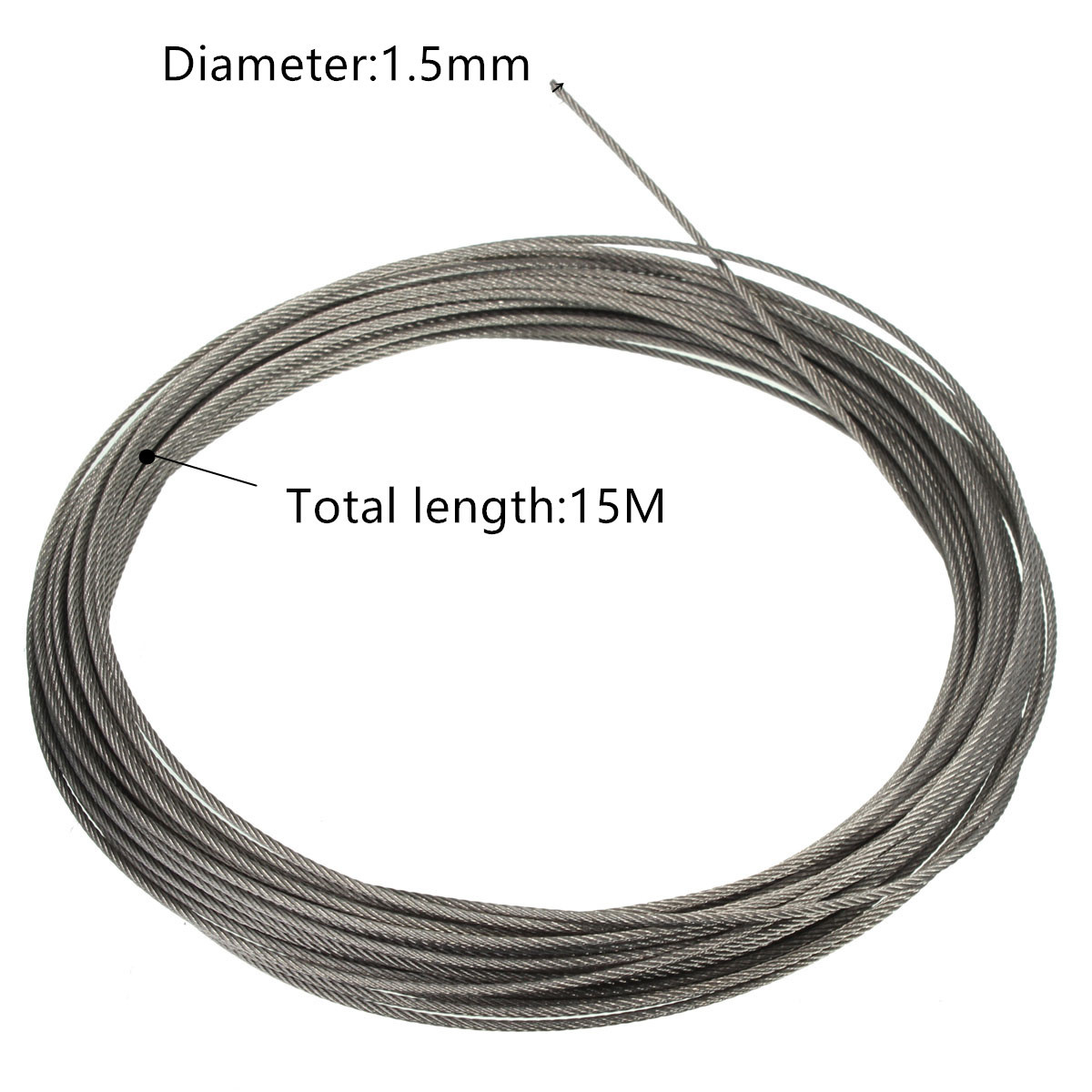

Diameter: 1.5mm

Length: 15M


Features:
1.Make of 316 Stainless Steel material,Tough and durable,never rust.

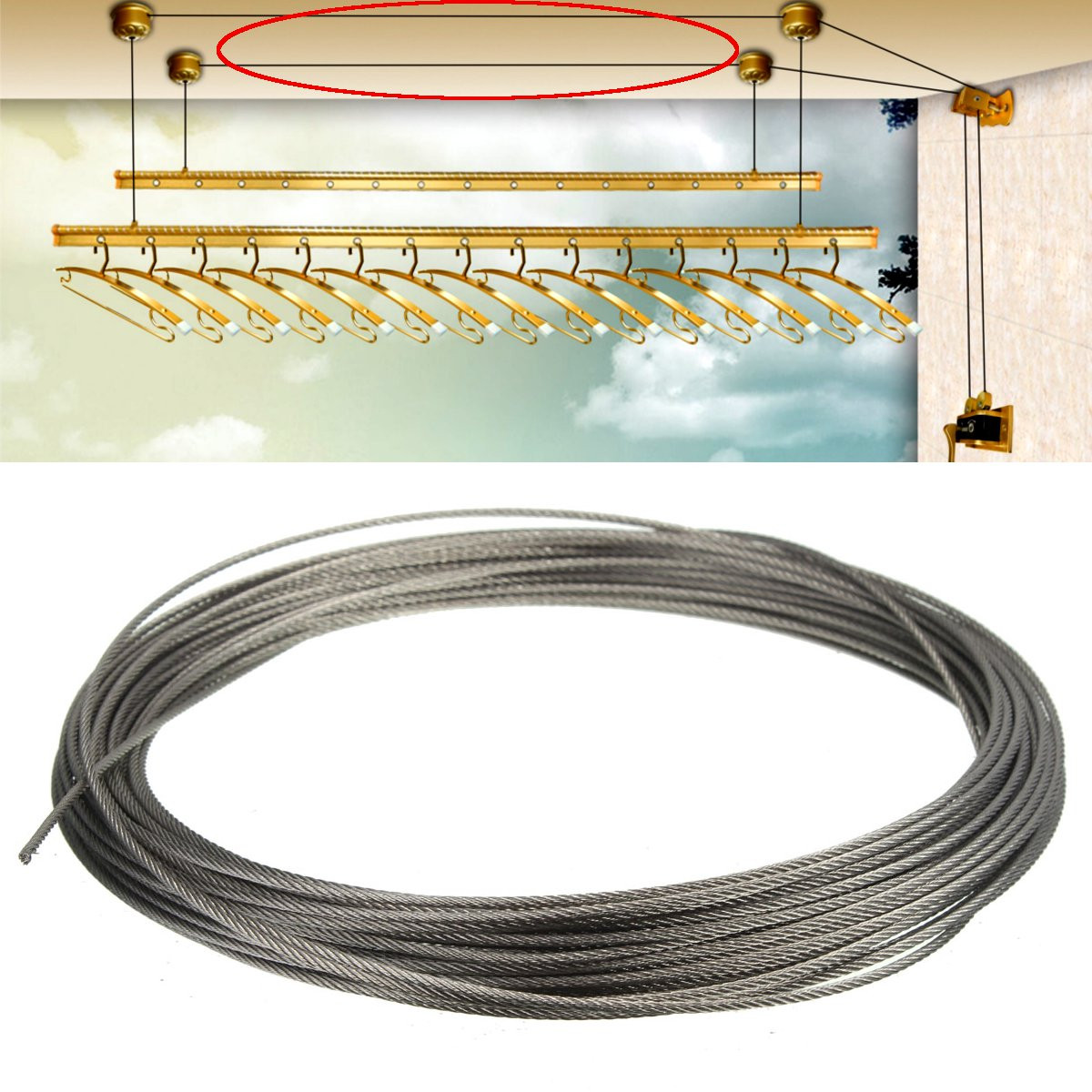

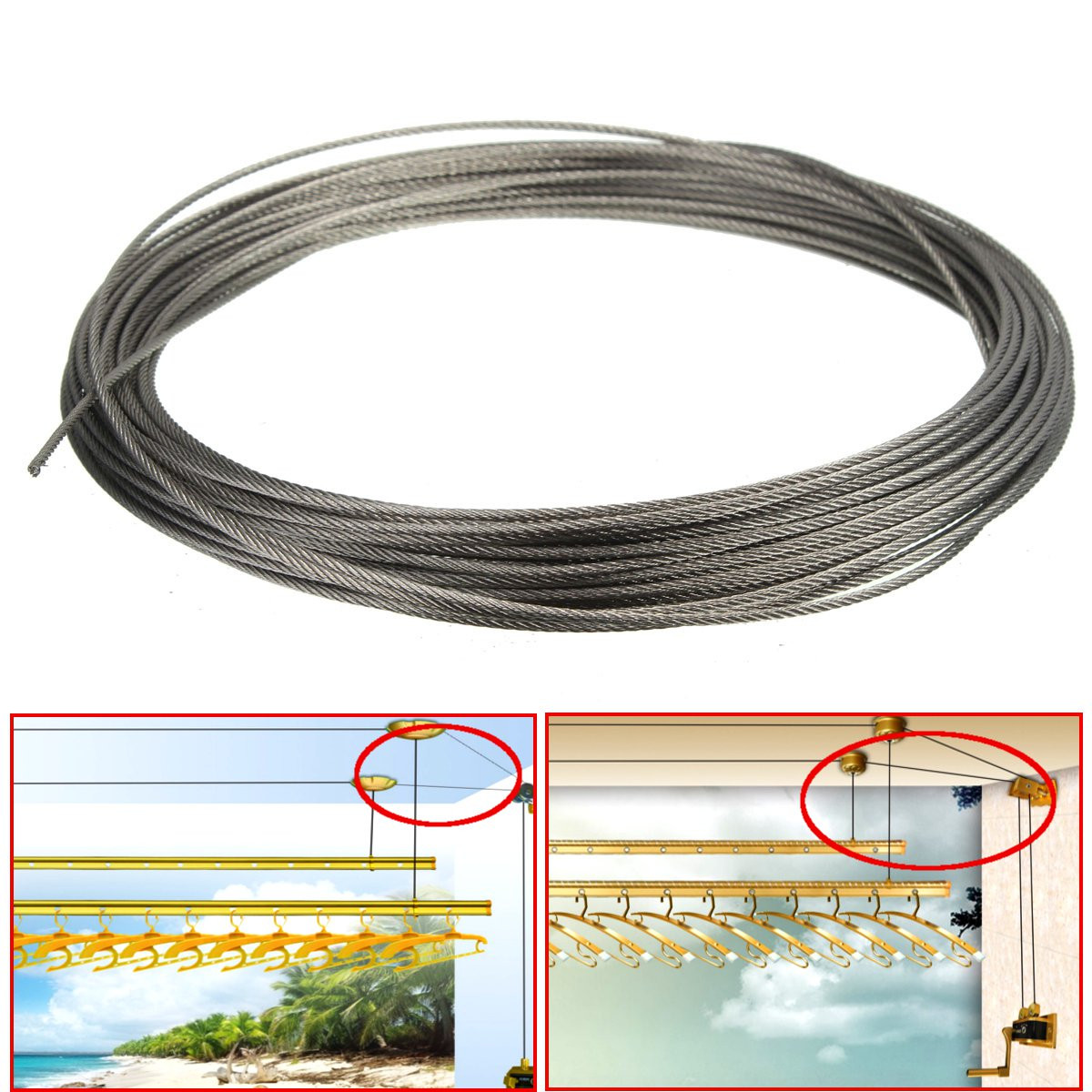

2.Suitable for hanging clothes, hanging small items, etc.

Package Included:
1x15M Stainless steel wire line


Stainless Steel Wire Roes for Marine & General Applications

Stainless steel wire ropes boast higher corrosion resistance to saltwater than galvanized wire ropes, so they are the best choice of marine applications. Meanwhile, the bright appearance of galvanized wire ropes will dull over time, but stainless steel wire rope will maintain its bright and modern appearance for years. Therefore they are generally used in decoration for modern display and architectural purposes, such as railings, architectural cables, cable balustrades, handrails, etc.

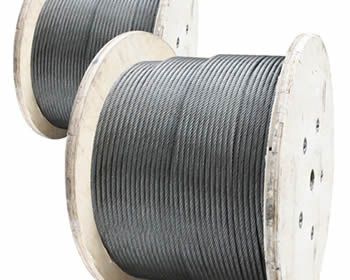

Two coils of stainless steel wire rope

Stainless steel wire rope

Normally, stainless steel wire rope is made of 304, 305 or 316. And here is a simple comparison of these materials:

  • The 304 material, as the most common type, is magnetic with excellent corrosion resistance and strength compared with galvanized steel wire ropes. But it still will corrode to some extent over year so it is not suitable for marine and food applications.

  • The 305 material is more corrosive resistant than 304. Meanwhile, it is largely non-magnetic perfectly suited for aeronautical and naval fields.

  • The 316 materials is the most corrosive resistant type and highly used in high corrosion environments and places with high salt spray. But the 316 material is about 10% less strength than 304 stainless steel.


7 × 7 stainless steel wire rope

The cross section of stainless steel wire rope SSWR-77

Features:

  • More flexible than 1 × 19 stainless steel wire rope.

  • More rigid than 7 × 19 stainless steel wire rope.

  • Excellent breaking load qualities.

  • Available form 0.54mm to 12mm in diameter

Application:

  • Marine industry such as rigging, sewage treatment work, steering cable and mast stay.

  • General engineering applications such as control cable, davit ropes and slings

TypeCable diameterTensile strengthMinimum breaking loadWeight
SSWR-77-10.54mm1770Mpa0.18KN0.0012kg/m
SSWR-77-20.68mm1770Mpa0.29KN0.0018kg/m
SSWR-77-30.81mm1770Mpa0.41KN0.0026kg/m
SSWR-77-40.9mm1570Mpa0.49KN0.0032kg/m
SSWR-77-51mm1570Mpa0.56KN0.004kg/m
SSWR-77-61.25mm1570Mpa0.88KN0.005kg/m
SSWR-77-71.5mm1570Mpa1.27KN0.009kg/m
SSWR-77-81.8mm1570Mpa0.83KN0.013kg/m
SSWR-77-92mm1570Mpa2.25KN0.016kg/m
SSWR-77-102.5mm1570Mpa3.52KN0.025kg/m
SSWR-77-113mm1570Mpa5.07KN0.034kg/m
SSWR-77-124mm1570Mpa9.01KN0.063kg/m
SSWR-77-135mm1570Mpa14.08KN0.098kg/m
SSWR-77-146mm1570Mpa20.28KN0.142kg/m
SSWR-77-157mm1570Mpa27.6KN0.193kg/m
SSWR-77-168mm1570Mpa36.05KN0.253kg/m
SSWR-77-1710mm1570Mpa56.3KN0.393kg/m
SSWR-77-1812mm1570Mpa81.1KN0.566kg/m
