China Wire Rope Sling manufacturer

7 * 7 1.8mm 304 stainless steel wire rope manufacturer customized

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1182
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

Steel Grade304/316StandardAISI, ASTM, bs, DIN, GB, JIS
Place of OriginChinaTypestainless steel
ApplicationNettingAlloy Or NotNon-Alloy
Special UseFree Cutting SteelModel Number1.8mm
Brand NameLKSTolerance±1%
High Light:

stainless wire rope

,

stainless steel cable

Product Description

roduct Overview

304/316 stainless steel wire rope full specifications

  The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the
  requirements. A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain
number of strands are twisted into a spiral with the core as the center. In material handling machinery, it is used for lifting,
traction, tensioning and carrying. The steel wire rope has high strength, light weight, stable work, not easy to be broken
suddenly, and reliable work.

FEATURES AT A GLANCE

  1. The wire rope can transmit long-distance load.

  2. The bearing safety factor is large, and the use is safe and reliable.
  3. Light weight, easy to carry and transport.
 4. Able to withstand various loads and variable loads.
5. It has high tensile strength, fatigue strength and impact toughness.
6. Under high-speed working conditions, it is abrasion-resistant, shock-resistant and stable in operation.
7. Good corrosion resistance, able to work normally in the harsh environment of various harmful media.
8. Good softness, suitable for traction, pulling, strapping and other purposes.

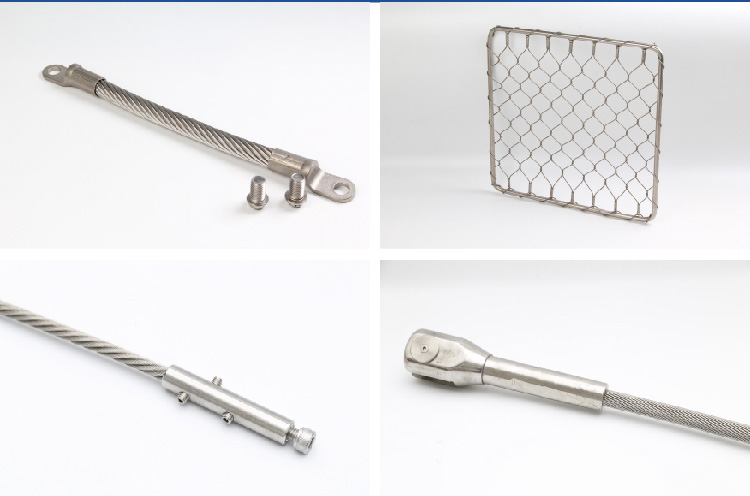

SIMILAR PRODUCTS

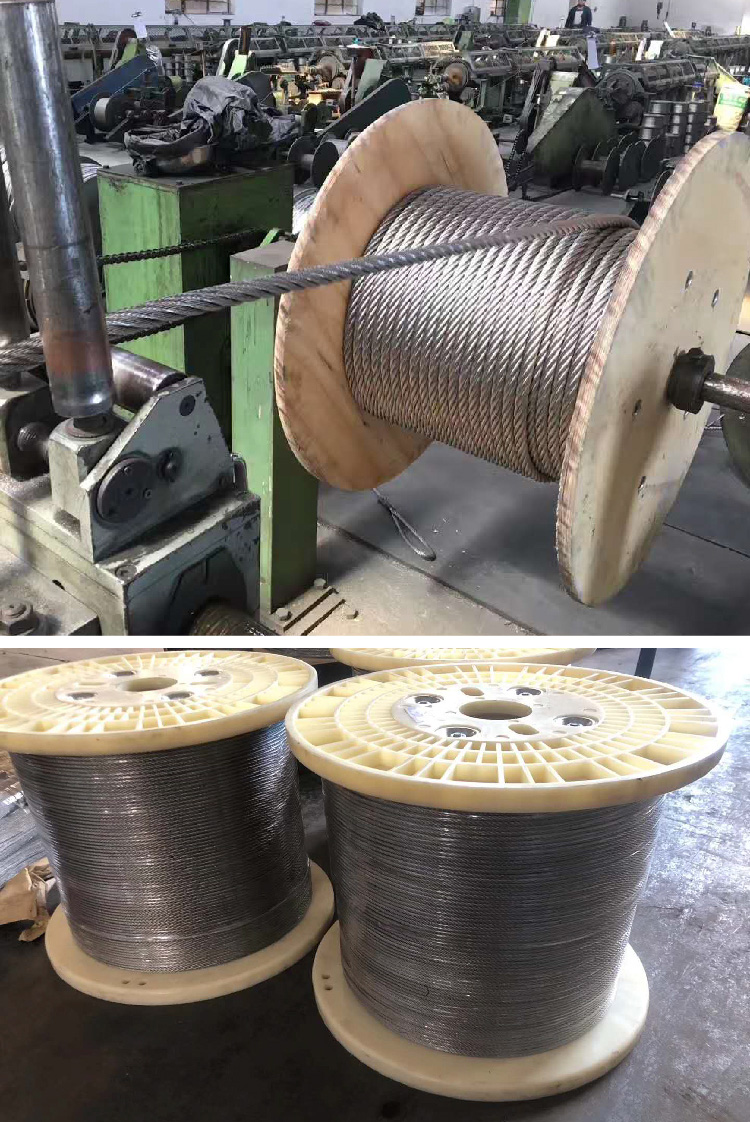

Successful Project

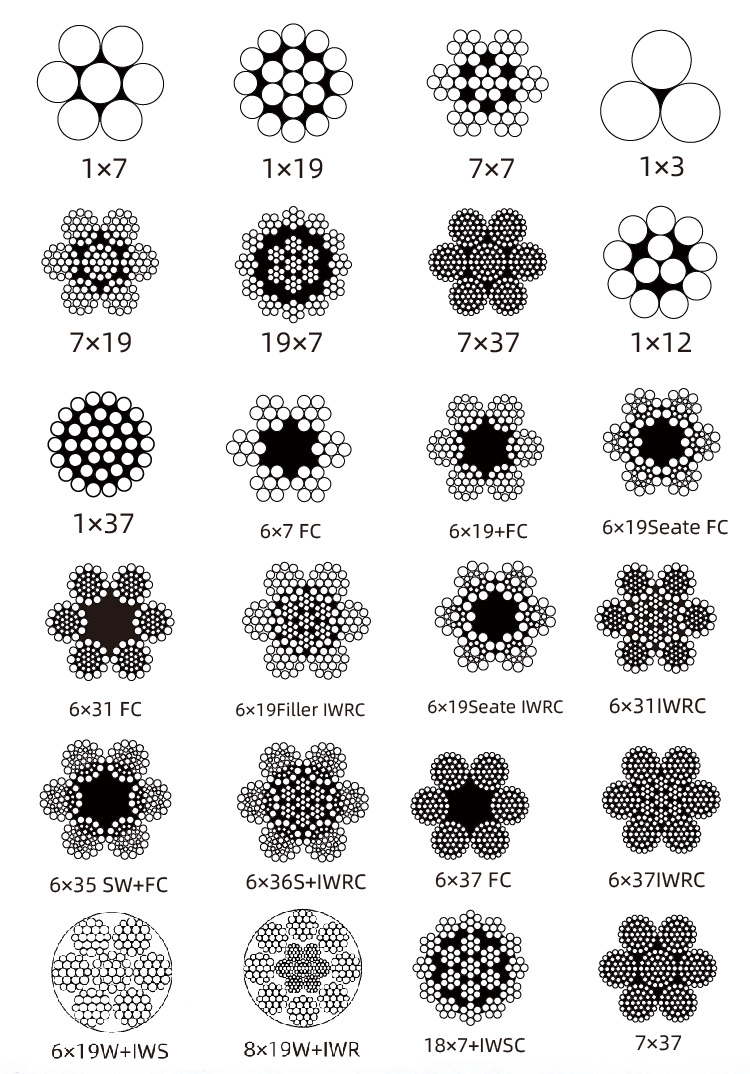

Wire Rope Constructions

PRODUCT CONFIGURATION




SALES AND SERVICE NETWORK



FAQ


In ordering steel wire rope, you are requested to give us complete information as specified below:



a. Purpose: For which rope will be used.

b. Size: Diameter of the rope in millimeter or inches

c. Construction: Number of strands, number of wires per strand and type of strand construction.

d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).

e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.

f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.

g. Grade of wire: Tensile strength of wires.

h. Breaking Load: Minimum or calculated breaking load in tones or pounds.

i. Lubrication: Whether lubrication is desired or not, and required lubricant.

j. Length: Length of wire rope.

k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.

l. Quantity: By number of coils or reels, by length or weight.

m. Remarks: Shipping marks and any other special requirement.
