China Wire Rope Sling manufacturer

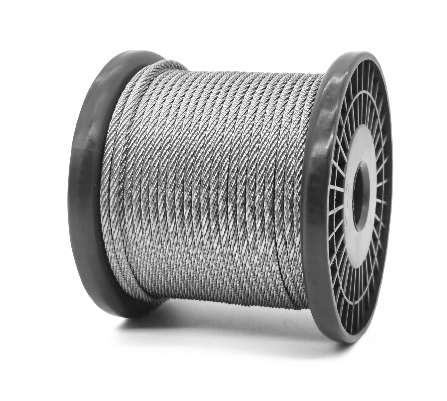

7 * 7 4.0 mm stainless steel 304 wire rope for cable railling kit

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-SSWR7X74MM
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

Steel Grade304/316StandardAiSi, ASTM, bs, DIN, GB, JIS, American Standard/ European standard /German standard
Place of OriginChinaTypestainless steel, wire rope
ApplicationNettingAlloy Or NotNon-Alloy
Special UseFree Cutting SteelModel Number4.0mm
Brand NameLKSTolerance±1%
Processing ServiceCuttingGrade304
MaterialPVCProduct namePlastic coated steel wire rope
Delivery TimequantityQualityHigh Quaity
Coloras the picture showsSurfacePolished surface
Usageship/LiftingKey wordwire rope
High Light:

stainless wire rope

,

stainless steel cable

Product Description

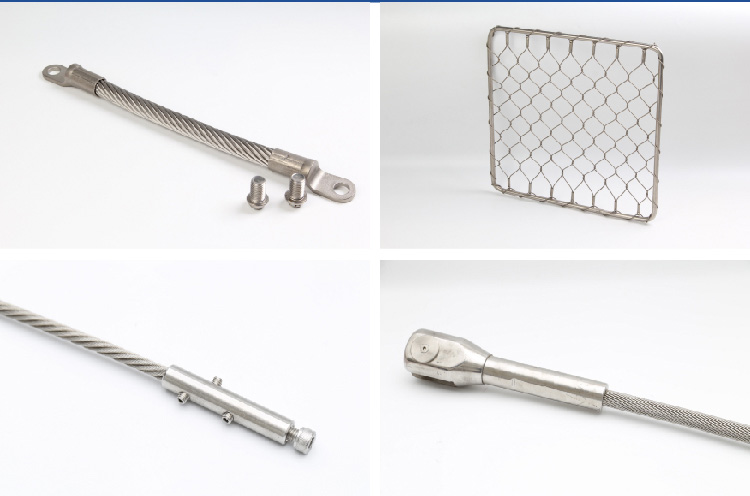

Stainless steel wire ropes boast higher corrosion resistance to salt water than galvanized wire ropes, so they are the best choice of marine applications. Meanwhile, the bright appearance of galvanized wire ropes will dull over time, but stainless steel wire rope will maintain its bright and modern appearance for years. Therefore they are generally used in decoration for modern display and architectural purposes, such as railings, architectural cables, cable balustrades, handrails, etc.

304/316 stainless steel wire rope full specifications

  The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the
  requirements. A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain
number of strands are twisted into a spiral with the core as the center. In material handling machinery, it is used for lifting,
traction, tensioning and carrying. The steel wire rope has high strength, light weight, stable work, not easy to be broken
suddenly, and reliable work.

FEATURES AT A GLANCE

1. The wire rope can transmit long-distance load.

 2. The bearing safety factor is large, and the use is safe and reliable.
 3. Light weight, easy to carry and transport.
 4. Able to withstand various loads and variable loads.
 5. It has high tensile strength, fatigue strength and impact toughness.
 6. Under high-speed working conditions, it is abrasion-resistant, shock-resistant and stable in operation.
 7. Good corrosion resistance, able to work normally in the harsh environment of various harmful media.
 8. Good softness, suitable for traction, pulling, strapping and other purposes.

7 × 7 stainless steel wire rope

The cross section of stainless steel wire rope SSWR-77

Features:

  • More flexible than 1 × 19 stainless steel wire rope.

  • More rigid than 7 × 19 stainless steel wire rope.

  • Excellent breaking load qualities.

  • Available form 0.54mm to 12mm in diameter

Application:

  • Marine industry such as rigging, sewage treatment work, steering cable and mast stay.

  • General engineering applications such as control cable, davit ropes and slings

TypeCable diameterTensile strengthMinimum breaking loadWeight
SSWR-77-10.54mm1770Mpa0.18KN0.0012kg/m
SSWR-77-20.68mm1770Mpa0.29KN0.0018kg/m
SSWR-77-30.81mm1770Mpa0.41KN0.0026kg/m
SSWR-77-40.9mm1570Mpa0.49KN0.0032kg/m
SSWR-77-51mm1570Mpa0.56KN0.004kg/m
SSWR-77-61.25mm1570Mpa0.88KN0.005kg/m
SSWR-77-71.5mm1570Mpa1.27KN0.009kg/m
SSWR-77-81.8mm1570Mpa0.83KN0.013kg/m
SSWR-77-92mm1570Mpa2.25KN0.016kg/m
SSWR-77-102.5mm1570Mpa3.52KN0.025kg/m
SSWR-77-113mm1570Mpa5.07KN0.034kg/m
SSWR-77-124mm1570Mpa9.01KN0.063kg/m
SSWR-77-135mm1570Mpa14.08KN0.098kg/m
SSWR-77-146mm1570Mpa20.28KN0.142kg/m
SSWR-77-157mm1570Mpa27.6KN0.193kg/m
SSWR-77-168mm1570Mpa36.05KN0.253kg/m
SSWR-77-1710mm1570Mpa56.3KN0.393kg/m
SSWR-77-1812mm1570Mpa81.1KN0.566kg/m
