Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO 9001 |
| Model Number: | 1x19 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10000mtrs |
| Price: | USD3000/TON |
| Packaging Details: | Plastic Reels |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50tons monthly |
|
Detail Information |
|||
| Material: | Steel | Application: | Control Cable |
|---|---|---|---|
| MOQ: | 10000 Meters If No Stock | Lay: | Sz Right Regular Lay |
| Tensile Strength: | 1960MPA | Zinc Coating: | Over 15g/m2 |
| HS Code: | 7312100000 | Diameter: | 0.8mm To 6.0mm |
| High Light: |
pto control cable,push pull control cable |
||
Product Description

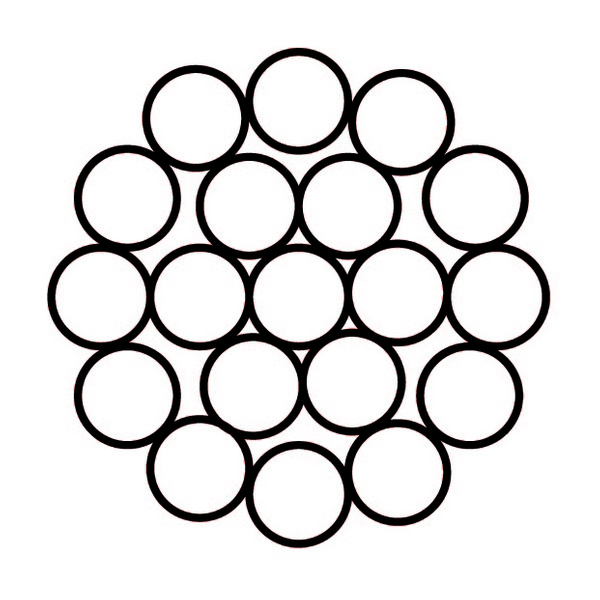

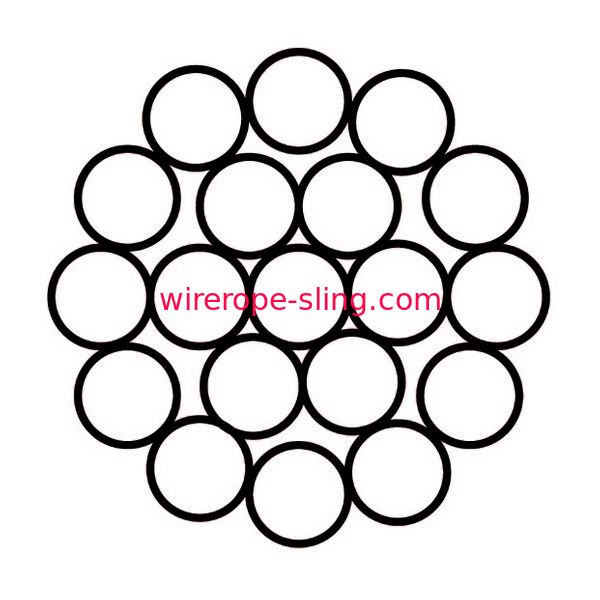

1x19 galvanized or stainless control cable for automotive push pull cable
Industries such as aerospace, automation, oil and gas, marine, electrical, and manufacturing commonly employ these flexible, bendable wires. To accommodate commercial and industrial applications the wires are made of high strength metal that is twisted and braided around a core to create stranded wire.
Though referred to simply as cables, control devices are often comprised of an entire wire rope assembly complete with metal or rubber housings. These include wire fittings and terminals such as eyes, forks, studs, handles, pins, and other mounting apparatus with which components are connected. Fittings may be on one or both ends and are often hardwired into the cables for added security, though some instrumentation control cables come with change tool kits for added versatility.
In addition to the aforementioned specifications, the specific type of control cable in use should be considered. Pull-pull and push-pull cables are the most popular choices in the precision transmission of mechanical motion.
Technical Table of Wire Rope
| Diameter (mm) | Min. Breaking load (Kg) | Approx. Weight (Kg/100m) | ||
| Galvanized | SUS 316 | SUS 304 | ||
| 0.8 | 70 | 50 | 60 | 0.32 |
| 1.0 | 105 | 80 | 95 | 0.50 |
| 1.2 | 150 | 120 | 140 | 0.72 |
| 1.4 | 220 | 160 | 190 | 0.98 |
| 1.5 | 250 | 185 | 215 | 1.12 |
| 1.6 | 280 | 210 | 245 | 1.27 |
| 1.8 | 340 | 265 | 310 | 1.61 |
| 2.0 | 425 | 330 | 365 | 2.00 |
| 2.5 | 665 | 520 | 570 | 3.10 |
| 3.0 | 850 | 745 | 820 | 4.48 |
| 3.5 | 1100 | 950 | 1080 | 6.00 |
| 4.0 | 1400 | 1245 | 1418 | 7.90 |
| 5.0 | 2180 | 1816 | 2140 | 12.50 |
| 6.0 | 3150 | 2600 | 3100 | 18.10 |
Length can customized automotive push pull control cable assemblies
| Control Wire Cable Parts | |||
| Construction of wire rope on picture: 7*7 | Custom-made available | ||
| Construction of wire rope | 7*7, 1*19, 7*19 etc ,steel cable +screwing housing +end fittings | ||
| Material of Wire rope | a) Galvanized steel wire rope | b) Slick-Galvanized steel wire rope | |
| c) Stainless steel wire rope | d) Slick-Stainless steel wire rope | ||
| Zinc head (nipple) | 7*7, 4.4*4.4, φ6.0, Special specifications, etc. Mainly according to order requirement. | ||
| Function and Features | 1.Provides pull effect for automotive glass lift. 2.Easy to install. 3.The length can be customized upon request. |
||
Our service
1. OEM Manufacturing welcome: Product, Package...
2. Sample free
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
