AISI Standard Rope Winch Line Standard Alloy Hook With Safety Latch Rope
AISI Standard Rope Winch Line Standard Alloy Hook With Safety Latch Rope

AISI Standard Rope Winch Line Standard Alloy Hook With Safety Latch Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: LKSWL
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD5-15 per set
Packaging Details: Wooden Case or asrequest
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability:
Contact Now

Detail Information
Standard:AISI, ASTM, BS, DIN, GB, JISWire Gauge:0.3-11mm
Steel Grade:Stainless Or GalvanziedHolder Form:Hook
Package Quantity:1Alloy Or Not:Non-alloy
Dia.:As Request Or Standard FormHS Code:73121000
High Light:

synthetic winch rope

,

winch line extension

Product Description

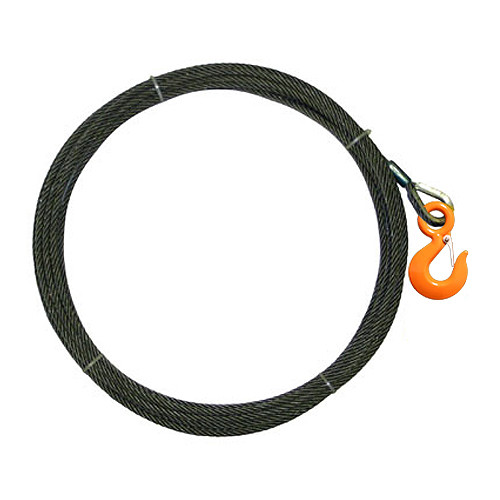

Standard Alloy Hook with safety latch Rope Winch Lines for tow truck operators

Standard Hook Rope Winch Lines



Our standard wire rope winch cables feature IWRC XIP wire rope, meaning it has a steel core and a high breaking strength. We form the eyes using industry standard steel swage sleeves and a 500T industrial swage press. A galvanized thimble in the eye protects the cable from excessive wear. The hook is alloy and features a spring loaded safety latch. Although most commonly sold to tow truck operators, these cables are great for anyone that needs a replacement winch cable. Multiple sizes and lengths are available, so please see below for options.




Features

  • Wire rope winch cable, great for two trucks, industrial winch users and off-road enthusiasts
  • Made from 6x19 class wire rope, IWRC EIPS specification
  • Supplied with standard sling hook, spring-loaded safety latch included
  • Eyes are professionally formed using a 500T hydraulic swage press
  • Eyes are buffered with heavy-duty steel thimbles--they provide protection against wear and deformation of the wire rope eye and promote a longer service life





AISI Standard Rope Winch Line Standard Alloy Hook With Safety Latch Rope 0
Wire Rope Size
Construction Length (ft) Breaking Strength (lbs) Weight (lbs)
5/16" 6x19 Class 50 10,540 10.19
5/16" 6x19 Class 75 10,540 14.69
5/16" 6x19 Class 100 10,540 19.19
5/16" 6x19 Class 125 10,540 23.69
5/16" 6x19 Class 150 10,540 28.19
　
3/8" 6x19 Class 50 15,100 14.6
3/8" 6x19 Class 75 15,100 21.1
3/8" 6x19 Class 100 15,100 27.6
3/8" 6x19 Class 125 15,100 34.1
3/8" 6x19 Class 150 15,100 40.6
　
7/16" 6x19 Class 50 20,400 20.23
7/16" 6x19 Class 75 20,400 28.98
7/16" 6x19 Class 100 20,400 37.73
7/16" 6x19 Class 125 20,400 46.48
7/16" 6x19 Class 150 20,400 55.23
　
1/2" 6x19 Class 50 26,600 26.01
1/2" 6x19 Class 75 26,600 37.51
1/2" 6x19 Class 100 26,600 49.01
1/2" 6x19 Class 125 26,600 60.51
1/2" 6x19 Class 150 26,600 72.01
1/2" 6x19 Class 175 26,600 83.51
1/2" 6x19 Class 200 26,600 95.01
　
9/16" 6x19 Class 50 33,600 34.86
9/16" 6x19 Class 75 33,600 49.61
9/16" 6x19 Class 100 33,600 64.36
9/16" 6x19 Class 125 33,600 79.11
9/16" 6x19 Class 150 33,600 93.86
9/16" 6x19 Class 175 33,600 108.61
9/16" 6x19 Class 200 33,600 123.36
　
5/8" 6x19 Class 50 41,200 41.64
5/8" 6x19 Class 75 41,200 59.64
5/8" 6x19 Class 100 41,200 77.64
5/8" 6x19 Class 125 41,200 95.64
5/8" 6x19 Class 150 41,200 113.64
5/8" 6x19 Class 175 41,200 131.64
5/8" 6x19 Class 200 41,200 149.64
5/8" 6x19 Class 225 41,200 167.64
5/8" 6x19 Class 250 41,200 185.64
　
3/4" 6x19 Class 50 58,800 63
3/4" 6x19 Class 75 58,800 89
3/4" 6x19 Class 100 58,800 115
3/4" 6x19 Class 125 58,800 141
3/4" 6x19 Class 150 58,800 167
3/4" 6x19 Class 175 58,800 193
3/4" 6x19 Class 200 58,800 219
3/4" 6x19 Class 225 58,800 245
3/4" 6x19 Class 250 58,800 271
3/4" 6x19 Class 275 58,800 297
3/4" 6x19 Class 300 58,800 323





Rope Winch Lines

WINCH LINES OF ALL SIZES AND TYPES, BUILT TO ORDER!

We are a full line rigging shop, which means we carry wire rope and premium synthetic ropes in bulk. We also carry all of the fittings, and we have the right equipment to make professional winch lines on demand. Look at the table below to understand the four types of winch lines offered on this page. If you don't see what you're looking for, just give us a call, and we will happily provide you with a custom quote.

Material Hook Type Description
Steel Cable Standard Hook This is the most common type of winch line because it is most affordable. Non-swiveling hook, made from alloy steel, safety latch included.
Steel Cable Swivel Hook The overall function is similar to a standard hook, only this hook swivels which makes for easier connections, hook positioning and less binding.
Steel Cable Self-Closing Swivel Hook Also known as a "safety hook", this hook features a heavy-duty latch that opens outward, and closes immediately once a load is applied. This hooks also swivels, and generally is more durable than other hooks.
Steel Cable Extension w/ Hook An extension is a quick and easy way to get extra length / reach. Just connect the hook on your existing winch line to the thimbled eye of the extension, and you're off and running.
Ultrex Synthetic Optional Hook Made from Yale Cordage's premium Ultrex rope, these winch lines are incredibly lightweight, yet stronger than steel cable of the same size. Equipped with a durable Blue Line Thimble, and available with an optional, removable sling hook with safety latch.

AISI Standard Rope Winch Line Standard Alloy Hook With Safety Latch Rope 1
