China Wire Rope Sling manufacturer

Bright Standard Ordinary Lay Galvanized Wire Rope Forestry Ropes Lks 6-3 C

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 6-3 C
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Forestry Wire RopeSurface:Bright
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:8mm-24mm
Core:Wire Rope CoreHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Bright standard Ordinary lay Steel Wire Rope FORESTRY ROPES LKS 6-3 C

LKS ropes not only satisfy users in Asia: we traditionally also supply customers in the Alps region, Scandinavia and elsewhere via our dealers. Our tried and tested forestry ropes are usually peened in order to generate a higher metallic cross section and thus higher breaking forces, and in order to create as smooth a rope surface as possible. In particular in rocky terrain, this offers fewer contact surfaces that can be damaged. The use of peened ropes is also advantageous with multi-layer winding on rope winches. Furthermore, the service life of the rope can be significantly increased by special lubrication which, in particular, substantially reduces friction and corrosion.





Forestry Wire Rope

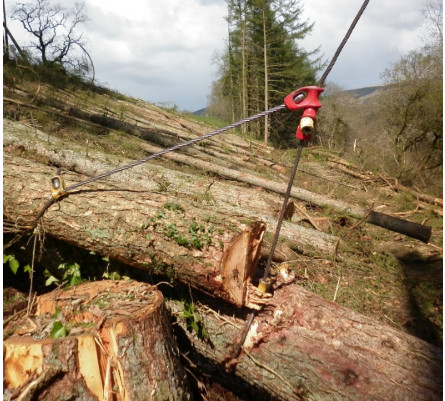

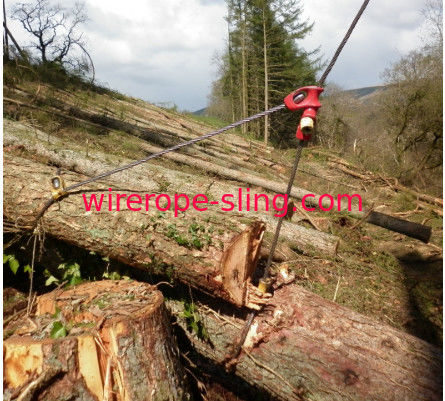

Forestry rope can be used in many different ways and is used throughout the forestry, plantation, agricultural and Arborist type industries.

The wire rope we supply for this type of work is a high quality galvanized steel wire rope which is available in two constructions; 6 x 24 and 6 x 16. They have a fibre rope core in order to give them good flexibility. This is required when using forestry rope for wrapping around trees and logs.

Rope Services Direct has its own machinery to allow us to press and splice any end fitting to your chosen rope. This will enable you to have a customised rope tailor made for your operation. It may be just a simple wire rope sling which you can use in a choker hitch, or it may be a wire rope to be used in a winch. We can help with all you forestry needs so call us on 01384 78004 for advice, enquiries or quotes.



Bright Standard Ordinary Lay Galvanized Wire Rope Forestry Ropes Lks 6-3 C 0



  • Rope category number (RCN) 04 according to ISO 4309
  • Ordinary lay
  • Seale construction
  • Bright standard
  • Special lubrication
  • Outer strands compacted

      The LKS 8-7 CP is a rope with 8 compacted outer strands and plastic padding. This combination provides high breaking forces and high stability, coupled with enhanced protection from inner rope damages and enviorenmental influences.



LENGTH OF LAY, TYPE OF LAY AND DIRECTION OF LAY

LENGTH OF LAY

The length of lay of a strand is the lead of an external wire measured parallel to the strand’s longitudinal axis as it makes a complete spiral around the axis of the strand.

Bright Standard Ordinary Lay Galvanized Wire Rope Forestry Ropes Lks 6-3 C 1

Length of lay

TYPE OF LAY AND DIRECTION OF LAY

LANG LAY

The wires in the strands have the same direction of lay as the strands in the rope.

ORDINARY LAY

The wires in the strands have the opposite direction of lay as the strands in the rope.

Bright Standard Ordinary Lay Galvanized Wire Rope Forestry Ropes Lks 6-3 C 2

ATTRIBUTES

Fettung Compressed


APPLICATIONS

Agriculture







Technical Data
Ø   Weight Metallic
cross-section
MBK 1960
mm   kg/100m mm2 kN
8   36.1 42.3 67.2
9   44.1 51.4 81.9
10   52.9 60.8 97.9
11   62.5 74.0 117
12   72.9 85.5 136
13   84.1 97.4 156
14   96.1 115 178
15   109 126 201
16   123 144 235
17   148 161 258
18   164



190

286
19   181 207 312
20   198 224 342
22   237 268 409
24   277 314 476
