Vinyl - Coated 304 Stainless Wire Rope Assemblies With Fittings For Construction

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV,CE
Model Number: LKS-WRA
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: USD15/SET
Packaging Details: Standard export carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 8000sets monthly

Detail Information

Steel Grade:Stainless SteelApplication:Construction
Alloy Or Not:Non-alloyStandard:GB,DIN,ASTM,AISI,BS
Type:Galvanized And Stainless SteelSpecial Use:Free Cutting Steel
Customized:AvailableHS Code:73121000
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description



String Lights Hanging Kit Vinyl-Coated 304 Stainless Wire Rope Assemblies with fittings

Production Details

LKS String Lights Hanging Kit, 200ft Easy Installation Lights Suspension Cable, Multipurpose Black Vinyl-Coated 304 Stainless Steel Wire Kit for Backyard Patio and Pool

  • Suspension wire kit to help you hang up your string lights, make backyard or pool looks warm and romantic
  • Black vinyl 304 stainless steel wire, upgraded to a maximum load of 480lbs, suitable for any climate throughout the year
  • Come with easy to understand instruction manuals, you can quickly complete the decoration work
  • Compared of guessing what you need at the local hardware store, this kit got it all for you in perfect quantities
  • We believe in our products and service, that is why we back you all with a 3-year warranty and provide friendly, easy-to-reach support

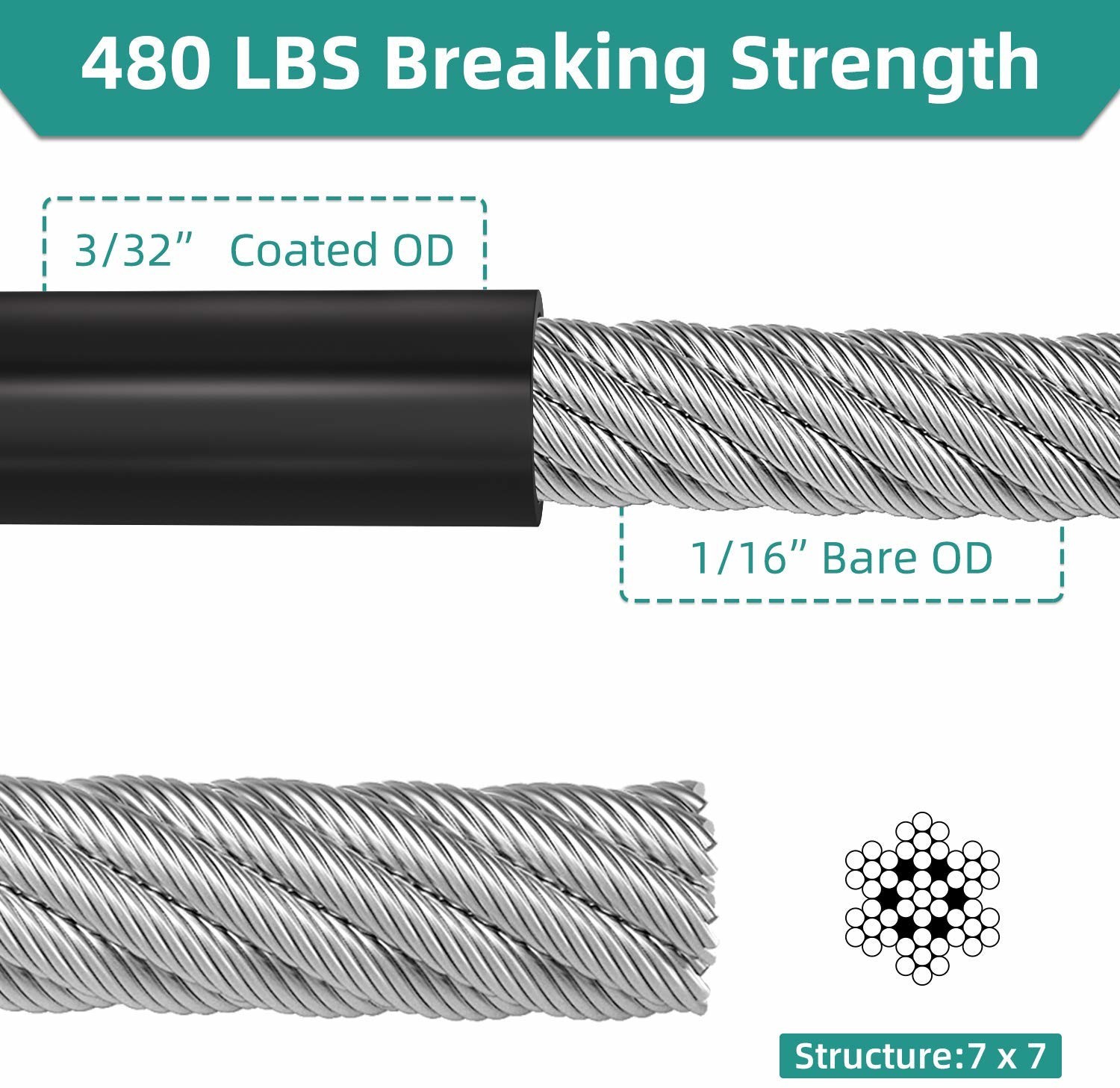

  • 【Perfect Guide Wire For Outdoor String Lights】:This cable (7x7) bare OD is 1/16",coated OD is 3/32";breaking strength is 480 lbs and the color of black won’t affect the visual of lights.
  • 【High-Quality Material】:All the items are made of 304 stainless steel(Except The Loop Sleeves)so it is durable,safe, insulated, waterproof, hard and anti-rusty.
  • 【Wire Coil Bobbins】:Use the wire coil bobbins to avoid tangled wires ropes.
  • 【Choose The Best kit For You】:We focused on every single part of this kit;even a screw. Every kind of component was tested for many times before being chosen, included the load weights test, breaking test and so on

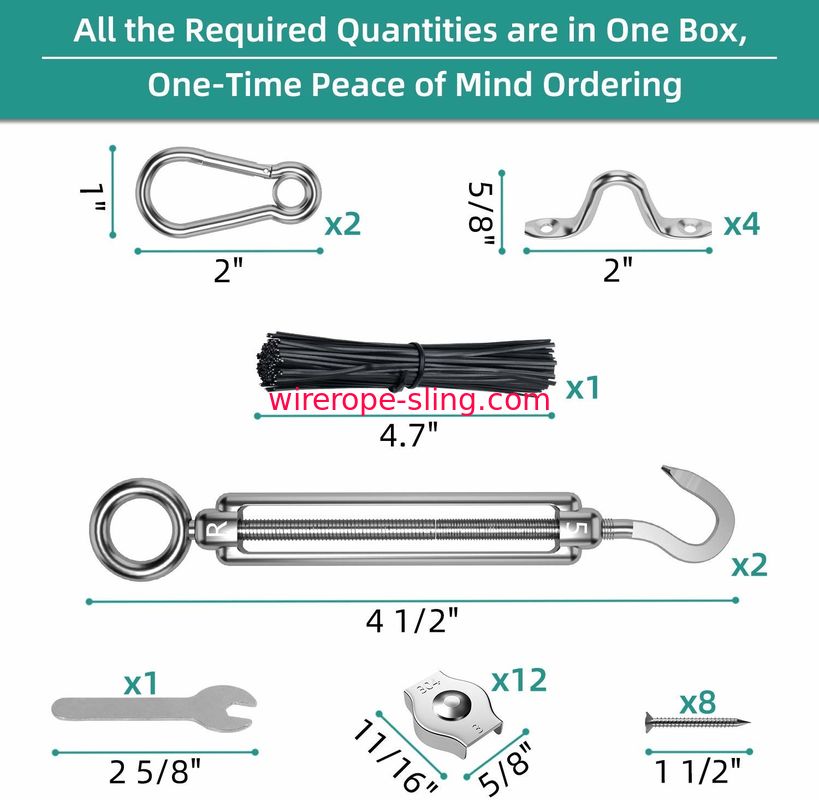

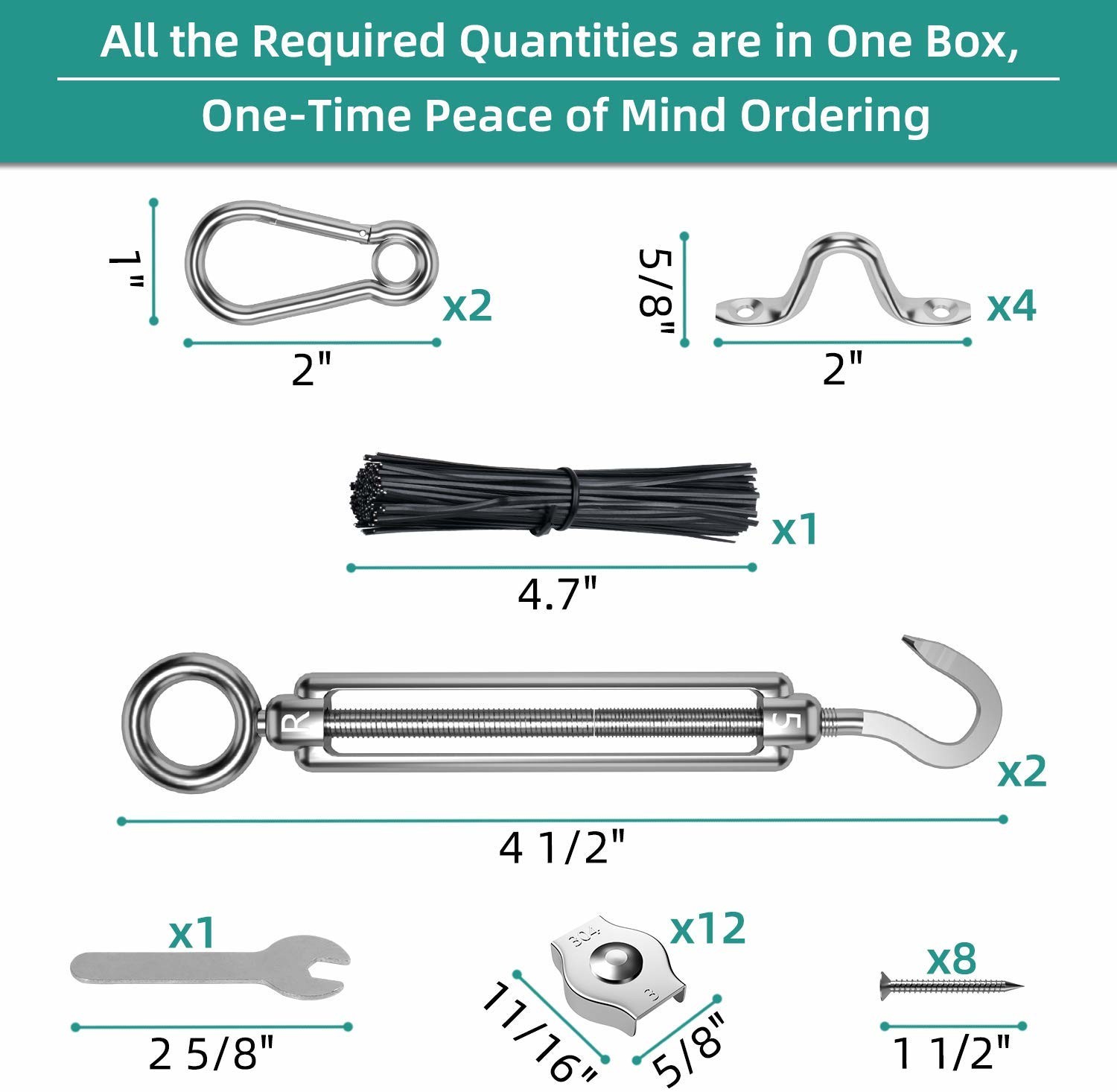

  • 【Enough Accessories】:This package provide almost all of the kit you need, including 164 feet length Stainless Steel 304 Cable; 3 Pcs M5 Turnbuckle, 3 Pcs Attached Snap Hook, 4 Pcs Screw Eyes Lag Thread, 6 Pcs M2.5 Thimble, 6 Pcs Eye Straps, 6 Pcs Zip ties,16 Pcs Aluminum Crimping Loop Sleeve,12 Pcs Lag Screw, 12Pcs Plastic anchors, 1*user manual

How To Install?

Vinyl - Coated 304 Stainless Wire Rope Assemblies With Fittings For Construction 0

Wire Rope Details

7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:

  • Applications
  • Control cables
  • Guardrail
  • Standing rigging
  • Running rigging
  • Steering cable
  • Marine/Saltwater environment
  • Sewage treatment works
  • Wire rope slings
  • Davit ropes
Breaking Loads
Nominal Diameter Approximate Mass Minimum breaking loads - 1570 Mpa
[mm] [kg/m] [kN] [Kg]
1 0.004 0.59 60
2.0
0.016
2.37 241
2.5
0.023
3.71 378
3.0
0.034
5.34 544
4.0
0.060
9.49 967
5.0
0.095
14.80 1,509
6.0
0.136
21.40 2,182
7.0
0.185
29.10 2,967
8.0
0.242
38.00 3,874
10.0
0.378
59.30 6,046
12.0
0.545
85.40 8,708
14.0
0.741
117.00 11,930

Product description

A 200ft String Lights Suspension Kit
Help you quickly improve the outdoor space, make it soft and romantic, hang up café lights, string lights, LED lights to decorate your home.

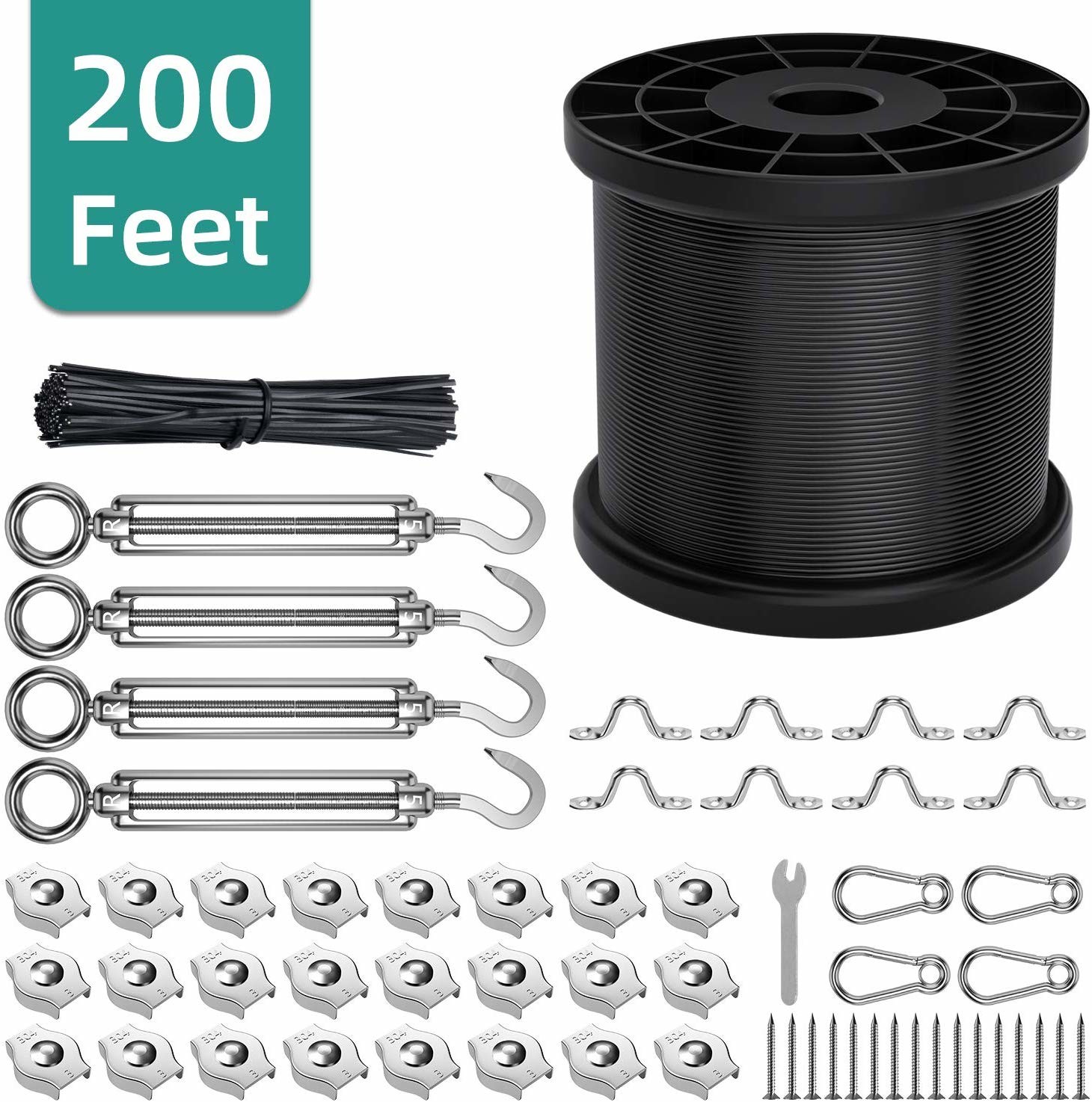

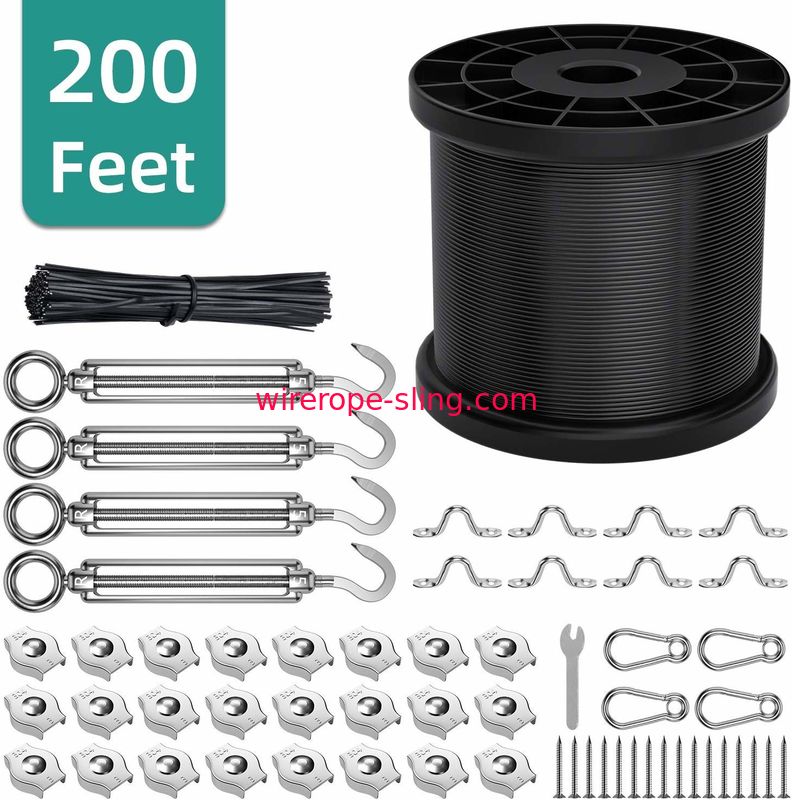

Astonishing 60pcs Suspension Components Kit:
Installation Manual x 1
200ft Wire Cable x 1
Turnbuckles x 4
Snap Hooks x 4
Pad Eyes x 8
Tapping Screws x 16
Rape Clamps x 24
Small Wrench x 1
Zip ties x 100

At LKS, Leading Quality and Service:
Material: 100% 304 stainless steel
Wire OD: 1/16”
Coated OD: 3/32”
Coated Material: Vinyl
Breaking Strength: 480lbs
Warranty: 3-years
Notes:
The most important thing is your safety. Please make sure to do safety protection before starting work. Please do not install at night or bad weather.

In addition to this kit, you also need a wire cutter, tape measure, pencil, drill, ladder.


Product Show



Vinyl - Coated 304 Stainless Wire Rope Assemblies With Fittings For Construction 1

Vinyl - Coated 304 Stainless Wire Rope Assemblies With Fittings For Construction 2

Vinyl - Coated 304 Stainless Wire Rope Assemblies With Fittings For Construction 3





Wire Rope Assembly

LKS Stainless recently expanded its manufacturing systems to more efficiently fabricate custom wire rope cable assemblies. We supplies 1mm to 40mm in diameter wire rope cable assemblies used in agricultural machinery, construction and mining equipment, and other mobile equipment applications.

Wire rope assemblies are available in stainless steel and we stocks most types of the end fittings to provide a quick turnaround on assembly orders. Among the recent improvements at Huaxin is the installation of a new automated high-speed cable cuter and we also maintains a quality lab, in-process and final inspection procedures designed to ensure that all assemblies meet the correct certifications.

Whatever your requirements, we will be happy to discuss options and supply the very best solution.
