China Wire Rope Sling manufacturer

Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV,CE
Model Number: LKS-WRA
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: USD15/SET
Packaging Details: Standard export carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 8000sets monthly

Detail Information

Steel Grade:Stainless SteelApplication:Construction
Alloy Or Not:Non-alloyStandard:GB,DIN,ASTM,AISI,BS
Type:Galvanized And Stainless SteelSpecial Use:Free Cutting Steel
Customized:AvailableHS Code:73121000
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description



Outdoor Lights Hanging Kit Turnbuckle Stainless Steel Wire Rope Assemblies with Hooks

Production Details

LKS Outdoor Lights Hanging Kit,Globe String Lights Suspension Kit,82ft Black Vinyl-Coated 304 Stainless Steel Cable,String Light Guide Wire,Turnbuckle Wire Rope Tension with Hooks

  • Black Vinyl-Coated 304 Stainless Steel Cable:features insulation, strong weather resistance, waterproofness, rust and corrosion resistance as well as strong toughness.This outdoor light guide wire Perfect for hanging outdoor string lights.
  • Waterproof strand for patio,garden,porch,Backyard Party Hanging Light.Outdoor and indoor suspension for lamps, clothes, Sun Shade Sails and Sundries others.
  • This Cable Bare OD is 1/16",Coated OD is 3/32".Max load is 368lb.304 Wire rope cable can be easy trimmed to any desired length.
  • Easy adjust wire rope cable tension using the push-button on snap hook.Suspension kit for outdoor use with abundant accessories; It can ensure the simplicity and firmness of the installation and easy to install and disassemble.

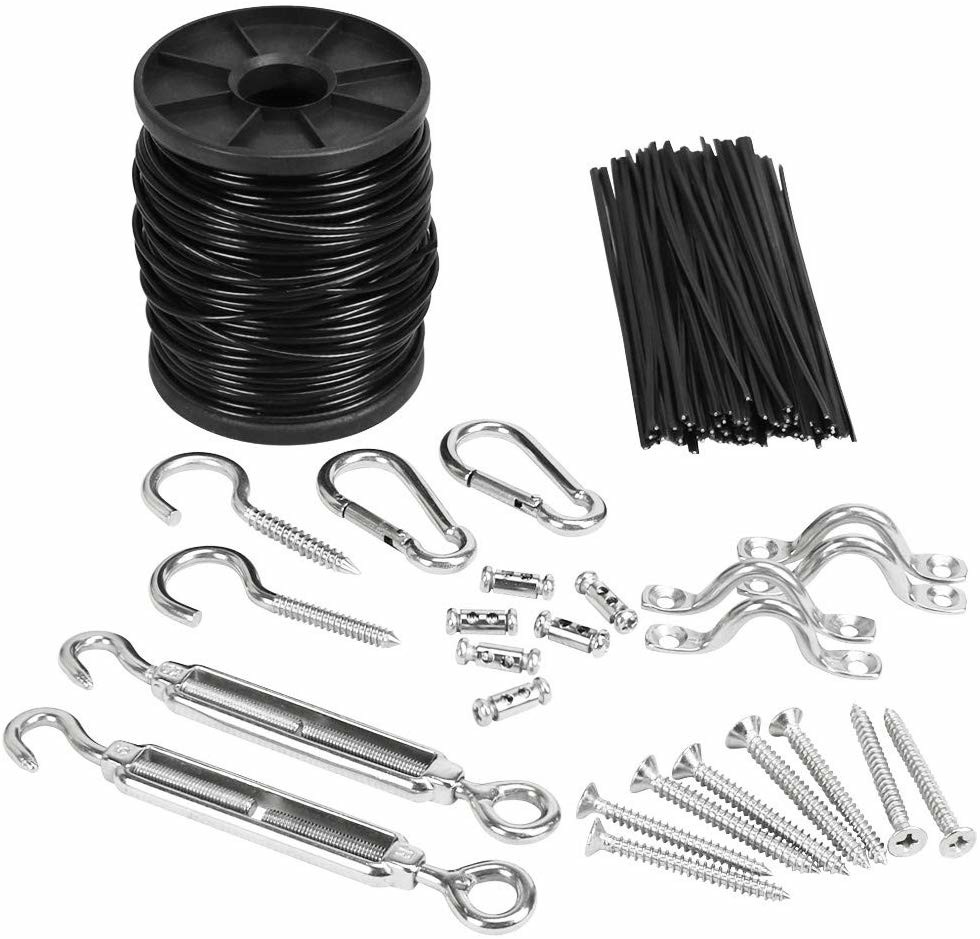

  • 82 Feet long;304 Stainless Steel Cable with Turnbuckle(M5 OC) X 2PCS,Spring Snap Hook X 2PCS,Eye Shape Screw Hooks X 2PCS,Eye Strap x 4PCS,Adjustable Locking Device X 6PCS,Flat Head Wood Screw X 8PCS,Black Twist Ties X 65PCS,as shown in the picture.

How to Install?

Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life 0

Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life 1

Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life 2

Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life 3

Wire Rope Details

Product Details

Whether you need a length of coated wire rope or a complete assembly we can meet your requirements.

Our fully trained team of engineers hand craft your assemblies to the highest standards and the tightest tolerances. All assemblies are manufactured in-house to your bespoke specifications.

We can coat both galvanised or stainless steel wire ropes with a PVC, Nylon or Polypropylene coating to best suit your needs, the coatings are available in a wide range of colours to best suit your application.



Technical Date



Diameter Specification Min. Breaking Strength Jacket Color Approx. Weight Per 100'
.0469 - .0625 Commercial 270 Clear 0.5
.0625 - .1250 Commercial 480 Clear 1.3
.0625 - .1250 Commercial 480 White 1.3
.0937 - .1250 Commercial 920 Clear 2
.0937 - .1250 Commercial 920 White 2
.0937 - .1562 Commercial 920 Clear 2.4
.0937 - .1875 Commercial 920 Clear 2.8
.1250 - .1875 Commercial 1,700 Clear 3.9
.1250 - .1875 Commercial 1,700 White 3.9
.1250 - .2187 Commercial 1,700 White 3.9
.1250 - .2500 Commercial 1,700 Clear 5.1
.1250 - .2500 Commercial 1,700 White 5.1
.1875 - .2500 Commercial 3,700 White 8
.1875 - .3125 Commercial 3,700 Clear 11.2
.1875 - .3125 Commercial 3,700 White 9.1
.1875 - .3750 Commercial 3,700 White 11.2
.2500 - .3750 Commercial 6,100 White 14.2

Product description

Size:82ft

Believe in your choice!

For the third optimization, eliminate flashy accessories, add practical accessories, and improve the installation method. After installing the stainless steel wire rope, use Twist Ties to tie the string lights to the wire.

Decorate Your Home:

Please use this 304 Stainless Steel Cable when you hanging heavy duty commercial grade string lights to assist in hanging them over large open areas.Ensure safety and security, prevent the wind from blowing.

Each wire rope cable length 164 feet,PVC-Coated cable is made of 304 stainless steel(7*7),it is firm and rustless.Use additional accessories to wrap around the pillars, trees, joists what you want to hang the environment, simple and portable to achieve a solid fixed cable suspension system.

To prevent the string of sagging and swing, it provides a solid way. Suitable for patio, pavilion, deck, garden, cafe, shade wire rope or used as a landscape chandelier lighting,to celebrate your wedding,anniversary and other meaningful festivals.You will create a warm romantic party atmosphere.

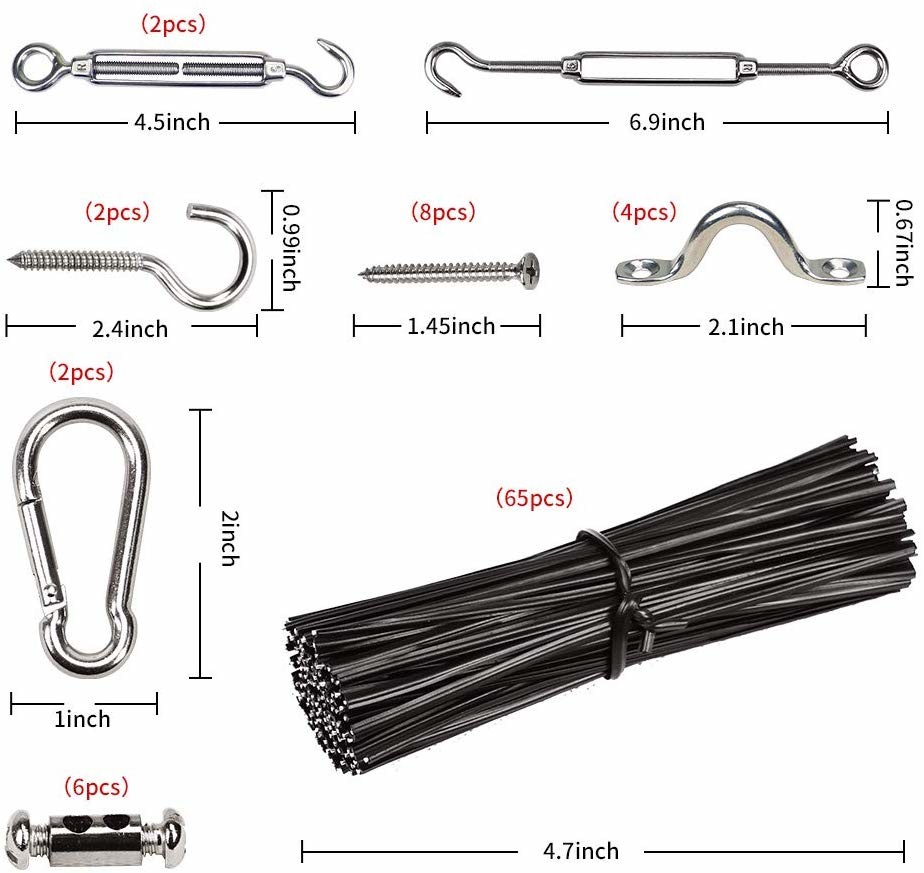

WHATS INCLUDED?

Length of wire rope: 82FT(PVC-Coated 304 Stainless Steel Cable)

2 Pcs Turnbuckle(M5 OC 304 Stainless Steel)

2 Pcs Spring Snap Hook(304 Stainless Steel)

2 Pcs Eye Shape Screw Hooks(304 Stainless Steel)

4 Pcs Eye Strap(304 Stainless Steel)

6 Pcs Adjustable Locking Device(Copper + stainless steel) Nickel Plating

8 Pcs Flat Head Wood Screw (304 Stainless Steel)

65 Pcs Black Twist Ties (Black Vinyl-Coated iron wire)

Package Size: 5.60 x 3.95 x 3.75 in Gross weight: 1.60 lb

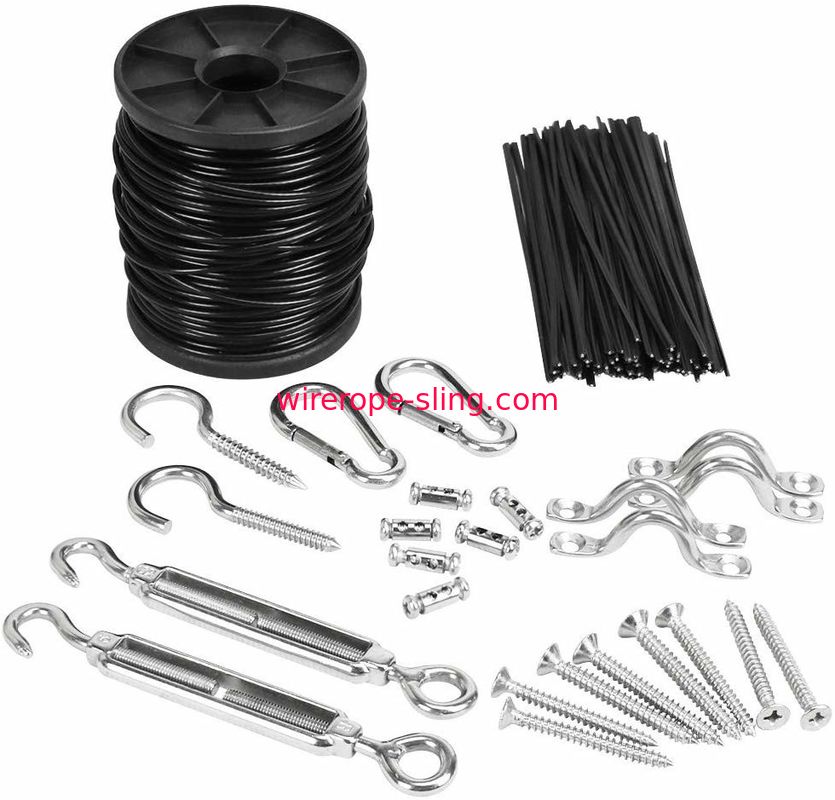

Product Show



Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life 4

Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life 5

Turnbuckle Stainless Steel Wire Rope Cable Assemblies With Hooks Long Life 6



Chemical composition:



Standard:
Grade C % Ni % Cr % P % S % SI % Mn % Mo %
304 ≤0.08 8-10 18-20 ≤0.035 ≤0.03 ≤1.0 ≤2
316 ≤0.08 10-14 16-18 ≤0.035 ≤0.03 ≤1.0 ≤2 2-3
304L ≤0.03 8-10 18-20 ≤0.035 ≤0.03 ≤1.0 ≤2
316L ≤0.03 10-14 16-18 ≤0.035 ≤0.03 ≤1.0 ≤2 2-3
AISI304 ≤0.07 8-10 17-19 ≤0.035 ≤0.03 ≤1.0 ≤2
AISI316 ≤0.08 10-14 16-18 ≤0.045 ≤0.03 ≤1.0 ≤2 2-3
