Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool
Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool

Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV,CE
Model Number: LKS-WRA
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: USD15/SET
Packaging Details: Standard export carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 8000sets monthly
Contact Now

Detail Information
Steel Grade:Stainless SteelApplication:Construction
Alloy Or Not:Non-alloyStandard:GB,DIN,ASTM,AISI,BS
Type:Galvanized And Stainless SteelSpecial Use:Free Cutting Steel
Customized:AvailableHS Code:73121000
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description



Black Vinyl-Coated 304 Stainless Wire Rope Assemblies for Backyard Patio and Pool

Production Details

LKS String Lights Hanging Kit, 60ft Easy Installation Lights Suspension Cable, Multipurpose Black Vinyl-Coated 304 Stainless Steel Wire Kit for Backyard Patio and Pool

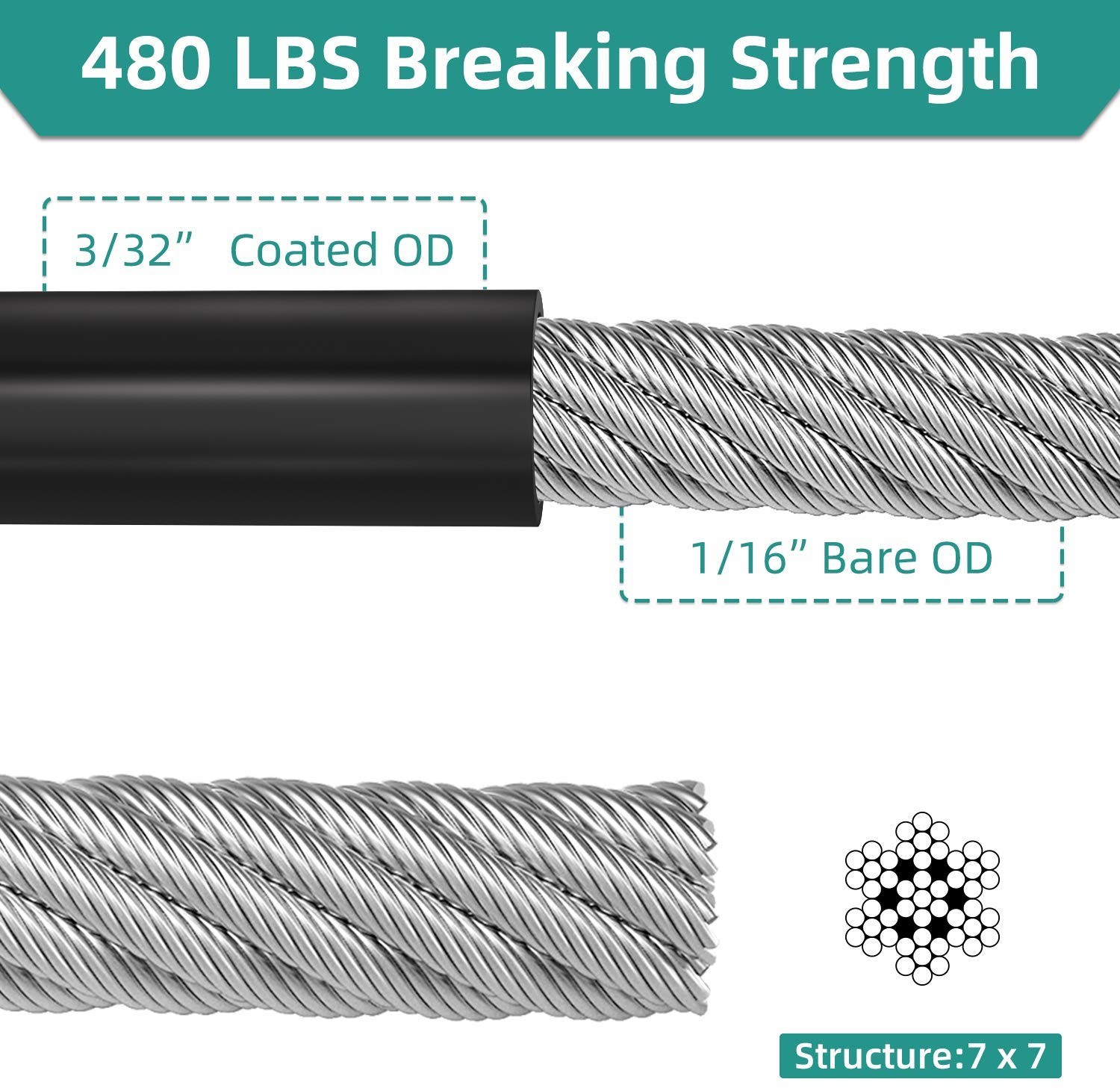

  • [Ultra-Durable Cable]: This black vinyl 304 stainless steel wire (7 x 7) OD is 1/16-inch and coated OD is 3/32-inch, 60ft length 480lbs max load available for all weather throughout the year
  • [Multipurpose Suspension Kit]: Hanging string lights to make your backyard or pool looks warm and romantic, these can also be used to dry clothes, hang curtains, suspension bird cages etc.
  • [Easy to Install]: Come with easy to understand instruction manuals, you can quickly complete the decoration work for your 48ft/50ft outdoor lights, café lights, tea lights
  • [All Needs in One Box]: Compared of guessing what you need at the local hardware store, this kit got it all for you in perfect quantities. Include turnbuckles, snap hooks, hump screws, rope clamp
  • [3-Year Warranty]: We believe in our products and service. That's why we back you all with a 3-year warranty and provide friendly, easy-to-reach support

How To Install?

Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool 0

Wire Rope Details

7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:

  • Applications
  • Control cables
  • Guardrail
  • Standing rigging
  • Running rigging
  • Steering cable
  • Marine/Saltwater environment
  • Sewage treatment works
  • Wire rope slings
  • Davit ropes
Breaking Loads
Nominal Diameter Approximate Mass Minimum breaking loads - 1570 Mpa
[mm] [kg/m] [kN] [Kg]
1 0.004 0.59 60
2.0
0.016
 2.37 241
2.5
0.023
 3.71 378
3.0
0.034
 5.34 544
4.0
0.060
 9.49 967
5.0
0.095
 14.80 1,509
6.0
0.136
 21.40 2,182
7.0
0.185
 29.10 2,967
8.0
0.242
 38.00 3,874
10.0
0.378
 59.30 6,046
12.0
0.545
 85.40 8,708
14.0
0.741
 117.00 11,930

Product description

60ft String Lights Suspension Kit
Help you quickly improve the outdoor space, make it soft and romantic, hang up café lights, string lights, LED lights to decorate your home.

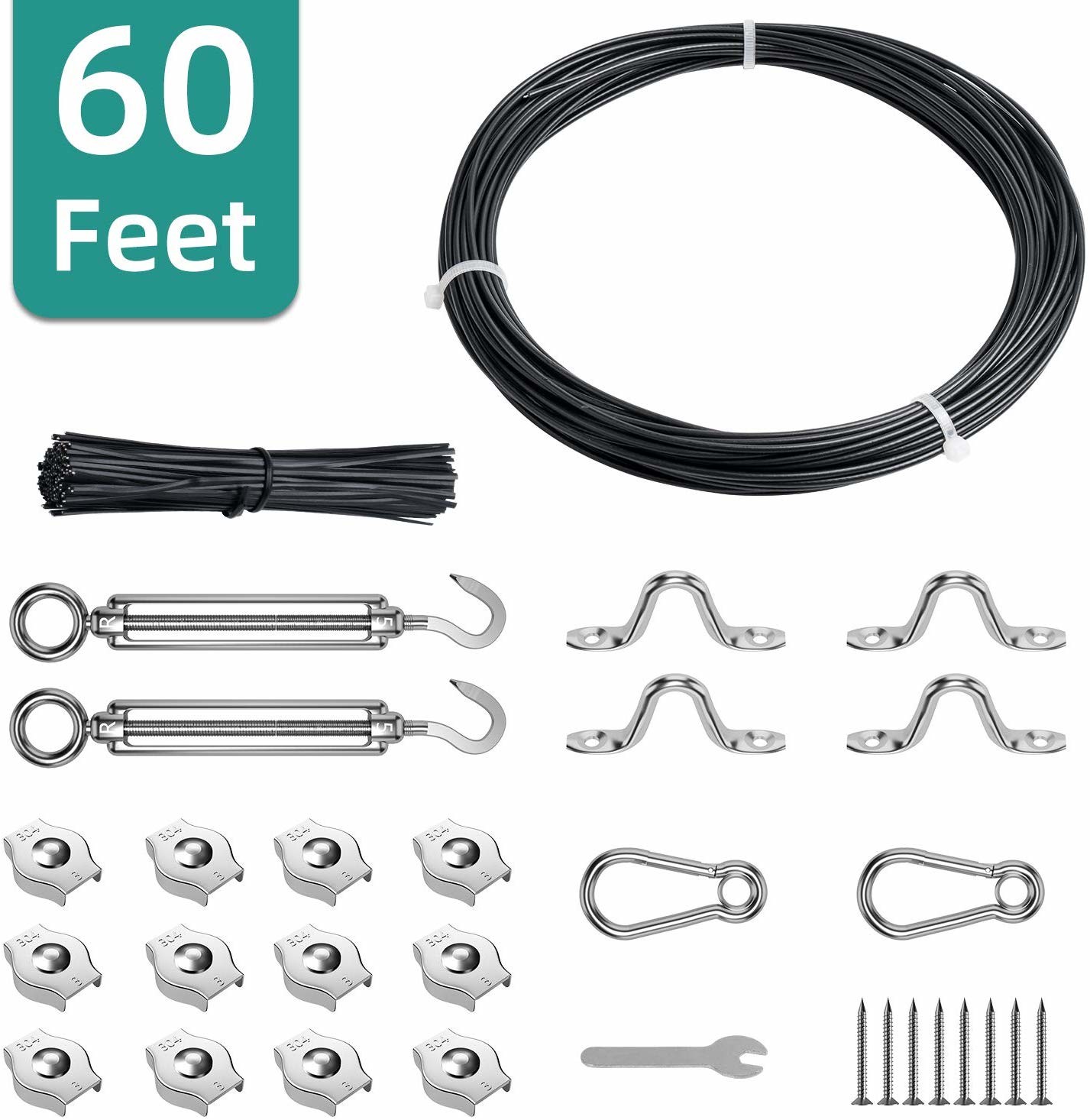

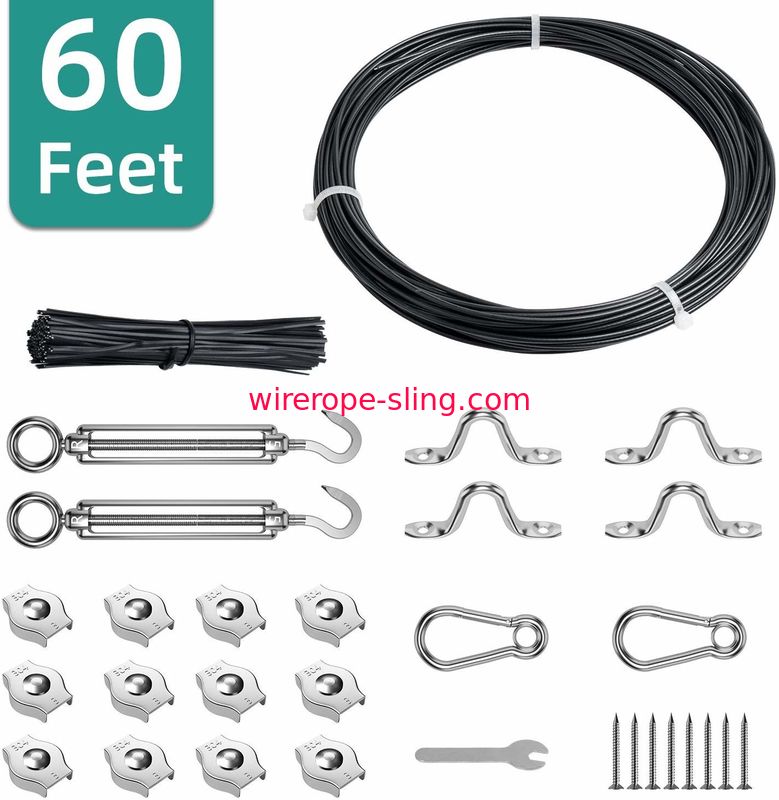

Astonishing 30pcs Suspension Components Kit:
Installation Manual x 1
60ft Wire Cable x 1
Turnbuckles x 2
Snap Hooks x 2
Pad Eyes x 4
Tapping Screws x 8
Rape Clamps x 12
Small Wrench x 1
Zip ties x 100

At Fil-fresh, Leading Quality and Service:
Material: 100% 304 stainless steel
Wire OD: 1/16”
Coated OD: 3/32”
Breaking Strength: 480lbs
Warranty: 3-years

Notes:
The most important thing is your safety. Please make sure to do safety protection before starting work. Please do not install at night or bad weather.

In addition to this kit, you also need a wire cutter, tape measure, pencil, drill, ladder.


Product Show



Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool 1

Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool 2

Black Vinyl Coated Stainless Wire Rope Assemblies For Backyard Patio And Pool 3



Stainless steel 304 and 316

There are some customers telling us they need stainless steel items, but have no idea about the difference between stainless steel 304 and 316. We would like to give a briefly explanation:

1. SS316 is more expensive than SS304

2. SS316 is better than SS304 in corrosion resistance, so if the application areas are bad, like near sea, we highly recommend you choose SS316.

3. Chemical Composition:



MATERIAL

SS304

 C Si Mn P S Cr Ni Mo
≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 18.0-20.0 8.0-10.0 -



MATERIAL

SS316

 C Si Mn P S Cr Ni Mo
≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 16.0-18.0 10.0-12.0 2.0-3.0
