Removable Concrete Toggle Anchor Multifunctional For Existing Cured Concrete

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: WRA
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1-100 PER SET
Packaging Details: Wood box
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 10000Sets monthly

Detail Information

Diameter:3/4″Type:6x19 Class
Compliance:OSHA 1926.502 And OSHA 1910.66Breaking Load:5,000 Lbf / 22kn
Weight:6.4 OzDimensions:12 X 5 X .75 In
High Light:

steel wire rope fittings

,

wire cable assemblies

Product Description



7/8″ Wire Rope Cable Assemblies Precast Concrete Toggle Lok Anchor

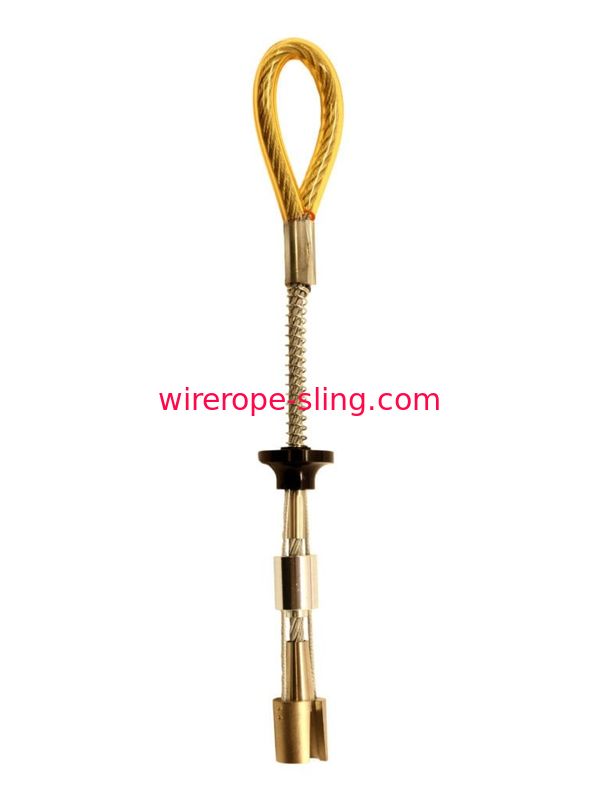

The 3/4″ Removable Concrete Anchor 5K (Part # A6002) is designed for use in 12 inch thick cured concrete with a compression strength of at least 3000 p.s.i. It is easy to install (just compress its spring and insert the cable shaft into the hole). This multifunctional anchor may be used on vertical and overhead surfaces, as well as in combination with horizontal lifelines. It is suitable for fall arrest, restraint, and as a work positioning device. It has a maximum capacity of 400 pounds when used in combination with equipment certified for loads in excess of the OSHA and ANSI regulated maximum of 310 pounds. The 3/4″ Removable Concrete Anchor fits holes of 3/4 inches in diameter and 3 inches deep, and has an ultimate breaking strength of 5,000 pounds.

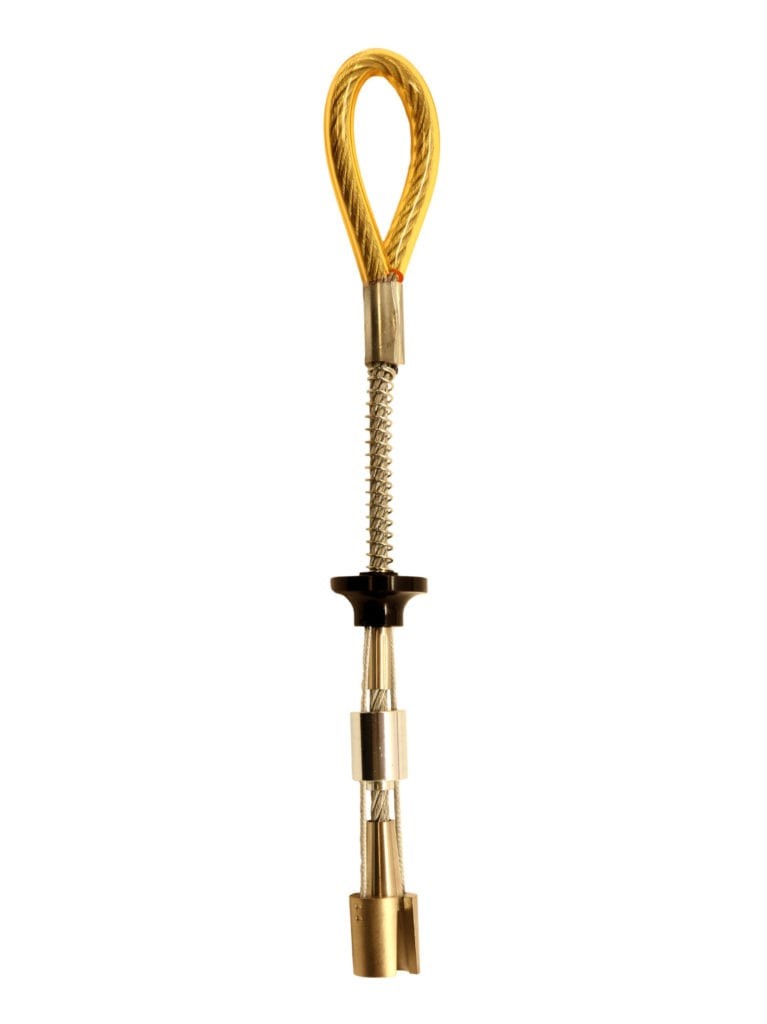

Removable Concrete Toggle Anchor Multifunctional For Existing Cured Concrete 0



Key Features:



● Meets ANSI Z359.1-2007, ANSI A10.32-12 and CE-EN 795
● Compliant with OSHA 1926.502 and OSHA 1910.66
● Size: 3/4″
● Weight: 0.4-lbs
● Used in concrete substrate only
● Can fit a 3/4” hole diameter, 3″ deep minimum
● Applications include: fall protection, restraint, work positioning





Specification



COMPETITOR PART# PRODUCT NAME/DESCRIPTION
DBI/SALA 2100085 DBI/Sala Saflok, 2100085 Reusable Concrete Anchor, Quick-Connect Type, Silver/Gold
Miller 493-496 620
Guardian 235 Guardian Fall Protection 00235 Concrete Anchor
FallTech 7440 FallTech 7440 Temporary Wedge Concrete Anchor – Reusable 3/4″ Multi-Directional Temporary Anchor for Existing Cured Concrete, Rated to 5,000 lb, Natural


Regular Cable vs. Swaged Cable
While there's nothing wrong with regular wire rope for use as a drumline, many of our customers choose to go with swaged cable. Our regular wire rope is typically a 6x26 WS construction. This gives you larger outer wires and flexibility, which is a great combination. It's also quite affordable, and if treated well it will give a good lifespan. But, swaged line has all those benefits and then some. Swaged cable is also a 6x26 WS construction, but it's compacted. This gives it two main advantages. Because it's compacted, it's smoother, which makes it hold up better on the drum...it doesn't "scrub" and wear itself out from abrasion. It also has greater linear density (it weighs more per foot) and is therefore stronger by quite a margin vs. regular cable.
