Double Cradle Wire Rope Sling for Lifting Boilers, Cases applications
Double Cradle Wire Rope Sling for Lifting Boilers, Cases applications

Double Cradle Wire Rope Sling for Lifting Boilers, Cases applications

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: 2LEGSWRS
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly
Contact Now

Detail Information
Wire Rope Size:1"Name:2 Legs Wire Rope Sling
Type:2 Leg DOSConstruction:6x19 Class
Length (ft):10,20,30,40,50...Safety Factor:5:1
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

Typical Sling Arrangements

Cradle Sling

Lifting coils, steel strip, etc. Basket Hitch
SWL = 1.4 x WLL of sling Protect Rope from sharp corners.

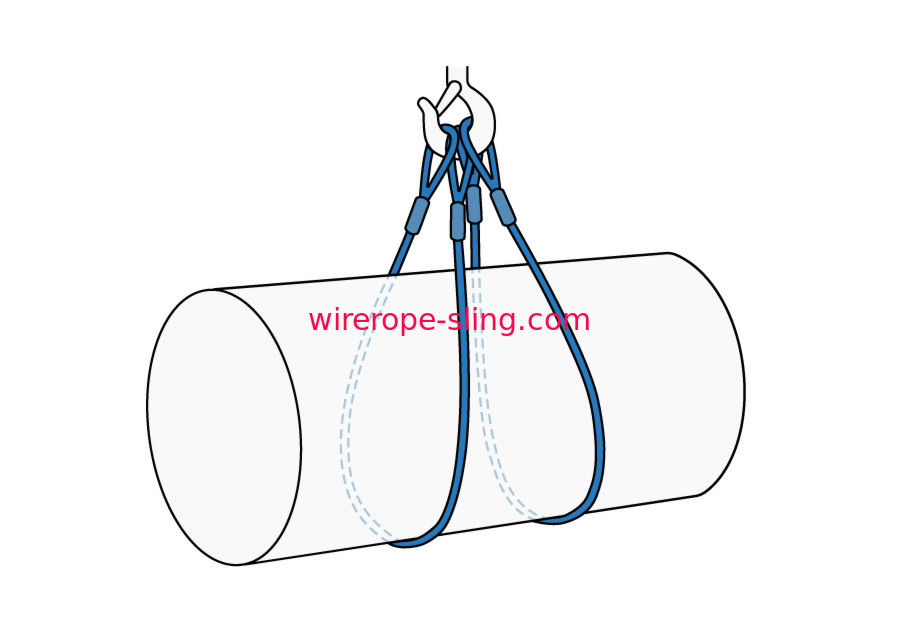

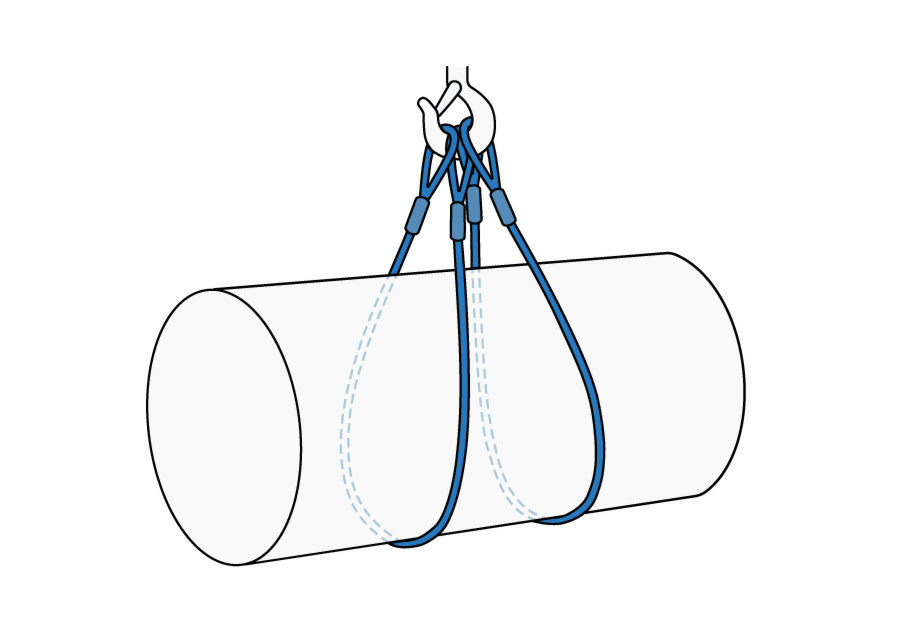

Cradle Slings

Lifting boilers and packaging cases, etc. Double Basket Hitch SWL = 2.1 x WLL of single sling.




Halshing Slings

Method using a single sling in place of an endless sling where a ‘bight’ is required. A stirrup fitted temporarily in the bight will minimise damage to the sling. Double and Choked.
SWL = 1.6 x WLL of sling.




Double Wrap Slings

Note how the double wrap grips the load and helps to prevent it from slipping sideways out of the slings. Double Wrap Basket Hitch
SWL = 2.1 x WLL of single sling




Combination Slings

Timber steel sheets and packing cases, etc. N.B. Maximum angle from vertical is 45º




Reeving Slings

Lifting tubes, bars and rods, etc. Double Choke Hitch SWL = 1.1 x WLL of single sling






Safety Recommendations

When using multi=leg sling assemblies remember that increasing the angles between the legs will increase the load in each leg. Examine all slings before use and discard any that are defective. Slings which are found to be unfit for use should be destroyed by cutting them up - not put on a refuse dump. "Hooking back" to the leg is not recommended. The Working Load Limit of slings is effected by the method of usage. Check that the crane hook is positioned over the load's center of gravity to prevent swinging when the load is being raised. Correct signals, according to the recognized code, should be given to the crane driver. The signals must be given by the person responsible for the lift and nobody else.

Keep wire rope slings away from welding and flame cutting operations. The Law requires that all lifting equipment must be examined by a competent person at regular intervals. This includes wire rope slings.

LKS can manufacture slings to DNV 2-7.1 in their approved facility in Montrose.



Double Cradle Wire Rope Sling for Lifting Boilers, Cases applications 0



Fibre Core - 6x19 and 6x36, ferrule-secured eye terminations
TWO LEG SLING (Direct)
Rope Diameter Working Load Limits (Tones)
Angle to Vertical Angle to Vertical
0° - 45° 45° - 60°
8 mm⌀ 0.95 0.7
9 mm⌀ 1.2 0.85
10 mm⌀ 1.5 1.05
11 mm⌀ 1.8 1.3
12 mm⌀ 2.12 1.55
13 mm⌀ 2.5 1.8
14 mm⌀ 3 2.12
16 mm⌀ 3.85 2.7
18 mm⌀ 4.8 3.4
20 mm⌀ 6 4.35
22 mm⌀ 7.2 5.2
24 mm⌀ 8.8 6.3
26 mm⌀ 10 7.2
28 mm⌀ 11.8 8.4
32 mm⌀ 15 11
36 mm⌀ 19 14
40 mm⌀ 23.5 17
44 mm⌀ 29 21
48 mm⌀ 35 25
52 mm⌀ 40 29
56 mm⌀ 47 33.5
60 mm⌀ 54 39
Leg Factor KL 1.4 1


Steel Core - 6x19, 6x36 and 8x36 ferrule-secured eye terminations
TWO LEG SLING (Direct)
Rope Diameter Working Load Limits (Tones)
Angle to Vertical Angle to Vertical
0° - 45° 45° - 60°
8 mm⌀ 1.05 0.75
9 mm⌀ 1.3 0.95
10 mm⌀ 1.6 1.15
11 mm⌀ 2 1.4
12 mm⌀ 2.3 1.7
13 mm⌀ 2.8 2
14 mm⌀ 3.15 2.25
16 mm⌀ 4.2 3
18 mm⌀ 5.2 3.7
20 mm⌀ 6.5 4.6
22 mm⌀ 7.8 5.65
24 mm⌀ 9.4 6.7
26 mm⌀ 11 7.8
28 mm⌀ 12.5 9
32 mm⌀ 16.5 11.8
36 mm⌀ 21 15
40 mm⌀ 26 18.5
44 mm⌀ 31.5 22.5
48 mm⌀ 37 26
52 mm⌀ 44 31.5
56 mm⌀ 50 36
60 mm⌀ 58 42
Leg Factor KL 1.4 1
