Oval Master Wire Rope Slings With Hooks 1 Leg 1300 Lbs WLL For Common Hitches

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: WRSTTH
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Model:T/THWire Rope Size:Up To 3"
Type:Single Leg Thimbled Eye & HookConstruction:6x19 Class
Length (ft):5,,10,20,30,40,50...Safety Factor:5:1
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

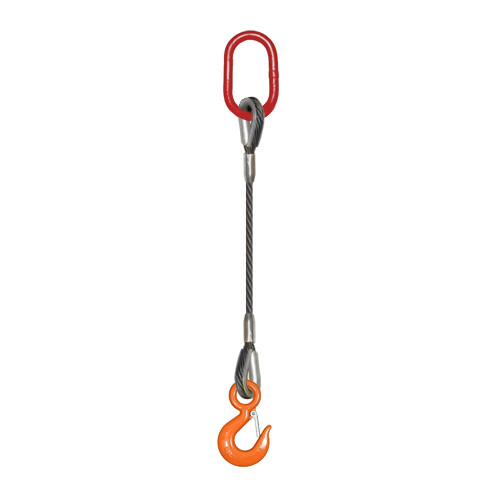

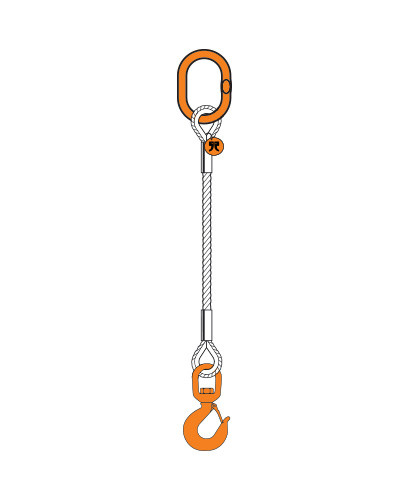

1/4" x 5 ft Single Leg Oval Master & Hook Wire Rope Sling - 1300 lbs WLL










Product Description



  • Single leg wire rope sling with thimbled eye on one end, and a an oval master link the other
  • Great for use in shops with hoists, or off cranes, forklifts, etc.
  • Can be used in all common hitches, including vertical, choker and basket
  • Made from 6x19 class wire rope, IWRC EIPS specification
  • Eyes are professionally formed using a 500T hydraulic swage press
  • Available with vinyl or metal load tag



Specification



Model
O/TH
Wire Rope Size 1/4"
Type Single Leg Oval Master Link & Hook
Construction 6x19 Class
Length (ft) 5
Vertical WLL (lbs) 1,300
Choker WLL (lbs) 960
Basket WLL (lbs) 2,600
Safety Factor 5:01
Weight (lbs) 2.44



Use method



When wire rope Sling is used in workplaces such as damp or open air, galvanized steel wire rope can be used as raw material to enhance rust resistance.
In addition to the wear of the steel wire in the outer layer, the wire rope is mainly caused by the repeated bending of the hook and the suspended material to cause metal fatigue and gradually broken. Therefore, the ratio of the hook or the diameter of the hoist to the wire rope is an important factor in determining the service life of the wire rope.
The wear and corrosion degree of the surface layer of the wire rope Sling or the number of broken wires within each screwing distance shall exceed the prescribed value and be scrapped.
Wire rope Sling is mainly used in the transportation of high strength rope, such as hoisting, pulling, and so on. During the use of the rope, it is strictly prohibited to stop or stop on the object.



Technical Table



Item #

Wire Rope Size Length (ft) Vertical WLL (lbs) Choker WLL (lbs) Basket WLL (lbs) Weight (lbs)
WRSOTH014X05 1/4" 5 1,300 960 2,600 2.44
WRSOTH014X10 1/4" 10 1,300 960 2,600 3.02
WRSOTH014X15 1/4" 15 1,300 960 2,600 3.6
WRSOTH014X20 1/4" 20 1,300 960 2,600 4.18

WRSOTH516X05 5/16" 5 2,000 1,480 4,000 3.13
WRSOTH516X10 5/16" 10 2,000 1,480 4,000 4.03
WRSOTH516X15 5/16" 15 2,000 1,480 4,000 4.93
WRSOTH516X20 5/16" 20 2,000 1,480 4,000 5.83

WRSOTH038X05 3/8" 5 2,800 2,200 5,800 4.03
WRSOTH038X10 3/8" 10 2,800 2,200 5,800 5.33
WRSOTH038X15 3/8" 15 2,800 2,200 5,800 6.63
WRSOTH038X20 3/8" 20 2,800 2,200 5,800 7.93

WRSOTH716X05 7/16" 5 3,800 2,800 7,800 5.89
WRSOTH716X10 7/16" 10 3,800 2,800 7,800 7.64
WRSOTH716X15 7/16" 15 3,800 2,800 7,800 9.39
WRSOTH716X20 7/16" 20 3,800 2,800 7,800 11.14

WRSOTH012X05 1/2" 5 5,000 3,800 10,200 8.89
WRSOTH012X10 1/2" 10 5,000 3,800 10,200 11.19
WRSOTH012X15 1/2" 15 5,000 3,800 10,200 13.49
WRSOTH012X20 1/2" 20 5,000 3,800 10,200 15.79

WRSOTH916X05 9/16" 5 6,400 4,800 12,800 12.71
WRSOTH916X10 9/16" 10 6,400 4,800 12,800 15.66
WRSOTH916X15 9/16" 15 6,400 4,800 12,800 18.61
WRSOTH916X20 9/16" 20 6,400 4,800 12,800 21.56

WRSOTH058X05 5/8" 5 7,800 5,800 15,600 14.06
WRSOTH058X10 5/8" 10 7,800 5,800 15,600 17.66
WRSOTH058X15 5/8" 15 7,800 5,800 15,600 21.26
WRSOTH058X20 5/8" 20 7,800 5,800 15,600 24.86

WRSOTH034X05 3/4" 5 11,200 8,200 22,000 25.65
WRSOTH034X10 3/4" 10 11,200 8,200 22,000 30.85
WRSOTH034X15 3/4" 15 11,200 8,200 22,000 36.05
WRSOTH034X20 3/4" 20 11,200 8,200 22,000 41.25

WRSOTH078X05 7/8" 5 15,200 11,200 30,000 36.76
WRSOTH078X10 7/8" 10 15,200 11,200 30,000 45.58
WRSOTH078X15 7/8" 15 15,200 11,200 30,000 50.96
WRSOTH078X20 7/8" 20 15,200 11,200 30,000 58.06

WRSOTH1X05 1" 5 19,600 14,400 40,000 46.05
WRSOTH1X10 1" 10 19,600 14,400 40,000 55.3
WRSOTH1X15 1" 15 19,600 14,400 40,000 64.55
WRSOTH1X20 1" 20 19,600 14,400 40,000 73.8
