Logging Choker Wire Rope Sling Nub & Nub Skidding Style With Choker Hook

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: SKID038X06
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Safety Factor:5:1Wire Rope Size:3/8"
Type:Skidding ChokersConstruction:6x19 Class
Length (ft):5,,10,20,30,40,50...Weight:5
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

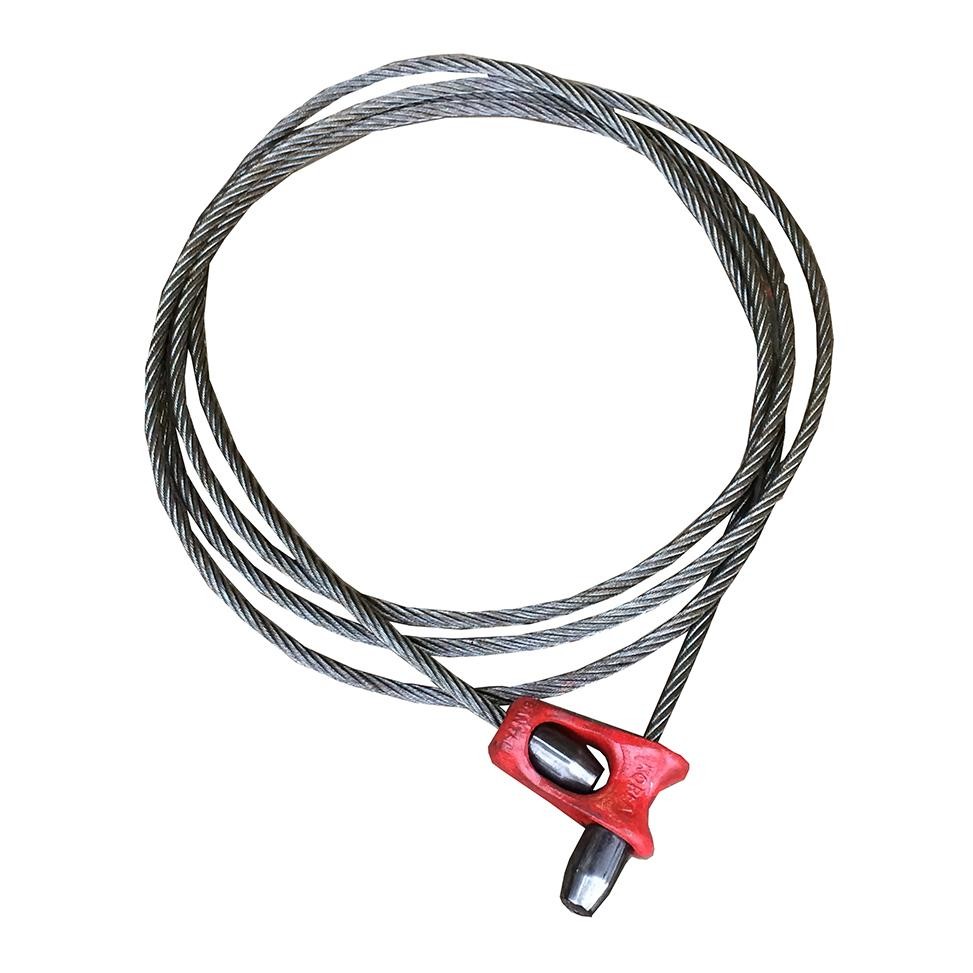

3/8" x 6 ft Logging Choker Wire Rope Sling - Nub & Nub Skidding-Style



Skidding Chokers feature a nub on each end with a sliding choker hook in the middle. These are slightly less popular than Cat Chokers, yet are still sold to many farmers, ranchers and property owners for land clearing. To use them properly you typically connect them straight to your drum line (aka winch line) with sliding choker hooks already in place (we have New Choker Hooks if you need them). Most will run anywhere from 3-4 chokers of one drum line, but it depends on the size of your drum line, the size of your chokers and the size of the logs you're trying to skid. The bigger sizes we offer are really yarder chokers used for high lead logging (this method keeps the lines high off the ground near the landing to avoid extra drag and snags, and also uses butt rigging). This type of logging is a little less common today, but we still have many customers with this type of setup.









Product Description



  • Made from 6x19 class wire rope, IWRC EIPS specification
  • End fittings are professionally swaged (aka pressed) according to industry standards
  • Includes a Micro-Midget choker hook
  • Place nub into choker bell which creates a choking action around the log
  • Ideal for skidding / moving logs
  • NOT FOR OVERHEAD LIFTING


Specification




Wire Rope Size
3/8"
Type Skidding Chokers
Construction 6x19 Class
Length (ft) 6
Choker WLL (lbs) 2,200
Breaking Strength (lbs) 11,000
Weight (lbs) 3.1





Technical Table



Item #

Wire Rope Size Construction Length (ft) Choker WLL (lbs) Breaking Strength (lbs) Weight (lbs)
SKID038X06 3/8" 6x19 Class 6 2,200 11,000 3.1
SKID038X08 3/8" 6x19 Class 8 2,200 11,000 3.6
SKID038X10 3/8" 6x19 Class 10 2,200 11,000 4.1
SKID038X12 3/8" 6x19 Class 12 2,200 11,000 4.6
SKID038X15 3/8" 6x19 Class 15 2,200 11,000 5.4
SKID038X20 3/8" 6x19 Class 20 2,200 11,000 6.7

SKID012X06 1/2" 6x19 Class 6 3,800 19,000 5
SKID012X08 1/2" 6x19 Class 8 3,800 19,000 5.9
SKID012X10 1/2" 6x19 Class 10 3,800 19,000 6.8
SKID012X12 1/2" 6x19 Class 12 3,800 19,000 7.7
SKID012X15 1/2" 6x19 Class 15 3,800 19,000 9.1
SKID012X20 1/2" 6x19 Class 20 3,800 19,000 11.4

SKID916X08 9/16" 6x19 Class 8 4,800 24,000 6.9
SKID916X10 9/16" 6x19 Class 10 4,800 24,000 8.1
SKID916X12 9/16" 6x19 Class 12 4,800 24,000 9.3
SKID916X15 9/16" 6x19 Class 15 4,800 24,000 11
SKID916X20 9/16" 6x19 Class 20 4,800 24,000 14

SKID058X12 5/8" 6x19 Class 12 5,800 29,000 12.8
SKID058X15 5/8" 6x19 Class 15 5,800 29,000 15
SKID058X20 5/8" 6x19 Class 20 5,800 29,000 18.6
SKID058X25 5/8" 6x19 Class 25 5,800 29,000 22.2
SKID058X30 5/8" 6x19 Class 30 5,800 29,000 25.8

SKID034X15 3/4" 6x19 Class 15 8,200 41,000 21.2
SKID034X20 3/4" 6x19 Class 20 8,200 41,000 26.4
SKID034X25 3/4" 6x19 Class 25 8,200 41,000 31.6
SKID034X30 3/4" 6x19 Class 30 8,200 41,000 36.8
SKID034X35 3/4" 6x19 Class 35 8,200 41,000 42
SKID034X40 3/4" 6x19 Class 40 8,200 41,000 47.2



Logging Choker Wire Rope Sling Nub & Nub Skidding Style With Choker Hook 0
