Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | Eye-and-Eye |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Set |
| Price: | USD1-100 PER SET |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000SETS Monthly |
|
Detail Information |
|||
| Model: | E/E | Wire Rope Size: | 5/8" |
|---|---|---|---|
| Type: | Single Leg Eye-and-Eye | Construction: | 6x19 Class |
| Length (ft): | 5,,10,20,30,40,50... | Safety Factor: | 5:1 |
| Material: | Steel | HS Code: | 73129000 |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description

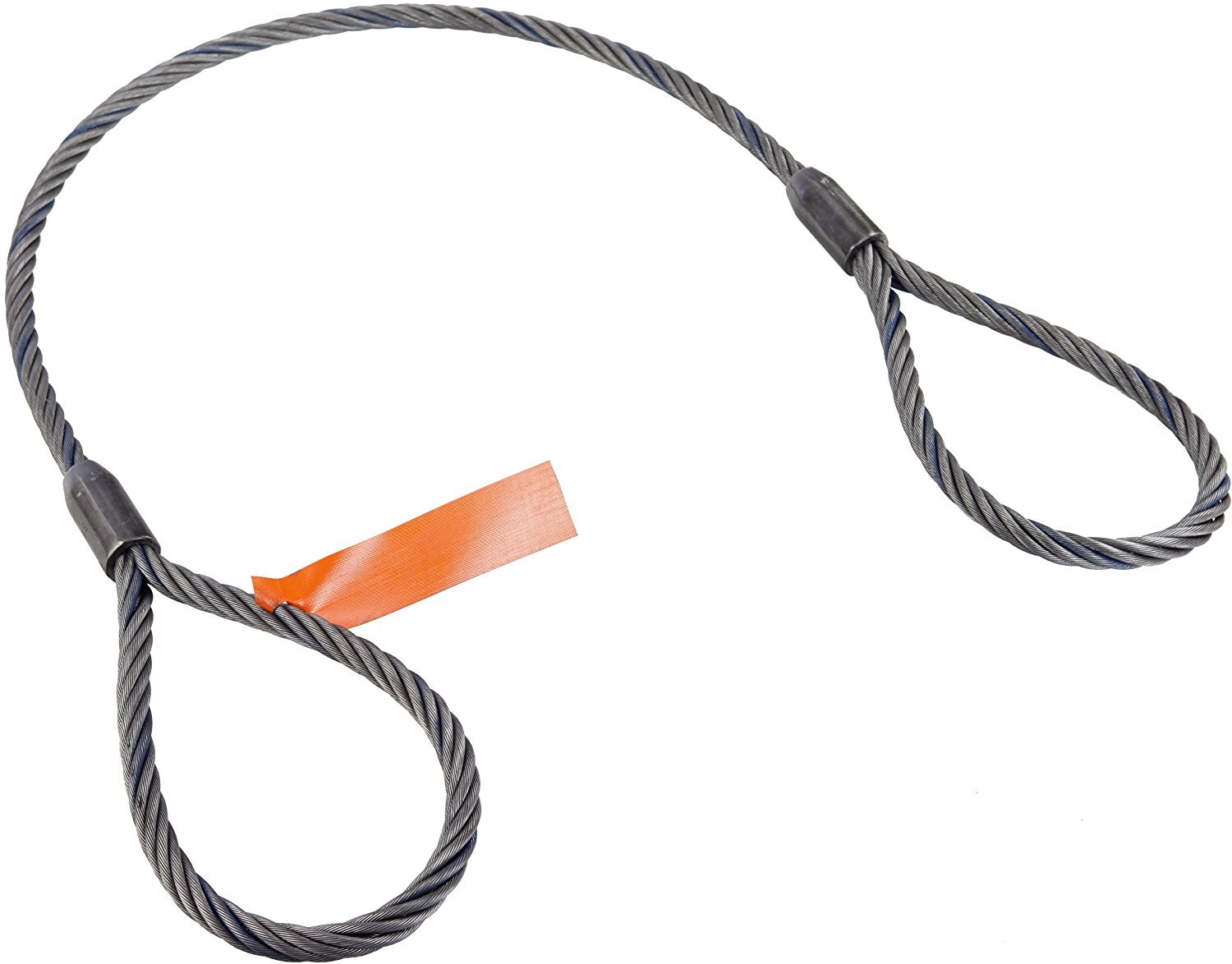

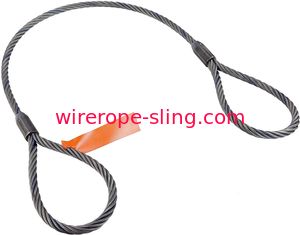

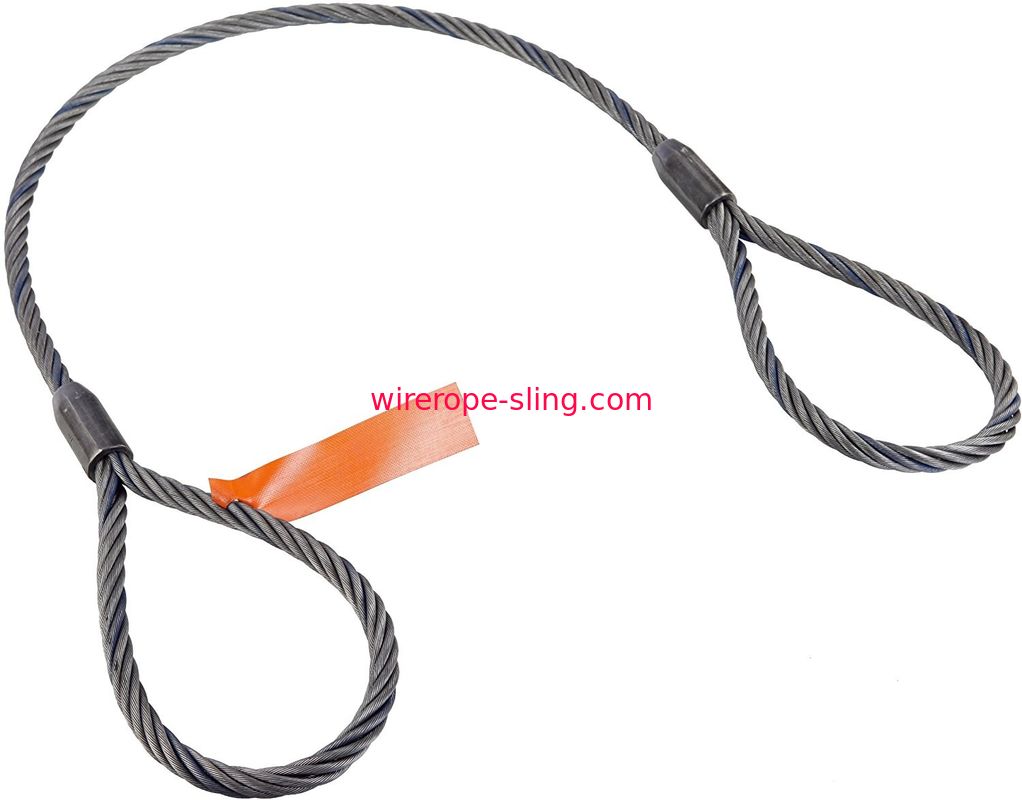

Eyes are formed using the flemish eye splice. Ends are secured by pressing a metal sleeve over the ends of the strands of the splice. Pull is directly along the centerline of rope and eye. Gives most efficient use of rope capacity and is economical.
| Part Number | 1055-370 |
| Load Capacity | 7800 pounds |
| Brand Name | Mazzella Lifting Technologies |
| Inside Length | 10 inches |
| Item Diameter | 5/8 inches |
| Item Weight | 10.49 pounds |
| Length | 8 feet |
| Manufacturer Series Number | Mechanical Splice |
| Material | Steel |
|
Model Number
|
001055-00370 |
| Number of Items | 1 |
| Size | 8' Length, 5/8" Diameter, 10" Eyes |
| Special Features | Vertical, Choker, Basket |
| Specification Met | OSHA, ASME B30.9 |
| Standard Construction | 6 x 25 IWRC |
| Style | Eye-and-Eye |
| Upper-Temperature Rating | 400 degrees_fahrenheit |
A) if a single leg wire rope sling, the hanging point must be located directly above the center of gravity of the suspended object.
B) if the 2legswire rope sling, the hanging points should be on both sides of the goods and the hooks are above the center of gravity of the suspended objects.
C) if it is three legs or four legs wire rope sling, the hanger must be proportioned on the plane around the cargo and the hook is located directly above the center of gravity of the suspended object.
