Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | WRSLAMP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Set |
| Price: | USD1-100 PER SET |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000SETS Monthly |
|
Detail Information |
|||
| Material: | Stainless Steel | Load Capacity: | 50kg / 110lb |
|---|---|---|---|
| Diameter: | 3.2mm | Weight: | 42g |
| Length: | 65cm / 25.5" | Safety Factor: | 5:1 |
| High Light: |
wire rope slings with hooks,steel wire sling |
||

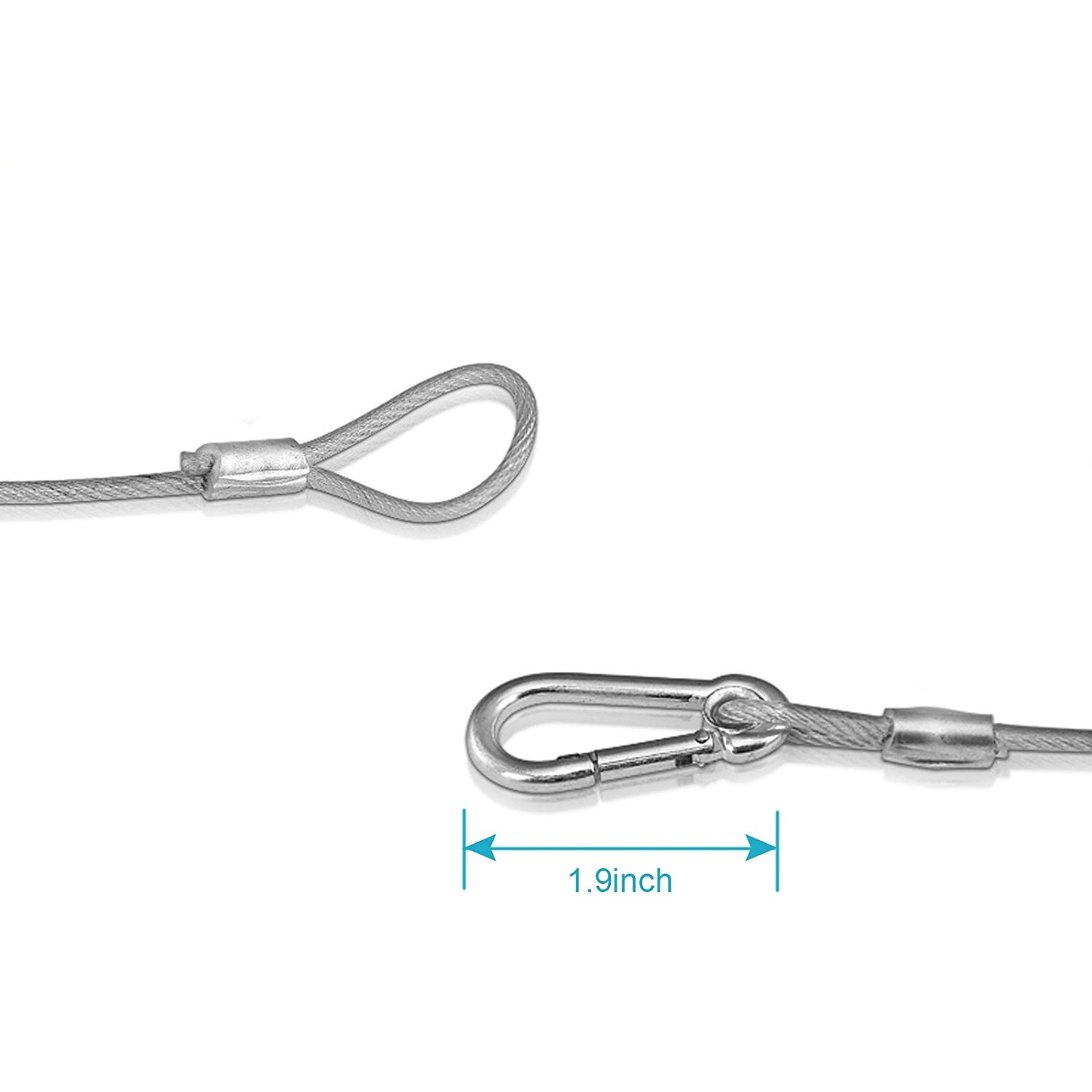

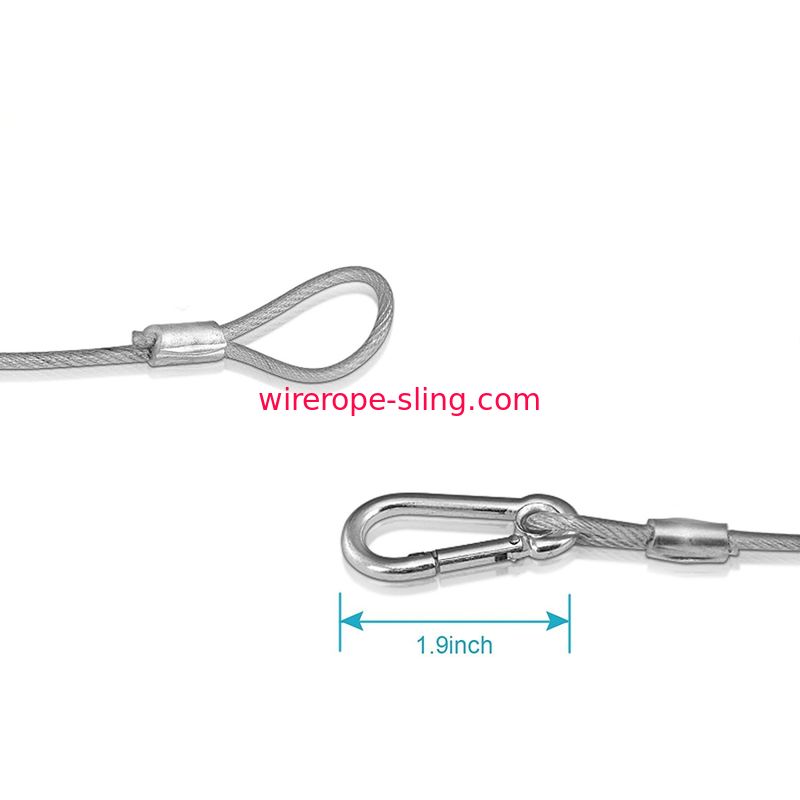

Product Description

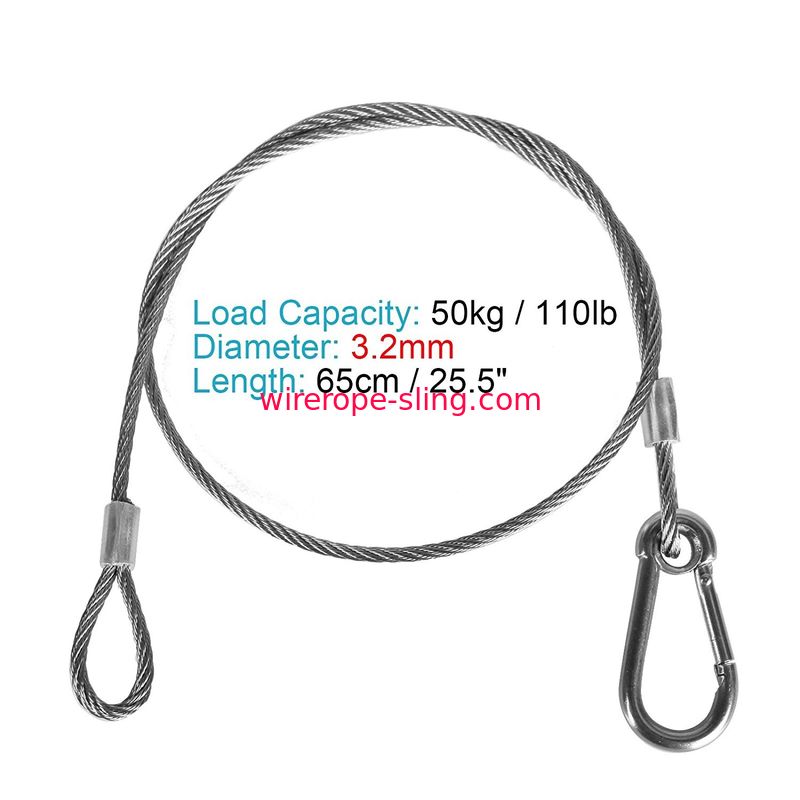

Specifications:
- Material: Stainless Steel
- Color: Silver
- Load Capacity: 50kg / 110lb
- Diameter: 3.2mm
- Length: 65cm / 25.5"
- Weight: 42g
Notes:
- Do a max load capacity test before use
Package Includes:

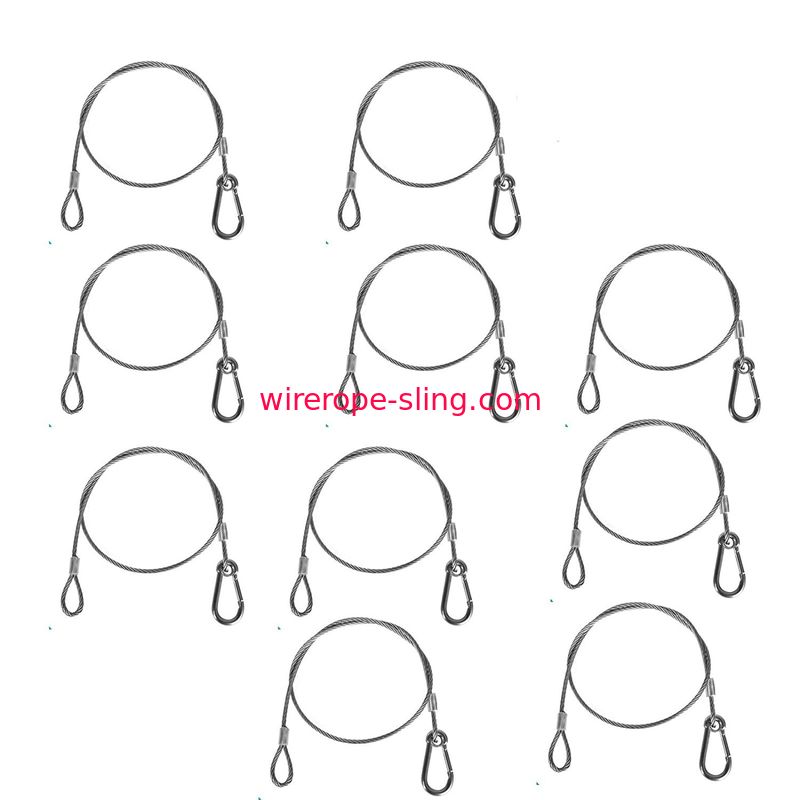

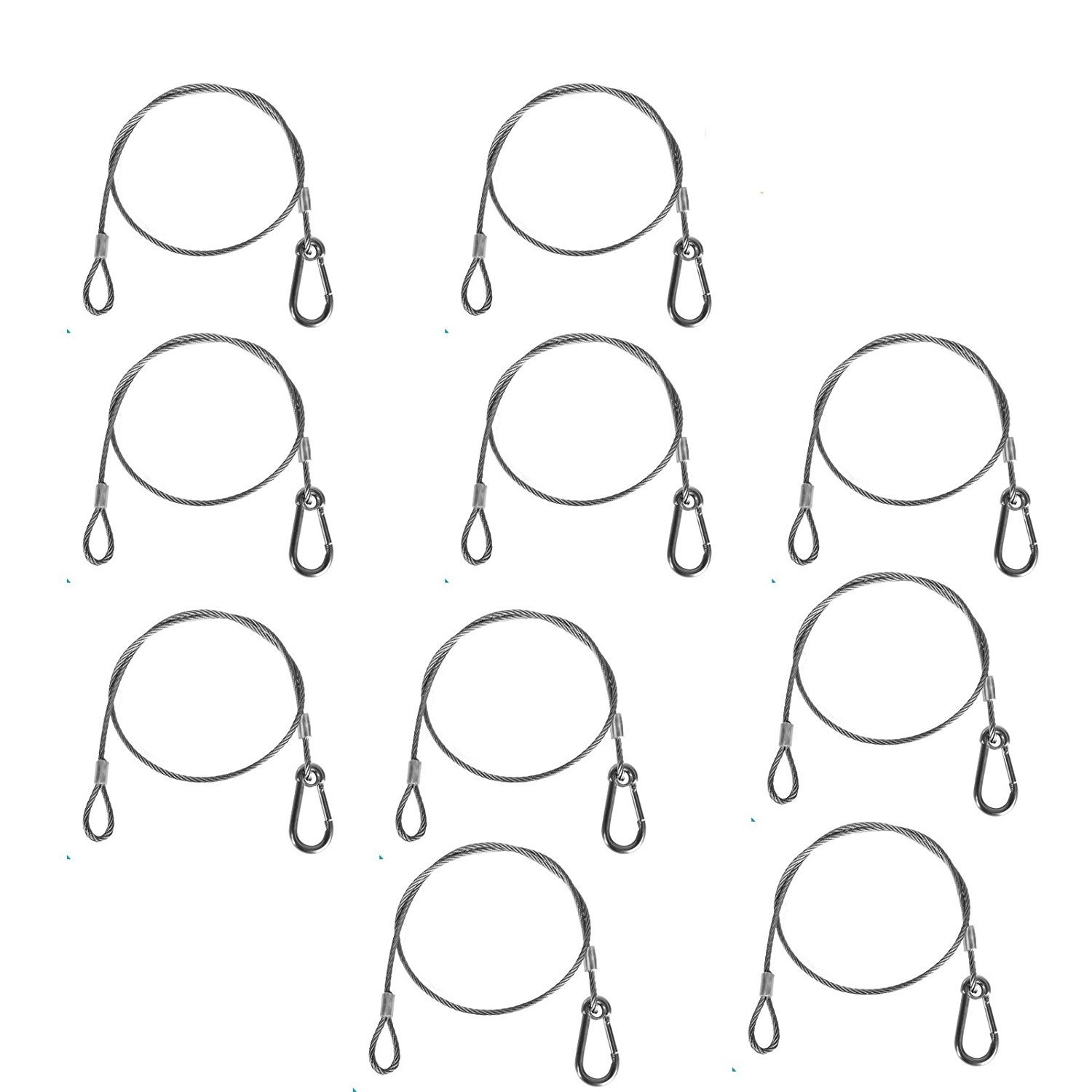

10 x Stainless Steel Safety Wire Rope
| Steel Core - 6x19, 6x36 and 8x36 ferrule-secured eye terminations | |
| ONE LEG SLING (Direct) - Angle to Vertical 0° | |
| Rope Diameter | Working Load Limits (Tones) |
| 8 mm⌀ | 0.75 |
| 9 mm⌀ | 0.95 |
| 10 mm⌀ | 1.15 |
| 11 mm⌀ | 1.4 |
| 12 mm⌀ | 1.7 |
| 13 mm⌀ | 2 |
| 14 mm⌀ | 2.25 |
| 16 mm⌀ | 3 |
| 18 mm⌀ | 3.7 |
| 20 mm⌀ | 4.6 |
| 22 mm⌀ | 5.65 |
| 24 mm⌀ | 6.7 |
| 26 mm⌀ | 7.8 |
| 28 mm⌀ | 8.4 |
| 32 mm⌀ | 11.8 |
| 36 mm⌀ | 15 |
| 40 mm⌀ | 18.5 |
| 44 mm⌀ | 22.5 |
| 48 mm⌀ | 26 |
| 52 mm⌀ | 31.5 |
| 56 mm⌀ | 36 |
| 60 mm⌀ | 42 |
| Leg Factor KL | 1 |
Are there DIN, manufacturer name and CE mark on the pressure sleeve?
Is it right to suppress? Is the end of the pressed wire rope pressed and exposed to the diameter of the 0.5d steel rope? Can you see the end of the pressed wire rope through the control hole? Is it straight when the wire rope is flat? Is the diameter of the wire rope accurate?
Is the length of the pressure sleeve 4.5 * D?
