Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | WRS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Set |
| Price: | USD1-100 PER SET |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000SETS Monthly |
|
Detail Information |
|||
| Material: | Galvanized Steel | Choker. V: | 2.5T |
|---|---|---|---|
| Eye: | 4" X 8" | Weight: | 3.5 Pounds |
| Length: | 4ft | Safety Factor: | 5:1 |
| High Light: |
wire rope slings with hooks,steel wire sling |
||

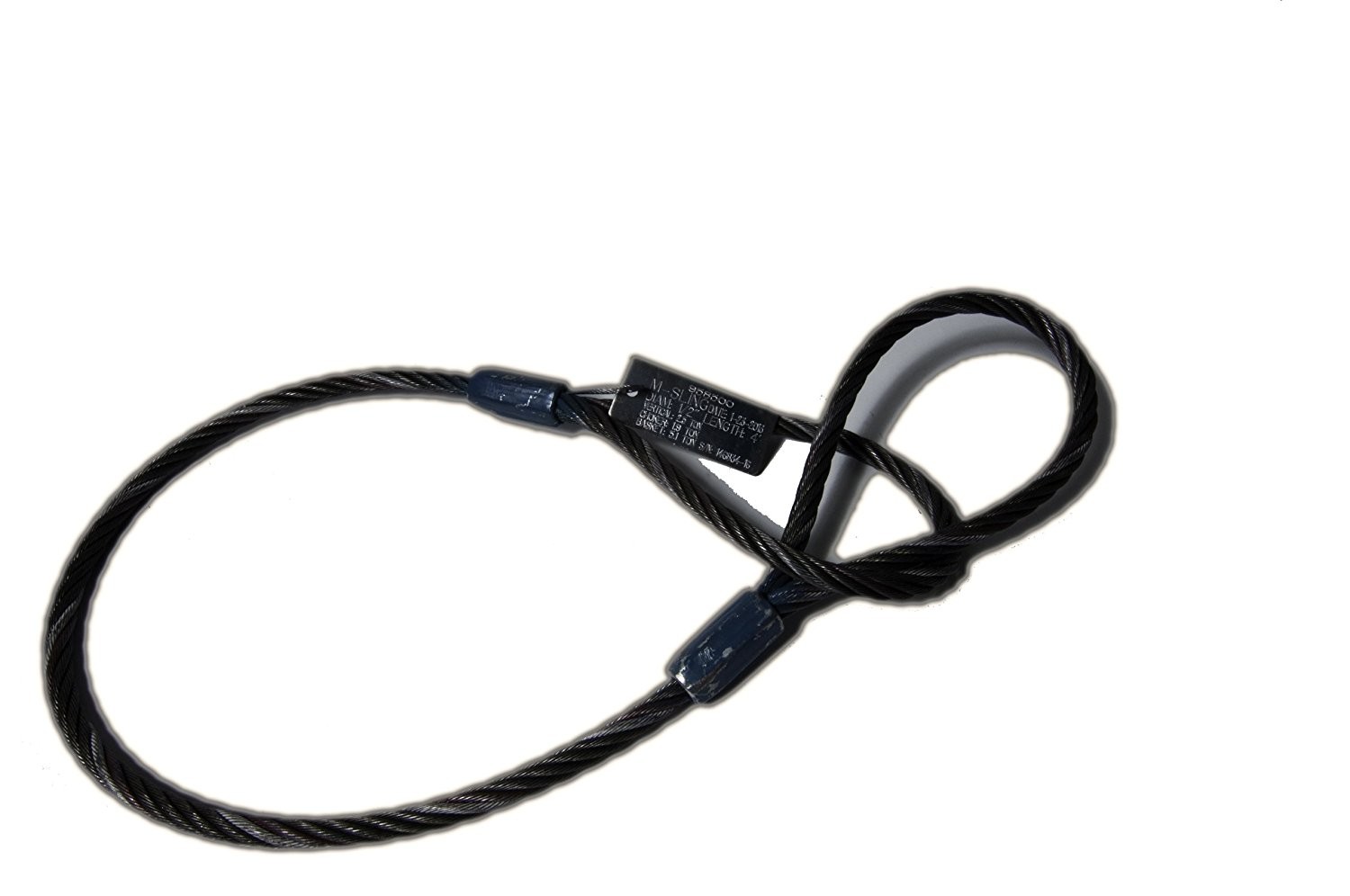

Product Description
| Steel Core - 6x19, 6x36 and 8x36 ferrule-secured eye terminations | |
| ONE LEG SLING (Direct) - Angle to Vertical 0° | |
| Rope Diameter | Working Load Limits (Tones) |
| 8 mm⌀ | 0.75 |
| 9 mm⌀ | 0.95 |
| 10 mm⌀ | 1.15 |
| 11 mm⌀ | 1.4 |
| 12 mm⌀ | 1.7 |
| 13 mm⌀ | 2 |
| 14 mm⌀ | 2.25 |
| 16 mm⌀ | 3 |
| 18 mm⌀ | 3.7 |
| 20 mm⌀ | 4.6 |
| 22 mm⌀ | 5.65 |
| 24 mm⌀ | 6.7 |
| 26 mm⌀ | 7.8 |
| 28 mm⌀ | 8.4 |
| 32 mm⌀ | 11.8 |
| 36 mm⌀ | 15 |
| 40 mm⌀ | 18.5 |
| 44 mm⌀ | 22.5 |
| 48 mm⌀ | 26 |
| 52 mm⌀ | 31.5 |
| 56 mm⌀ | 36 |
| 60 mm⌀ | 42 |
| Leg Factor KL | 1 |
