12mm Wire Rope Sling Vinyl Coated Braided Steel With Sealed Looped Ends

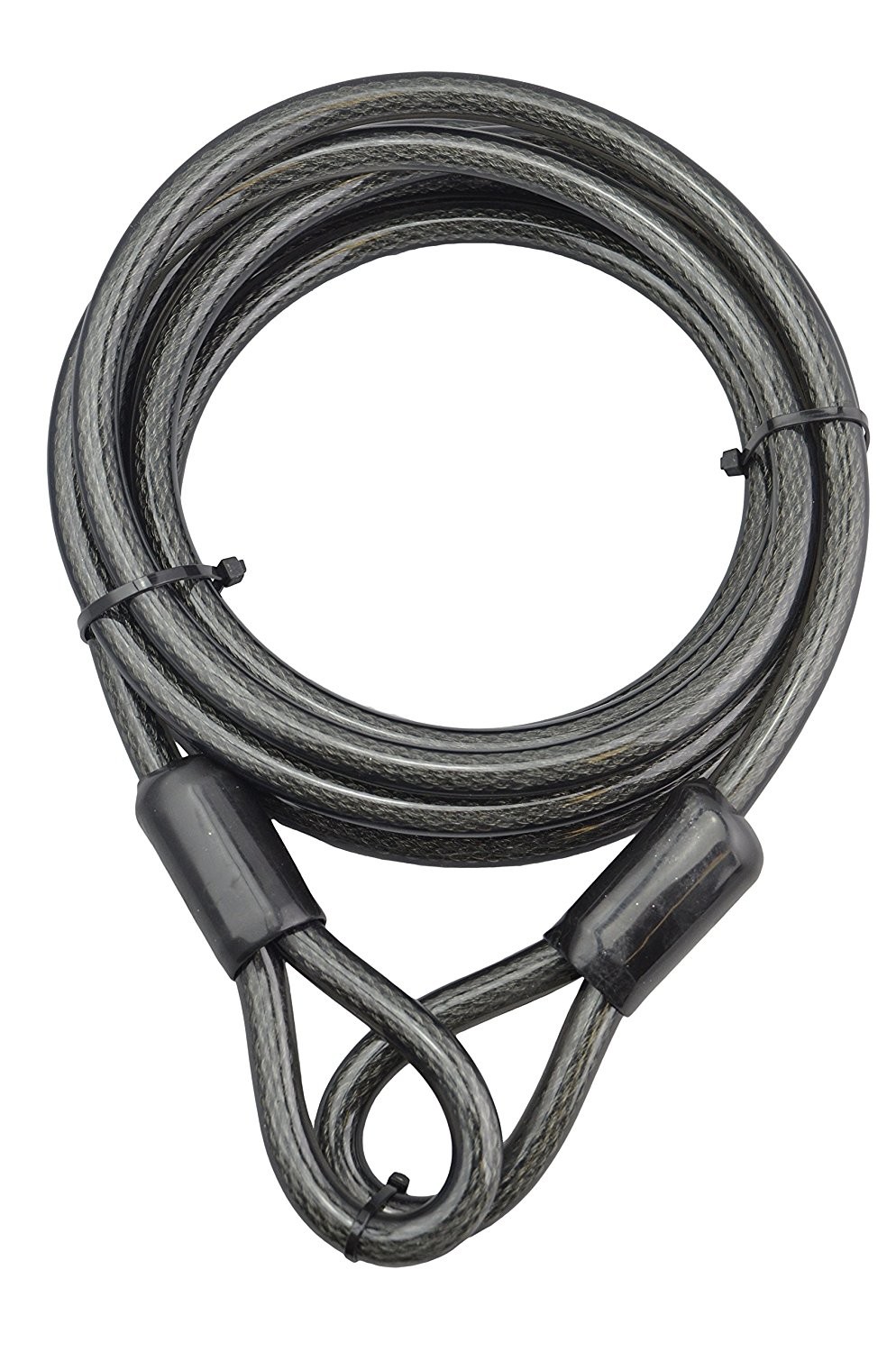

12mm Wire Rope Sling Vinyl Coated Braided Steel with Sealed Looped Ends

• Braided steel construction provides strength and flexibility along with strong cut resistance
• Double-looped to accommodate pad-locks, u-locks, or disc-locks
• Vinyl covering protects against rust and scratching
• Ideal for bicycles, skateboards, sports equipment, gates and fences, grills & lawnmowers, tools, tool boxes and ladders
• Available in 4 Sizes: 4-FT x 12mm, 7-FT x 12mm, 15-FT x 12mm or 30-FT x 12mm

Maximum Strength Protection

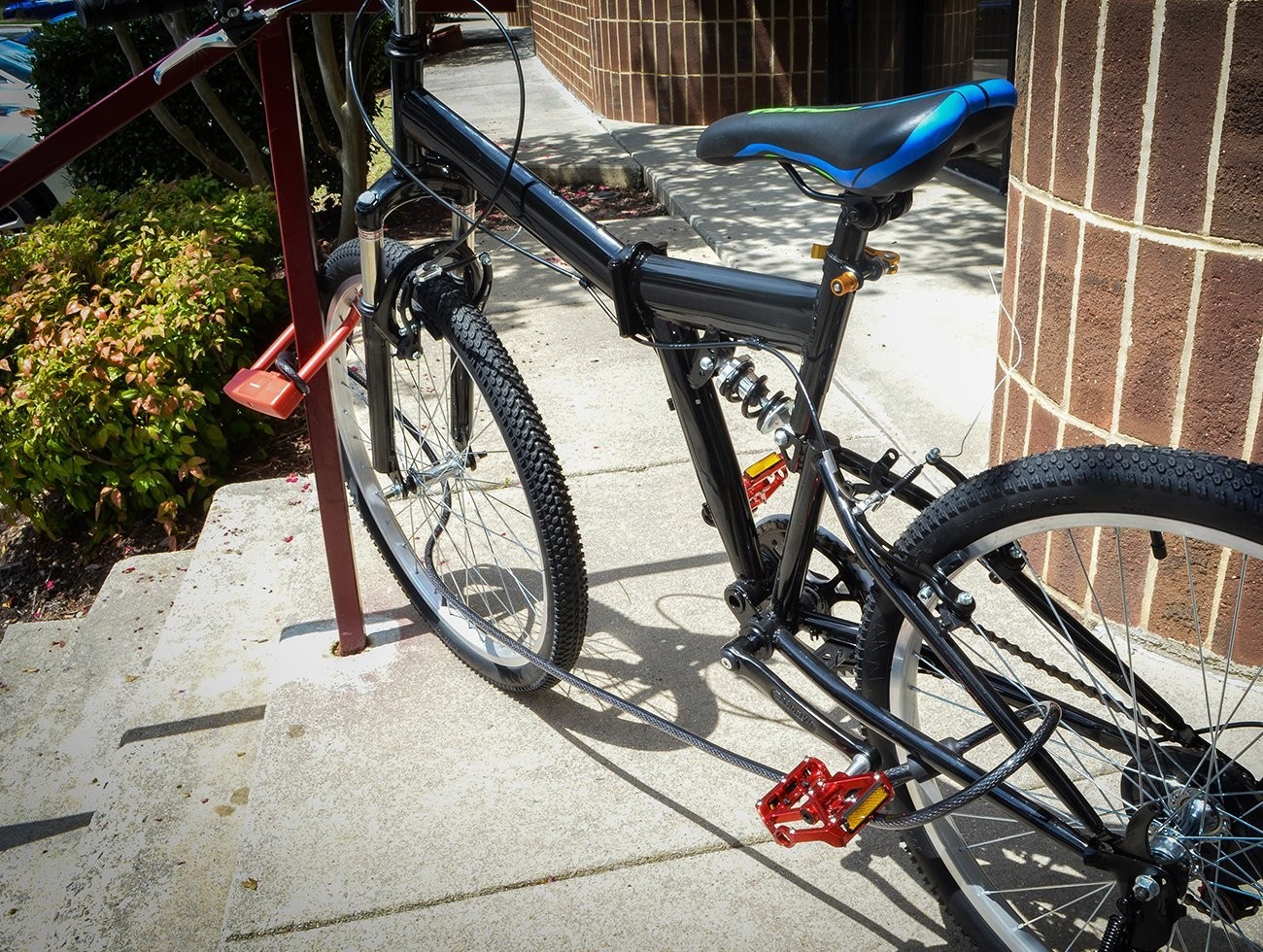

The LuminTrail Heavy-Duty Security Cable is a perfect solution for protecting your bicycle or securing other valuables against theft. The flexible vinyl coated braided steel cable provides strong cut resistance and maximum strength. Double-looped ends allow for use with pad-locks, u-locks, or disc-locks.

Ideal for

• Bicycles
• Skateboards
• Sports equipment
• Gates and fences
• Grills
• Tools and tool boxes,
• Patio furniture
• Coolers
• Trash cans
• Other large items.



High Quality Strength and Flexibility





Features:

• High Quality Braided steel construction provides strength and flexibility along with strong cut resistence
• Vinyl covering protects against rust and scratching

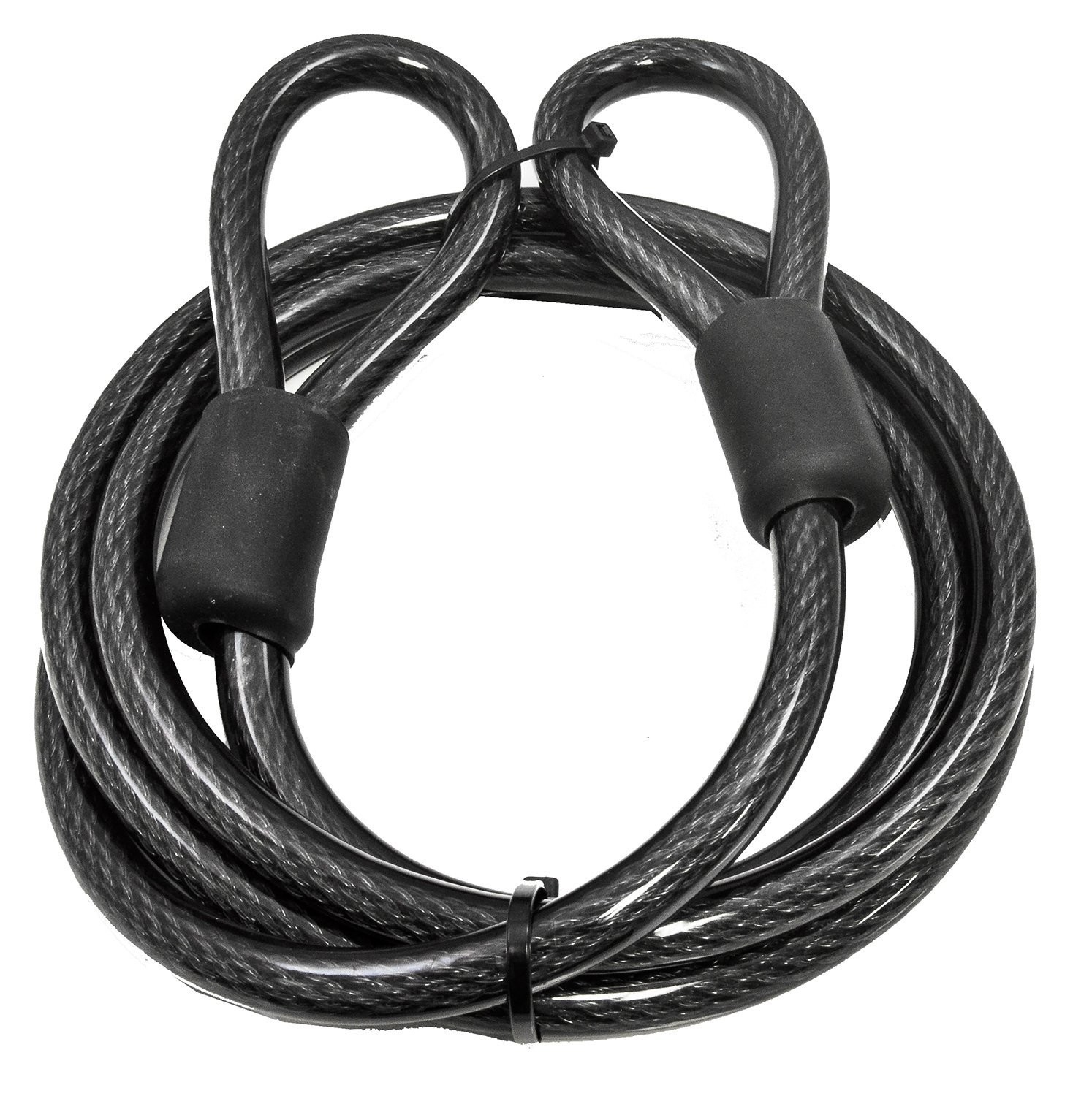

• Looped ends held securely by steel collars

Cable Dimensions:

• 4-FT length: 12mm (1/2") diameter
• 7-FT length: 12mm (1/2") diameter
• 15-FT length: 12mm (1/2") diameter
• 30-FT length: 12mm (1/2") diameter

Weight:

• 4-FT length: .90lbs
• 7-FT length: 1.30lbs
• 15-FT length: 2.30lbs
• 30-FT length: 4.3lbs





Technical Table

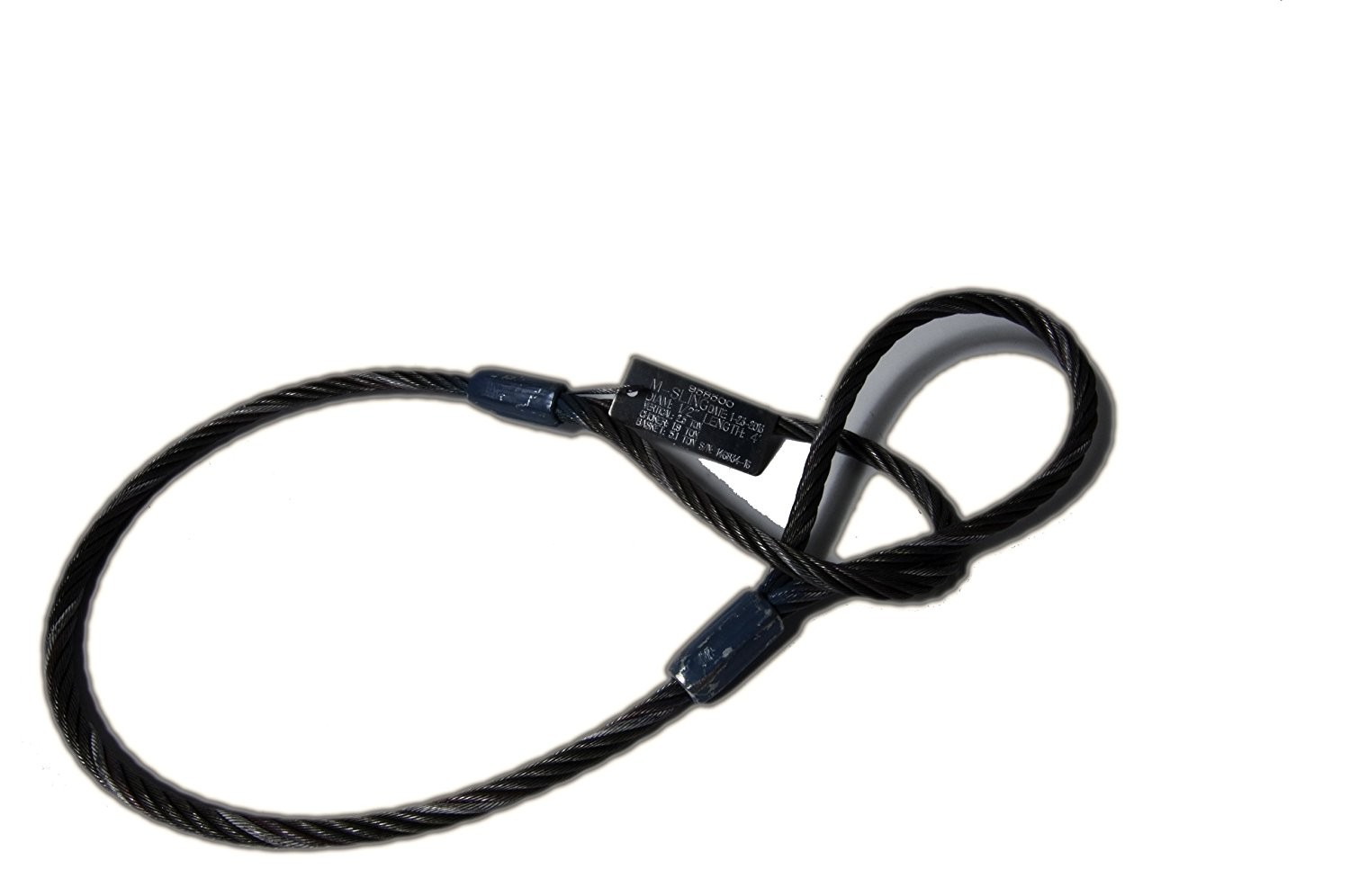

The most common size: wire rope slings having soft eyes at both end used for heavy lifting operations with safety factor of 7, length 6m, 12m, 16m, 20m, and the swl from 5 ton to 40 ton.

Diam. of Rope in.	Min. Length (SL) of Sling ft.-in.	Loop Dimensions		Rated Capacities in Tons (2000lbs)
				IPS Rope--IWRC					EIPS Rope--IWRC
				* Choker Hitch	Single Leg Vertical	Basket Hitch**			* Choker Hitch	Single Leg Vertical	Basket Hitch**
		W in.	L in.			60°	45°	30°			60°	45°	30°
1/4	1-6	2	4	.42	.56	.97	.79	.56	.48	.65	1.1	.91	.65
3/8	2	3	6	.93	1.2	2.1	1.8	1.2	1.1	1.4	2.5	2.0	1.4
1/2	2-6	4	8	1.6	2.2	3.8	3.1	2.2	1.9	2.5	4.4	3.6	2.5
5/8	3	5	10	2.5	3.4	5.9	4.8	3.4	2.9	3.9	6.8	5.5	3.9
3/4	3-6	6	12	3.6	4.9	8.4	6.9	4.9	4.2	5.6	9.7	7.9	5.6
7/8	4	7	14	4.9	6.6	11	9.3	6.6	5.7	7.6	13	11	7.6
1	4-6	8	16	6.4	8.5	15	12	8.5	7.4	9.8	17	14	9.8
1 1/8	5	9	18	7.8	10	18	15	10	9.0	12	21	17	12
1 1/4	5-6	10	20	9.2	12	21	17	12	11	15	29	21	15
1 3/8	6	11	22	11	15	25	21	15	13	18	31	25	18
1 1/2	7	12	24	13	17	30	25	17	16	21	39	30	21
1 3/4	8	14	28	18	24	43	35	25	21	28	49	40	28
2	9	16	32	23	30	55	45	32	28	37	63	52	37
2 1/4	10	18	36	30	40	69	56	40	35	44	77	63	44
2 1/2	11	20	40	36	48	84	68	48	42	54	94	77	64
2 3/4	12	22	44	43	58	101	82	58	50	67	116	94	67
3	13	24	48	51	68	118	97	68	59	79	136	111	79
