Tight Structure Wire Rope Lifting Slings , Steel Cable Slings Crosby Ends
Tight Structure Wire Rope Lifting Slings , Steel Cable Slings Crosby Ends Tight Structure Wire Rope Lifting Slings , Steel Cable Slings Crosby Ends

Tight Structure Wire Rope Lifting Slings , Steel Cable Slings Crosby Ends

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: WRSASOK
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly
Contact Now

Detail Information
Model:O/SWire Rope Size:1- 5/8
Type:Paint & SocketConstruction:6x19 Class
Length (ft):100Safety Factor:5:1
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

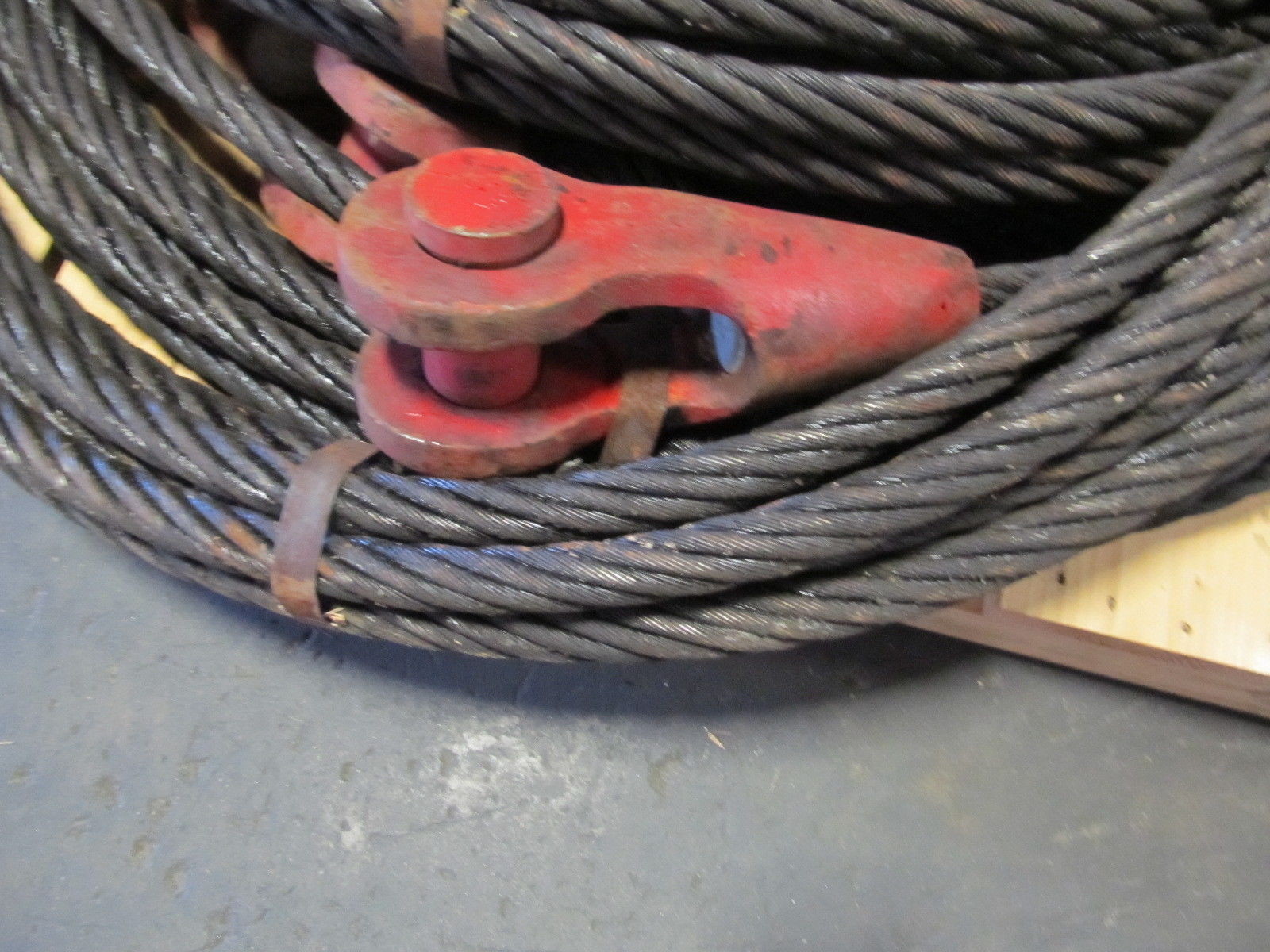

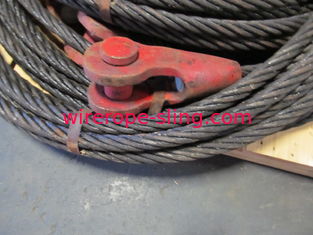

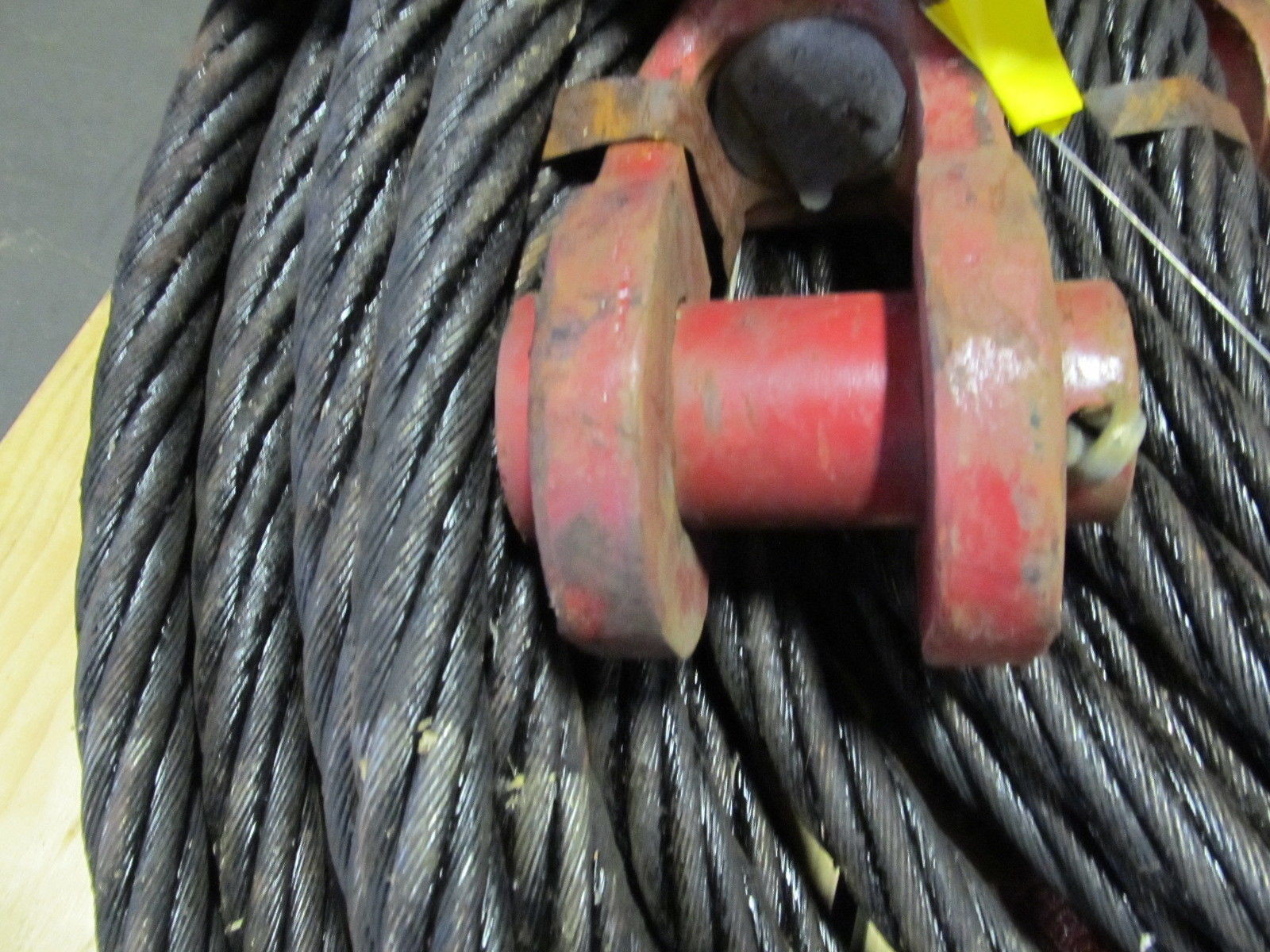

Steel Wire Rope Sling 1 5/8 inch x 100 feet 1.625 inch x 100 feet Crosby Ends





Product features



  • Forged from special bar quality carbon steel, suitable for cold forming.
  • Swage Socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope.
  • Hardness controlled by spheroidize annealing.
  • Stamp for identification after swaging without concern for fractures (as per directions in National Swaging Brochure).
  • Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper "After Swage" dimensions or proof loading.
  • U.S. Patent 5,152,630 and foreign equivalents.



Product description



Boom pendants, guylines, raising lines, backstays, lifting bridles and more. Those are the uses of our wire rope assemblies, offered in both poured (spelter) sockets and mechanically swaged sockets. A design factor of five has been used to establish the rated capacities seen in the charts.
Molten zinc is the standard socketing material, however, an epoxy socketing material can be specified. Both have the same Rated Capacity. Steel forgings are used on rope sizes 1/2” through 1-1/2” and cast steel fittings are used for larger sizes. Rope sizes larger than 4” are available on special order. The assembly lengths are measured from the centerline point of the pin for open sockets and the bearing point for closed sockets.







Specification

110 Spelter Socket

IWRC Rope
Dia. (inches)		 RATED CAPACITY IN TONS OF 2,000 LBS.
XIP® XXIP®
6x19 and 6x36 IWRC
1/2 2.7 2.9
9/16 3.4 3.7
5/8 4.1 4.5
3/4 5.9 6.5
7/8 8 8.8
1 10 11
1 1/8 13 14
1 1/4 16 18
1 3/8 19 21
1 1/2 23 25
1 5/8 26 29
1 3/4 31 34
1 7/8 35 38
2 40 43
2 1/8 44 49
2 1/4 49 54
2 3/8 55 60
2 1/2 60 66
2 5/8 66 73
2 3/4 72 79
2 7/8 78 86
3 85 94
3 1/8 92 101
3 1/4 98 108
3 3/8 106 116
3 1/2 113 124
3 5/8 120 132
3 3/4 128 141
4 144 159

All dimensions in inches.
