Ss Control Cable Windows Regulator 8X7 1X19 1.5mm CE Durability WSC Core

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: 8X7+1X19
Payment & Shipping Terms:
Minimum Order Quantity: 10000mtrs
Price: USD3000/TON
Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 50tons monthly

Detail Information

Zinc Coating:Over 15g/m2Application:Control Cable
MOQ:10000 Meters If No StockLay:Sz Right Regular Lay
Tensile Strength:1960MPAMaterial:Steelover
HS Code:7312100000Diameter:1.5mm
High Light:

pto control cable

,

push pull control cable

Product Description

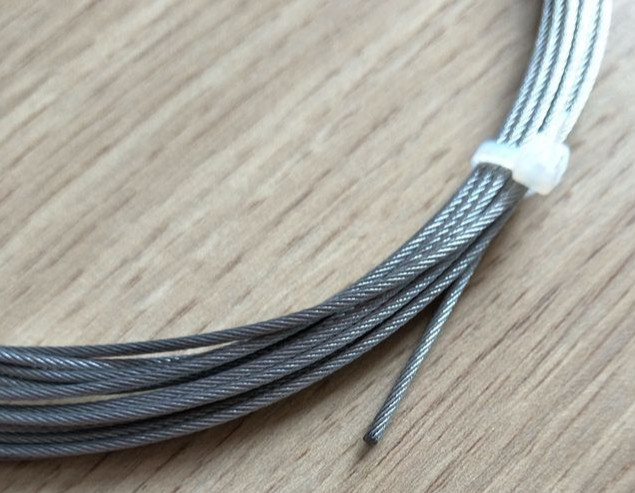

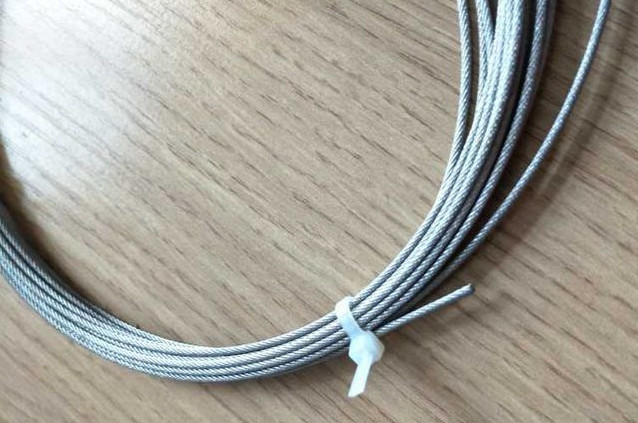

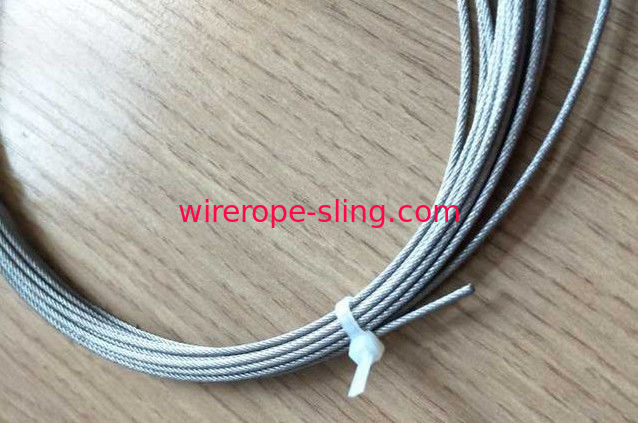

8X7+1X19 1.5mm Stainless Steel Wire Rope Control Cable Windows Regulator

Product Description

316 8x7-1x19 1.5mm Stainless Steel Wire Rope
1). Type: Stainless Steel Wire Rope
2). Grade: 316 A4 1.4401 ( 304 A2 1.4301 available)
3). Surface: Bright

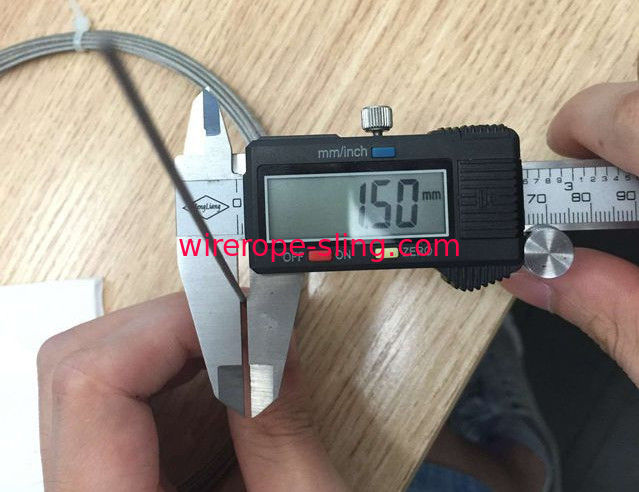

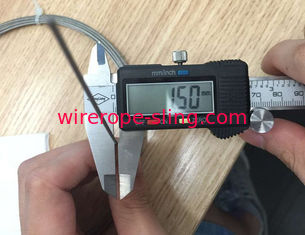

4). Diameter: 1.5mm

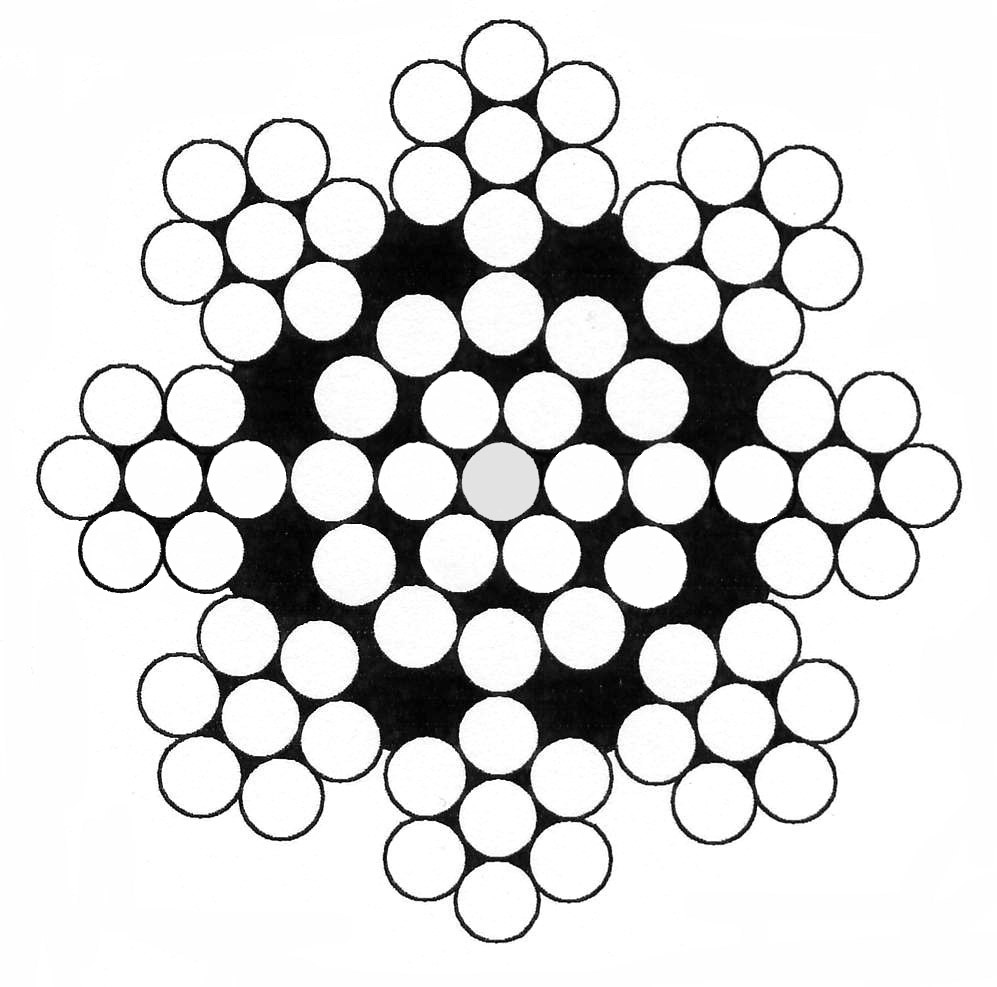

5). Construction: 8x7-1x19
6). Core: WSC
7). Length: 500m/reel,1000m/reel,1500m/reel,2000m/reel etc
8). Packing: Wrapped with plywood reel then put on pallets
9). Payment Term: T/T
10). Loading Port: Shanghai China
11). Delivery Term: EXW,FOB,CFR,CIF
12). MOQ: 10000 meters if no stock
13). Delivery Time: within 10 days after receiving deposit
14). Twist Dirction: RHOL


1.Steel wire for  wire rope
1.1 the wire rope is the aviation wire rope, the outer diameter is 1.5mm, and the 6 * 7+IWS (intermediate stock) is 7 * 7 shares.
1.2 the nominal diameter of the steel wire is 017mm, the allowable deviation is + 001, and the roundness is not greater than 001.
1.3 materials for steel wire shall conform to GB699 regulations, and the content of sulphur and phosphorus shall not be greater than 0.03%.
The nominal tensile strength of 14 steel wire is not less than 1960Mp
The weight of the zinc layer on the surface of the 1.6 steel wire is not less than 158:
1.5 steel wires with a knot should be able to withstand the tensile force of not less than 60% of the nominal tensile strength.
17 the galvanized coating on the steel wire surface is uniform, continuous, without cracks and spalling.

2. Twisting and surface quality of wire rope
2.1 wire rope should be straight and soft.
22 all steel wires and strands in the wire rope should be twisted tightly without any overlapping, bulging, breaking, flattening and scratching.
Steel wire.
2.3 the wire fitting in the wire rope should be inserted into the strand and not exposed.
2.4 wire ropes are coated with a proper amount of lubricant.
2.5 after the 30000 fatigue tests, the steel wire must not be cracked, napped or prickled.
3. Mechanical properties of wire rope
The minimum breaking tension of 31 wire rope is 1.99KN.
132 when the steel rope is 60%G with the minimum breaking force, its elastic elongation is no more than 0.9%, and the permanent elongation is not.
More than 0.2%. After the 50000 simulated door lift cycle, the permanent elongation is not greater than that 0.1%.

Ss Control Cable Windows Regulator 8X7 1X19 1.5mm CE Durability WSC Core 0

inch to mm convert table ( 1 ft =12 inch ; 1 inch = 25.4 mm ) :

inchmminchmminchmminchmm
1/20.512.73/320.093752.3813/640.0468751.19135/640.54687513.891
1/40.256.355/320.156253.9695/640.0781251.98437/640.57812514.684
3/40.7519.057/320.218755.5567/640.1093752.77839/640.60937515.478
1/80.1253.1759/320.281257.1449/640.1406253.57241/640.64062516.272
3/80.3759.52511/320.343758.73111/640.1718754.36643/640.67187517.066
5/80.62515.87513/320.4062510.31913/640.2031255.15945/640.70312517.859
7/80.87522.22515/320.4687511.90615/640.2343755.95347/640.73437518.653
1/160.06251.58817/320.5312513.49417/640.2656256.74749/640.76562519.447
3/160.18754.76319/320.5937515.08119/640.2968757.54151/640.79687520.241
5/160.31257.93821/320.6562516.66921/640.3281258.33453/640.82812521.034
7/160.437511.11323/320.7187518.25623/640.3593759.12855/640.85937521.828
9/160.562514.28825/320.7812519.88425/640.3906259.92257/640.89062522.622
11/160.687517.46327/320.8437521.43127/640.42178510.71659/640.92187523.416
13/160.812520.63829/320.9062523.01929/640.45312511.50961/640.95312524.209
15/160.937523.81331/320.9687524.60631/640.48437512.30363/640.98437525.003
1/320.031250.7941/640.015620.39733/640.51562513.09764/64125.4



Chemical Composition of common Stainless Steel Grades
%
ComponentCSiMnPSCrNiMo
304MAX 0.08MAX 1.00MAX 2.00MAX 0.045MAX 0.0317.00-19.008.00-10.00
304LMAX 0.03MAX 1.00MAX 2.00MAX 0.045MAX 0.0318.00-20.008.00-10.00
316MAX 0.08MAX 1.00MAX 2.00MAX 0.045MAX 0.0316.00-18.0010.00-14.002.00-3.00
316LMAX 0.03MAX 1.00MAX 2.00MAX 0.045MAX 0.0316.00-18.0012.00-15.002.00-3.00
