DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE/ ISO9001:2008
Model Number: LKS-SS-TK
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD5-25 per set
Packaging Details: Wooden Case
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 2000 Sets monthly

Detail Information

Standard:DINColor:SELF-COLOR; WHITE; BLUE
Design:OEM Services ProvidedKeyword:Eye Bolt
Material:C15E,C15Usage:Rigging Hardware,marine Hardware
Surface:Galvanized.yellow Zinc PlatedHS Code:7326901900
High Light:

stainless rigging hardware

,

boat rigging hardware

Product Description

 Galvanized Eyebolts & Eyenuts Marine Rigging Hardware for lifting material




LKS supply a wide range of wire rope end terminations and fittings to suit regular and bespoke wire rope and rigging requirements.
In addition to the standard range, LKS supply high-quality wire rope fittings for various uses including architectural, marine, yacht rigging and structural applications. LKS's fittings are sourced from approved factories worldwide and fully supported by test certificates where applicable.

Carbon steel Lifting Forged Eye Bolt Din582 eyenuts




Name

Carbon steel Lifting Forged Eye nuts Din582 eyenuts

Standard

AS,ANSI/ASME,BS,DIN,EN,GB,ISO,JIS,Non-standard

Surface Finishingr

Zn- Plated,Ni-plated,Passivated,Tin-plated,Sandblast and Anodize,Chromate, Polish,Electro Painting,Black Anodize,Plain,Chrome plated,Hot Deep Galvanize etc.

Material

1. Carbon Steel: Q235,C35,C45,C20
2. Stainless Steel: SUS304, SUS316
3. Alloy Steel:SCM435 10B21

Size

M6-M64,1/4"-2 1/2"


Heat Treatment

Tempering, Hardening, Spheroidizing, Stress Relieving

Head Code

Flat countersunk head, pan, oval, round, binding, brazier, button, cheese fillister, cup head, etc

Sample

We can supply the samples for free if the samples we have in stock

Lead time

10-15 working days, as usual, It will be based on the detailed order quantity


Specifications

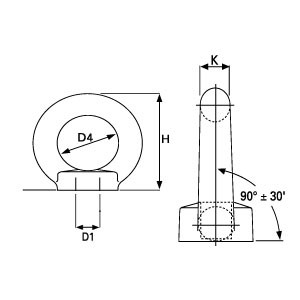

Dimensions and Weights
Vertical D1 D4 H K Weight Zinc Plated
SWL Tones mm mm mm mm kgs/each Part Code
0.07 6 20 36 8 0.05 WRL0510Z
0.14 8 20 36 8 0.05 WRL0501Z
0.23 10 25 45 10 0.09 WRL0502Z
0.34 12 30 53 12 0.16 WRL0503Z
0.7 16 35 62 14 0.24 WRL0505Z
1.2 20 40 71 16 0.36 WRL0506Z
1.8 24 50 90 20 0.72 WRL0507Z
2.5 27 60 109 24 1.22 WRL0508Z
3.6 30 60 109 24 1.32 WRL0509Z



Eyebolts & Eyenuts





Self-Colour Drop Forged Collared(Withworth)


DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 0

High tensile steel products with an imperial thread

Self-Colour Drop Forged Collared(Metric)


DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 1


High tensile steel products with a metric thread



DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 2


High tensile steel products with an imperial thread. These also have a longer thread than the standard eyebolt




DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 3


High tensile steel products with a metric thread. These also have a longer thread than the standard eyebolt




DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 4


High tensile steel products with a metric thread. These also have a longer thread than the standard eyebolt




DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 5


High tensile steel products with an imperial thread. These also have a longer thread than the standard eyebolt




DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 6


High tensile steel products with a metric thread




DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 7


Din 580 eyebolts with a metric thread



DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 8

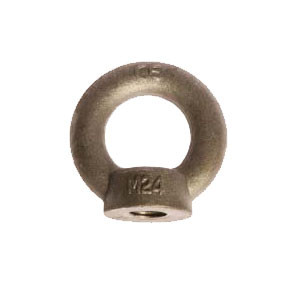

Din 582 eyenuts with a metric thread


For more information and product, specifications click on the products above or call our sales office if we don't have what you're looking for listed.DIN Standard Marine Rigging Hardware Eyebolts & Eyenuts For Lifting Material 9
