Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO 9001: 2008 |
| Model Number: | WRBQOS078X20 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Set |
| Price: | USD2000/TON |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000sets monthly |
|
Detail Information |
|||
| Product Name: | 2 Bridle Leg Wire Rope Sling 6 X 37 | Surface: | Galvanized/Ungalvanized |
|---|---|---|---|
| Size: | 6mm-106mm | Packing: | Reel |
| Standard: | EN/ASTM | Safety Factor: | 5:1 |
| Ends: | Hook/Shackle/Oblong Link | HS Code: | 73129000 |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description
Professional Swaged Bridle 2 leg wire rope sling With abrasion resistance
About Wire Rope Slings
Wire rope slings are a basic material handling tool and are the most frequently used type of sling in industry today. They offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.
Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).
Features

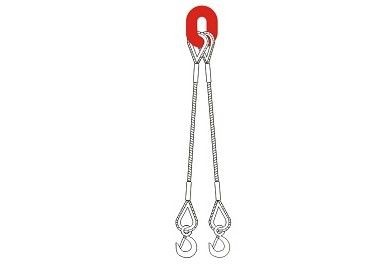

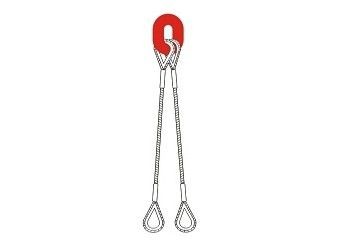

2 Leg Bridle Slings are constructed of two wire rope assemblies that are attached to an Oblong Ring. These slings can be fitted with a variety of hook ends.
Why LKS?
As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in Shanghai area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.
Specifications
| Rope Diameter(mm) | Working Load(ton) | |
| 90° | 120° | |
| 6 | 0.4 | 0.3 |
| 7 | 0.6 | 0.4 |
| 8 | 0.8 | 0.6 |
| 9 | 0.7 | |
| 10 | 1.2 | 0.9 |
| 11 | 1.5 | 1.1 |
| 12 | 1.8 | 1.3 |
| 13 | 2.1 | 1.5 |
| 14 | 2.4 | 1.7 |
| 16 | 3.2 | 2.3 |
| 18 | 4 | 2.9 |
| 20 | 5 | 3.5 |
| 22 | 6 | 4.3 |
| 24 | 7.2 | 5.1 |
| 26 | 8.4 | 6 |
| 28 | 9.7 | 6.9 |
| 32 | 12.7 | 9.1 |
| 36 | 16.1 | 11.5 |
| 40 | 19.9 | 14.2 |
| 44 | 24 | 17.2 |
| 48 | 28.7 | 20.5 |
| 52 | 33.5 | 23.9 |
| 56 | 38.8 | 27.7 |
| 60 | 44.6 | 31.9 |
| 64 | 46.9 | 33.5 |
| 70 | 55.9 | 40 |
| 74 | 62.5 | 44.6 |
| 80 | 73.1 | 52.2 |
| 84 | 80.6 | 57.6 |
| 90 | 92.5 | 66.1 |
| 98 | 105.3 | 75.2 |
| 100 | 114.4 | 81.7 |
| 106 | 128.5 | 91.8 |
Product Show
