5mm - 52mm Steel Wire Rope Sling With Galvanized / Ungalvanized Surface

Product Description

Hand Tucked Spliced Soft Loop Steel Wire Rope Slings DIN / BS / JIS / ASTM Standard

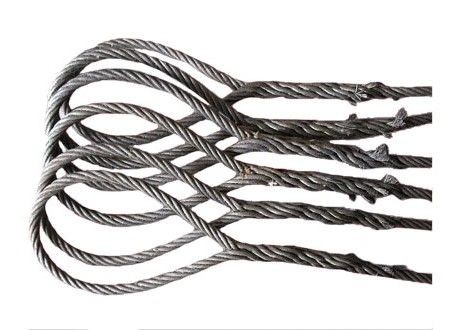

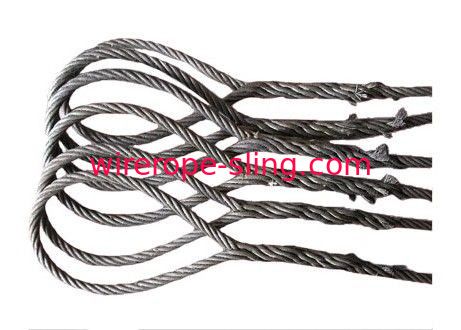

The end of a single wire rope is bent back along the rope to form the eye, and strands are hand-tucked into the body of the rope in what is called a burnt end splice. With Burnt End splices, the ends of strands are left exposed and cut off with a torch. Upon special request, a premium splice known as a tapered and concealed splice can be provided. Slings with rope bodies larger than 1" diameter are made only with Burnt End splices. All have the same rated capacity, size for size.

About Wire Rope Slings

Wire rope slings are a basic material handling tool and are the most frequently used type of sling in industry today. They offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).

Features

A hand tucked splice is created by forming an eye and "tucking" and "locking" a strand of the wire rope under other adjacent strands. Although not as strong as mechanically spliced slings, the absence of steel sleeves allows this sling to be easily removed from underneath loads. Caution must be exercised, however, as hand tucked splices may unravel if the sling rotates during use.

Why LKS?

As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKST has been the No.1 wire rope and sling supplier in Shanghai area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.

Applications

1. Steel wire ropes with diameters from ǿ5 to ǿ60 are 6x37+FC-1670N/mm2 type complying to GB/T20118 standard.

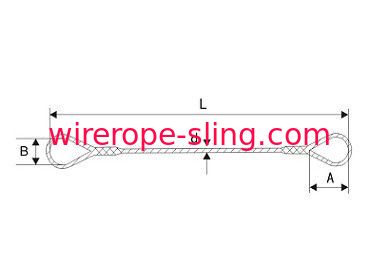

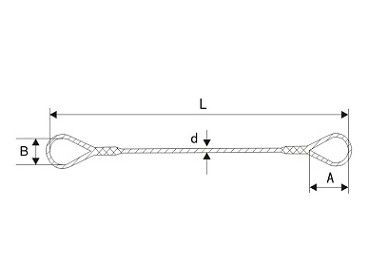

2. Values "A" or "B" can be customized. Otherwise, the values in the table apply.

3. "L" value meets client requirements; n=5 and n=6 are safety factors, determined by users.

Specifications

Product Show
