China Wire Rope Sling manufacturer

Soft Loop Steel Cable Slings Hand Tucked Spliced Din Bs Jis Astm Standard

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001: 2008
Model Number: HWRS
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD2000/TON
Packaging Details: Wooden Cases
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 5000sets monthly

Detail Information

Product Name:Endless Wire Rope Grommet SlingSurface:Galvanized/Ungalvanized
Size:10mm-368mmPacking:Reel
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOSafety Factor:5:1
Material:SteelHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

Endless Round Grommet Wire Rope Slings Braided Loop Sling with Galvanized​





About Wire Rope Slings

Wire rope slings are a basic material handling tool and are the most frequently used type of sling in industry today. They offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).



Why LKS?

As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in SHANGHAI area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.



Features

A grommet is a special type of sling which forms a continuous loop. Grommets either have a wire rope body or a body made up of six strands which are laid helically around a strand core. Either a hand-splice or a mechanical splice then forms an endless sling body. The minimum circumference of the sling is 96 times the grommet’s body diameter.Rope-laid grommets are also available.

Applications

Endless Grommet wire rope sling is featured in softness, more suspension points. It can cater to operational requirements of small space and high load. It is adaptable requirements of bulk hoisting under various such as transformer, shipbuilding and special machinery.(Where the warning mark locates cannot be used as lifting point.)



Specifications

Diameter(mm) Weight(Kg/m) Breaking load(Kg) Rated single-limb load Rated double-limb load Rated Four-limb load
α=0° α=45° α=90° α=45° α=90°
10 0.21 6000 1000 1800 1400 3700 2800
12 0.35 10000 1600 3000 2000 5800 4000
16 0.59 18000 3000 5600 4000 11200 8000
19 0.84 24000 4000 7400 5600 14800 11200
23 1.51 38000 6300 11700 8800 23400 17600
29 2.36 48000 8000 14800 11300 29600 22600
34 2.86 60000 10000 18500 14100 37000 28200
40 3.99 90000 15000 27800 21200 55600 42400
46 6.02 120000 20000 37000 28200 74000 56400
54 7.63 150000 25000 46300 35300 92600 70600
60 9.45 200000 32000 59200 45100 118400 90200
67 11.41 240000 40000 74000 56400 148000 112800
75 13.58 300000 50000 92500 70500 185000 141000
80 15.96 360000 60000 111000 85000 222000 170000
87 18.48 420000 70000 130000 99000 260000 198000
95 24.15 480000 80000 148000 113000 296000 226000
100 27.3 588000 98000 181000 138000 362000 276000
110 30.59 690000 115000 213000 162000 426000 324000
118 41.58 780000 130000 241000 183000 482000 366000
135 46.9 1020000 170000 310000 240000 610000 470000
148 55.79 1200000 200000 370000 280000 720000 560000
160 65.52 1440000 240000 440000 340000 860000 670000
172 76.3 1680000 280000 520000 400000 1000000 780000
184 89.6 1800000 300000 550000 420000 1080000 840000
196 102.2 2040000 340000 630000 480000 1220000 950000
208 15.5 2280000 380000 700000 537000 1360000 1060000
220 129.5 2520000 420000 770000 594000 1500000 1170000
234 144.2 2820000 470000 870000 660000 1690000 1310000
346 159.6 3120000 520000 960000 735000 1870000 1450000
258 175.7 3420000 570000 1050000 800000 2050000 1600000
276 201.6 3960000 660000 1220000 930000 2370000 1840000
295 229 4500000 750000 1380000 1060000 2700000 2100000
306 249.2 4920000 820000 1520000 1160000 2950000 2290000
324 280 5520000 920000 1700000 1300000 3310000 2570000
336 301.7 5940000 990000 1800000 1400000 3650000 2770000
356 335.3 6600000 1100000 2030000 1550000 3960000 3080000
368 359.1 7200000 1200000 2220000 1700000 4320000 3360000





Product Show

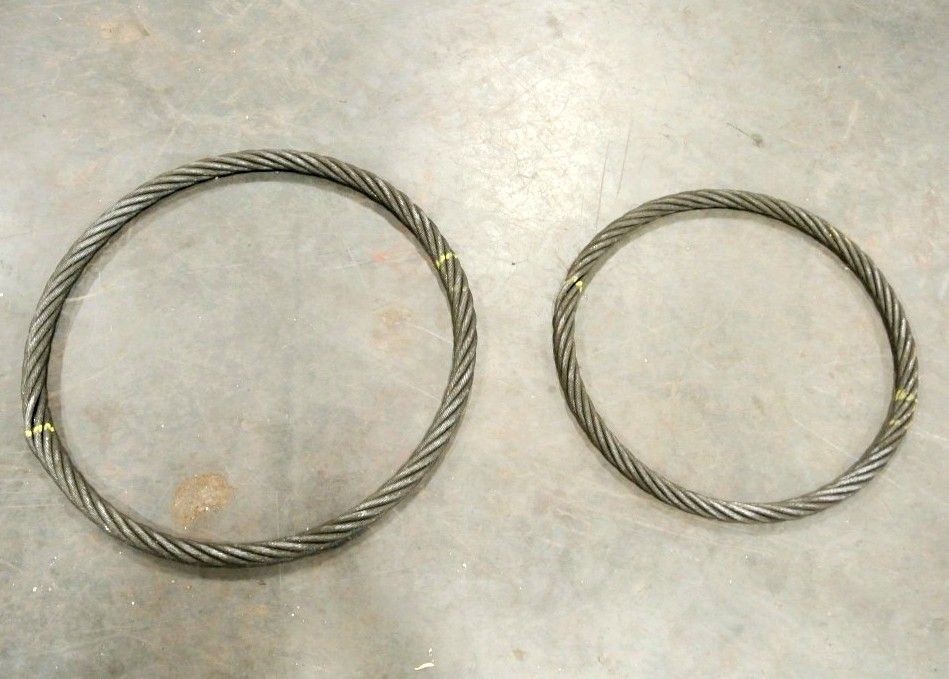

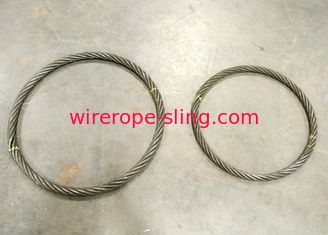

Soft Loop Steel Cable Slings Hand Tucked Spliced Din Bs Jis Astm Standard 0

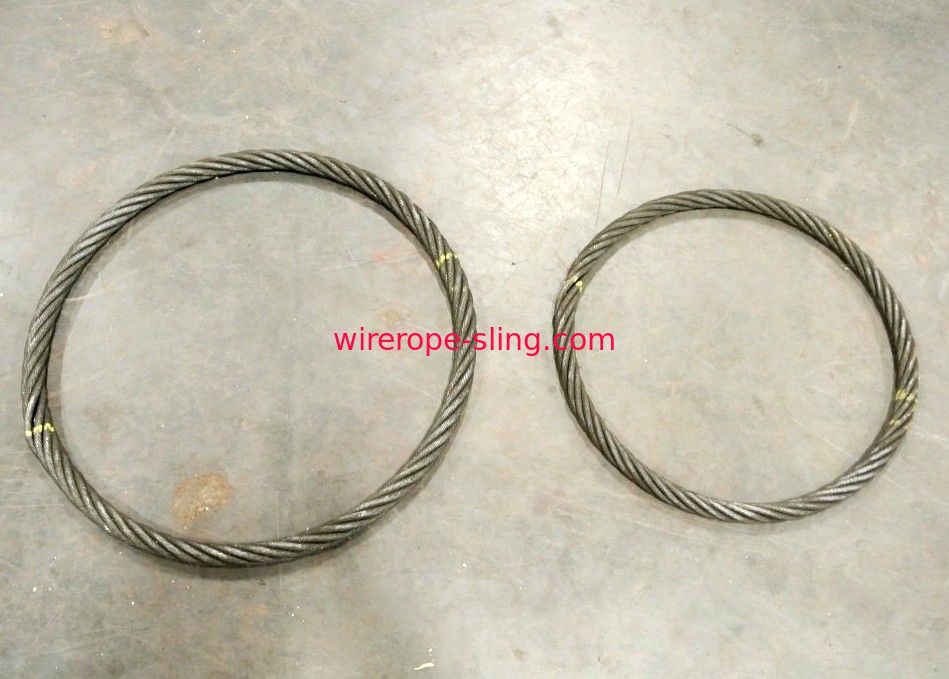

Soft Loop Steel Cable Slings Hand Tucked Spliced Din Bs Jis Astm Standard 1
