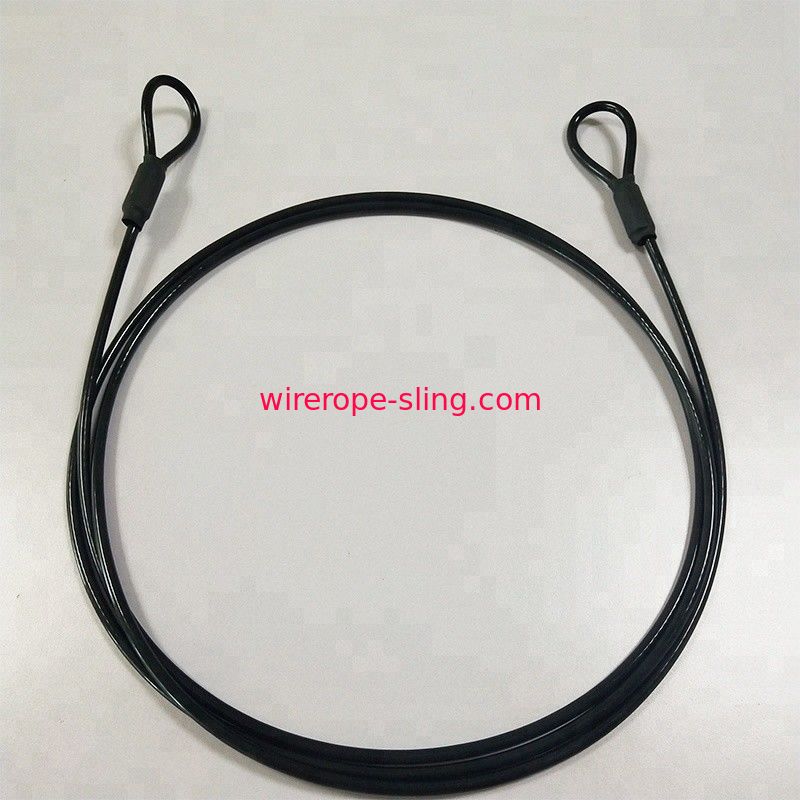

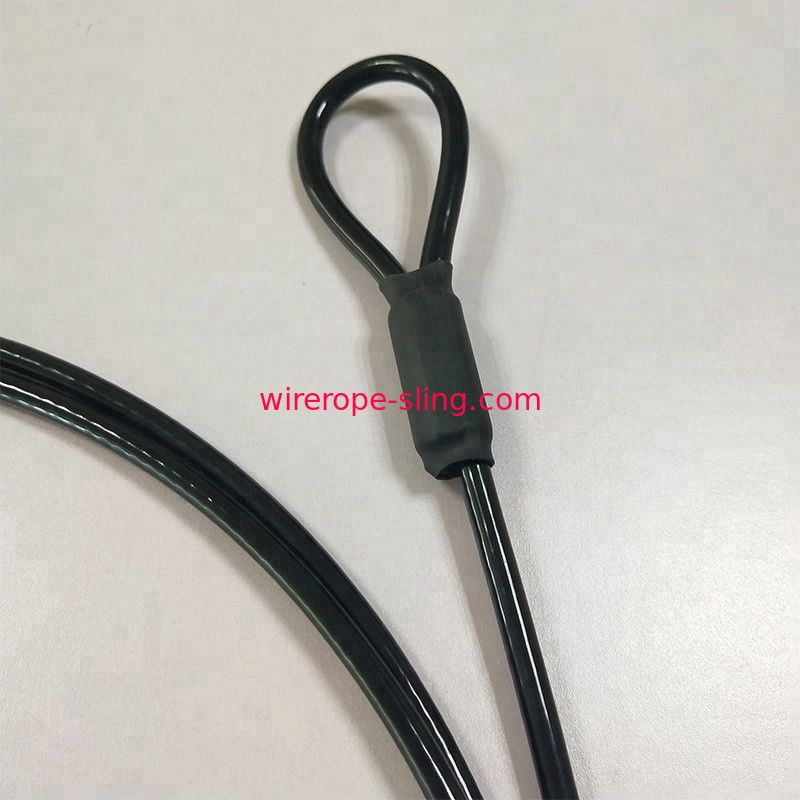

Pvc Coated Wire Rope Bridle Slings 7 X 19 5mm Flexible With Shrinkable Tube

GENERAL INFORMATION

Figure 1 * Diameter Of Wire Ropes

The diameter of a wire rope is the diameter of circle which encloses all of the wires . When measuring wire rope it is important to take the greatest distance of the outer limits of the Crown's of two opposite strands. A measurement across the valleys will result in incorrect lower readings .

Figure 2 * Method of Measuring Diameter

Cailper,fitted with jaws broad enough to cover not less than two adjacent strands

Figure 3 * Safety Factor Of Wire Rope

It is difficult to fix the safety factor for each type of wire rope to be used for various equipments ,as this factor depends not only on the load carried,but also on the speed of rope working, the kinds of fitting used for rope ends,the acceleration and deacceleration ,length of rope,the number ,size and arrangements of sheave drums etc. The following safty factors are minimum requirements for safety and economy in the common installation .

Figure 4 * Rope Characteristics

This chart is purely an attempt to illustrate the relative characteristics of different constructions of wire rope as indicated in the text . No numerical scale is shown or intended .

QUALITY ASSURANCE

LKS has adopted its management policy of " best quality & Lead time assurance " through continuous technological advanced testing equipment and quality system to meet customer's targets on time and quality criteria .

LKS has achieved ISO 9001:2000 in year 2003. We are the first chinese steel wire rope manufacture certified by JIS in 2001.

We obtained the ISO/TS 16949:2002 automobile industry quality system in November of 2004, and we are the first Chinese wire rope manuafcture being ceritified in this field .

We provides different kinds of lifting inserts and lifting sockets for the precast system.
