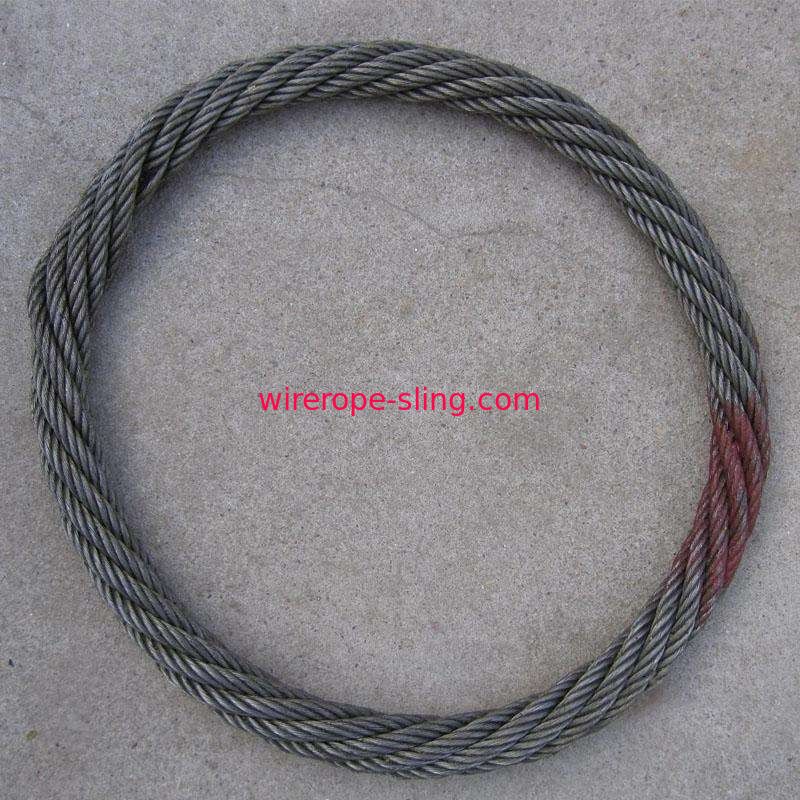

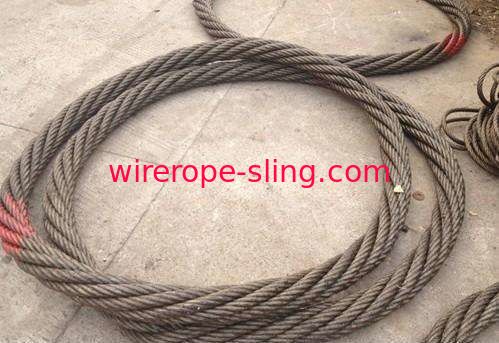

High Tension Endless Wire Rope Grommet With Galavnized Or Ungalvanized
High Tension Endless Wire Rope Grommet With Galavnized Or Ungalvanized High Tension Endless Wire Rope Grommet With Galavnized Or Ungalvanized

High Tension Endless Wire Rope Grommet With Galavnized Or Ungalvanized

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-GJT
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD0.5-1.5PER SET
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 3000sets monthly
Contact Now

Detail Information
Type:Wire Rope SlingMaterial:Steel,High Carbon Steel
Application:Construction,industrialStandard:AISI,DIN,ASTM,BS,JIS
Steel Grade:High Carbon SteelAlloy Or Not:Non-alloy
Wire Gauge:3mm-80mmSpecial Use:Cold Heading Steel
Shape:RoundProduct Name:Steel Wire Rope Sling Heavy Duty Lifting Slings
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

High Tension Grommet Sling



  • Compared with the normal grommet sling, the breaking load of the high performance sling is much bigger and special process is done at the lifting point to extend its service life.
  • In the form, high tension grommet sling was spliced by the wire rope with the characters of class a or ab, steel core, nominal tensile strength 1770MPa. Depending on the different working place, we should chose the rope with different surface treated, including galvanized wire rope with lubrication, galvanized wire rope without lubrication and un-galvanized, total three choices.
  • Choose different capability wire rope to splice the high tension grommet sling, its breaking load is different. Shall calculate the sling’s breaking strength according to the steel wire rope construction.
  • Min Breaking load of high tension grommet sling is 5 times of that working load. According to the requirements of the industry, other safety factors also can be applied. The safety factory of the following operation can be executed with the standard rope sling –grommet sling> GB/T30587-2014, such as the load weight is accurate calculated or measured, hoist operation is to be monitored and controlled and dynamic coefficient are limited. The same, when the diameter is 60mm or less than, take the safe factor of 5, the diameter from 60 to 150 mm take the safety factor of(6.31-0.022D), when the diameter is greater than 150 mm, safety factor should not be less than 3.
  • The angle in the form is the diagonal angle.
  • When using much higher tensile strength wire rope to splice the grommet sling, the rope diameter should be smaller than the normal tension strength rope.
 High Tension Endless Wire Rope Grommet With Galavnized Or Ungalvanized 0


Product Parameter


Art . No. Diameter
(mm)		 Min. Breaking Load
(kN)		 Single Leg Working Load
(kN)		 Double Legs Working Load(kN) Approx. Weight
(kg/m)
a=45° a=90°
GJT66 66 3111 622 1120 871 16.65
GJT72 72 3702 740 1333 1037 19.81
GJT78 78 4345 869 1564 1217 23.26
GJT84 84 5039 1008 1814 1411 26.97
GJT96 96 6581 1316 2369 1843 35.22
GJT108 108 8330 1666 2999 2332 44.58
GJT120 120 10284 2057 3702 2880 55.03
GJT132 132 12443 2489 4479 3484 66.59
GJT144 144 14808 2962 5331 4146 79.25
GJT156 156 17379 3476 6256 4866 93.01
GJT168 168 20156 4031 7256 5644 107.87
GJT180 180 23138 4628 8330 6479 123.83
GJT192 192 26326 5265 9477 7371 140.89
GJT198 198 27997 5599 10079 7839 149.84
GJT204 204 29719 5944 10699 8321 159.05
GJT210 210 31493 6299 11337 8818 168.55
GJT216 216 32383 6477 11658 9067 177.04
GJT222 222 34207 6841 12315 9578 187.01
GJT228 228 36081 7216 12989 10103 197.25
GJT234 234 38005 7601 13682 10641 207.77
GJT240 240 39979 7996 14392 11194 218.57
GJT246 246 42020 8400 15125 11765 241
GJT252 252 44060 8810 15860 12335 254
GJT258 258 46205 9240 16630 12935 265
GJT264 264 48345 9665 17405 13535 280
GJT270 270 50590 10115 18210 14165 291
GJT276 276 52835 10565 19020 14790 304
GJT282 282 55180 11035 19865 15450 318
GJT288 288 57525 11505 20710 16105 332
GJT 294 294 59975 11995 21590 16790 345
GJT 300 300 62420 12480 22470 17475 359
GJT 306 306 64970 12990 23390 18190 374
GJT312 312 67520 13500 24305 18905 388
GJT318 318 70175 14035 25260 19645 403
GJT324 324 72825 14565 26215 20390 419
GJT330 330 75580 15115 27205 21160 435
GJT336 336 78335 15665 28200 21930 451
GJT342 342 81190 16235 29225 22730 467
GJT348 348 84045 16805 30255 23530 485
GJT354 354 87005 17400 31320 24360 500
GJT 360 360 89960 17990 32385 25185 517
GJT 366 366 93020 18600 33485 26045 535
GJT 372 372 96080 19215 34590 26900 553
GJT378 378 99140 19825 35690 27760 571
GJT384 384 102000 20400 36720 28560 589
GJT390 390 105060 21010 37820 29415 607
GJT396 396 109140 21825 39290 30555 626
GJT402 402 112200 22440 40390 31415 645
GJT408 408 115260 23050 41490 32270 665
GJT414 414 119340 23865 42960 33415 684
GJT 420 420 122400 24480 44060 34270 704
GJT 426 426 125460 25090 45165 35125 724
GJT 432 432 129540 25905 46630 36270 745
GJT438 438 133620 26720 48100 37410 766
GJT444 444 136680 27335 49200 38270 788
GJT450 450 140760 28150 50670 39410 809
GJT456 456 143820 28760 51775 40265 835
GJT462 462 147900 29580 53240 41410 851
GJT468 468 151980 30395 54710 42550 876
