China Wire Rope Sling manufacturer

4Pcs 2mm X 6.5 Feet Wire Rope Stainless Steel With Protective Plastic Jacket Assembly

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: SSWR
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Steel Grade:300 SeriesStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.6mm-10mmType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloySpecial Use:Cold Heading Steel
Certificate:ISO, SGSPackaging:In Coil And Pallet
High Light:

coated stainless steel cable


stainless steel cable

Product Description

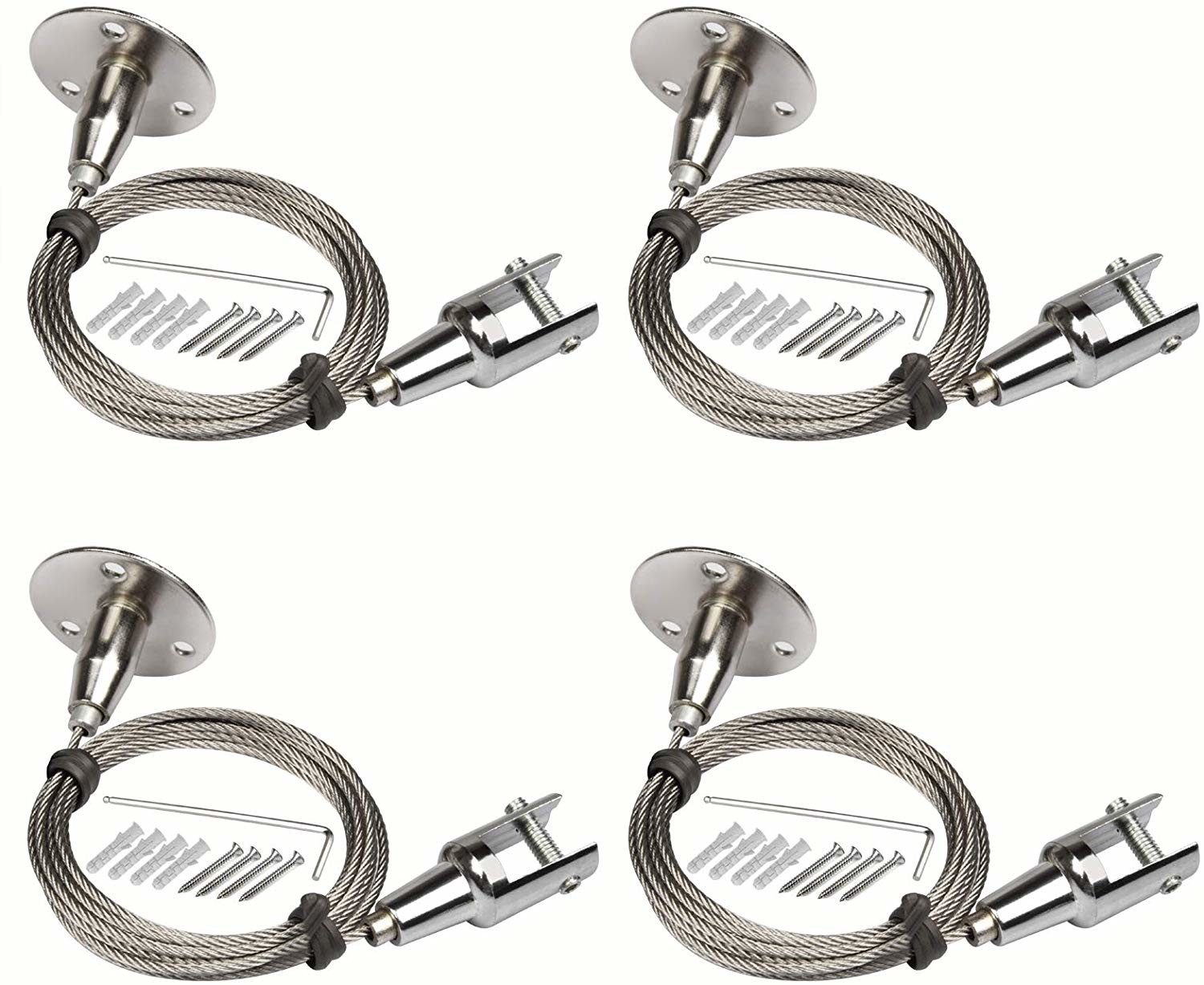

4Pcs 2mm x 6.5 Feet Stainless Steel Wire Rope with Protective Plastic Jacket Assembly

Product Details


Quick Detail:

4Pcs 2mm x 6.5 Feet Advertising Sign Logo Board Picture LED Panel Light Hanging Suspension Cables Hangers Hardware Stainless Steel Wire Rope with Protective Plastic Jacket,Supports up to 66 Pound

  • Wide applications: the vinyl coated stainless steel wire is suitable for hanging art projects, frames, signs, mirrors, cross stitch and wall decoration
  • Ceiling mounting, 2m /6.5ft length Load capacity up to 30 kg Adjustable fixing wire rope
  • Strong 2mm steel rope cable with braided design to be resistant.
  • Flexible material and easy to twist, that helps to adjust perfectly to countless projects.

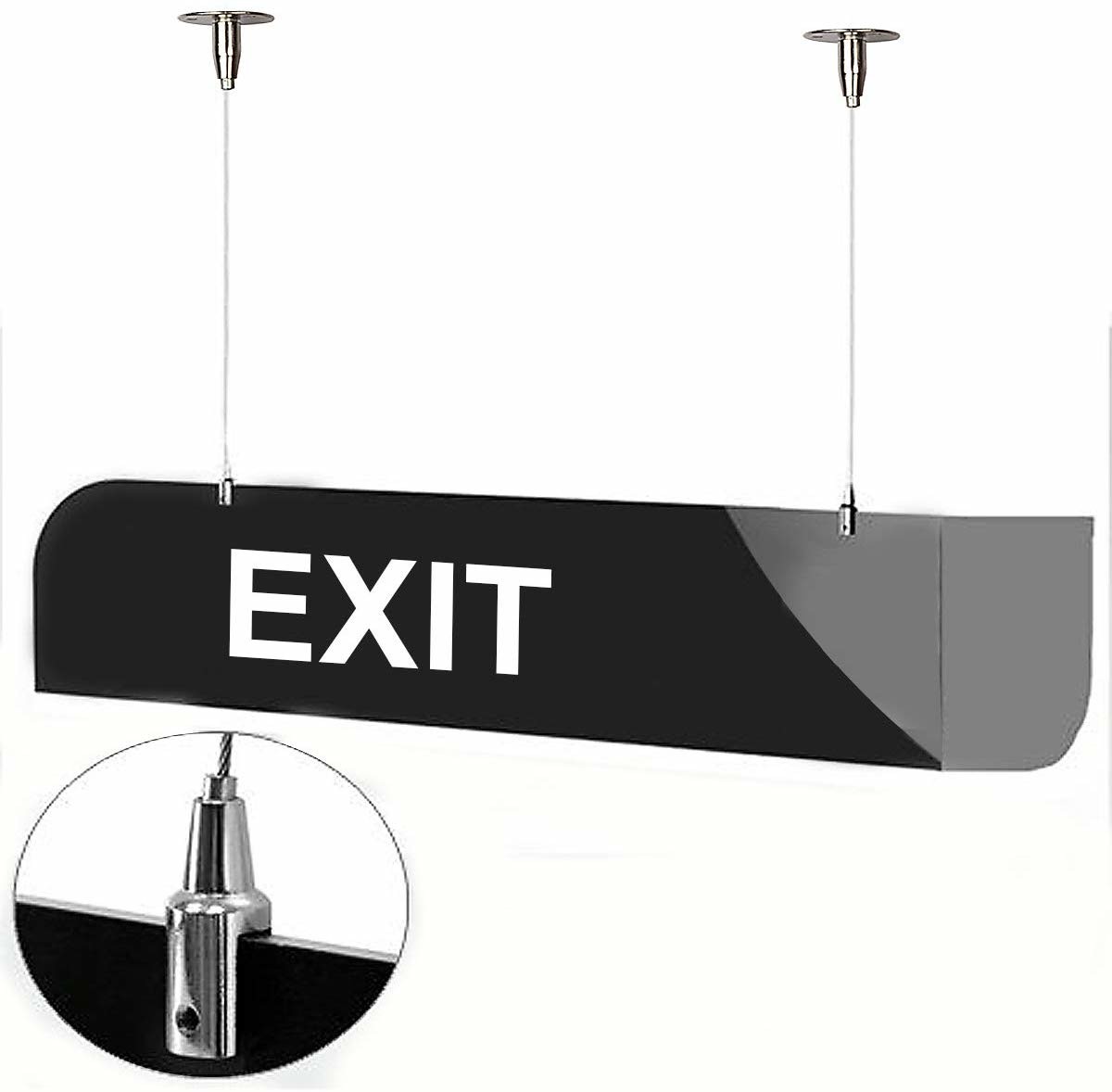

  • Note: C-Hook spans 10mm, so it is only suitable to install panels with thickness less than 10mm. See Figure 3.

4Pcs 2mm X 6.5 Feet Wire Rope Stainless Steel With Protective Plastic Jacket Assembly 0

Wire Rope Details

7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:

  • Applications
  • Control cables
  • Guardrail
  • Standing rigging
  • Running rigging
  • Steering cable
  • Marine/Saltwater environment
  • Sewage treatment works
  • Wire rope slings
  • Davit ropes
Wire Rope Breaking Loads
Nominal Diameter Approximate Mass Minimum breaking loads - 1570 Mpa
[mm] [kg/m] [kN] [Kg]
1 0.004 0.59 60
2.37 241
3.71 378
5.34 544
9.49 967
14.80 1,509
21.40 2,182
29.10 2,967
38.00 3,874
59.30 6,046
85.40 8,708
117.00 11,930

Product description

4Pack Ceiling Mount Gallery Large Picture/Billboard/Painting/Art Exhibition/Glass/Arcylic Board Display Kit Wire Swing Code Hanging System Hanger ,Mounting screws/bolts are NCLUDED

- Length: 2m / 6.5ft
- Bearing capacity: single 30kg
- Lanyard material: stainless steel 304
- Lanyard diameter: 2mm

- Base material: iron
- Base size: 40*40*27mm

- Total weight: 389g (4Pcs)
- Packing size: 12.5*7.5*7.5cm

Delivery: 4 x suspension system with mounting accessories (screws, Allen wrench)

Product information

Item Weight 12 ounces
Package Dimensions 4.8 x 3.1 x 2.9 inches
Color Style ll
Material stainless_steel
Batteries Included? No
Batteries Required? No

Product Show

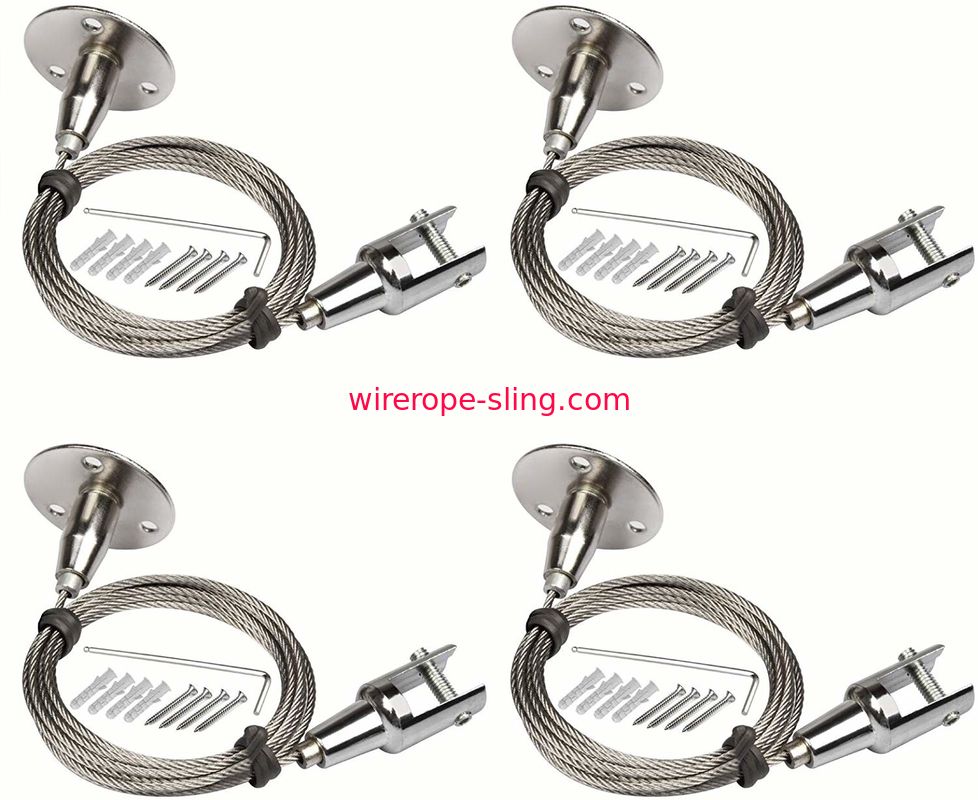

4Pcs 2mm X 6.5 Feet Wire Rope Stainless Steel With Protective Plastic Jacket Assembly 1

4Pcs 2mm X 6.5 Feet Wire Rope Stainless Steel With Protective Plastic Jacket Assembly 2
