Galvanized steel wire rope sling lifting anchor for concrete construction

Product Description

Galvanized steel wire rope sling lifting anchor for concrete construction

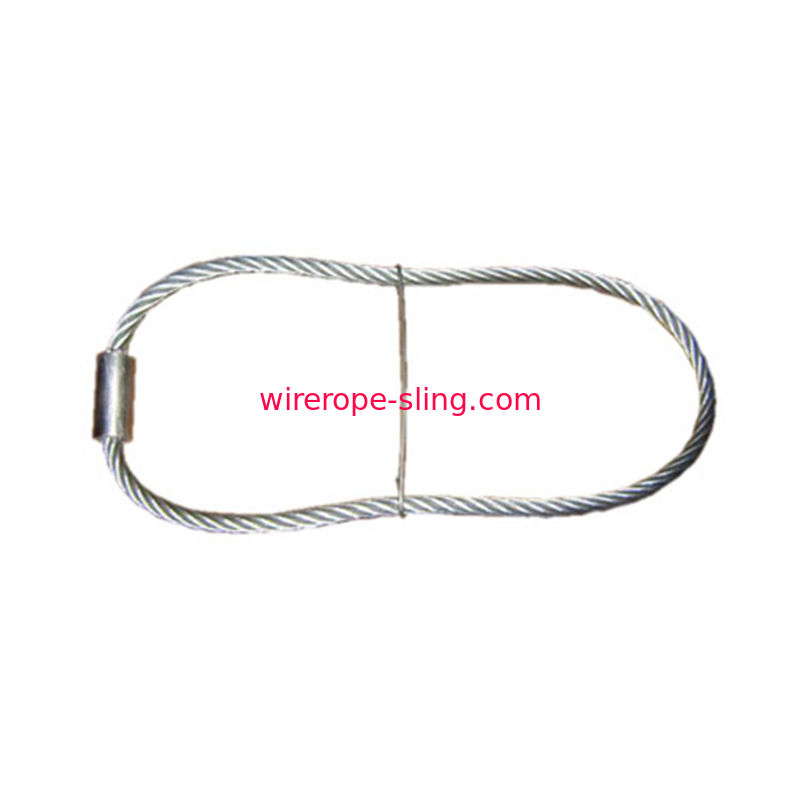

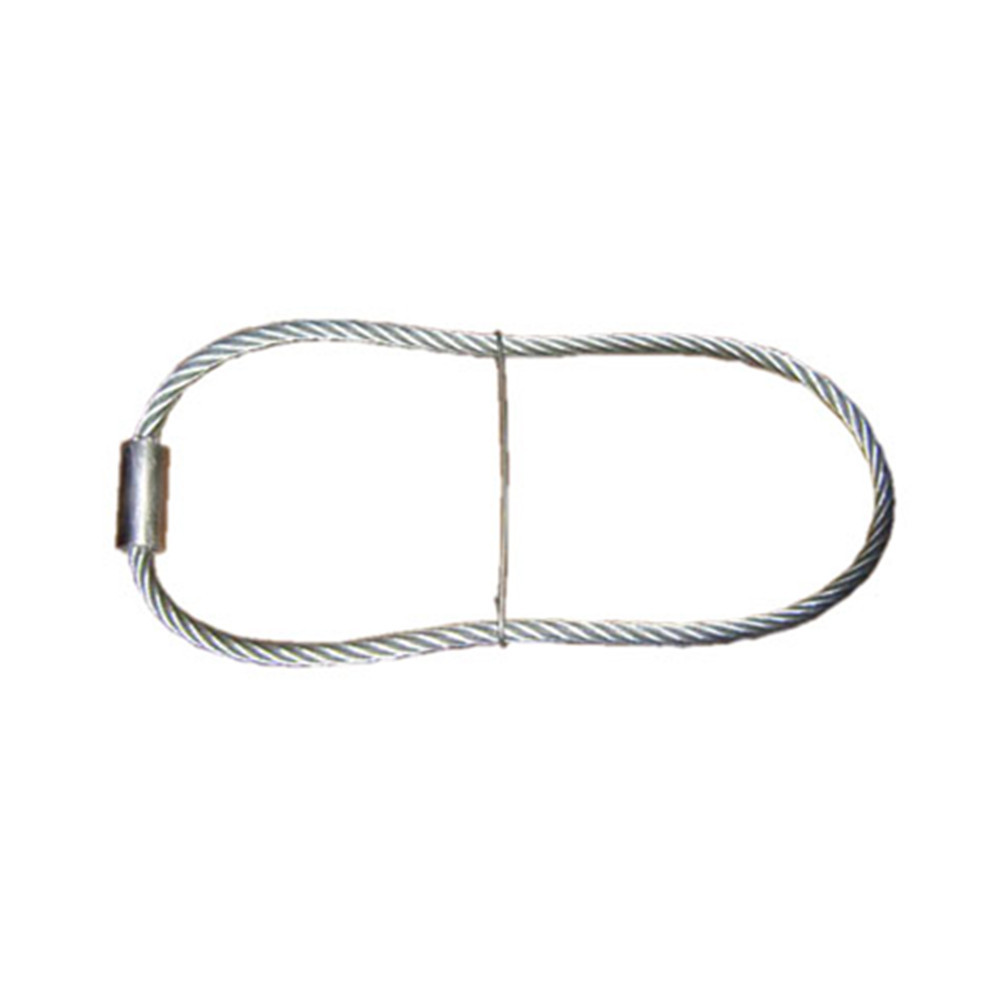

The Wire Rope Lifting System is an economical lifting loop for utility type structures. It is used in either face or edge lifts applications and is ‘mucked’ into the surface of the concrete. The galvanized wire rope is formed in a figure-8 shape, with the ends of the rope secured by a positive swaged clamp, and a steel band at approximately the midpoint to establish the proper shape. The Wire Rope Lifting System is embedded 2/3 of its length into the concrete. The hardware must be standard hook or clevis with a diameter at least twice the rope diameter. Each anchor has a color-coded tag which identifies the SWL (safe working load) in tension of the anchor.

Features

• 7 standard sizes – handles most precast applications up to 10,000 lb SWL.
• Mucked into surface – no recess members required by the precaster.
• Galvanized wire rope – reduces rusting of the anchor.
• Can be cut off or left exposed – reduces labor cost for precaster.
• Economical – for the ‘cost conscious precast.

Packaging & Shipping

MOQ:	1 Ton, about 1 CBM
Loading Port:	Shanghai Port
Delivery Detail:	25-30Days after deposit.
Q'ty for container:	15-23tons for 1*20ft container;20-26tons for 1*40ft container.
Factory Location:	Jiangyin City,Jiangsu Province,China
Packing:	Our Lifting Anchor can be packed with wooden box,and put on the wooden pallets, or according customer's requirement.

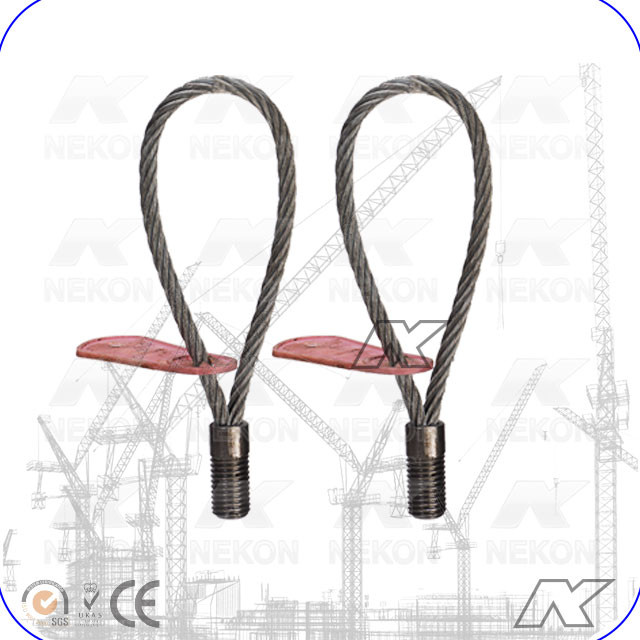

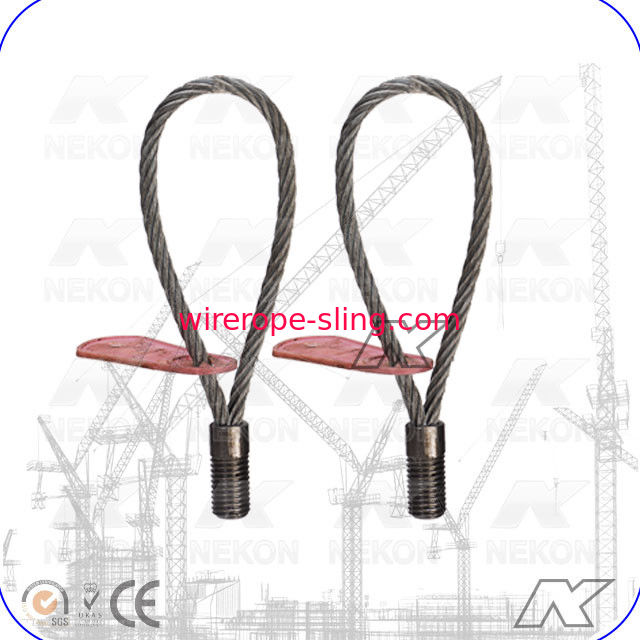

The lifting loop is used with threaded precast anchors for lifting precast concrete elements, it's supposed to work under straight pull situation only. It must be fully screwed into the precast anchor to ensure a secure thread connection.



Lifting Loop
Dimensions & Safe Working Loads at concrete strength of 25N/mm2
Description	SWL (kg)	Thread d	Dimension (mm)
			e	L
RD12×155	500	RD12x1.75	18	155
RD14×155	800	RD14x2.0	21	155
RD16×155	1200	RD16x2.0	24	155
RD18×190	1600	RD18x2.5	27	190
RD20×215	2000	RD20x2.5	30	215
RD24×255	2500	RD24x3.0	36	255
RD30×300	4000	RD30x3.5	45	300
RD36×340	6300	RD36x4.0	54	340
RD42×425	8000	RD42x4.5	62	425
Material: High strength wire rope with cold-rolled sleeve/forged bolt
,
