Art Wire Hanging Kits Four Legs Screw Clip Brass Plated Nickel 1.5mm Dia YW86023

Product Details:
Place of Origin: SHANGHAI, CHINA
Brand Name: LKS
Certification: CE, ISO9001/SGS/ROHS
Model Number: LKS-YW-86023
Standard: DIN, GB,JIS,ASTM
Length: As customer's requested
Payment & Shipping Terms:
Minimum Order Quantity: 200 PCS
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 PCS Monthly

Detail Information

TypeGalvanized/Stainless Wire RopeMaterialSteel, High Carbon Steel, PVC+Gal Wire, PVC Or PE Coated
Item NameYW-86023MaterialBrass+Iron
Wire Diameter1.5mmWire Length2000mm, Customized
Ceiling Size40*34mm Three Holes CeilingMOQ500pcs
Lead Time7-15 Business DaysSampleFree Sample Available For Existing Dimension
High Light:

ceiling light hanging kit


Light Hanging Kit

Product Description

Art Wire Hanging Kits Four Legs Screw Clip Brass Plated Nickel 1.5mm Dia YW86023

High-quality wire cable display, sign and picture hanging systems. Innovative and fully expandable suspended displays offering incredible flexibility, so you can change shelving or layout configuration with ease.

Cable display systems are ideal for the home, museums, art galleries, public buildings, corporate identity, or wherever visual communication is important.

All display systems offer full range of mounting combinations: Floor to Ceiling, Floor to Wall, Ceiling to Wall, Wall to Wall and Ceiling Mount for Hanging Displays.

Our display systems are suited to current trends in interior design, offering elegance and transparency for cable suspension systems in the home or workplace.

Cable display supports and clamp accessories are designed to hold glass, acrylic and wooden shelving and display panels securely in place.


 Material  Brass+Iron Surface treatment  Nice nickel/ chrome/ Zinc plating    or other color painting
 MOQ  200 PCS  Construction  1x7;7X7;1x19 etc
 Wire Diameter  ∅1.5mm  Carton Size  35*25*18cm
 Wire Length 1000mm, customized Lead Time  7-15 workdays
 Break load  30kg Payment Terms

  T/T,Western Union,Paypal





1. Material: Brass+Stainless Steel Wire.

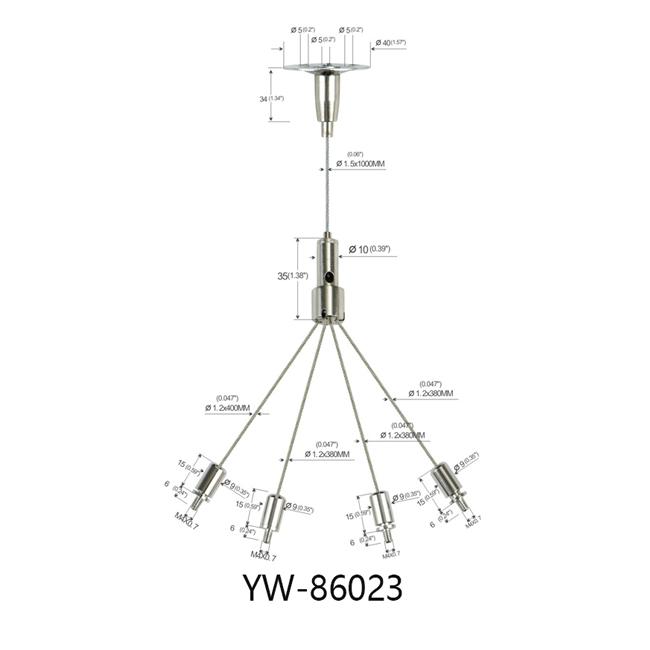

2. Size: Same as the drawing in the end.

3. Application: Perfect for the Hanging Graphics Displays, as well as Suspend Signage, Lighting Systems, Suspended Fixtures, and so on.

4. Safe Working Load;30KG(Fore reference only).

5. Content:

One Nickel Cable Gripper, adjust the main cable length;

One toggle fixed to the application;

One 304 Stainless Steel wire.

Four branch 304 stainless steel wire.





This Y type suspended from wall to wall with 304 SS wire, the sign hanging hardware is a stylish way to mount important information or signage to be seen easily.

Each hanging fitting includes the hardware for installation and 2m long stainless steel wire to provide plenty of length for installation at nearly any location, and the stainless steel wire can be custom cut as per your needs so that you can add picture frame or sign pockets to your display or adjust your configuration

in order to meet with the layout of your business.





  • Quick – up to 6 times faster than traditional suspension systems.

  • The length adjuster is very flexible, convenient to adjust.

  • Safe – can be pre-installed to channel using pre-fitted washer/nut or using retention clip reducing time working at height

  • Easy – integral ergonomically designed release button allows for simple adjustment

  • The secure – button acts as a locking screw and indicator clearly highlights the wire is locked in position for ultimate security

  • Versatile – a variety of foot attachments available to suit the application

  • The stainless steel wire is with High rust resistance, high-temperature resistance, corrosion resistance.

  • Four legs are designed for suspending lighting and containment and offer dual fixing points for balance. Leg lengths are supplied at 150 mm 300 mm and 500 mm as standard. Available with a variety of end fixings including Toggle and Snap Hook, the product features a side wire exit.



Confused about how to select your art hanging system?

1. Choose a Suspension Point
Your system can be ceiling or wall-mounted, with applications

hanging freely or tensioned between two fixed points;

2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters

and lengths ranging from 1.0mm~3.0mm;

3. Select a Gripper
A range of designs and options, all with self-gripping technology,

offer a secure and elegant solution for any fine art installation.
