LED Panel Light Wire Rope Cable Hanging Kit Brass Plated Black Y-Fits YW86034

Product Details:
Place of Origin: SHANGHAI, CHINA
Brand Name: LKS
Certification: CE, ISO9001/SGS/ROHS
Model Number: LKS-YW-86034
Standard: DIN, GB,JIS,ASTM
Length: As customer's requested
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 PCS a Monthly

Detail Information

Item NameYW-86034MaterialBrass
Wire Diameter1.2mmWire Length1000mm, Customized
Ceiling Size16*17mmSampleFree Sample Available For Existing Dimension
MOQ500pcsLead Time8-15 Business Days
High Light:

Suspension Cable Hanging kit

,

Cable Hanging Kit

Product Description

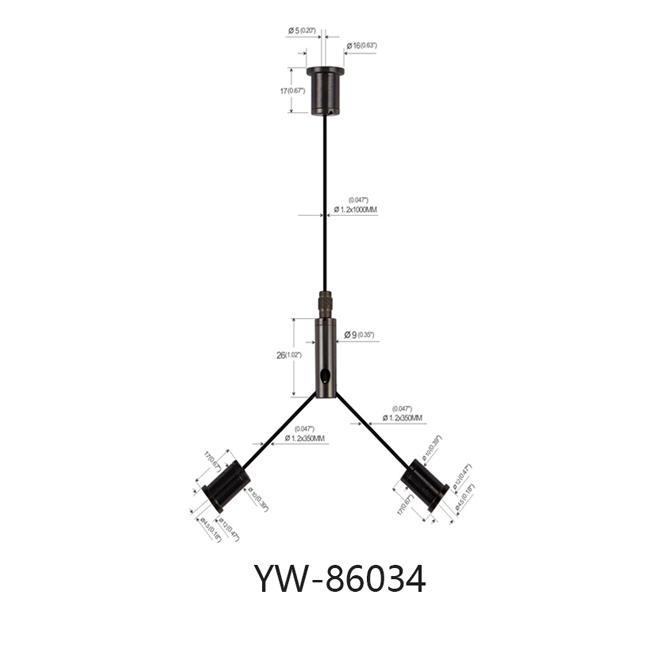

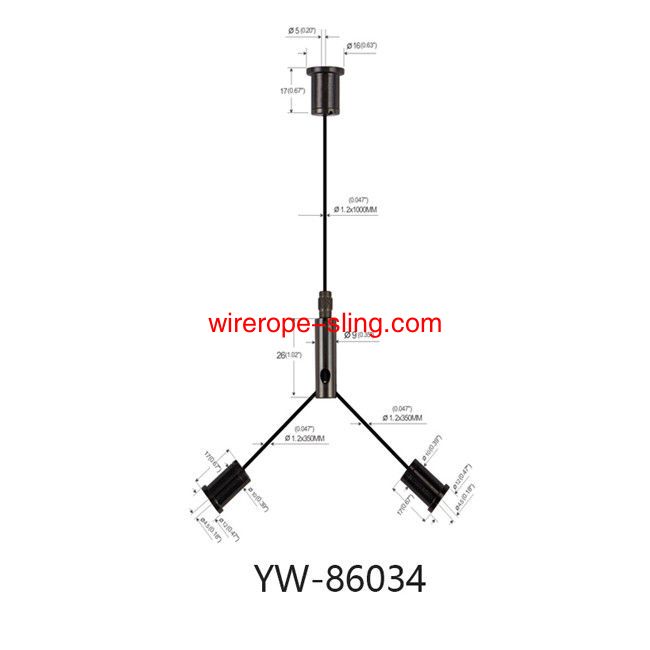

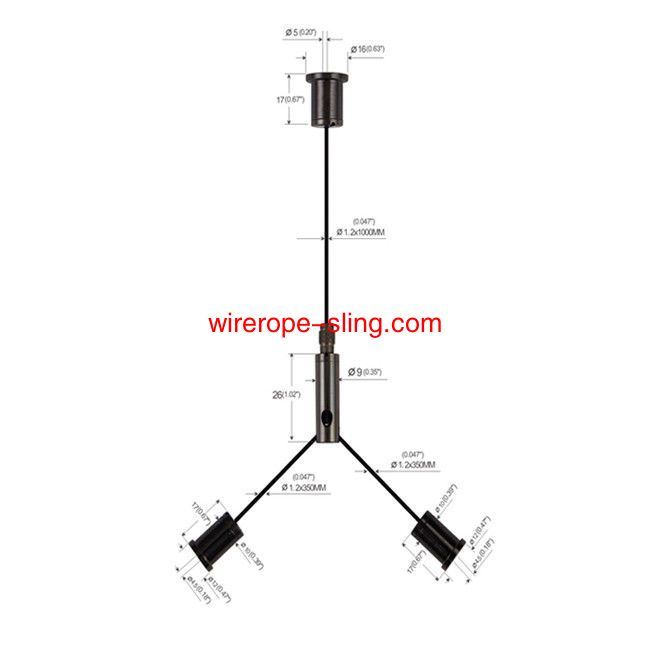

LED Panel Light Wire Rope Cable Hanging Kit Brass Plated Black Y-Fits YW86034


LED panel lights allow us to create very bright environments thanks to their square, elegant design. There are widely used in many ways. They are most commonly used in offices, businesses, kitchens, hotels, etc... All LED panels come with an aluminium frame to assure they are protected. These LED panel lights last much longer than conventional panels, that’s why they are the recommended selection when looking to light our installations. Also, they’re a much more ecological alternative. You’ll contribute to preserving the environment while saving 60% on your electrical bill. Don’t wait any longer and discover our wide selection of LED panel lights, found on our online lighting website.


Specification:



 1.Main Wire Diameter

 ∅1.2mm(0.047”)
 2.Construction 1*7,7X7,1*19,7*19 etc
 3.Material Stainless steel
 4.MOQ 300pcs
 5.Length 1M-3M or as the requirement
 6.Type “Y” type fits
 7.Surface treatment Chrome, Nickel, Black, White, and Silver
 8.End parts of fittings Eyelets terminals
 Screws
 Clips
 Hooks
 All kinds of grippers
 Ceiling attachment
 locking screws
 A large selection of end fittings, including eye bolts, links, springs,
 hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped eye,
 handles, etc
 9.Lead time 10-15 workdays if there were enough material in stock
 10.Sample

 Free sample available if all of the dimensions same as our existing one




Description:


This Y type suspended from wall to wall with 304 SS wire, the sign hanging hardware is a stylish way to mount important information or signage to be seen easily.
Each hanging fitting includes the hardware for installation and 1M long stainless steel wire to provide plenty of length for installation at nearly any location, and the stainless steel wire can be custom cut as per your needs so that you can add picture frame or sign pockets to your display or adjust your configuration in order to meet with the layout of your business.



Feature:


* Cost-effective installation
* Tool-free height adjustment
* With or without a power cord
* Grippers feature internal carbon steel ball bearings
* Kitted and bagged with installation instructions for a turnkey solution
* Many gripper options; to order, simply select kit and gripper to suit the application



Advantage:



1. Quick
Up to 6 times faster than traditional suspension systems.
2. Safe
Can be pre-installed to channel using pre-fitted washer/nut or using retention clip reducing time working at height.
3. Easy
The integral ergonomically designed release button allows for simple adjustment.

4. Versatile
Variety of foot attachments available to suit applications.

5. Secure
The button acts as a locking screw and the indicator clearly highlights the wire is locked in position for ultimate security.





Our Advantage:



Yingwei specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.

The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.

The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray test and tensile tests at the factory to ensure the quality and safety of the products.


FAQ:


What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or
cost effective for you.
2. Are you factory or business company?
We are manufacturer base on China since 2007.
3. When can I get the quotation?
We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the
price, please call us or tell us in your email so that we will regard your inquiry priority.
4. How long can I expect to get the sample?
After you pay the sample charge and approval the layout, mostly, the samples will be ready for delivery in 3-5 days. The samples will be sent to you via express, it is ok to use your own
express account or prepay us if you do not have an account.
