Compacted Steel Wire Rope 6 X K31WS - EPIWRC Cushioned Core With Plastic Injection Steel Core

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 6XK31WS-EPIWRC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:SteelSurface:Galvanized Or Ungalvanized
Tensile Strength:1960N/mm2Diameter:45mm-73mm
Core:IWRProcessing:Compacted
Length:500mtrs/1000mtrs/2000mtrs AvailablePacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



6XK31WS-EPIWRC cushioned core compacted wire rope with plastic injection steel core



Production characteristics of Compacted Steel Wire Rope
Since the advent of wire ropes, the contact state of strand steel wire has increased with the demand of wire rope production technology and application performance.
There are 3 development processes: point contact, line contact and surface contact. Compacted Steel Wire Rope is the foundation of online contact wire rope.
A new type of wire rope has been developed. Compared with point and wire contact wire rope, it has some special characteristics.
The characteristics are mainly manifested in:
(1) due to the plastic compression deformation of the stock of Compacted Steel Wire Rope, the surface of the stock is smooth, and the surface area is larger than the point and line contact ratio of the same specification. Therefore, the steel rope made by this kind of strands is applied to the rope wheel, pulley and reel with the large contact area, and the unit pressure on the pulley, pulley, and drum is small, and the wear resistance is good.
(2) because of the plastic extrusion deformation of the Compacted Steel Wire Rope, the contact of steel wire in the strand is a large plane or arc, the contact between the steel wires is close, the structure is stable, and the resistance to the transverse deformation is good.
(3) due to the plastic extrusion deformation of the Compacted Steel Wire Rope, the steel wire rope structure is dense, and the ratio of the wire rope to the point and line contact with the same diameter and the same strength grade is larger, the filling density coefficient is high, the bearing capacity is large and the structure is small.
(4) the steel wire has small clearance and good sealing performance, and the corrosion medium is not easy to infiltrate, and the corrosion resistance is strong.
(5) because the surface of Compacted Steel Wire Rope is smooth, the structure is dense, the contact stress between steel wire is small, the resistance to transverse deformation is good, the bearing capacity is great, and the corrosion resistance is large. Therefore, the steel wire rope has good fatigue resistance and high service life.
The use of Compacted Steel Wire Rope
Because Compacted Steel Wire Rope has the high bearing capacity, wear resistance, corrosion resistance, fatigue resistance, long service life and so on, it is one of the most efficient steel varieties in our country. It is also the preferred steel rope variety for mine hoisting, for example, shaft hoisting, inclined shaft lifting and stepless rope tramway used in the coal mine. Wire rope belt conveyor and so on, but mainly used for mine hoisting. According to the data, Compacted Steel Wire Rope is introduced for the coal mine inclined shaft lifting. In the contrast test, its service life is 60% to 300% higher than that of the same wire rope. Compacted Steel Wire Rope, in addition to mine hoisting, is also used in forestry, construction, fishery and other departments, such as the main cable of forestry ropeway, construction machinery rolling and dragging rope, fish ship dragging rope, etc., also can be used in elevator, electric power line construction, and so on, application scope and wide application prospect.

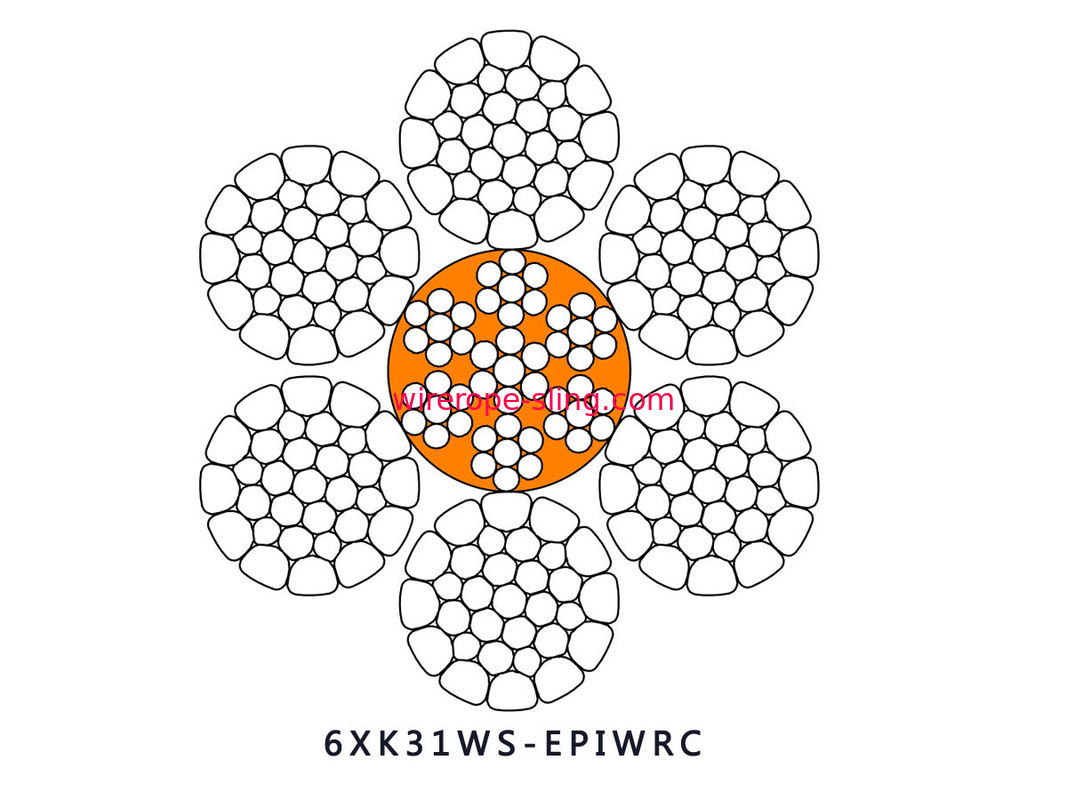

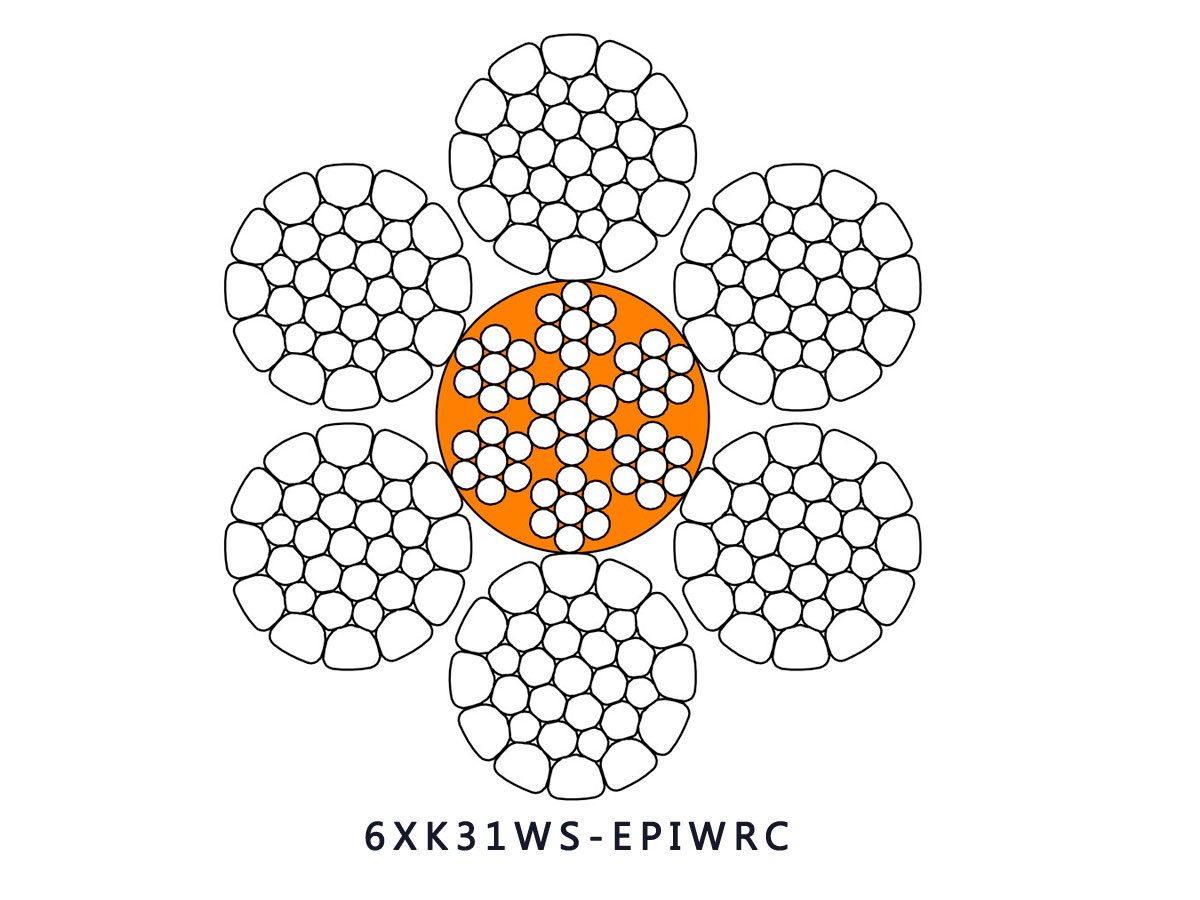

Compacted Steel Wire Rope 6 X K31WS - EPIWRC Cushioned Core With Plastic Injection Steel Core 0



Key Specifications/Special Features:



*Provide higher tension.
It has excellent wear resistance, fatigue resistance, and extrusion resistance.

*Plastic fills the rope core and forms a liner between the strand and the core to reduce the internal wear of the rope.

*The lubricating oil in the completely sealed cord core.
Effectively improve the service life of steel rope.



Technical Table



DIA.(mm) WEIGHT(kg/m) Minimum Breaking Load(kN)
1960MPA 2160MPA
10 0.466 85.3 91.5
11 0.563 98.1 113
12 0.670 114 127
13 0.787 147 157
14 0.913 169 183
16 1.192 217 228
18 1.509 275 298
19 1.681 302 323
20 1.863 333 355
22 2.254 398 423
24 2.682 487 518
26 3.148 576 610
28 3.651 655 700
32 4.769 844 914
36 6.036 1,060 1,120
40 7.451 1,290 1,320
44 9.015 1,500 1,590
48 10.729 1,880 1,890
52 12.592 2,130 2,220
56 14.603 2,470 2,574
