Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 6X19S+IWRC |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | Galvanized Or Ungalvanized |
---|---|---|---|
Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 12.7mm-48mm |
Core: | IWR | Processing: | Linear Contact |
Tensile Strength: | 1770N/mm2,1870N/mm2,1960N/mm2 | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description

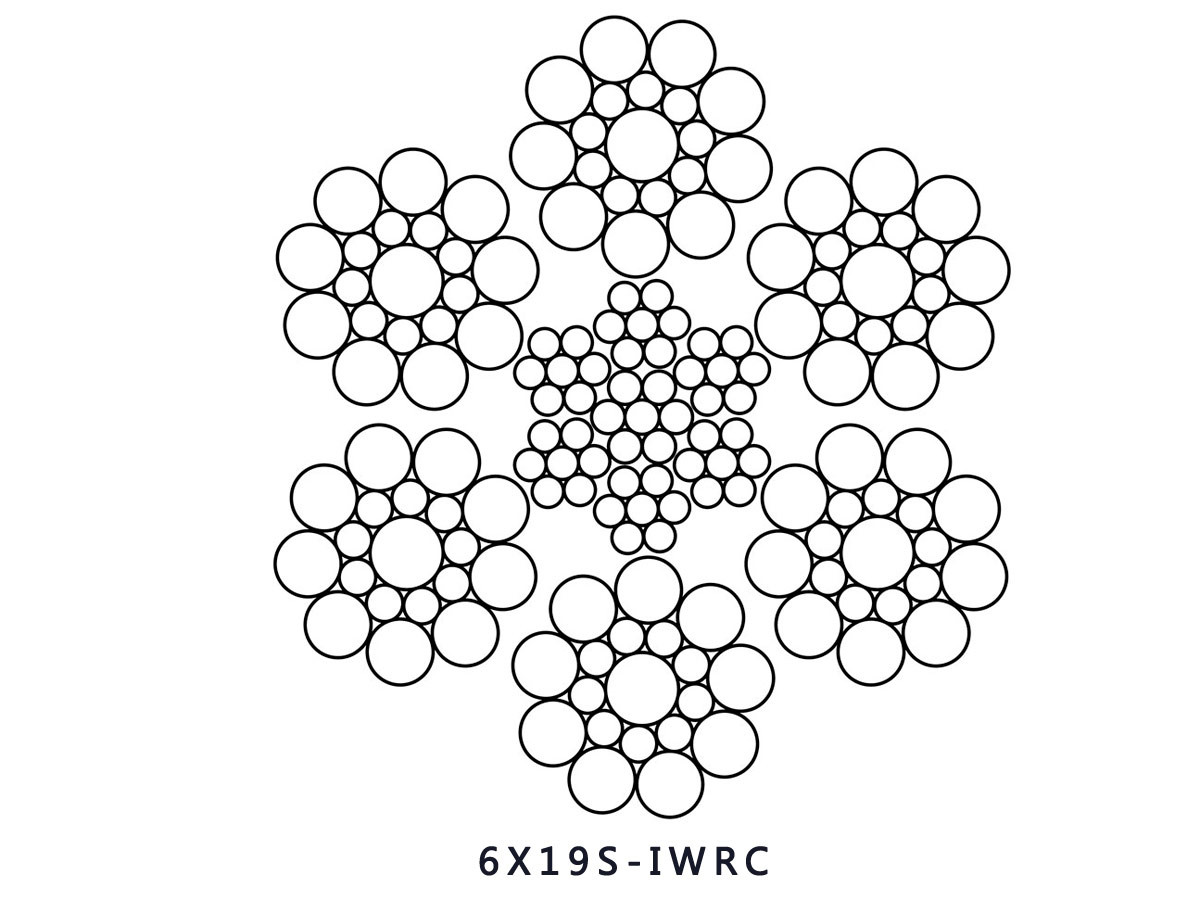

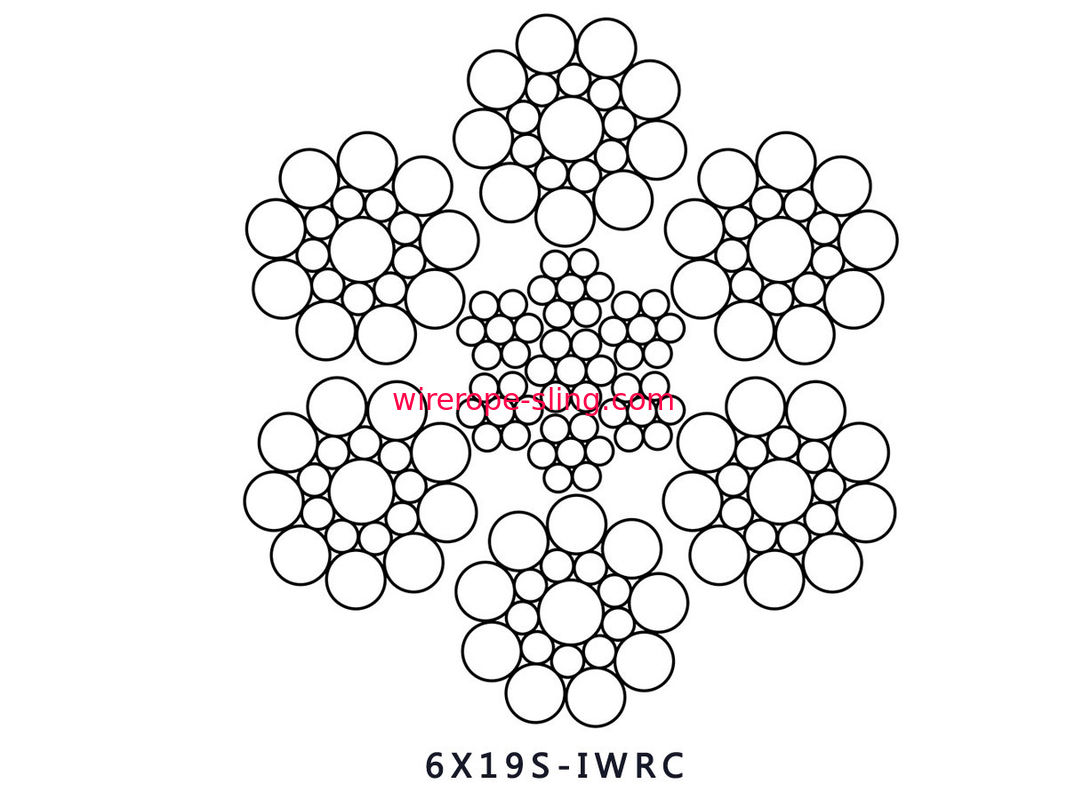

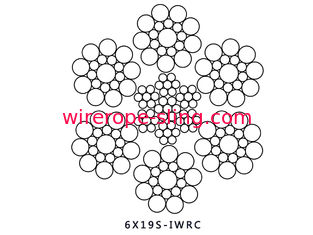

6X19S+IWRC Steel Wire Rope for Standard oil drilling meets or exceeds API-9A
With the attention to the safety of coal mine production, the selection and inspection of the wire rope, as one of the lifting products of mine, is very important, especially to strengthen the inspection of the wear of the wire rope. Because in most cases, the scrap of the wire rope is often caused by the wear failure. The wear causes the wire rope to break, or the diameter of the wire rope. The state is special in the coal mine safety regulations. The rope diameter of the hoisting wire rope or the brake wire rope is reduced by 10%. The reduction of the diameter of the rope and rope of the steel wire rope of the tank must be discarded by the scrap.
In the selection process of steel wire rope in recent years, many coal mining units have abandoned the traditional point contact steel wire rope, and gradually select linear contact steel wire rope as alternative products. Such as 6*19S+FC, 6*36WS+FC linear contact steel wire rope structure is more widely used, before using 6*19+FC, 6*37+FC common oil rope, although the price cost is low, but the quality is often not guaranteed, and the service life is low, the wear resistance and fatigue resistance are far less than linear contact steel wire rope.
Advantage:
Good abrasion resistance and extrusion resistance
Good stability
Broken breaking pull is higher than fiber core wire rope
Customized products can be customized according to user requirements
In use:
Drilling rope
Workover rope
Technical Table
Dia. mm |
Weight kg/100m |
Tensile Strength/MPa | ||||||
1770 | 1960 | 2160 | IPS | EIP | EEIP | |||
Minimum Breaking Load/kN | ||||||||
12.7 | 64.5 | 102 | 113 | 124 | 102 | 118 | 130 | |
13 | 67.6 | 106 | 118 | 130 | 107 | 124 | 136.2 | |
14.3 | 81.8 | 129 | 143 | 157 | 129 | 149 | 165 | |
16 | 102 | 161 | 179 | 197 | 159 | 185 | 204 | |
18 | 130 | 204 | 226 | 249 | 202 | 233 | 257 | |
19 | 144 | 227 | 252 | 278 | 226 | 259 | 285 | |
20 | 160 | 252 | 279 | 308 | 250 | 287 | 316 | |
22 | 194 | 305 | 338 | 372 | 302 | 348 | 383 | |
24 | 230 | 363 | 402 | 443 | 358 | 412 | 453 | |
25.4 | 258 | 407 | 450 | 496 | 399 | 460 | 506 | |
26 | 270 | 426 | 472 | 520 | 418 | 481 | 529 | |
28 | 314 | 494 | 547 | 603 | 483 | 555 | 610 | |
28.6 | 327 | 515 | 571 | 629 | 503 | 578 | 636 | |
31.8 | 404 | 637 | 706 | 778 | 617 | 711 | 782 | |
32 | 410 | 645 | 715 | 787 | 625 | 720 | 792 | |
34.9 | 487 | 767 | 850 | 937 | 743 | 854 | 943 | |
35 | 490 | 772 | 855 | 942 | 747 | 859 | 948 | |
36 | 518 | 817 | 904 | 997 | 789 | 906 | 999 | |
38 | 578 | 910 | 1010 | 1110 | 876 | 1010 | 1110 | |
38.1 | 581 | 915 | 1010 | 1120 | 880 | 1010 | 1110 | |
40 | 640 | 1010 | 1120 | 1230 | 962 | 1100 | 1220 | |
41.3 | 682 | 1080 | 1190 | 1310 | 1020 | 1170 | 1300 | |
44 | 774 | 1220 | 1350 | 1490 | 1150 | 1330 | 1470 | |
44.5 | 792 | 1250 | 1380 | 1520 | 1180 | 1360 | 1500 | |
45 | 810 | 1280 | 1410 | 1560 | 1210 | 1390 | 1530 | |
48 | 922 | 1450 | 1610 | 1770 | 1370 | 1580 | 1740 | |
