Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 6X26WS+IWRC |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | Galvanized Or Ungalvanized |
---|---|---|---|
Tensile Strength: | As Request | Diameter: | 12.7mm-48mm |
Core: | IWR | Processing: | Linear Contact |
Length: | 500mtrs/1000mtrs/2000mtrs Available | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description

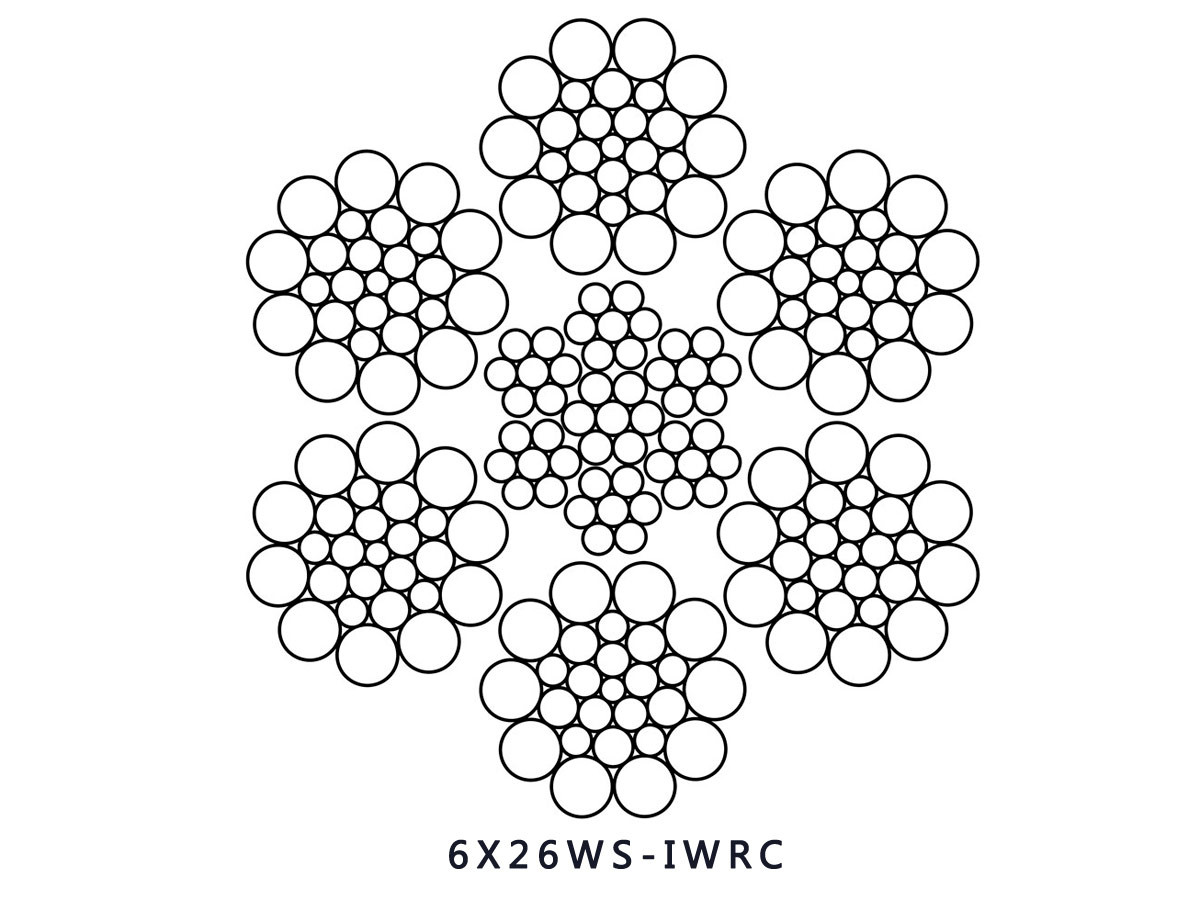

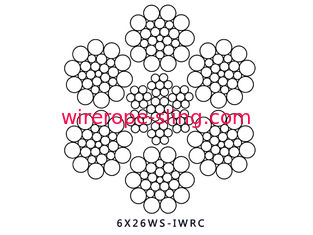

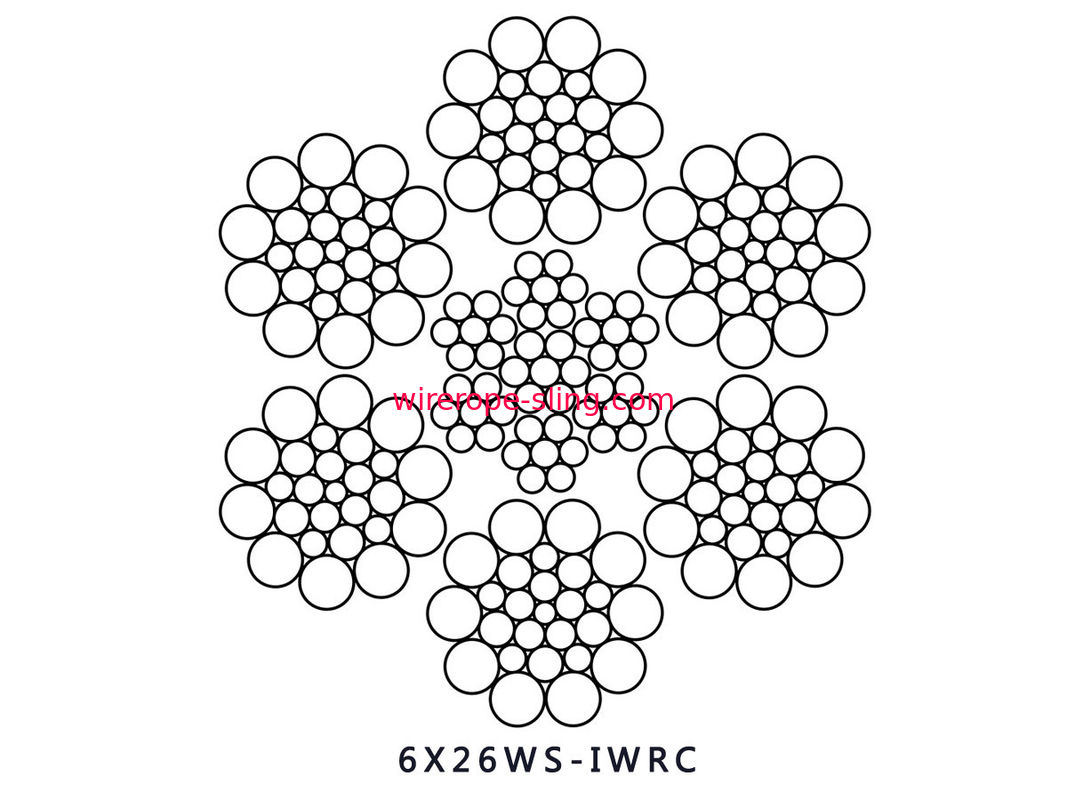

6X26WS+IWRC Steel Wire Rope for Oil&gas extrusion resistance and good stability
The standard type of steel wire rope for oil and gas industry is not the same as that of the letter mark in our national wire rope standard; the current national standard for steel wire rope is mainly the general purpose steel wire rope GB/T20118-2006 and the important use wire rope GB8918-2006.
According to the selection and maintenance of steel wire ropes used in SY/T6666-2006 oil and gas industry, the majority of English letters represent the following meanings:
EIPS: Super plough steel grade, wire rope tensile strength above 2160mpa;
IPS: quality plough steel grade, wire rope tensile strength above 1960MPa;
PS: plough steel grade, wire rope tensile strength above 1770MPa;
IWRC: rope type steel core;
FC:: fiber core;
RL: right twist;
LL: left twist;
S: the West Lu style;
FS: heteromorphic stock;
WS: Warrington and Seal;
FW: fill type;
PF: predeformation;
NPF: non predeformation
Advantage
In use
Drilling rope
Workover rope
Technical Table
Dia. mm |
Weight kg/100m |
Tensile Strength/MPa | ||||||
1770 | 1960 | 2160 | IPS | EIP | EEIP | |||
Minimum Breaking Load/kN | ||||||||
12.7 | 64.5 | 102 | 113 | 124 | 102 | 118 | 130 | |
13 | 67.6 | 106 | 118 | 130 | 107 | 124 | 136.2 | |
14.3 | 81.8 | 129 | 143 | 157 | 129 | 149 | 165 | |
16 | 102 | 161 | 179 | 197 | 159 | 185 | 204 | |
18 | 130 | 204 | 226 | 249 | 202 | 233 | 257 | |
19 | 144 | 227 | 252 | 278 | 226 | 259 | 285 | |
20 | 160 | 252 | 279 | 308 | 250 | 287 | 316 | |
22 | 194 | 305 | 338 | 372 | 302 | 348 | 383 | |
24 | 230 | 363 | 402 | 443 | 358 | 412 | 453 | |
25.4 | 258 | 407 | 450 | 496 | 399 | 460 | 506 | |
26 | 270 | 426 | 472 | 520 | 418 | 481 | 529 | |
28 | 314 | 494 | 547 | 603 | 483 | 555 | 610 | |
28.6 | 327 | 515 | 571 | 629 | 503 | 578 | 636 | |
31.8 | 404 | 637 | 706 | 778 | 617 | 711 | 782 | |
32 | 410 | 645 | 715 | 787 | 625 | 720 | 792 | |
34.9 | 487 | 767 | 850 | 937 | 743 | 854 | 943 | |
35 | 490 | 772 | 855 | 942 | 747 | 859 | 948 | |
36 | 518 | 817 | 904 | 997 | 789 | 906 | 999 | |
38 | 578 | 910 | 1010 | 1110 | 876 | 1010 | 1110 | |
38.1 | 581 | 915 | 1010 | 1120 | 880 | 1010 | 1110 | |
40 | 640 | 1010 | 1120 | 1230 | 962 | 1100 | 1220 | |
41.3 | 682 | 1080 | 1190 | 1310 | 1020 | 1170 | 1300 | |
44 | 774 | 1220 | 1350 | 1490 | 1150 | 1330 | 1470 | |
44.5 | 792 | 1250 | 1380 | 1520 | 1180 | 1360 | 1500 | |
45 | 810 | 1280 | 1410 | 1560 | 1210 | 1390 | 1530 | |
48 | 922 | 1450 | 1610 | 1770 | 1370 | 1580 | 1740 | |
