Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 6X26WS+IWRC |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | Ungalvanized |
---|---|---|---|
Tensile Strength: | As Request | Diameter: | 12mm-60mm |
Core: | IWR | Processing: | Linear Contact |
Length: | 500mtrs/1000mtrs/2000mtrs Available | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description

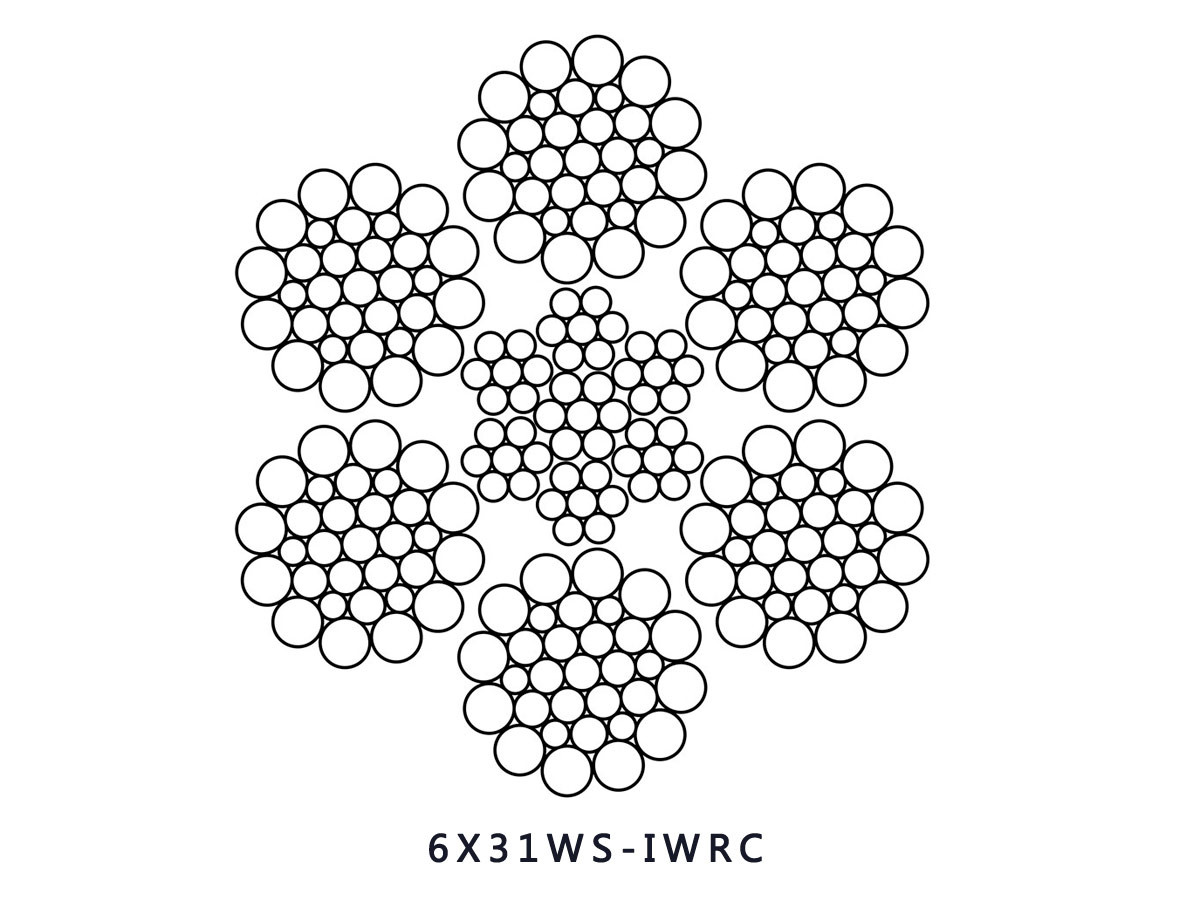

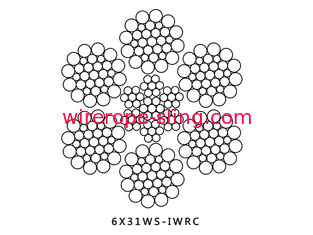

6 X 31WS IWRC floating cranes Steel Wire Rope Workover operation wire rope for oil&gas
Compared with 6X36 type wire contact wire rope, it has higher tensile strength and better performance.
It has excellent wear resistance and excellent fatigue resistance.
Provide longer service life
With a smooth outer surface and a larger contact area, the wear between the steel rope and the pulley and the drum can be reduced.
It is suitable for shaft lifting and various lifting purposes in some underground mines, such as port lifting, ladle crane, casting crane, travelling crane and mobile crane.

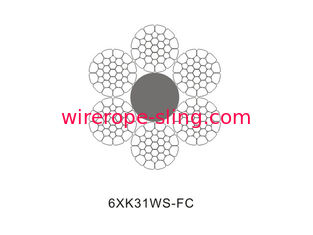

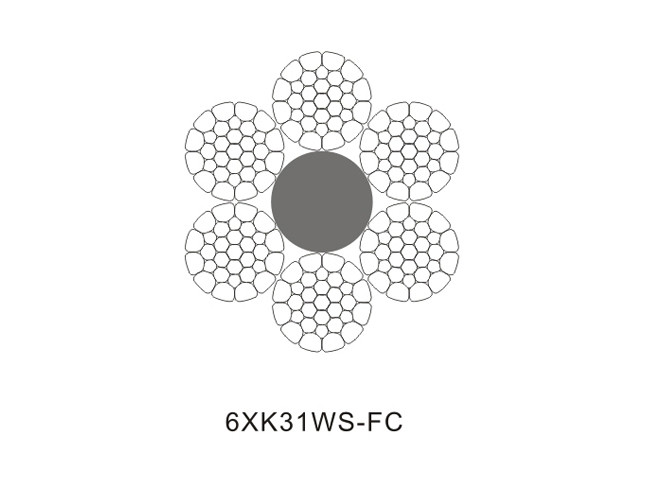

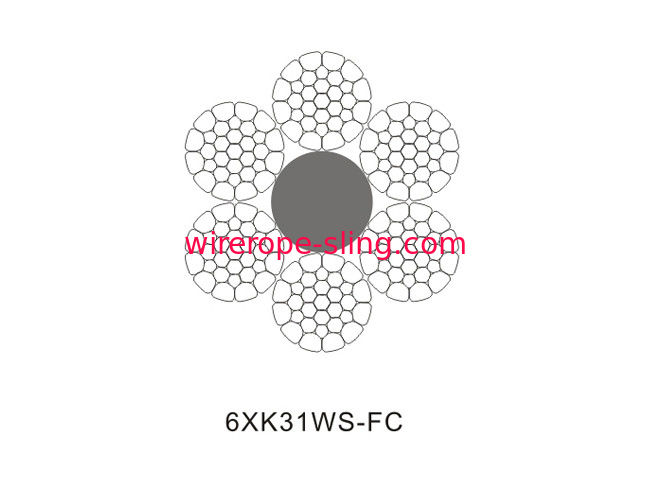

We provide 6XK29FI, 6XK36WS, 6XK41WS and other structures of 6X36 type compacted strands wire rope.
According to the selection and maintenance of steel wire ropes used in SY/T6666-2006 oil and gas industry, the majority of English letters represent the following meanings:
EIPS: Super plough steel grade, wire rope tensile strength above 2160mpa;
IPS: quality plough steel grade, wire rope tensile strength above 1960MPa;
PS: plough steel grade, wire rope tensile strength above 1770MPa;
IWRC: rope type steel core;
FC:: fiber core;
RL: right twist;
LL: left twist;
S: the West Lu style;
FS: heteromorphic stock;
WS: Warrington and Seal;
FW: fill type;
PF: predeformation;
NPF: non predeformation
Advantage
Application
Technical Table
Dia. | Weight | Tensile Strength/MPa | |||||
mm | (in) | kg/100m | 1570MPa | 1670MPa | 1770MPa/IPS | 1870MPa/EIP | 1960MPa/EEIP |
Minimum Breaking Load/kN | |||||||
16 | 119 | 166 | 177 | 187 | 198 | 207 | |
18 | 150 | 211 | 224 | 237 | 250 | 262 | |
20 | 186 | 260 | 276 | 293 | 309 | 324 | |
22 | 225 | 315 | 335 | 354 | 374 | 392 | |
24 | 267 | 375 | 398 | 422 | 445 | 466 | |
26 | 314 | 440 | 467 | 495 | 522 | 547 | |
28 | 364 | 510 | 542 | 574 | 606 | 635 | |
30 | 418 | 585 | 622 | 659 | 696 | 729 | |
32 | 475 | 666 | 708 | 750 | 791 | 829 | |
34 | 537 | 752 | 799 | 846 | 893 | 936 | |
36 | 602 | 843 | 896 | 949 | 1002 | 1049 | |
38 | 670 | 939 | 998 | 1057 | 1116 | 1169 | |
40 | 743 | 1040 | 1106 | 1171 | 1237 | 1296 | |
42 | 819 | 1147 | 1219 | 1291 | 1363 | 1428 | |
44 | 899 | 1259 | 1338 | 1417 | 1796 | 1568 | |
46 | 982 | 1376 | 1462 | 1549 | 1636 | 1713 | |
48 | 1069 | 1498 | 1592 | 1687 | 1781 | 1866 | |
50 | 1160 | 1626 | 1728 | 1830 | 1932 | 2024 | |
52 | 1255 | 1758 | 1869 | 1979 | 2090 | 2190 | |
54 | (2-1/8) | 1354 | 1896 | 2015 | 2135 | 2254 | 2361 |
56 | 1456 | 2039 | 2167 | 2296 | 2424 | 2539 | |
58 | 1562 | 2187 | 2325 | 2463 | 2600 | 2724 | |
60 | 1671 | 2341 | 2488 | 2635 | 2783 | 2915 |
