Swaged Steel Wire Rope K6 X 26WS IWRC Linear Contact Processing For Workover Operation

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 6X19S+IWRC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:SteelSurface:Galvanized Or Ungalvanized
Tensile Strength:As RequestDiameter:16mm-60mm
Core:IWRProcessing:Linear Contact
Length:500mtrs/1000mtrs/2000mtrs AvailablePacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



K6X26WS+IWRC Swaged Steel Wire Rope for Standard oil drilling meets or exceeds API-9A



Parallel-closed steel wire rope


stranded rope consisting of at least two layers of strands laid helically in one closing operation around a strand or fibre centre



Compacted strand Steel Wire rope



stranded rope in which the strands, prior to closing of the rope, are subjected to a compacting process such as drawing, rolling or swaging





Compacted (swaged) Steel Wire rope



stranded rope which is subjected to a compacting (usually swaging) process after closing the rope, thus reducing its diameter

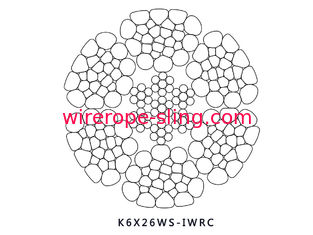

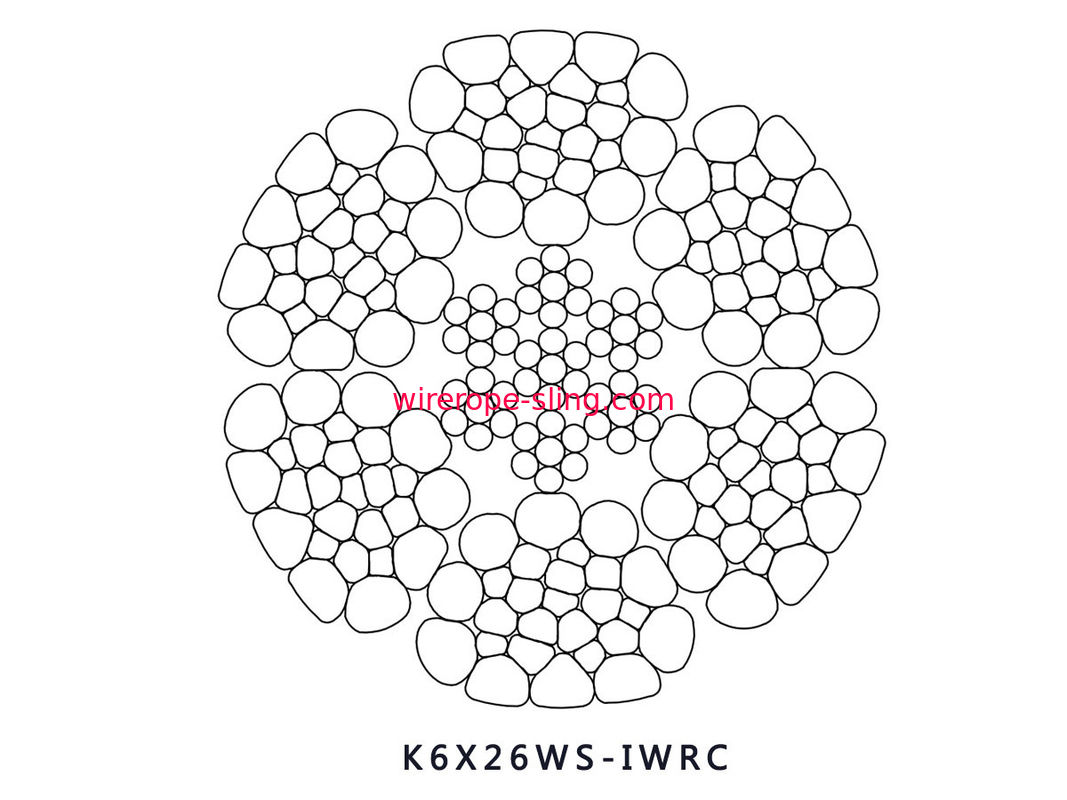

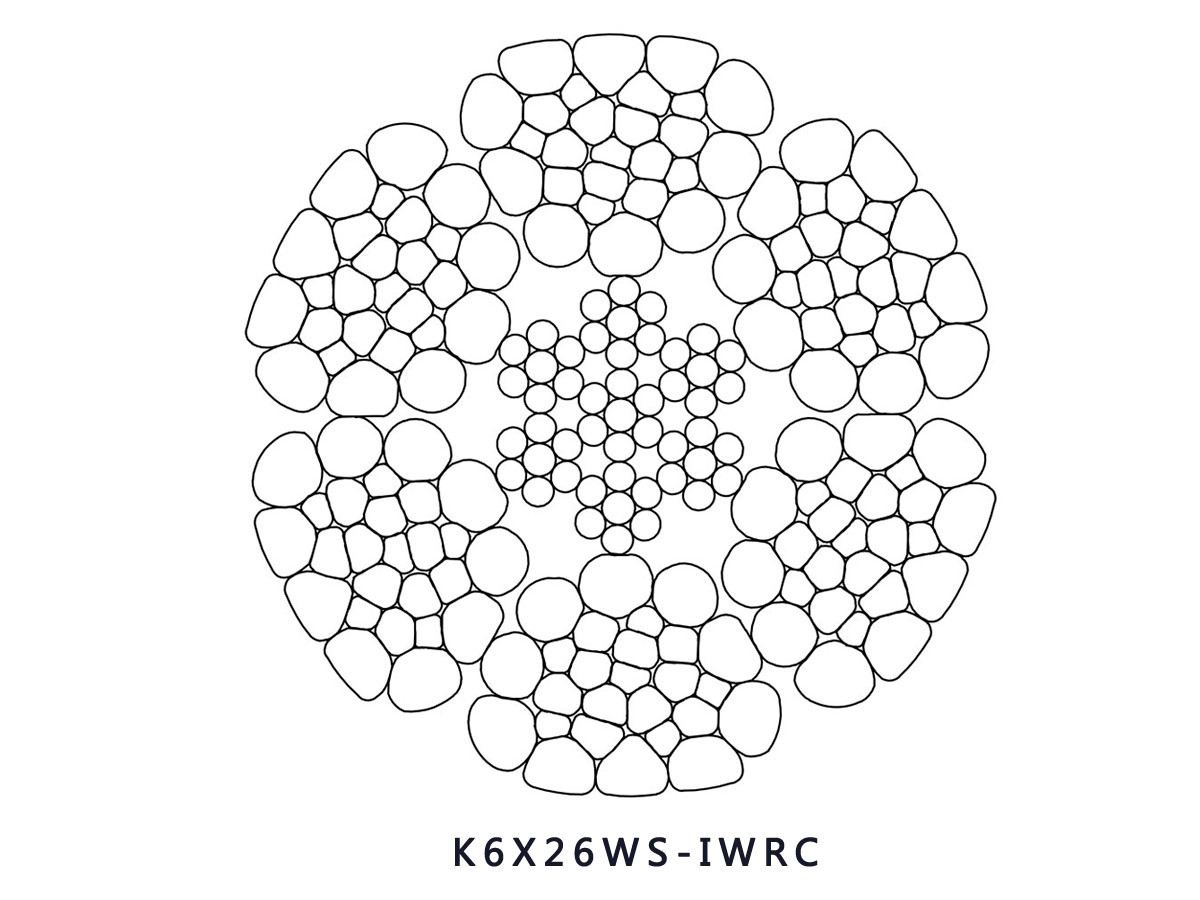

Swaged Steel Wire Rope K6 X 26WS IWRC Linear Contact Processing For Workover Operation 0



Advantage:



  • The breaking coefficient of the wire rope is higher than that of the wire rope.
  • It has excellent wear resistance, extrusion resistance and stability.
  • Good flexibility and fatigue resistance




Application



  • Workover operation steel wire rope



Technical Table





Dia.

/mm
Weight

kg/100m
Tensile Strength/MPa
1570 1670 1770 1870
Minimum Breaking Load/kN
16 128 179 190 202 213
18 162 226 241 255 270
19 180 252 268 284 301
20 200 279 297 315 333
22 242 338 360 381 403
24 287 402 428 454 480
25 312 437 465 493 520
26 337 472 503 533 563
28 391 548 583 618 653
30 449 629 669 709 749
32 502 703 748 792 837
34 567 793 844 895 945
35 601 841 894 948 1001
36 630 881 938 994 1050
38 696 973 1035 1097 1159
40 771 1078 1078 1215 1284





Recommended to use compacted inclined shaft winch wire rope type 6 * K19S+FC, K6X26WS+IWRC



Why is it recommended to use 6 * K19S+FC of this type of wire rope structure? Because this belongs to the Compacted Steel Wire Rope model, the Compacted Steel Wire Rope has a very large density coefficient through the mold drawing or roll rolling, and the breaking tensile force of the Compacted Steel Wire Rope is more than 25% higher than that of the ordinary one under the same same specification and tensile strength. Point contact steel wire rope, for example, 6 x 19+FC is prone to break wires, strand stock two times forming, unstable. Another feature of 6 * K19S+FC is that it is not easy to take shape when it is used, and has good compression and corrosion resistance. It can also reduce rotation in use. However, the price of Compacted Steel Wire Rope is usually about 1.3-1.5 times the price of point contact, which is about 6 times that of the steel wire price of liner contact.
