4V * 39S 5FC Special Wire Rope , Swage Terminals Wire Rope For Oil Fishing

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 4V*39S+5FC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Processing:Swaged BeatingSurface:As Request
Tensile Strength:As RequestDiameter:10mm-48mm
Core:Fiber CoreMaterial:Steel
Length:500mtrs/1000mtrs/2000mtrs AvailablePacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description

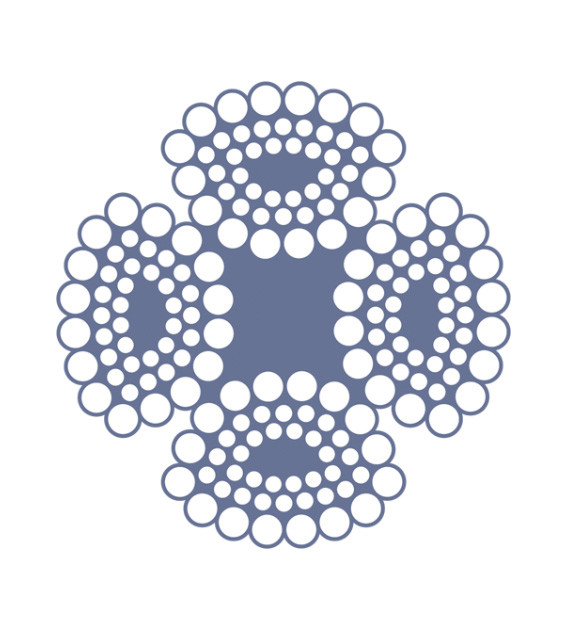

4V*39S+5FC Swaged Steel Wire Rope, Special wire rope for oil fishing



What are the features of 4V*39S+5FC Swaged wire rope?


The four strands of non rotating wire rope 4V*39S+5FC and 4V*48S+5FC are often produced by forging and beating in the production process. The structure of the wire rope is more stable, and the twist direction of the strand and the rope are opposite, the number of single strand wire rope has only four shares, and the twist distance of the rope is often used to reduce the twist distance of the strand. The effect of rotation.
The characteristics of this kind of single strand micro non rotating wire rope are:
First, the breaking force is high, because through the forging, the wire rope is more tight, and the same size is more than 8% more than that of the ordinary 6 strands.
Second, although 4v*39s+5fc is rather rigid, we can learn from the type of wire rope structure that the wire rope of this variety is composed of 156 steel wires, and each rope has a FC fiber core filled in the middle, and the softness of the stock is much larger than that of 6*19+FC, 6*19S+FC, 6*19W+FC and 6 *25Fi+IWR.
Third, because the wire rope of this kind of rope is S SW structure, everyone knows that the outer layer of S type wire rope is thicker, so 4V*39S+FC is more wear-resistant, its surface is smooth and the structure is stable, because the anti fatigue property is strong.
Fourth, the non rotational performance of the wire rope has an incomparable advantage over the traditional 6 strand rope when lifting heavy objects at high altitude.
It is important to note that, in the course of the wire rope running, no matter the new rope or the old one, we should pay attention to the urgent stop of the high speed and heavy load, and let the new rope gradually adapt to the working condition, gradually eliminate the residual stress, so that the new rope and equipment will be fully ground.

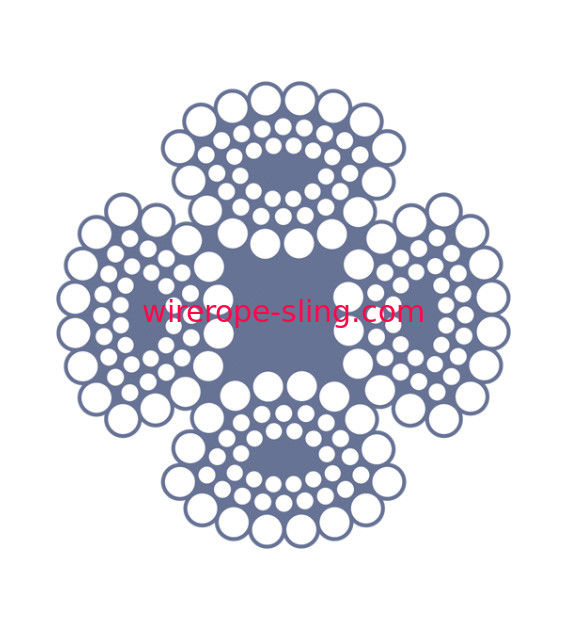

4V * 39S 5FC Special Wire Rope , Swage Terminals Wire Rope For Oil Fishing 0



Advantage:



  • The breaking coefficient of the wire rope is higher than that of the wire rope.
  • Good flexibility and fatigue resistance
  • It has excellent wear resistance, extrusion resistance and stability.




Application



  • Special wire rope for oil fishing



Technical Table



Dia.

/mm
Weight

kg/100m
Tensile Strength/MPa
1570 1670 1770 1870
Minimum Breaking Load/kN
10 41.7 60 64 67 71
11 50.4 72 77 82 86
12 59.9 86 92 97 103
13 70.3 101 108 114 120
14.5 87.5 126 134 142 150
16 106.5 153 163 173 182
18 134.9 194 206 219 231
20 166.5 239 255 270 285
22 201.4 290 308 326 345
24 239.7 345 367 388 410
26 281.3 400 430 456 482
28 326.2 469 499 529 559
30 374.4 538 573 607 641
32 426.0 613 652 691 730
34 480.9 692 736 780 824
36 539.1 775 825 874 923
38 600.7 864 919 974 1029
40 665.6 957 1018 1079 1140
42 733.8 1055 1123 1190 1257
44 805.4 1158 1234 1306 1379
46 880.2 1266 1346 1427 1508
48 958.5 1378 1466 1554 1642
