Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |

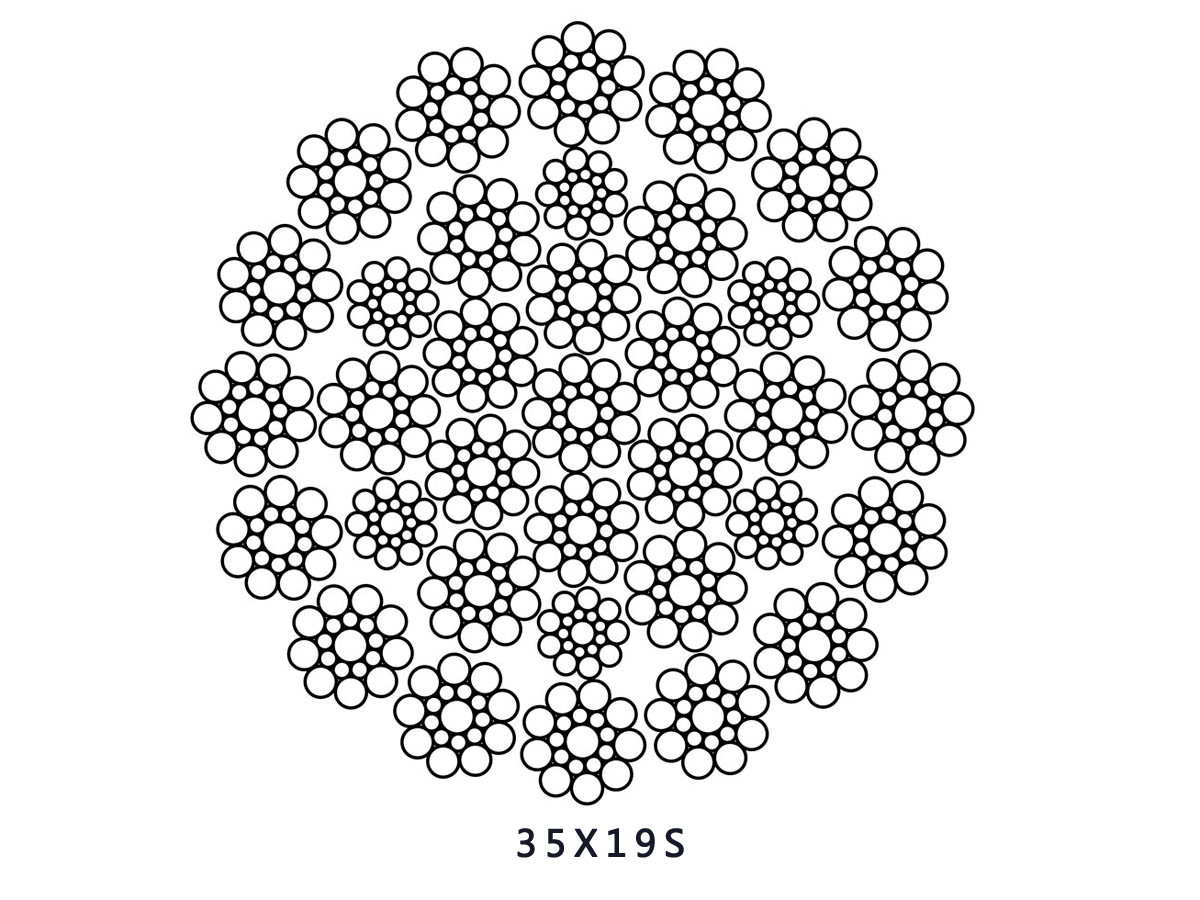

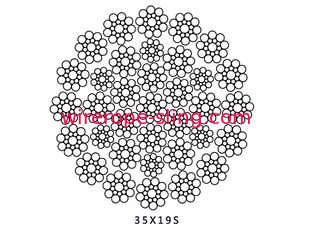

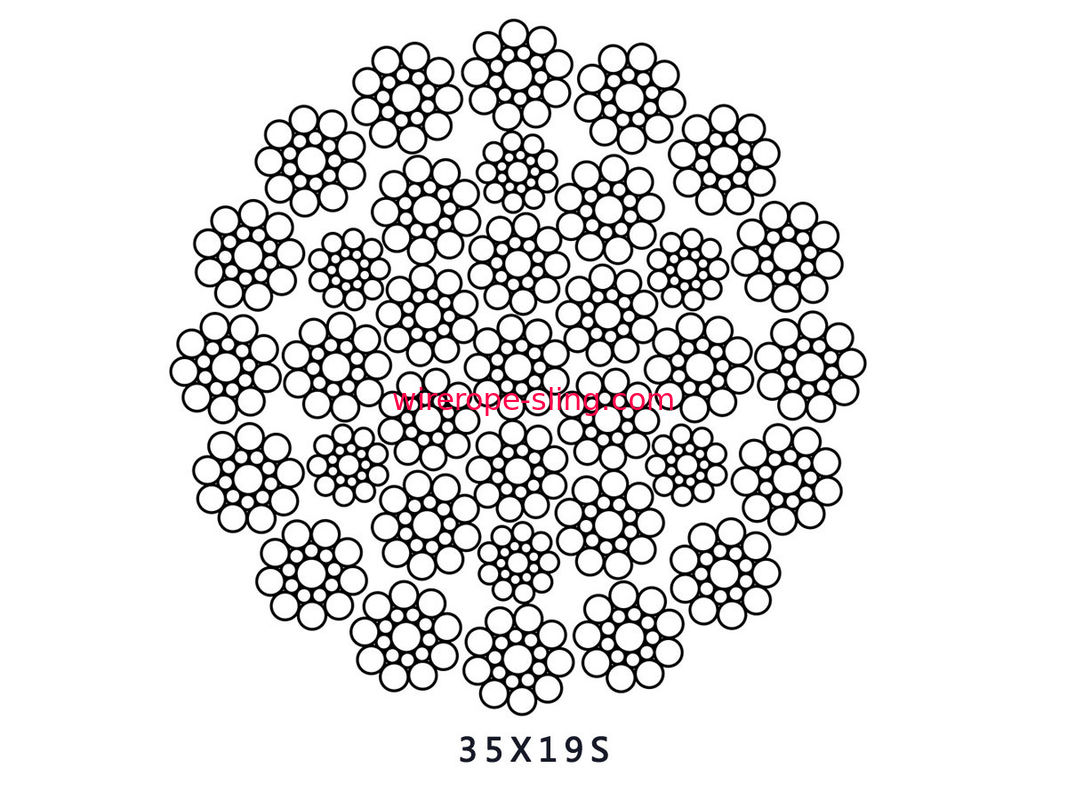

Model Number: | 35X19S |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | As Request |
---|---|---|---|
Tensile Strength: | As Request | Diameter: | 16mm-40mm |
Core: | Fiber Core/IWS | Processing: | Anti-Rotation |
Length: | 500mtrs/1000mtrs/2000mtrs Available | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description
Multi Layer non rotating wire rope is also called resistance rotary wire rope. Multi storey non rotating wire rope specifications: 35W*7,18*7,19*7,18*19S. Among them, 18*7,19*7 is also called micro rotary wire rope and half rotary wire rope. Non rotating wire rope is mainly used for wharf crane, electric hoist crane, automobile crane, tower crane. The structure wire rope specifications: 18*7-3mm-60mm, 35W*7-12mm-60mm
The most common type of anti rotating wire rope corresponding to the tower crane wire rope has two kinds of 35W*7 and 18*7+FC, and the two kinds of wire rope are made of layered twisting in the process of production, and the wire rope is more delicate. The normal use of wire rope of rear tower crane is a good guarantee premise. Many Tower Cranes use multi-layer non rotating steel wire rope often appear wire rope strands entangled together, or wire rope strands are scattered in the form of lanterns, or wire rope there is the existence of reverse force and torsion, which means that the wire rope is not properly installed, there is stress before the wire rope installation. The price of non rotating wire rope 35W*7 and 18*7+FC wire rope is more expensive than ordinary wire rope. If improper use of wire rope, it is certainly an unnecessary loss to the customer.
For wire rope handling, we should prevent the forklift from damaging the wire rope. The incorrect way of handling, unwinding and opening the wire rope is mainly from the following kinds. Please contact us for more information.
Advantage:
Application
Technical Table
Dia.(mm) | Weight(kg/m) | MBL(kN) | ||
1770 MPA | 1960 MPA | 2160 MPA | ||
16 | 1.165 | 178 | 193 | 217 |
18 | 1.474 | 223 | 241 | 271 |
19 | 1.643 | 251 | 275 | 308 |
20 | 1.820 | 278 | 299 | 336 |
22 | 2.202 | 337 | 368 | 413 |
24 | 2.621 | 401 | 439 | 493 |
26 | 3.076 | 469 | 514 | 576 |
28 | 3.567 | 549 | 596 | 646 |
32 | 4.659 | 711 | 765 | 829 |
36 | 5.897 | 906 | 977 | 1,060 |
40 | 7.280 | 1,112 | 1,200 | 1,300 |
