Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | 35XK7 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Packing: | Wooden Reel | Length: | 500mtrs/1000mtrs/2000mtrs Available |
---|---|---|---|
Tensile Strength: | As Request | Diameter: | 16mm-40mm |
Core: | Fiber Core/IWS | Processing: | Anti-Rotation&Compacted |
Surface: | As Request | Material: | Steel |
High Light: |
wire rope cable,steel rope cable |
Product Description

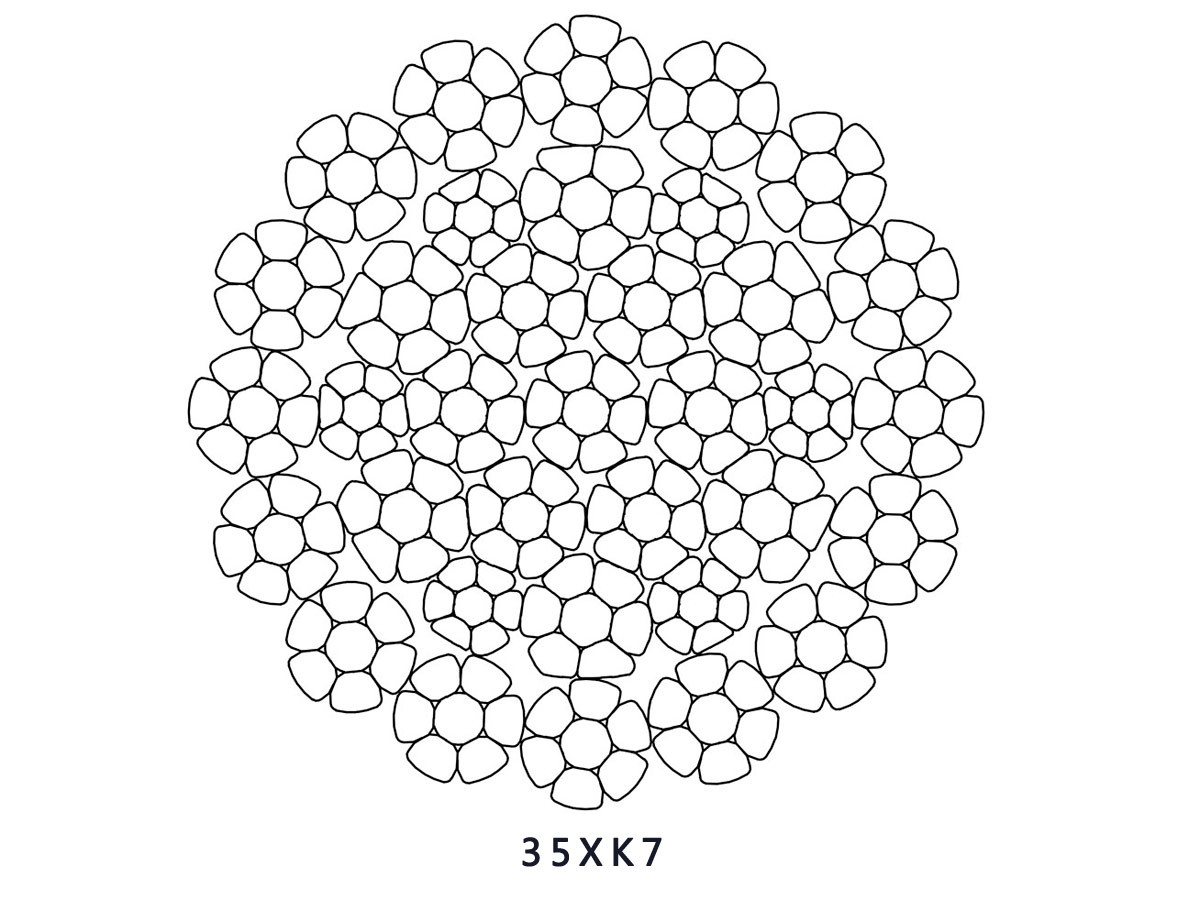

Multi Layer non rotating wire rope is also called resistance rotary wire rope. Multi storey non rotating wire rope specifications: 35W*7,18*7,19*7,18*19S. Among them, 18*7,19*7 is also called micro rotary wire rope and half rotary wire rope. Non rotating wire rope is mainly used for wharf crane, electric hoist crane, automobile crane, tower crane. The structure wire rope specifications: 18*7-3mm-60mm, 35W*7-12mm-60mm
The steel wire rope of the rotary excavator must first withstand the extrusion resistance, so the wire rope and rope must be rolled. Secondly, it must have good wear resistance, so the special steel wire rope steel wire for the rotary excavator is required as a flat steel wire, so the contact surface of the wire rope and the wheel groove is larger, third, the wire rope has to be revolving, so the special steel of the rotary excavator is made. The wire rope 35W*K7 and 35T*7 are born in this case; the Sany, the South car, the Xugong, the north and so on are used for the use of this type of wire rope, the Chengdu rotary excavator wire rope, the Chongqing rotary excavator wire rope, the Bijie rotary excavator wire rope, the Zhengzhou rotary excavator wire rope, the Guiyang Roger wire ropes, Hangzhou rotary excavator wire rope . The wire ropes of the rotary excavator are all clear 35W*K7
Advantage:
The most excellent anti rotation performance
Provide the maximum pulling force in the wire rope of the same diameter, having the highest "pull to diameter ratio".
Can be used with the rotating bracket
Better resistance to extrusion and wear resistance.
Application
Technical Table
Dia.(mm) | Weight(kg/m) | MBL(kN) | ||
1770 MPA | 1960 MPA | 2160 MPA | ||
16 | 1.165 | 178 | 193 | 217 |
18 | 1.474 | 223 | 241 | 271 |
19 | 1.643 | 251 | 275 | 308 |
20 | 1.820 | 278 | 299 | 336 |
22 | 2.202 | 337 | 368 | 413 |
24 | 2.621 | 401 | 439 | 493 |
26 | 3.076 | 469 | 514 | 576 |
28 | 3.567 | 549 | 596 | 646 |
32 | 4.659 | 711 | 765 | 829 |
36 | 5.897 | 906 | 977 | 1,060 |
40 | 7.280 | 1,112 | 1,200 | 1,300 |
