Wear - Resisting Steel Wire Rope Safety For Automobile Crane Tower Crane

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 34X7
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:SteelPacking:Wooden Reel
Tensile Strength:As RequestDiameter:16mm-40mm
Core:Fiber Core/IWSProcessing:Anti-Rotation
Length:500mtrs/1000mtrs/2000mtrs AvailableSurface:Galvanized Or Ungalvanized
High Light:

wire rope cable

,

steel rope cable

Product Description

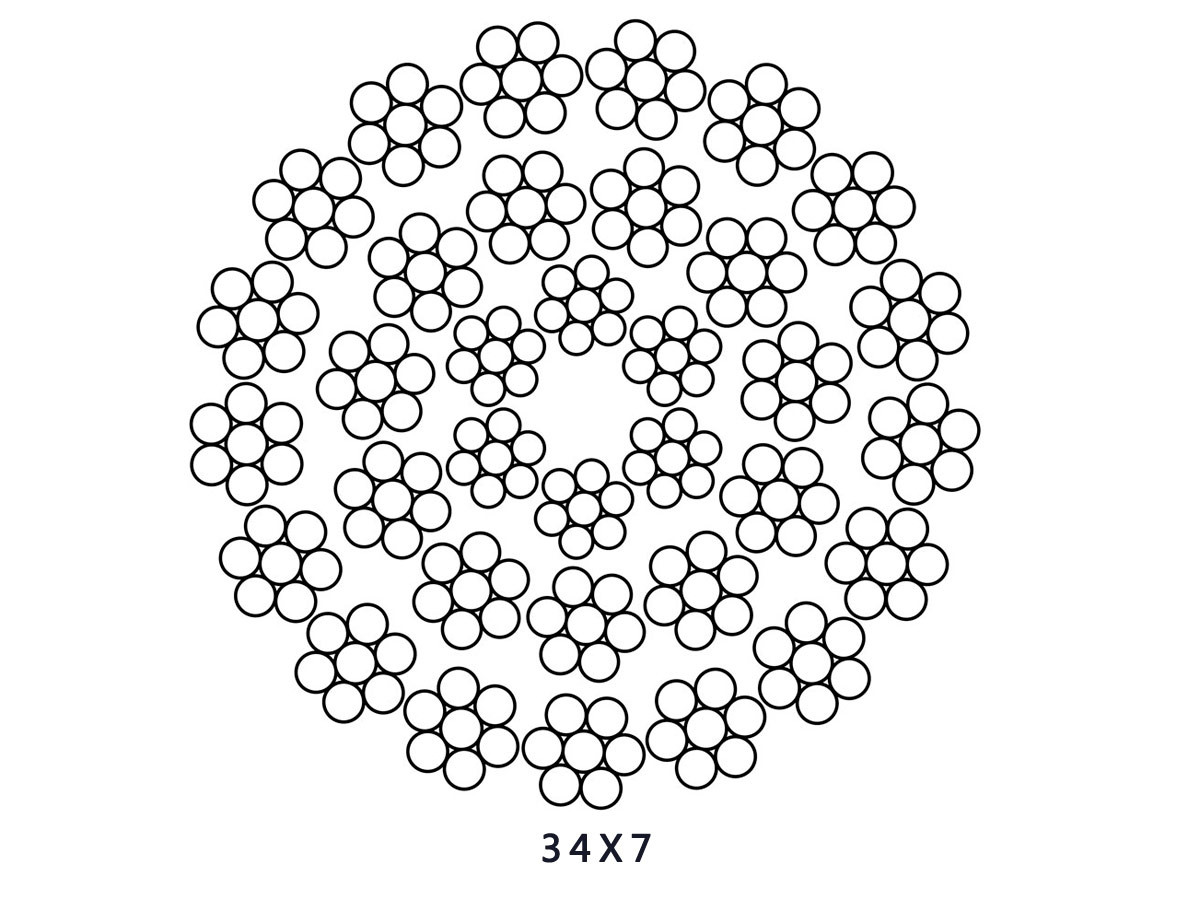

34X7 Non-Rotation Steel Wire Rope for automobile crane, tower crane


rotation-resistant rope
multi-strand rope (superseded)
non-rotating rope (superseded)
stranded rope designed to generate reduced levels of torque and rotation when loaded
Note 1 to entry: Rotation-resistant ropes generally comprise an assembly of at least two layers of strands laid helically around a centre, the direction of lay of the outer strands being opposite to that of the underlying layer.
Note 2 to entry: Ropes having three or four strands can also be designed to exhibit rotational-resistant properties.



Multi Layer non rotating wire rope is also called resistance rotary wire rope. Multi storey non rotating wire rope specifications: 35W*7,18*7,19*7,18*19S. Among them, 18*7,19*7 is also called micro rotary wire rope and half rotary wire rope. Non rotating wire rope is mainly used for wharf crane, electric hoist crane, automobile crane, tower crane. The structure wire rope specifications: 18*7-3mm-60mm, 35W*7-12mm-60mm



In the national standard, the 35W*7 wire rope is mainly divided into two kinds of structure, one is 35W*7, one is 24W*7, and the steel wire rope is produced by layered twisting, the production of wire rope is first inner layer, then the outer layer and two twists are made. This kind of wire rope is currently used in high rise hoisting mechanism, such as tower crane, tower crane and so on. Many tower crane factories define 35W*7 as the special wire rope for tower crane, especially in Guangxi construction machine, Sichuan construction, Shenyang construction, Beijing construction machine, Shanghai construction machine market and so on, common tower crane wire rope specification 12mm/13mm/14mm/16mm/18mm /20mm. The price of 35W*7 is more expensive than that of other wire rope with contact point and line contact, even exceeding the wire rope of piling machine.

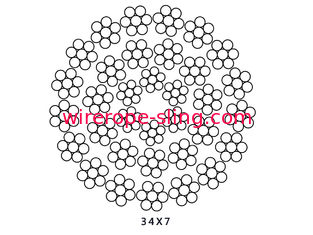

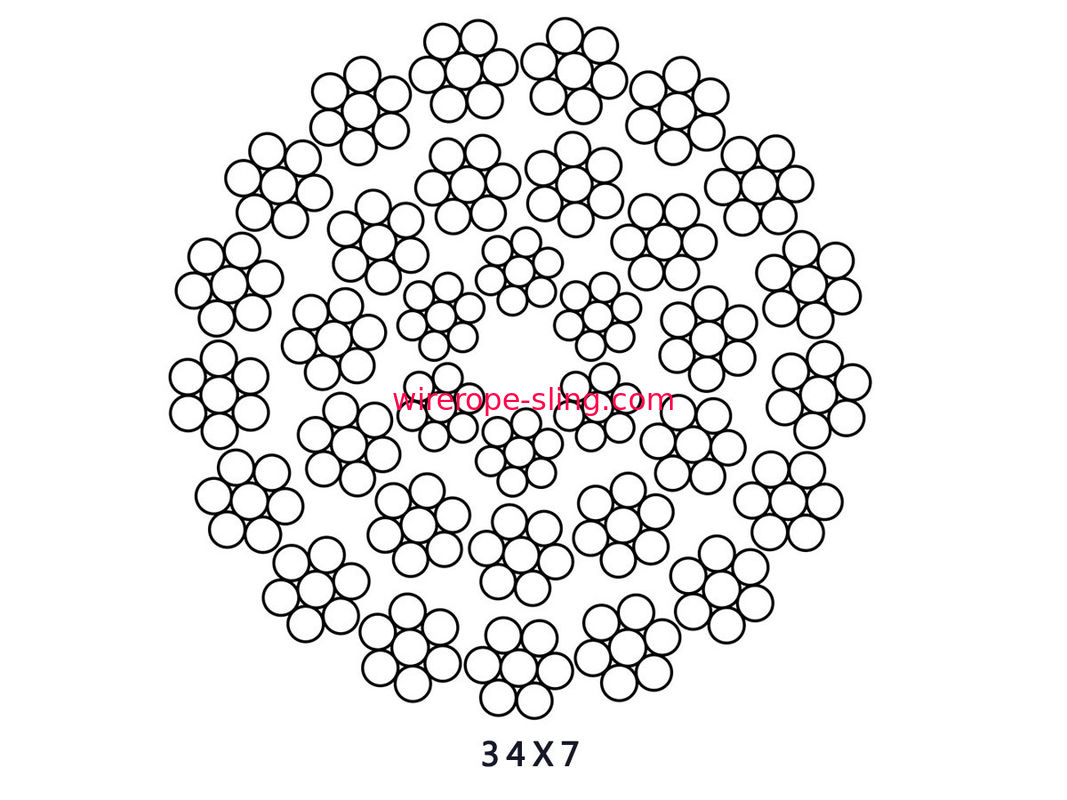

Wear - Resisting Steel Wire Rope Safety For Automobile Crane Tower Crane 0





Advantage:



  • Provide the most excellent anti rotation performance
  • Good extrusion resistance of reel
  • High breaking load




Application





  • Main and auxiliary lifting rope, such as tower crane, crawler type hydraulic crane and so on.



Technical Table



Dia.(mm) Weight(kg/m) MBL(kN)
1770 MPA 1960 MPA 2160 MPA
16 1.165 178 193 217
18 1.474 223 241 271
19 1.643 251 275 308
20 1.820 278 299 336
22 2.202 337 368 413
24 2.621 401 439 493
26 3.076 469 514 576
28 3.567 549 596 646
32 4.659 711 765 829
36 5.897 906 977 1,060
40 7.280 1,112 1,200 1,300
